3.ヘッド ２(インデックス)(DDPH) 3.Head 2(Index)(DDPH) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg. No. & Code No. QTY Description Rating Remarks 1 DFPH0181 1 BKT, MOTOR BKT ﾓｰﾀ 2 DFPH0191 1 BKT, MOTOR BKT ﾓｰﾀ 4 DFPH0430 2 BKT BKT 5…
NP-153E PARTS LIST ver03
3 - 1

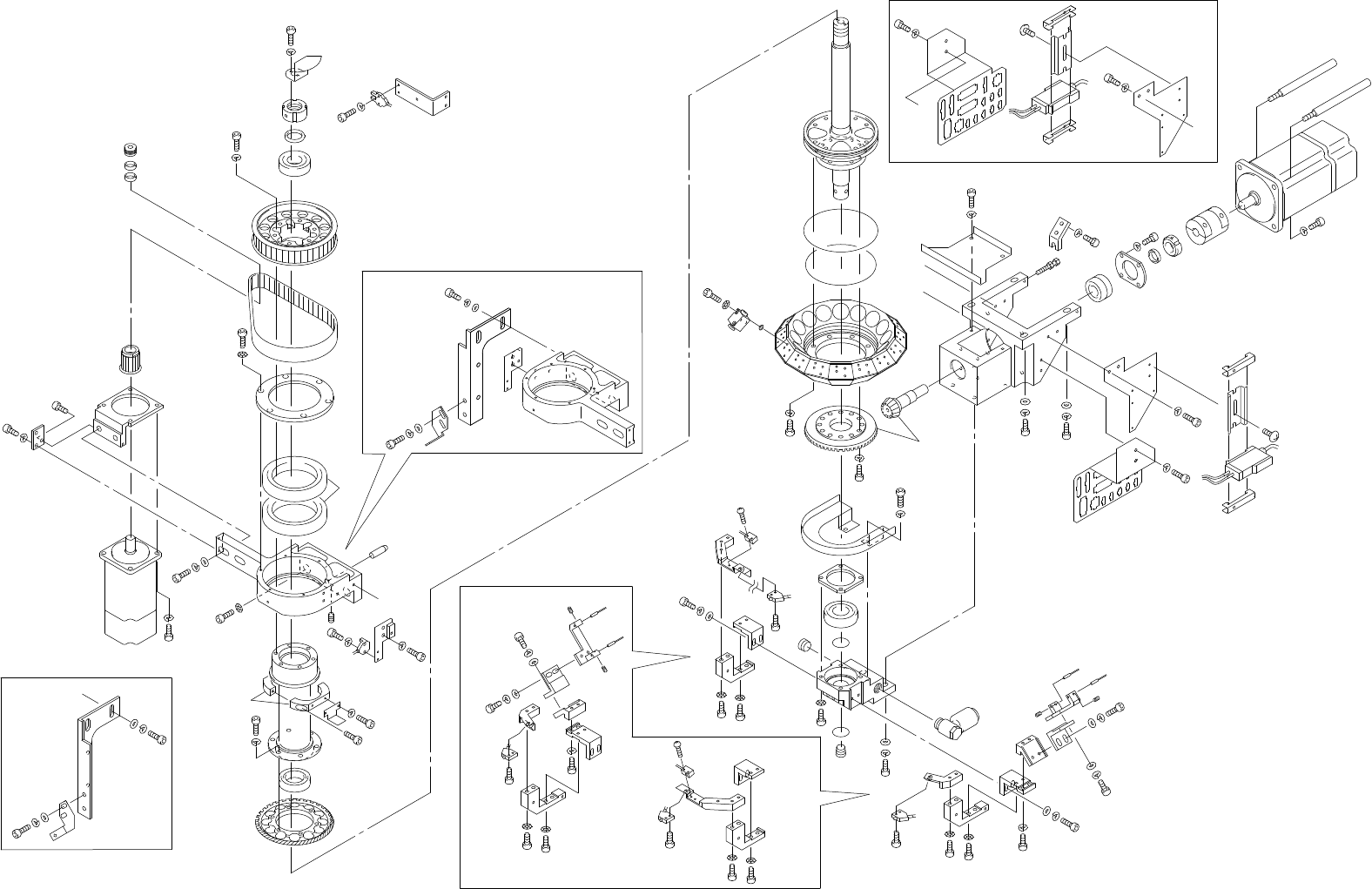

3.ヘッド 2(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
3.ヘッド 2(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
46
58
134
143
144
69
40
43
45
69
53
135
70
41
42
69
53
44
100
127
128
110
111
111
124
125
124
110
111
127
128
111
126
B
A
C
C
B
A
Side 2
70
56
70
56
56
70
56
70
71
107
26
98
71
62
61
71
1
67
73
75
56
70
74
141
139
56
70
74
142
140
67
79
83
9
25
2
35
11
70
56
58
12
37
5
78
57
38
102
6
24
99
69
53
32
32
15
Side 2
Side 1
39
x6.5
115
115
131
72
120
112
119
118
109
70
129
114
122
123
117
132
72
137
136
72
137
121
132
145
146
72
138
70
129
130
71
113
71
61
57
70
34
106
108
108
108
108
105
105
105
105
104
86
78
58
87
78
56
57
70
74
93
57
70
74
94
57
70
95
78
58
88
78
56
91
57
70
74
92
57
74
70
94
95
78
58
88
78
56
78
58
87
97
31
30
23
55
77
103
58
70
74
56
70
74
78
56
52
47
90
33
81
52
48
91
84
57
70
28
71
63
29
60
78
4
29
27
7
74
70
58
56
74
140
70
86
52
48
33
81
89
52
47
Side 2
3.ヘッド ２(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
1 DFPH0181 1 BKT, MOTOR BKT ﾓｰﾀ
2 DFPH0191 1 BKT, MOTOR BKT ﾓｰﾀ
4 DFPH0430 2 BKT BKT
5 DFPH0410 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
6 DFPH0560 2 COLLAR ｶﾗｰ
7 DFPH0200 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
9 DFPH0220 2 PIN, LOCATING ﾋﾟﾝ 位置決め
11 DFPH0230 2 PLATE ﾌﾟﾚｰﾄ
12 DFPH0241 2 BKT, MOTOR BKT ﾓｰﾀ
15 DFPH0250 2 BOLT, CLAMP ﾎﾞﾙﾄ ｸﾗﾝﾌﾟ
23 DFPH0260 2 HOLDER ﾎﾙﾀﾞ
24 N1023A 2
NUT, LOCK
ﾅｯﾄ ﾛｯｸ ZMV20
25 H42697 2 BEARING ﾍﾞｱﾘﾝｸﾞ 7912A5DB
26 H42694 2 BEARING ﾍﾞｱﾘﾝｸﾞ 7905A5 P5
27 H4206H 2
BEARING
ﾍﾞｱﾘﾝｸﾞ 60/22ZZ
28 A3034A 2
PLUG
埋栓
PT1/8
29 H1167D 4 PACKING ﾊﾟｯｷﾝ MY-20
30 A5170Y 2 O RING Oﾘﾝｸﾞ S90
31 A51701 2 O RING Oﾘﾝｸﾞ S95
32 R20598 4 RING, LOCKING ﾘﾝｸﾞ 締結 PL012X015E
33 S4032S 2 SENSOR ｾﾝｻ UM-T50SV
34 DFPH0070 2 MOTOR ﾓｰﾀ
35 DFPH0080 2 MOTOR ﾓｰﾀ
37 DFPH0360 2 PULLEY, TIMING ﾌﾟｰﾘ ﾀｲﾐﾝｸﾞ
38 H4521W 3 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 450-5GT-20
39 DFPH0380 2 GEAR, BEVEL ｷﾞﾔ ﾍﾞﾍﾞﾙ
40 DFPH0040 2 DOG ﾄﾞｯｸﾞ
41 DFPH0050 1 BKT BKT
42 DFPH0060 1 BKT, SENSOR BKT ｾﾝｻ
43 CPPH2810 2 HOLDER ﾎﾙﾀﾞ
44 S40441 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX770
45 S40445 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX771
46 H4269W 2 BEARING, ANGULAR ﾍﾞｱﾘﾝｸﾞ ｱﾝｷﾞｭﾗ 7004CP4
47 S40546 1 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S097
48 S40547 1 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S098
52 H5271A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2.6X8L
53 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
NP-153E PARTS LIST ver03
3 - 2
3.ヘッド 2(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
3.ヘッド ２(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No.
Drg. No. & Code No.
QTY Description Rating Remarks
54 H5278A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X15L
55 H5263A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X18L
56 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L
57 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L
58 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15L
59 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X18L
60 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X20L
61 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
62 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
63 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X18L
65 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L
66 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X18L
67 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X20L
69 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
70 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
71 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
72 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
73 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
74 W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4
75 W1046A
WASHER, FLAT
ﾜｯｼｬ 平
4W-8
77 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L
78 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L
79 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-8-H
80 N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7
81 K5176A
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋
M2.5X10L
83 . SCREW,HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X6L
84 Y3045L 2 UNION,ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ SL16-03
86 CTPH0170 2 BKT BKT CX1∼21
87 DFPH0270 2 BKT BKT
88 CTPH0200 2 BKT BKT CX1∼21
89 CTPH0180 1 BKT, SENSOR BKT ｾﾝｻ CX1∼21
90 CTPH0190 1 BKT, SENSOR BKT ｾﾝｻ CX1∼21
91 DFPH0820 2 BKT BKT
92 DFPH0290 1 BKT, SENSOR BKT ｾﾝｻ
93 DFPH0300 1 BKT, SENSOR BKT ｾﾝｻ
94 DFPH0310 2 BKT BKT
95 DFPH0320 2 BKT BKT
NP-153E PARTS LIST ver03
3 - 3
3.ヘッド 2(インデックス)(DDPH)
3.Head 2(Index)(DDPH)
