17.メインコンベア(DAPP) 17.Main conveyor(DAPP) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 DDPP1040 2 PLATE ﾌﾟﾚｰﾄ 2 DDPP1080 2 PLATE ﾌﾟﾚｰﾄ 3 DDPP1090 1 BKT BKT 4 DDPP1100 1 BKT BKT…

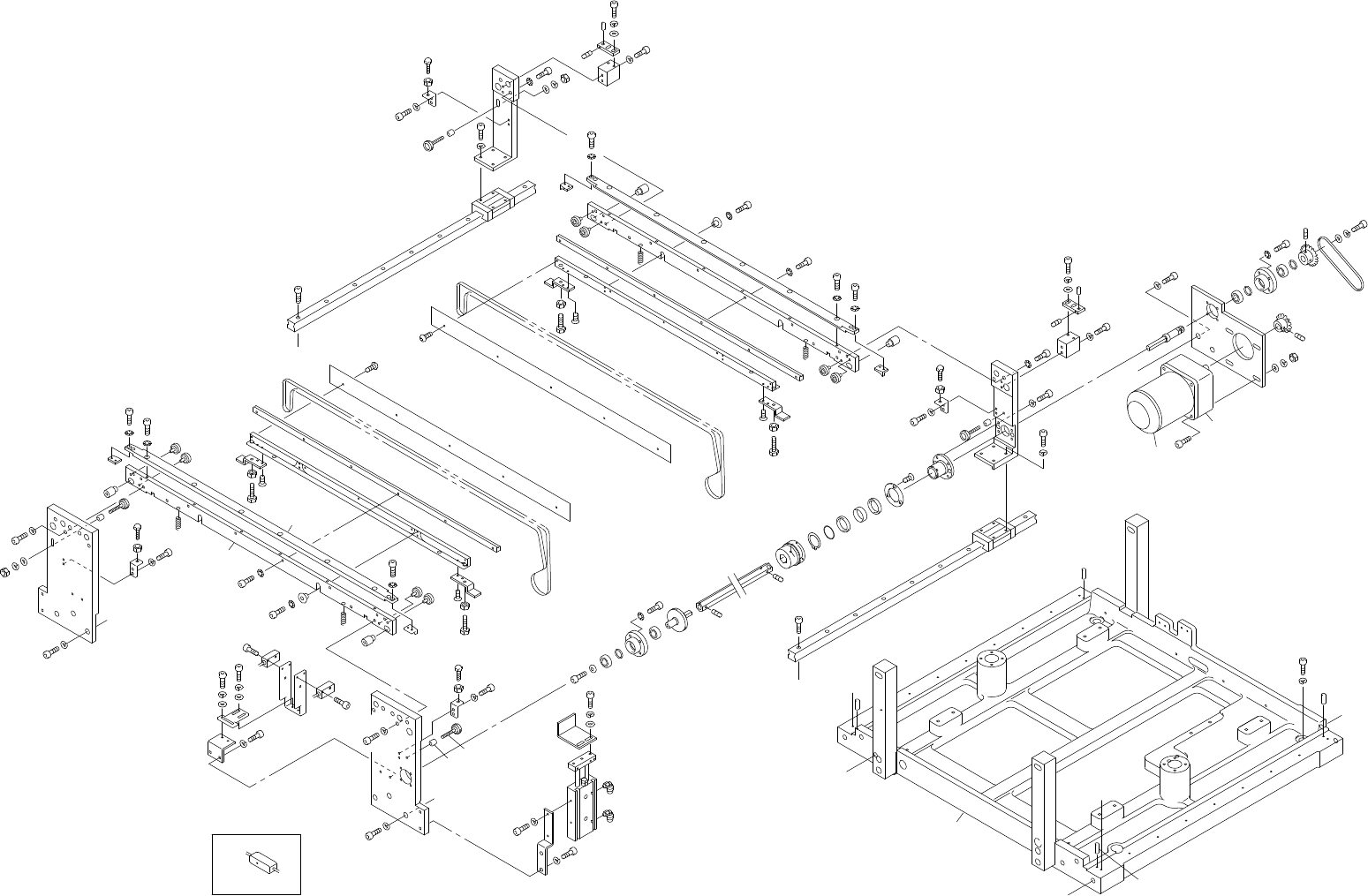

17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
NP-153E PARTS LIST ver03
17 - 1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
0.5 1 2
x9
x7.5
5
84
75
90
84
74
64
6
44
96
84
90
95
76
4
72
84
39
97
27
53
14
84
73
68
57
93
65
37
55
67
93
23
93
67
94
72
93
65
7
21
28
28
54
63
39
97
10
61
2
20
22
1
39
97
9
63
54
28
28
38
55
79
86
92
42
70
32
36
49
72
94
24
36
49
71
30
97
85
91
19
41
40
78
87
80
31
90
84
74
44
6
64
75
84
5
3
95
76
84
72
84
73
39
97
27
84
72
14
53
25
62
33
35
51
51
34
52
29
15
70
70
72
94
26
49
24
36
49
50
76
57
68
C
D
E
88
82
43
43
43
43
56
61
2
20
55
90
84
96
85
77
87
81
12
14
53
27
84
72
97
39
54
63
39
97
9
22
1
28
28
38
93
65
21
7
94
72
10
39
97
63
93
65
28
28
93
67
67
93
23
54
37
55
39
97
72
84
27
53
14
67
83
18
16
89
83
66
89
83
67
17
47
98
69
69
85
77
8
90
84
73
45
46
46
76
85
13
83
66
19
81
87
48
C
D
E
A
B
B
A
17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 DDPP1040 2 PLATE ﾌﾟﾚｰﾄ
2 DDPP1080 2 PLATE ﾌﾟﾚｰﾄ
3 DDPP1090 1 BKT BKT
4 DDPP1100 1 BKT BKT
5 DDPP0550 2 BLOCK ﾌﾞﾛｯｸ
6 DDPP0560 2 BKT BKT
7 DDPP1110 2 RETAINER, RAIL 押え ﾚｰﾙ
8 DDPP1150 1 STOPPER ｽﾄｯﾊﾟ
9 DDPP1160 2 PLATE ﾌﾟﾚｰﾄ
10 DDPP1170 2 PLATE ﾌﾟﾚｰﾄ
11 DDPP1180 1 BKT BKT
12 DDPP1190 1 BKT BKT
13 DDPP1200 1 BKT BKT
14 DDPP0360 4 PULLEY ﾌﾟｰﾘ
15 DDPP1210 1 SHAFT ｼｬﾌﾄ
16 DDPP1220 1 BKT, SENSOR BKT ｾﾝｻ
17 DDPP1230 1 BKT, SENSOR BKT ｾﾝｻ
18 DDPP1240 1 BKT, SENSOR BKT ｾﾝｻ
19 DDPP1250 1 BKT BKT
20 DDPP1260 2 CONVEYOR, BELT ｺﾝﾍﾞｱ ﾍﾞﾙﾄ
21 DDPP1270 2 PLATE ﾌﾟﾚｰﾄ
22 DDPP1280 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
23 DBPP0490 4 GUIDE ｶﾞｲﾄﾞ
24 DBPP0350 2 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ
25 BHPP1080 1 HOLDER ﾎﾙﾀﾞ
26 BHPP1150 1 PULLEY ﾌﾟｰﾘ
27 DFPP0370 4 BKT BKT
28 BHPP1790 4 PULLEY ﾌﾟｰﾘ
29 BHPP1810 1 PULLEY ﾌﾟｰﾘ
30 BHQC0361 1 SPROCKET ｽﾌﾟﾛｹｯﾄ
31 DDPP0390 1 SHAFT ｼｬﾌﾄ
32 CLN8690 1 SPROCKET ｽﾌﾟﾛｹｯﾄ
33 IQC5440 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
34 IQC5750 1 COLLAR ｶﾗｰ
35 IQC5760 1 COLLAR ｶﾗｰ
36 GVC0141 3 COLLAR ｶﾗｰ
37 PPT1381 2 GUIDE ｶﾞｲﾄﾞ
NP-153E PARTS LIST ver03
17 - 2
17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
38 PPT1391 2 GUIDE ｶﾞｲﾄﾞ
39 DFPP0380 8 STOPPER ｽﾄｯﾊﾟ
40 M5014Z 1 MOTOR, INDUCTION ﾓｰﾀｲﾝﾀﾞｸｼｮﾝ MSM315-401-E1
41 H4009A 1
HEAD, GEAR
ﾍｯﾄﾞ ｷﾞﾔ 3GN-7.5K
42 T2005A 1
CHAIN
ﾁｪｰﾝ RS25NP36ﾘﾝｸ
43 H2092X 4
PIN, PARALLEL
ﾋﾟﾝ 平行
3ﾟX8
44 H2094H 2
PIN, PARALLEL
ﾋﾟﾝ 平行
5ﾟX12
45 S2126L 1
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ CXSM10-K6869-35
46 Y3049E 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5
47 S4066T 1 SENSOR ｾﾝｻ HPL-S1-001(L-ON)
48 K40178 1 CABLE ｹｰﾌﾞﾙ HP-001(OFFﾃﾞｨﾚｲ)
49 H4440A 4
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1910ZZ
50 K11384 1
COLLAR
ｶﾗｰ SRW8
51 H4104A 2
BEARING
ﾍﾞｱﾘﾝｸﾞ A-2520
52 S1046A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ WR19
53 S5058X 1 SPACER ｽﾍﾟｰｻ CU-408
54 S3020T 4
SPRING
ｽﾌﾟﾘﾝｸﾞ WF5-30
55 Z9425DAQJ0010 4 PIN, ECCENTRIC ﾋﾟﾝ 偏心
56 DDPP1010 1 BASE ﾍﾞｰｽ
57 DDPP1030 2 GUIDE ｶﾞｲﾄﾞ
61 K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X6L
62 K5357H
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M3X5L
63 K5357T
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M3X8L
64 N4014A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M3X4L
65 H5273T
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X4L
66 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
67 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X10L
68 H5277A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X12L
69 H5278A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X15L
70 N4027A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M4X5L
71 N4028A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M4X6L
72 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L
73 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L
74 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15L
75 H5295A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X35L
76 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
77 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X20L
NP-153E PARTS LIST ver03
17 - 3
17.メインコンベア(DAPP)
17.Main conveyor(DAPP)
