NP-153E-03 - 第94页

28.1.PFU 残ﾃｰﾌﾟｶｯﾀ(DAUF) 28.1.PFU Waste tape(DAUF) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 DBYH0010 3 STAND ｽﾀﾝﾄﾞ 2 DDUF0180 1 CATCH PAN 受け皿 3 DDUF0320 1 DUCT ﾀﾞｸﾄ 5 DDUF…

100%1 / 104

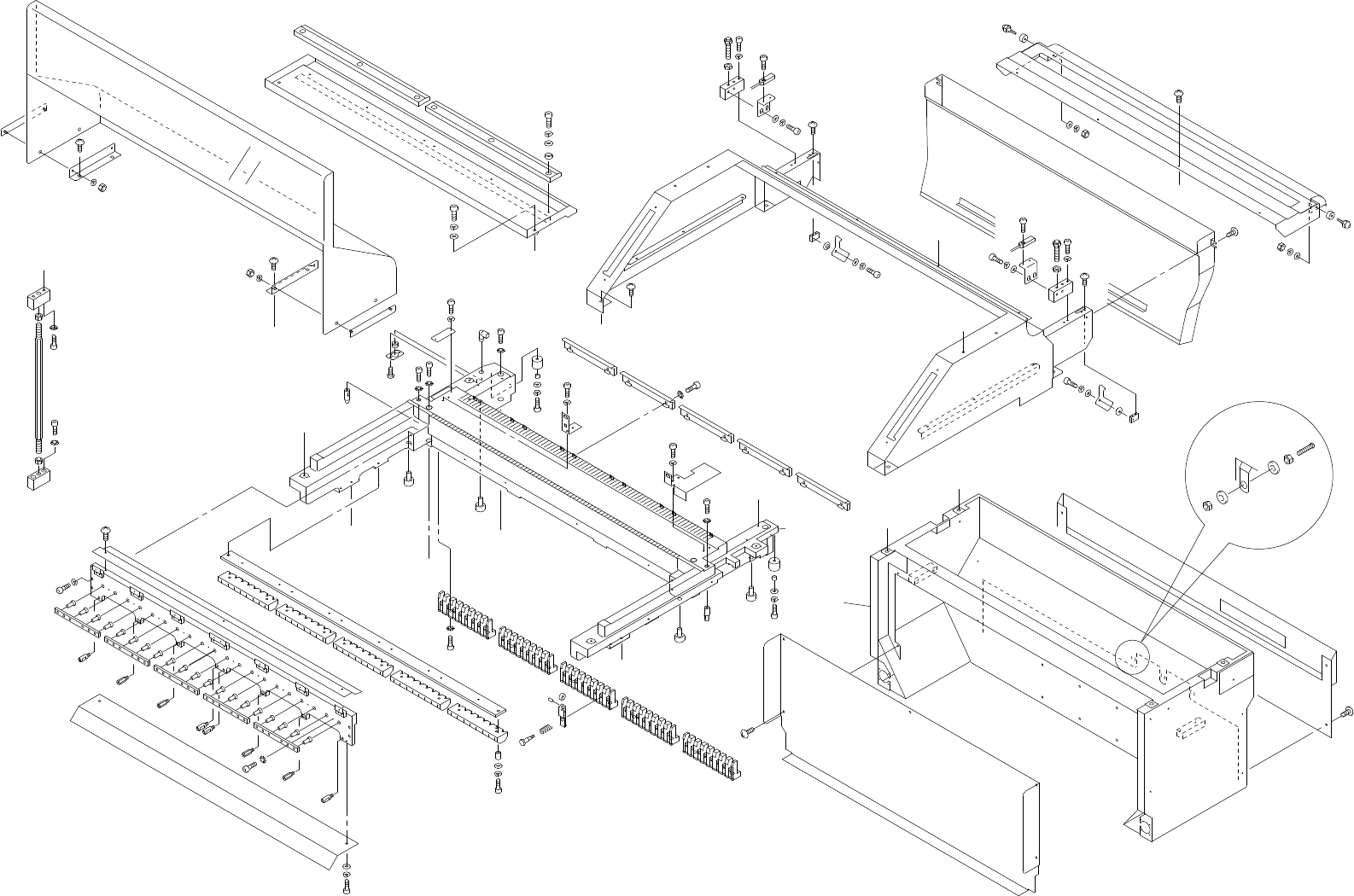

28.1.PFU 本体(DAUF)
28.1.PFU Body(DAUF)
28.1.PFU 本体(DAUF)
28.1.PFU Body(DAUF)
NP-153E PARTS LIST ver03
28 - 1
X11
G
G
F
E
15
15
101
E
51
74
70
61
61
70
74
52
50
50
91
89
91
89
69
90
69
90
44
44
48
49
70
86
86
70
49
48
84
67
71
103
60
70
74
53
82
73
69
88
88
69
73
84
80
80
83
73
69
56
73
69
56
104
81
C
11
29
28
28
29
31
27
30
30
27
31
5
12
16
2
3
8
87
87
9
1
47
47
B
A
13
F
75
70
100
92
37
37
38
38
38
99
102
40
40
40
39
40
95
97
78
98
98
78
96
D
D
D
17
17
6
60
70
94
69
54
24
24
24
36
36
36
36
45
45
45
68
79
66
78
72
67
80
57
76
64
77
63
70
74
85
77
65
68
79
60
70
65
77
62
70
74
C
10
18
17
17
17
45
37
37
38
40
14
6
41
32
42
34
33
24
24
36
62
70
74
22
19
19
35
35
26
25
46
21
20
B
A
7
28.1.PFU 残ﾃｰﾌﾟｶｯﾀ(DAUF)
28.1.PFU Waste tape(DAUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 DBYH0010 3 STAND ｽﾀﾝﾄﾞ
2 DDUF0180 1 CATCH PAN 受け皿
3 DDUF0320 1 DUCT ﾀﾞｸﾄ
5 DDUF0330 1 COVER ｶﾊﾞｰ
6 DDUF0380 1 PLATE ﾌﾟﾚｰﾄ
7 DDUF0280 1 BASE ﾍﾞｰｽ
8 DDUF0290 1 FRAME ﾌﾚｰﾑ
9 DDUF0220 1 COVER, FRONT ｶﾊﾞｰ ﾌﾛﾝﾄ
10 DDUF0200 1 PLATE ﾌﾟﾚｰﾄ
11 DDUF0300 1 COVER ｶﾊﾞｰ
12 DDUF0340 1 COVER ｶﾊﾞｰ
13 DDUF0240 1 COVER ｶﾊﾞｰ
14 DDUF0020 1 COVER ｶﾊﾞｰ
15 DDUF0190 2 GUIDE ｶﾞｲﾄﾞ
16 DBUF0140 6 COLLAR ｶﾗｰ
17 DBUF0150 3 GUIDE ｶﾞｲﾄﾞ
18 DBUF0180 10 COLLAR ｶﾗｰ
19 DDUF0210 2 STOPPER ｽﾄｯﾊﾟ
20 DDUF0100 1 PACKING, RUBBER ﾊﾟｯｷﾝ ｺﾞﾑ
21 DDUF0390 1 PLATE ﾌﾟﾚｰﾄ
22 DBVH0340 1 COVER, BLIND 蓋 盲
24 DBUF0230 5 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け
25 DBVH0360 1 PIN, LOCATING ﾋﾟﾝ 位置決め
26 DBVH0370 1 PIN, LOCATING ﾋﾟﾝ 位置決め
27 CGUF0270 2 COLLAR ｶﾗｰ
28 CGUF0281 2 PIN ﾋﾟﾝ
29 CGUF0290 2 COLLAR ｶﾗｰ
30 CGUF0480 2 JAW 爪
31 CGUF0490 2 BLOCK ﾌﾞﾛｯｸ
32 WSD0014 40 CLAMPER ｸﾗﾝﾊﾟ
33 WSD0641 40 BOLT ﾎﾞﾙﾄ
34 WSD0652 40 SPRING ｽﾌﾟﾘﾝｸﾞ
35 KPA2240 2 COLLAR ｶﾗｰ
36 DDUF0010 5 CLAMPER ｸﾗﾝﾊﾟ
37 DBUF0260 4 BOLT, POSITIONING ﾎﾞﾙﾄ 位置決め
NP-153E PARTS LIST ver03
28 - 2
28.1.PFU 本体(DAUF)
28.1.PFU Body(DAUF)
28.1.PFU 残ﾃｰﾌﾟｶｯﾀ(DAUF)
28.1.PFU Waste tape(DAUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
38 DBUF0270 4 BOLT, POSITIONING ﾎﾞﾙﾄ 位置決め
39 DBUF0280 20 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ
40 DDUF0030 5 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
41 H4435T 40
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1150ZZ
42 R5025T 40
ROLLER, NEEDLE
ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ5X10
44 H51373 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ UST4-30
45 K1089E 4
CAM FOLLOWER
ｶﾑﾌｫﾛｱ CF-SFU-10
46 Y3079T 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-02S
47 W1089A 6 WASHER ﾜｯｼｬ WSSB20-6-3
48 A1845DAUF0561 2 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
49 A1845DAUF0571 2 BKT BKT
50 CGUF0730 2 BLOCK ﾌﾞﾛｯｸ
51 CGUF0740 1 BKT, SENSOR BKT ｾﾝｻ
52 CGUF0750 1 BKT, SENSOR BKT ｾﾝｻ
53 DDUF0270 1 COVER ｶﾊﾞｰ
54 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
56 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L
57 H5277A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X12L
58 H5280A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X20L
59 H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X6L
60 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
61 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
62 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
63 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X18L
64 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
65 H5303A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L
66 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
67 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
68 H5350A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X70L
69 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
70 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
71 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
72 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
73 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
74 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
NP-153E PARTS LIST ver03
28 - 3
