INFINITY EX MAC HINE OV ERVI EW MAC HINE OV ERVI EWS 3.4 Technical Reference Manu al Chapter Is sue 3 Jan 04 Figure 3-3 Machine Circuit Breaker Panels DC Circuit Breaker Panel ac Circuit Breaker Panel dc Circuit Breaker …
INFINITY
EX
MACHINE OVERVIEW
MACHINE OVERVIEWS
Chapter Issue 3 Jan 04 Technical Reference Manual 3.3

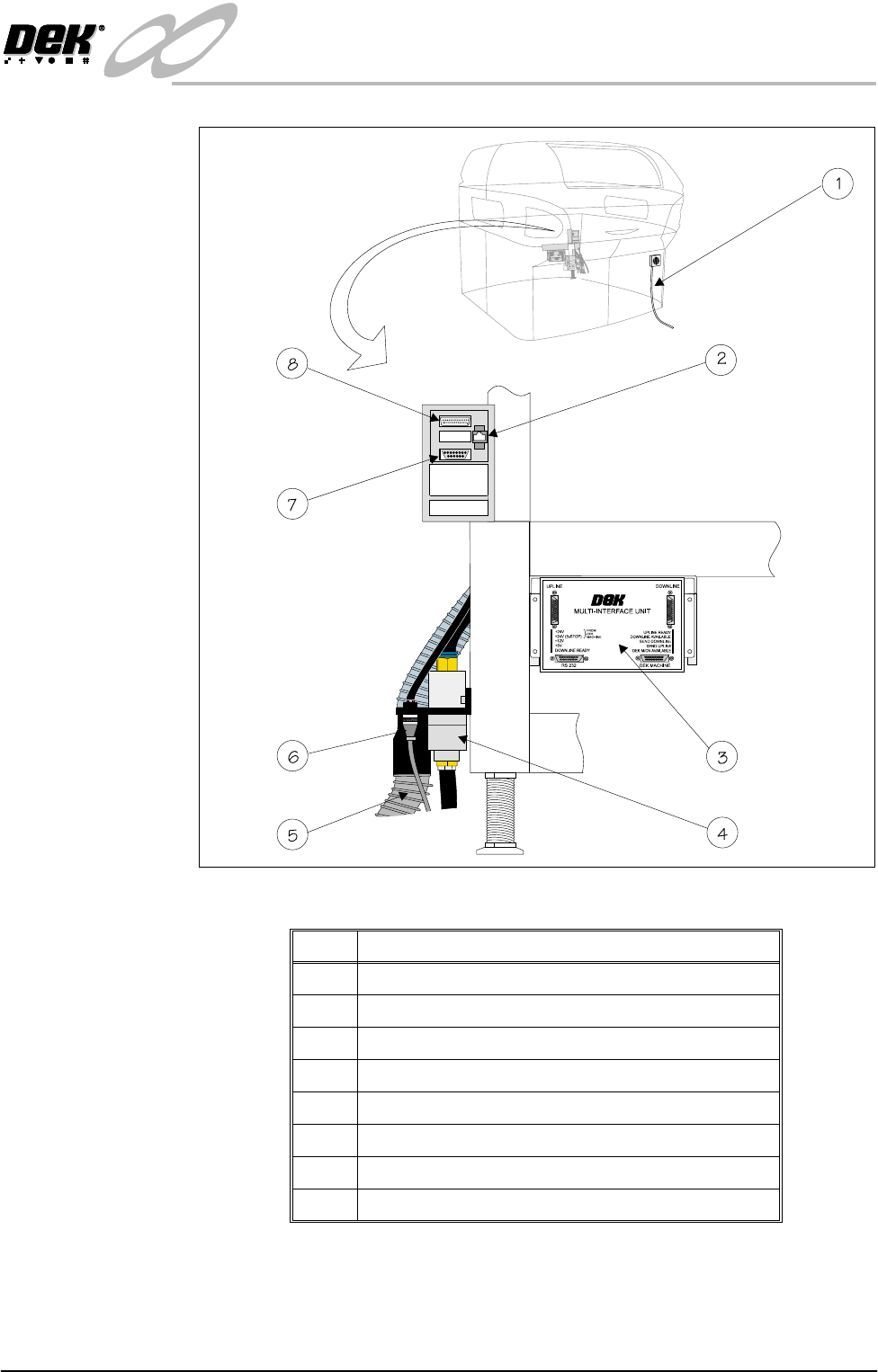

Figure 3-2 External Services (Rear Panel Removed)
Item Description
1Mains Supply
2 6SK13 Host Comms LAN RJ45
3 Multi-Interface Unit
4 Air Connection
5 Vacuum Connection
6 24V Vacuum Control
7 6SK09 Parallel Port Printer
8FMI Pod
INFINITY
EX
MACHINE OVERVIEW
MACHINE OVERVIEWS
3.4 Technical Reference Manual Chapter Issue 3 Jan 04

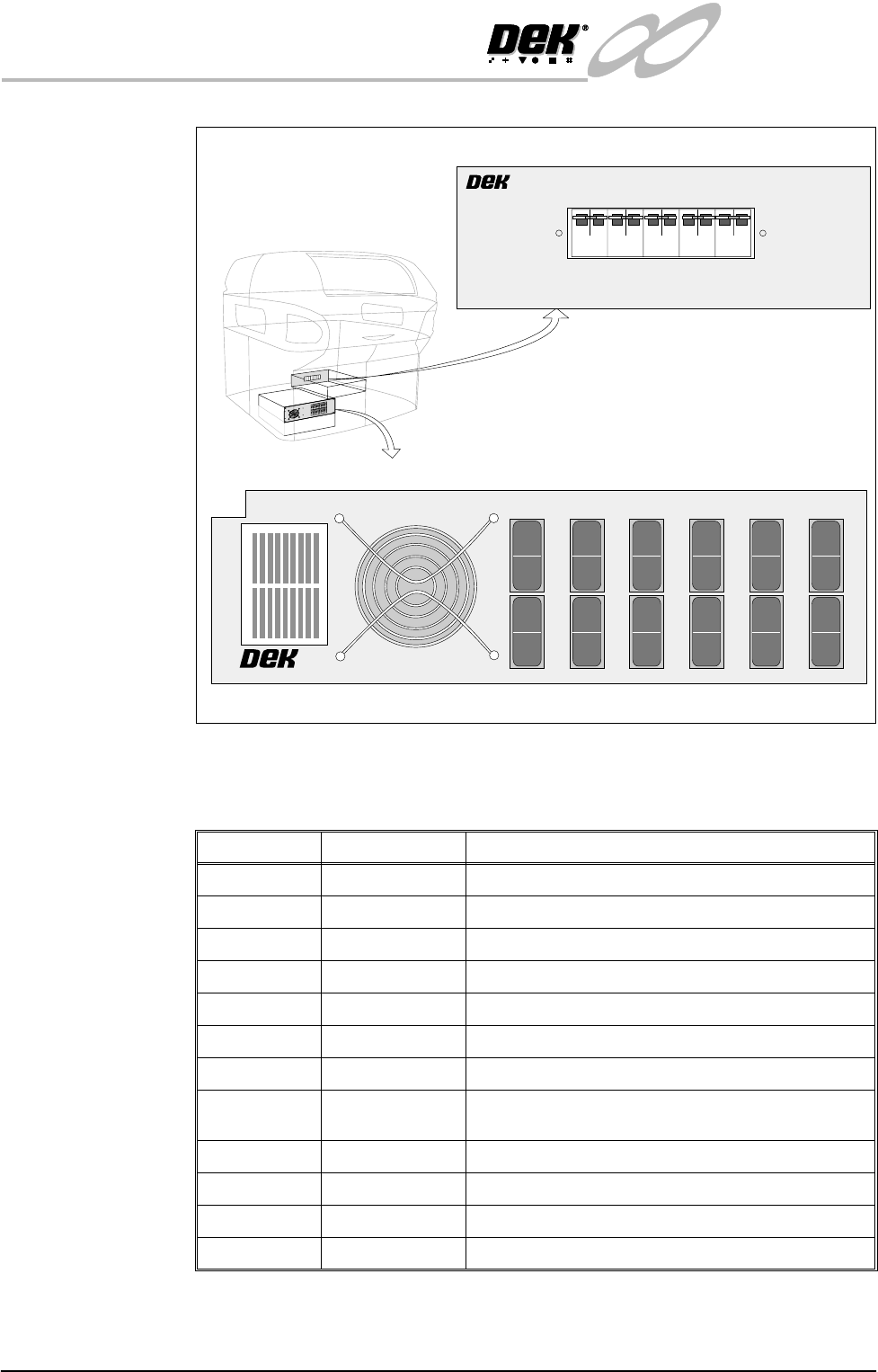

Figure 3-3 Machine Circuit Breaker Panels
DC Circuit Breaker Panel
ac Circuit Breaker Panel
dc Circuit Breaker Panel
M24 DC Power Module 155945
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
CB1
CB3 CB5 CB7 CB9 CB11
CB2 CB4 CB6 CB8 CB10 CB12
M23 AC POWER MODULE 155938
CB13 CB14 CB15 CB16 CB17
CCT Breaker Current Rating CCT Breaker Function
CB1 2.5A +5V MultiMoves
CB2 1.2A -12V Pressure Amplifier
CB3 1.2A +12V Sensors/MIU
CB4 2A +12V External E Stop
CB5 10A +24V MultiMove (X13)
CB6 1.2A +24V MIU
CB7 6A +24V FPA
CB8 2.5A +24V Camera Lighting, Fans, Paste Roll Lamp, Print
Carriage Brake
CB9 1.2A +24V SW SYS LED/MIU
CB10 10A 24V SW MultiMoves (X11, X12)
CB11 12A 24V SW Steppers/Head Lift
CB12 2.5A Spare
INFINITY
EX
MACHINE OVERVIEW
MACHINE OVERVIEWS
Chapter Issue 3 Jan 04 Technical Reference Manual 3.5
AC Circuit Breaker Panel
CCT Breaker Current Rating CCT Breaker Function
CB13 10A Mains Out - Un-isolated
CB14 10A Mains to Transformer
CB15 4A 230V - Isolated
CB16 16A 44V - Isolated
CB17 10A Spare
