SM451_TechnicalReference(Kor_Ver4[1].1) - 第23页
Page SAMSUNG TECHWIN 13 SM451 F eeder Base Ass’y - DC (1/3) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9057101 5A FEEDER BASE ASSY FRO NT -DC 1 1 J90600354B FEEDERBASE RIGHT COV ER PCB 1 2 J906…
Page
SAMSUNG TECHWIN
12
SM451

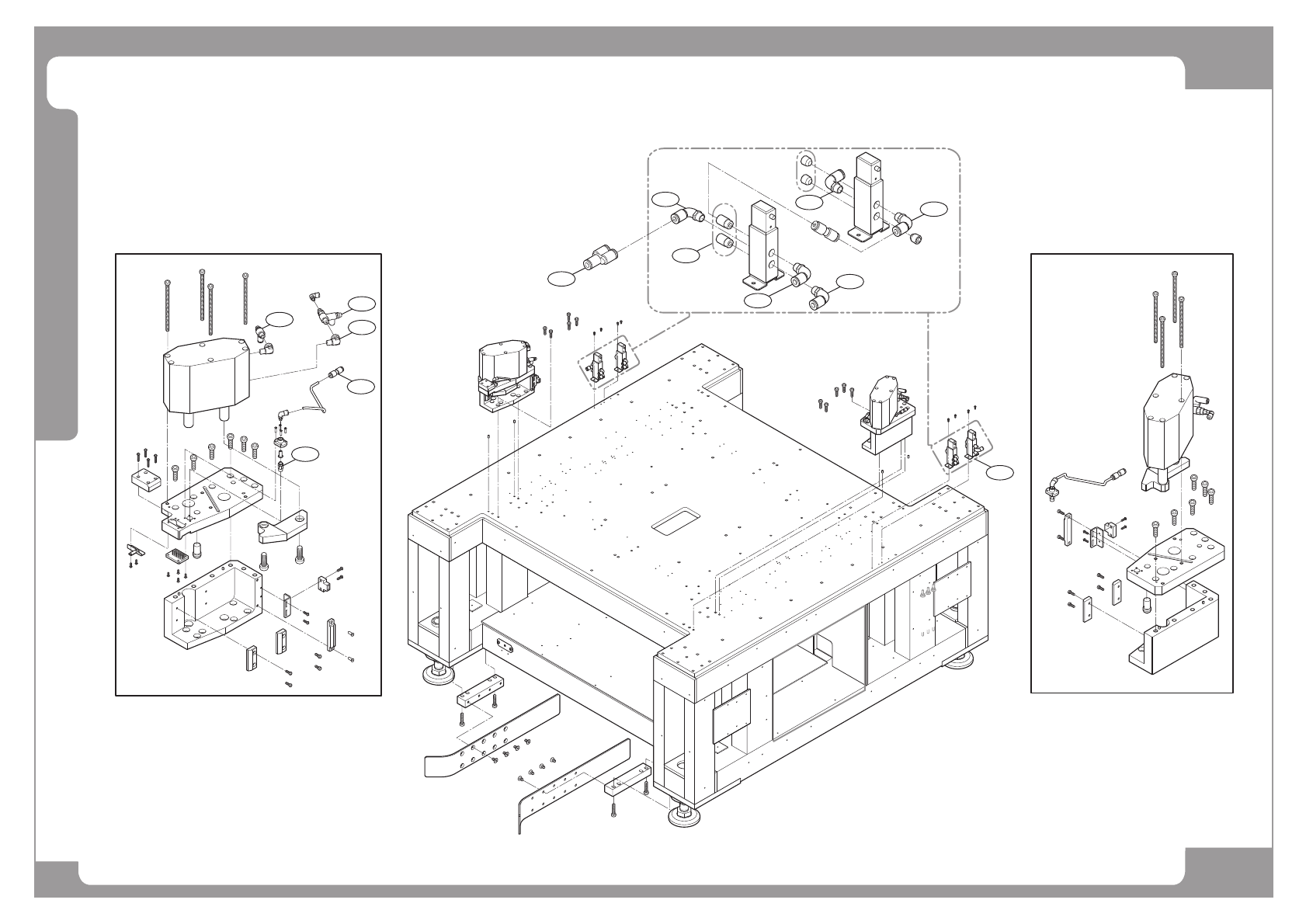

Feeder Base Ass’y - DC (1/3)
4
3
2
6
1
5
4
4
7
8
Page
SAMSUNG TECHWIN
13
SM451
Feeder Base Ass’y - DC (1/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER BASE ASSY FRONT-DC 1
1 J90600354B FEEDERBASE RIGHT COVER PCB 1
2 J90600353B FEEDERBASE LEFT COVER PCB 1
3 J67111148A COUPLER 60
4 J1301188 FITTING 4
5 AM03-000695A ASS'Y, BOARD-FBRD 1 J9060350D
6 AM03-000696A ASS'Y, BOARD-FBLD 1 J9060349D
7 J6001503038 SOCKET HEAD CAP SCREW 32
8 J 7 0 5 7 0 2 6 1 C T O P P L A T E - D C 1
Page
SAMSUNG TECHWIN
14
SM451
Feeder Base Ass’y - DC (2/3)
4
3
8
7
6
6
6
6
1
2
5
6
9
