Page SAMSUNG TECHWIN 18 SM451 F eeder Base Ass’y - SM451V 1 11 2 5 6 7 3 9 8 4 10 12
Page
SAMSUNG TECHWIN
17
SM451
Feeder Base Ass’y - DC (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J6711257A PLUG 2
2 J1301188 ELBOW FITTING 4
3 J6711256A COUPLER 1
4 J6711009A ELBOW FITTING 1
5 J6711247A ELBOW FITTING 2
6 J6712008A PLUG 3
7 J67110119B UNION-Y FITTING 1
8 J6703037A CHECK VALVE 1
9 J1300284 FITTING 5
10 J1300276 FITTING 5
11 J6702021A SOLENOID VALVE 1
12 J6703034A SPEED CON
Page
SAMSUNG TECHWIN
18
SM451

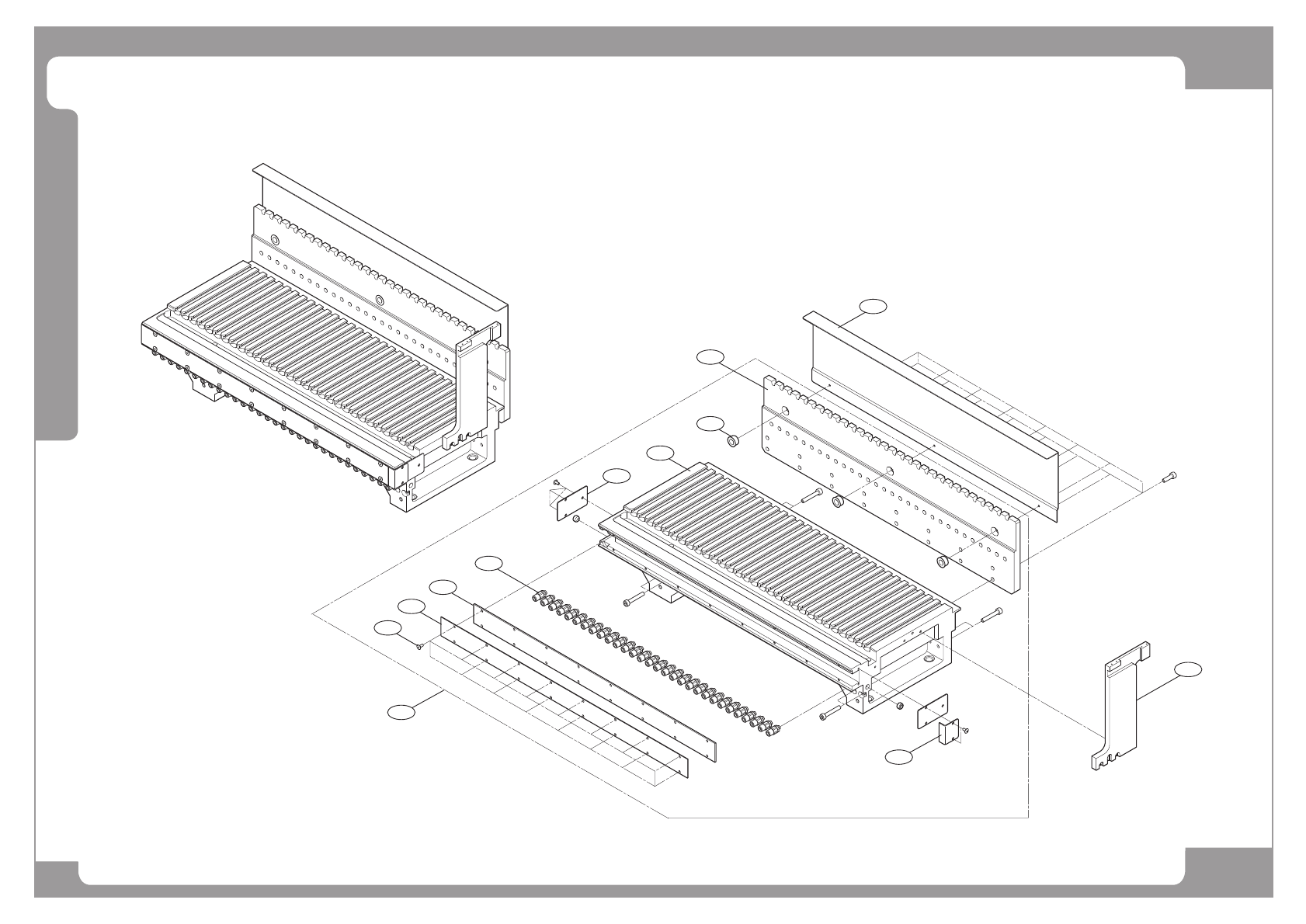

Feeder Base Ass’y - SM451V
1
11
2
5
6
7
3
9
8
4
10
12
Page
SAMSUNG TECHWIN
19
SM451
Feeder Base Ass’y - SM451V
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
2 J9060347B F-BASE-LEFT-BOARD 1 J9060347A
3 J67111148A COUPLER 30
4 J7057213A SIDE-CABLE-COVER 2
5 J70571038A BODY-FEEDER_BASE-30L 1
6 J70570262C CAP-TOP PLATE 3
7 J70571039A VERTICAL_LOCATOR-30L 1
8 J70571041A TOP_PLATE-30L 1
9 J70571042A FRONT_SENSOR_BKT1_30 1
10 J70571040A SIDE_FB_R_COVER-30L 1
11 J60190308A FLAT_HEAD__CROSS_SCREW M3*8 16
12 J90571050A FEEDER_BASE_MODULE-30L 1
