Page SAMSUNG TECHWIN 22 SM451 C onveyor Ass’y (2/4) 13 9 7 8 14 12 2 4 3 5 10 11 15 18 19 20 21 21 6 1
Page
SAMSUNG TECHWIN
21
SM451
Conveyor Ass’y (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90531405A CONV ASSY RL L610 W420 1
1 J70531730A SUPPORT WIDE ADJUST 1
2 J70531731A FIX STAND 1
3 J7053726A SCREW STAND 1
4 J66141017A LEAD SCREW 1
5 J7053194A B EARING NUT 1
6 J6609012A PULLEY WIDTH 1
7 J70531735A BELT TENSION BKT 1
8 J6601126A BALL BEARING 2
9 J70531736A TENSION BEARING PIN 1
10 J70531109A MANUAL HANDLE 1
11 J66071095A LM GUIDE 1
12 J60490100 WASHER 1
13 J6025500036 HEX NUT 1
14 J6010300538 SOCKET SET SCREW 6 J6010300636
15 J6601008A BALL BEARING 2
Page
SAMSUNG TECHWIN
22
SM451

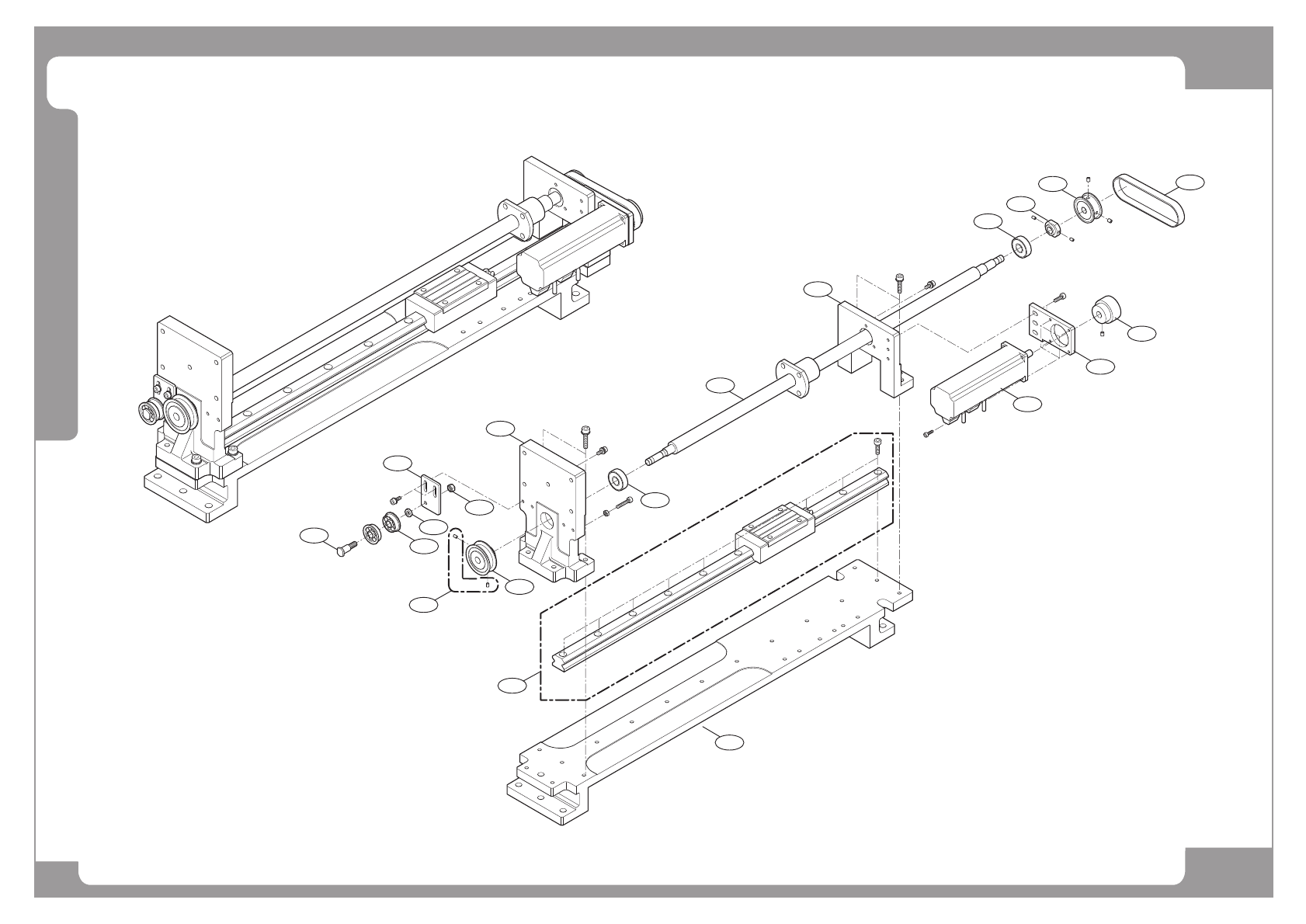

Conveyor Ass’y (2/4)
13
9
7
8
14
12
2
4
3
5
10
11
15
18
19
20
21
21
6
1
Page
SAMSUNG TECHWIN
23
SM451
Conveyor Ass’y (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70531730A SUPPORT WIDE ADJUST 1
2 J70531731A FIX STAND 1
3 J7053726A SCREW STAND 1
4 J66141017A LEAD SCREW 1
5 J7053194A BEARING NUT 1
6 J6609012A PULLEY WIDTH 1
7 J7053780A BRACKET SERVO MOTOR 1
8 J3108062A SERVO MOTOR 1
9 J6609015B PULLEY MOTOR 1
10 J7153330A PULLEY SHAFT 1
11 J6602030A TIMING BELT 1
12 J70531735A BELT TENSION BKT 1
13 J6601126A BALL BEARING 2
14 J70531736A TENSION BEARING PIN 1
15 J66071095A LM GUIDE 1
16 J70531906A DOG ADJUST V 1 SM451V
17 J3212004A PHOTO SENSOR 1 SM451V
18 J60490100 WASHER 1
19 J6025500036 HEX NUT 1
20 J6010300538 SOCKET SET SCREW 6 J6010300636
21 J6601008A BALL BEARING 2
