Page SAMSUNG TECHWIN 73 SM451 X-Y Frame Ass’y (3/4) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J70541 1 20C BS REAR S UPPORT 1 2 J70541 1 19B BRG SUPPOR T -X 1 3 J70541 121B BRG INNER SP ACER 3 4 …
Page
SAMSUNG TECHWIN
72
SM451

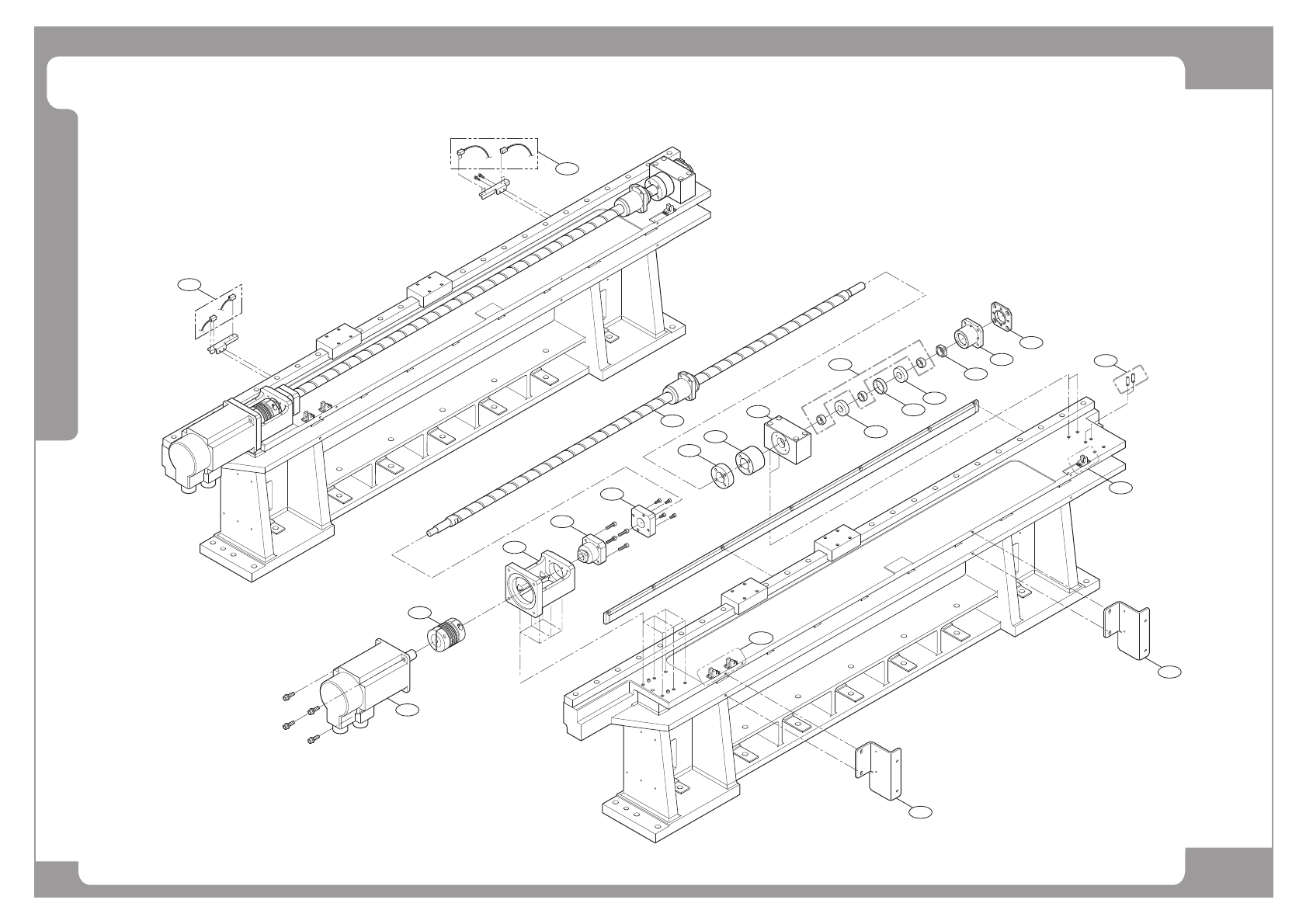

X-Y Frame Ass’y (3/4)
17
16
15
14
14
10
9
13
11
8
5
7
4
1
2
6
3
7
12
18
18
19
19
Page
SAMSUNG TECHWIN
73
SM451
X-Y Frame Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70541120C BS REAR SUPPORT 1
2 J70541119B BRG SUPPORT-X 1
3 J70541121B BRG INNER SPACER 3
4 J70541122B BRG OUTER SPACER 1
5 J70541123B BEARING COVER-Y 1
6 J6608003A BEARING NUT 1
7 J66011036A ANGULAR CONTACT BALL BEARING 2
8 J72541012A STOPPER-Y BALL SCREW 1
9 J72541006A STOPPER-Y BALL SCREW FRONT 1
10 J71541087B STOPPER EXT Y-BALL SCREW 1
11 J70541005C Y-MOTOR BLOCK 1
12 J66061021A BALL SCREW 1
13 J6601124A SUPPORT UNIT 1
14 J70541115A COVER BKT 2
15 J6061601000 DOWEL PIN 5
16 J6612036A COUPLING 2 J66121007A
17 J3108064A SERVO MOTOR 2
18 J3212022A LIMIT SENSOR 3
19 J32110015B PHOTOELECTRIC SWITCH 4
Page
SAMSUNG TECHWIN
74
SM451
X-Y Frame Ass’y (4/4)
12
11
13
11
2
4
6
7
5
3
1
10
9
8
