Page SAMSUNG TECHWIN 83 SM451 F ixed ANC Ass’y - SM451V (2/2) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J70563686A G ANC SHUTTER V2 1 2 J71561055A G ANC F IDUCIAL PIN 2 3 J71561071A G ANC PUT PLA…
Page
SAMSUNG TECHWIN
82
SM451
Fixed ANC Ass’y - SM451V (2/2)
1
5
4
16
15
2
17
8
9
10
11
12
13
3
14
7
6
Page
SAMSUNG TECHWIN
83
SM451

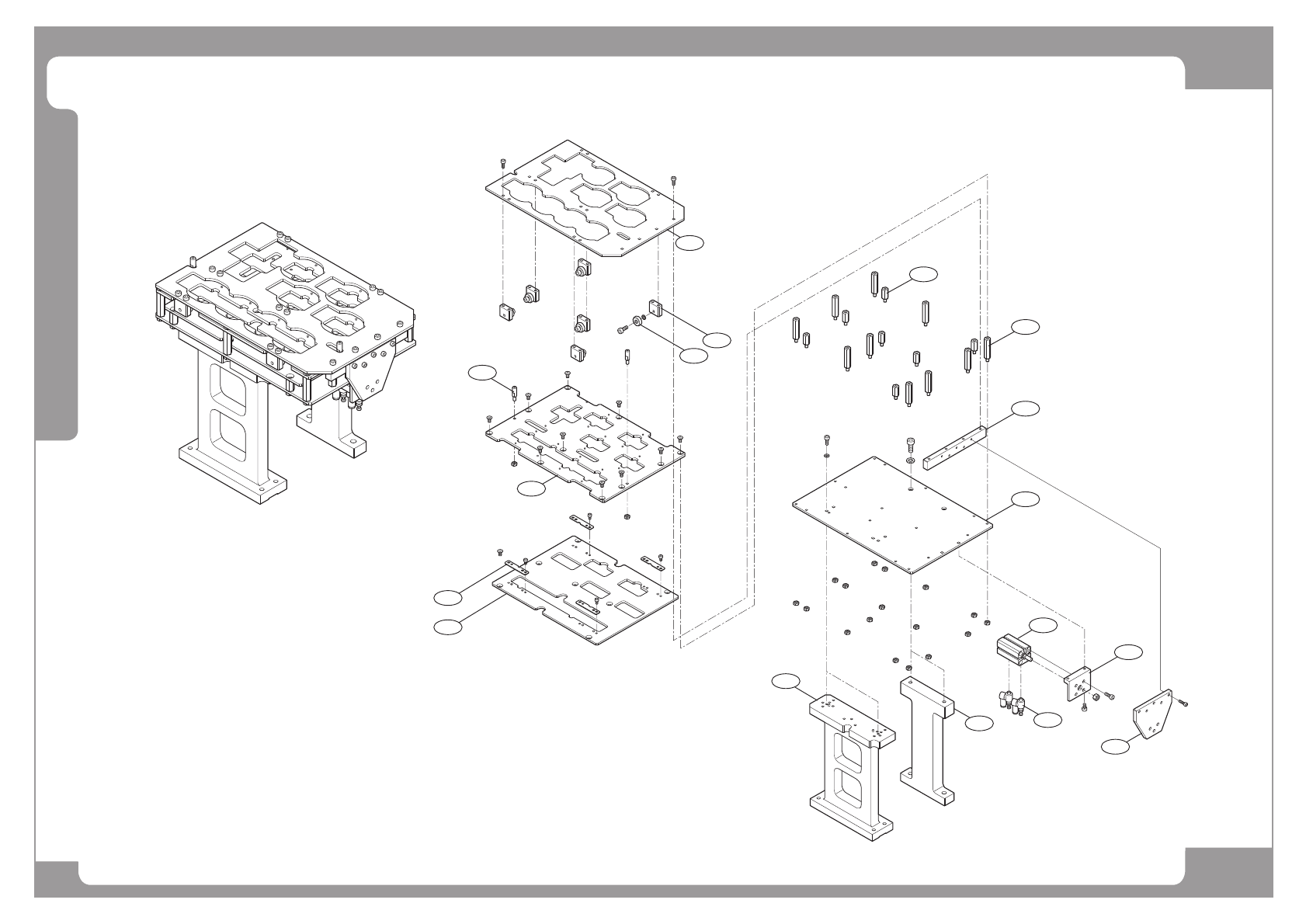

Fixed ANC Ass’y - SM451V (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70563686A G ANC SHUTTER V2 1
2 J71561055A G ANC FIDUCIAL PIN 2
3 J71561071A G ANC PUT PLATE V2 1
4 J71561054A G ANC BEARING BKT 6
5 J66011033A BEARING 6
6 J71561061A RAIL PLATE V 4
7 J70563688A G ANC BEARING GUIDE V2 1
8 J70561119B ANC HEX BAR SHORT B 7
9 J70561117B ANC HEX BAR M4 B 10
10 J71561062A ANC SHUTTER BKT V 1
11 J70563687A G ANC BASE PLATE V2 1
12 J67011104A AIR CYLINDER 1
13 J70561134A ANC CYLINDER BKT V 1
14 J71561063A ANC ROD PLATE V 1
15 J6703028A SPEED CONTROLLER 2
16 J70561107A ANC SUPPORT 1
17 J71561067A ANC SUPPORT 1
Page
SAMSUNG TECHWIN
84
SM451

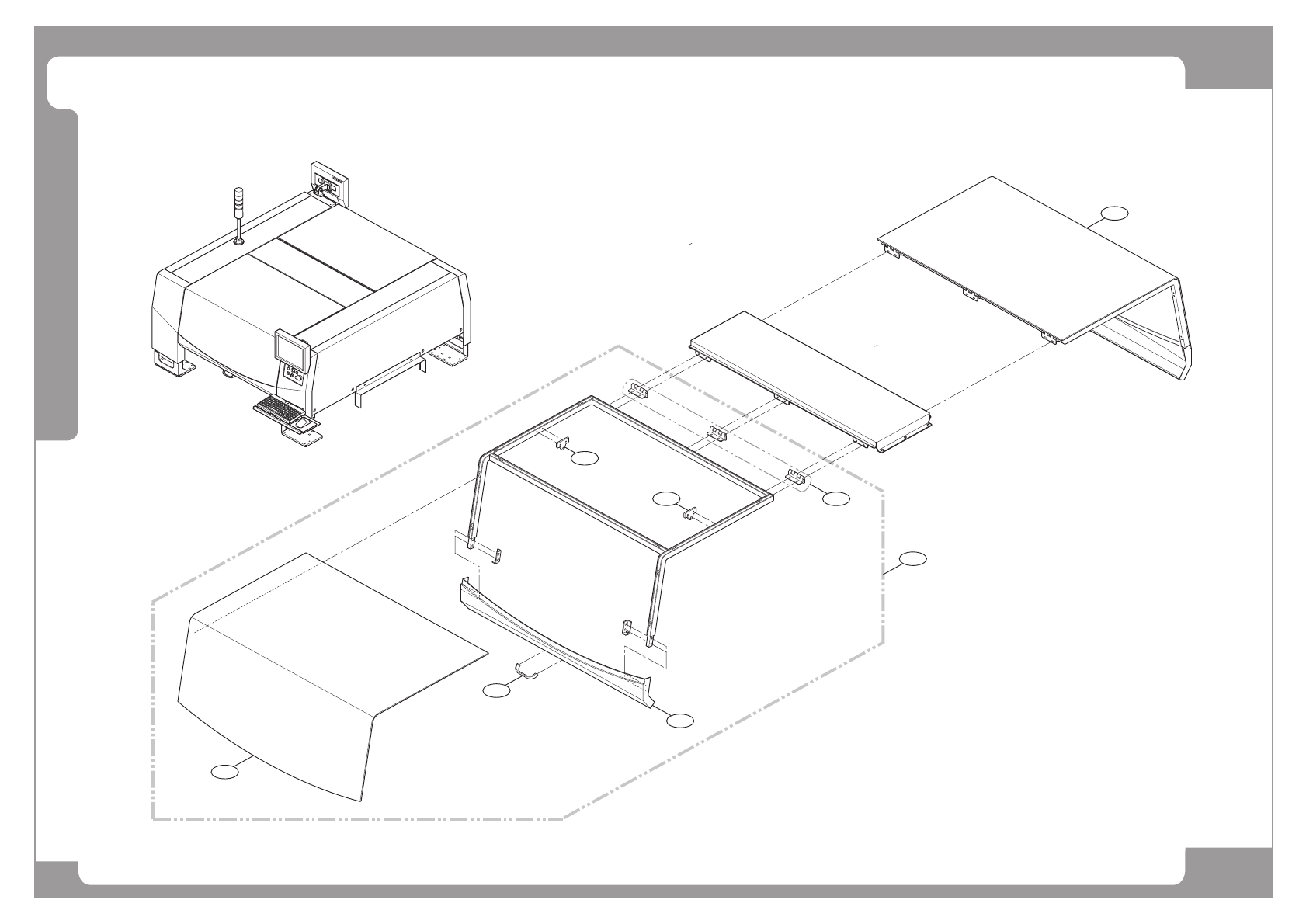

Window Ass’y
1
5
5
2
3
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
