Page SAMSUNG TECHWIN 86 SM451 C over Ass’y (1/3) Refer to 'Detail View' A B C D A C D D C 11 5 14 15 2 3 6 13 6 4 13 1 13 12 16 13 4 4 4 8 2 7 15 14 STOP RESET SE LECT FEEDER CHANGE STA RT READY A A B 9 10 S TO…
Page
SAMSUNG TECHWIN
85
SM451
Window Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521018A ACRYL DOOR ASSY-STD 1
1 J90521002B ACRYL DOOR ASSY 2 J90521002A
2 J72521005B ACRYL COVER 1
3 J70521087A WINDOW HINGE 3
4 J70521050D ACRYL COVER HANDLE 1 J70521050A
5 J70521081B GAS SPRING BRACKET2 2
6 J64021035A HANDLE 1 J6119051A
A-2 J90521019A ACRYL DOOR ASSY-ESD 1
Page
SAMSUNG TECHWIN
86
SM451

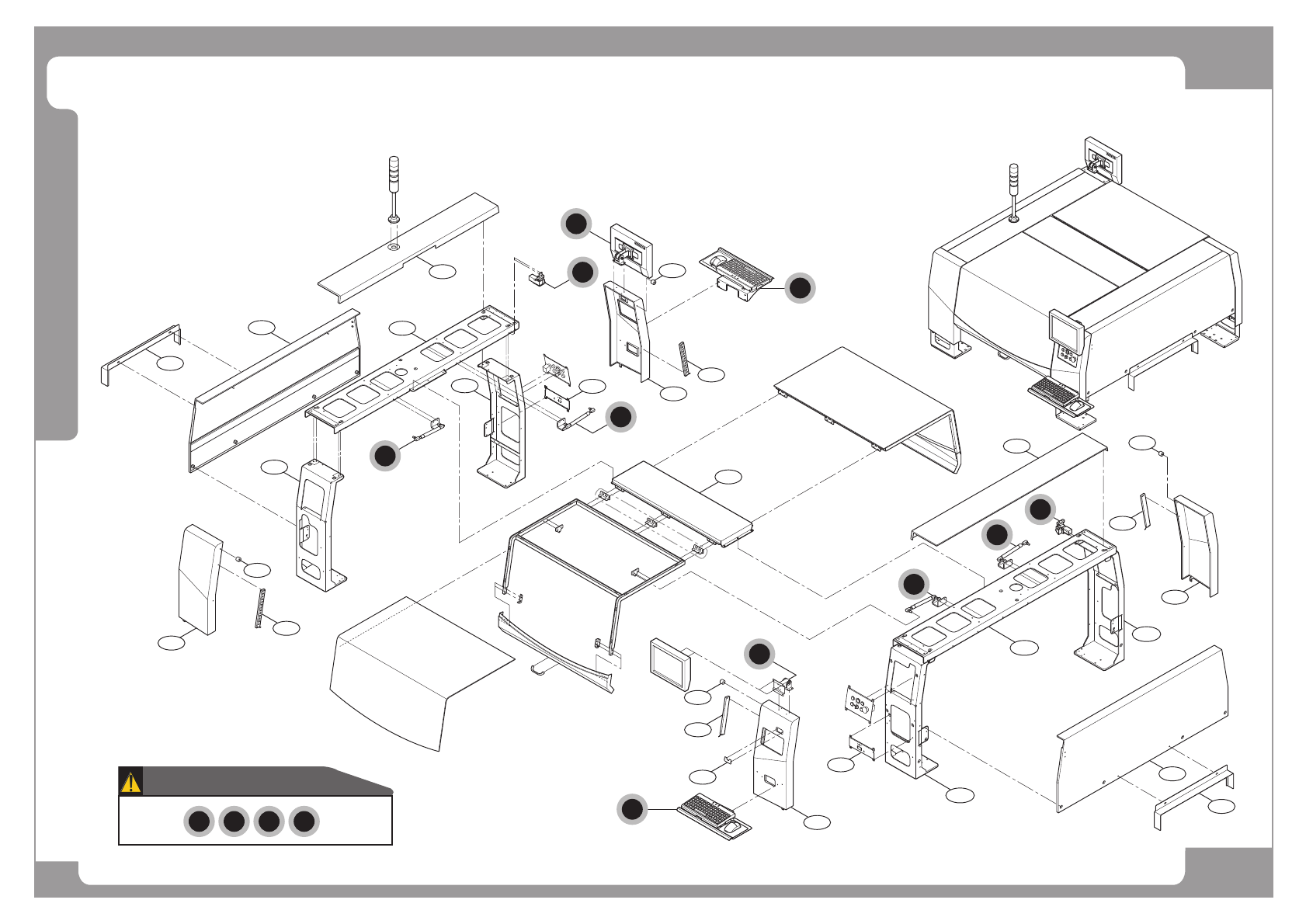

Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
11
5
14
15
2
3
6
13
6
4
13
1
13
12
16
13
4
4
4
8
2
7
15
14
STOP
RESET
SELECT
FEEDER
CHANGE
STA
RT
READY
A
A
B
9
10
S
TOP
RESET
SELECT
F
E
EDE
R
CHANGE
START
READY
A
B
16
1
Page
SAMSUNG TECHWIN
87
SM451
Cover Ass’y (1/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521065A COVER ASSY SM421P 1
1 J70521027B UPPER COVER FL 2 J70521026A
2 J91651041A COVER FRAME TOP 1 ASSY 2
3 J70521039C TOP SIDE COVER R 1 J70521039A
4 J3212049A AREA SENSOR 4
5 J70521040C TOP SIDE COVER L 1 J70521040A
6 J70521027B UPPER COVER FL 2 J70521027A
7 J91651046A COVER_FRAME_SUB_R-ASSY 1 J91651048A
8 J70521376C COVER FRAME REAR R 1 J70521376B
9 J70521379C COVER FRAME FRONT L 1 J70521379B
10 J91651047A COVER FRAME SUB L ASSY 1
11 J70521378B TOP COVER-2 1 J70521378A
12 J7070297A MONITOR CABLE COVER 1
13 J73520001B DOOR CUSHION 4
14 J70521053B CONVEYOR COVER 2 J70521053A
15 J70521038B UPPER SIDE COVER 2 J70521038A
16 J70521025B SM330 LOWER OP PANEL 2
A-2 J90721029A NON SCANNER ASSY 1 OPTION
A-3 J91731033A AREA SENSOR ASSY 1
