3 Introduction and Basic Concepts User Manual SIPLACE S-23 HM

3.3 User Interface - Views and Menus Software Version SR.405.xx 05/99 Issue

100

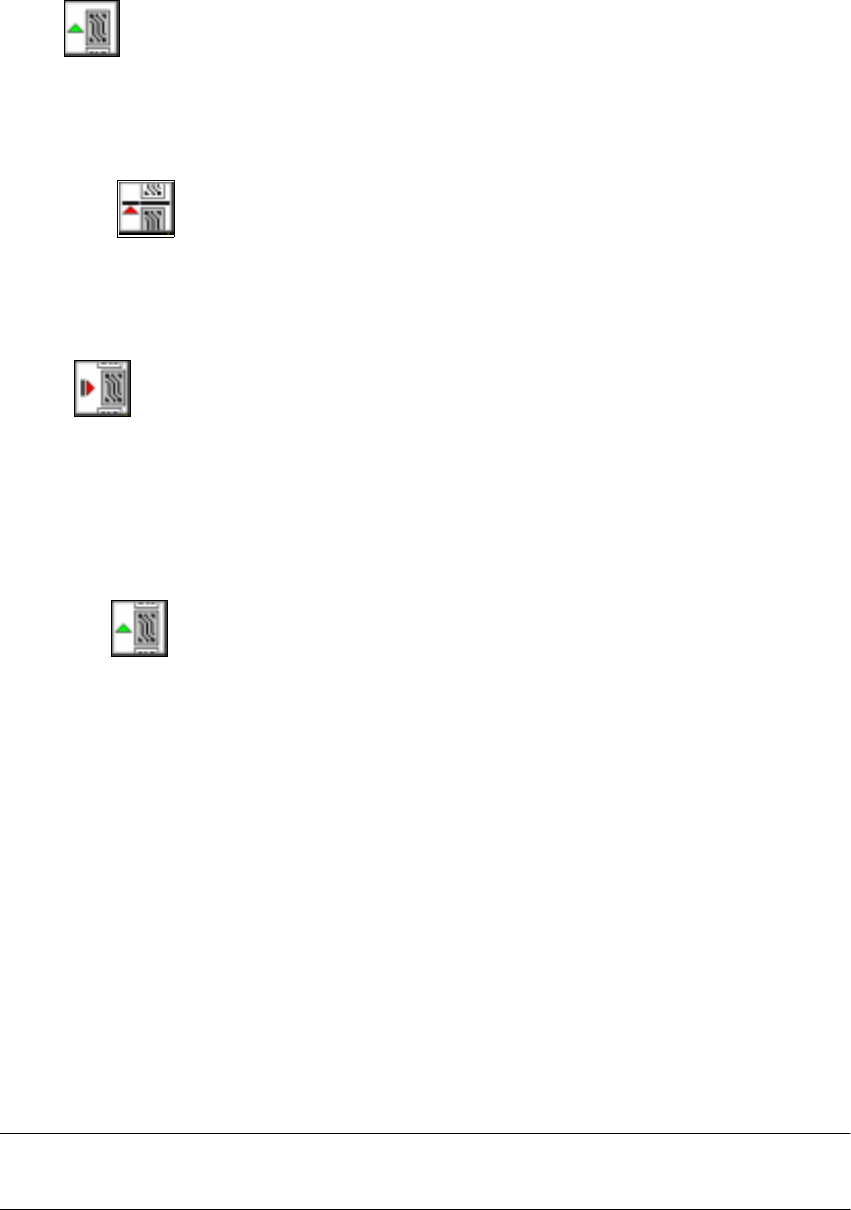

Processing PCB 3

Assembly of the PCBs is started or continued if previously interrupted. 3

È Click the menu item Processing PCB (or the corresponding icon).

Stop processing PCB 3

The current PCB assembly process is stopped. 3

È Click the menu item Stop processing PCB (or the corresponding icon)

Abort processing 3

This function allows you to abort certain operating steps such as feeder position recognition or

nozzle changes in the event of a machine stoppage (fatal error, Stop button pressed) 3

È Click the menu item Abort processing.

The current operation is aborted when you confirm the action in the displayed dialog box.

Continue processing 3

The preceding assembly process, interrupted for example because of an error, is continued once

the fault has been eliminated. 3

È Click the menu item Continue processing (or the corresponding icon).

Switch to MIS 3

This menu function cannot be executed in the current software version. 3

Switch to SIPLACE Pro 3

This menu function cannot be executed in the current software version. 3

Switch to operating system ... 3

You use this menu item to switch to the Windows operating system after entering your password.

From here, you can then subsequently return to the SIPLACE user interface. 3

NOTE

This menu option is not available at the "Operator" access level. 3

User Manual SIPLACE S-23 HM 3 Introduction and Basic Concepts

Software Version SR.405.xx 05/99 Issue 3.3 User Interface - Views and Menus

101

È Click the menu item Switch to operating system ...

The Windows user interface is displayed and the SC software continues to run in the

background.

Shut down computer... 3

All applications are closed without any files which may have been processed being saved and the

station computer is shut down. 3

NOTE

This menu option is not available at the "Operator" access level. 3

È Click the menu item Shut down computer...

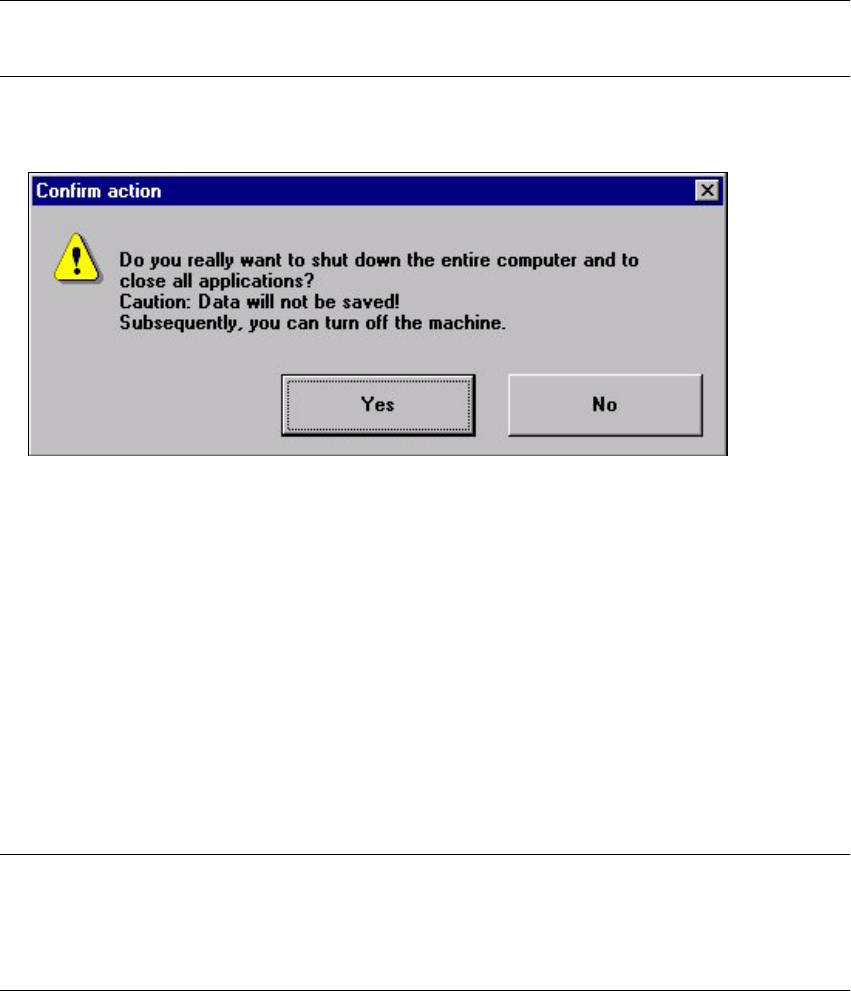

The following dialog box is opened.

È Click Yes if you want to terminate your work.

The station computer is shut down.

È Switch off the machine at the main switch.

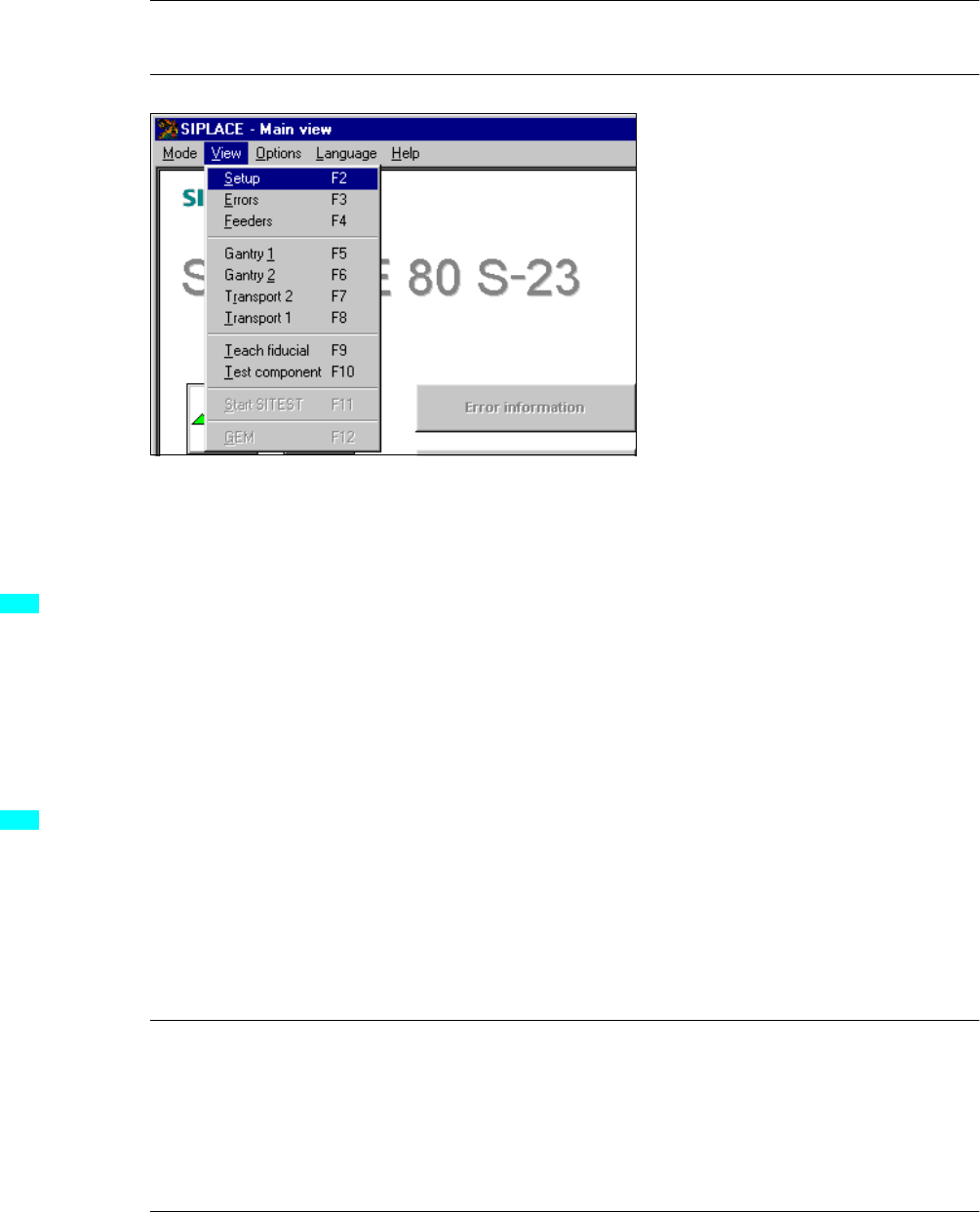

3.3.2.2 "View" Menu

The "View" menu contains the options for calling the placement functions, single functions and

vision functions. It is also used to start the SITEST test program and call the view for running the

GEM functions. 3

È Click the required menu option.

The screen display is switched to the corresponding view in which you can then call the

necessary functions.

NOTE

All the options in this menu can also be called by clicking the corresponding toolbar button (see

section 3.2.2.2) or by pressing the corresponding function key. If shortcuts have been defined,

these can also be used. 3

3 Introduction and Basic Concepts User Manual SIPLACE S-23 HM

3.3 User Interface - Views and Menus Software Version SR.405.xx 05/99 Issue

102

NOTE

The 3 menu options below belong to the group of placement functions. 3

Setup F2 3

The setup for a feeder location is displayed in tabular form. It can be called separately for each of

the four locations.

The procedure is described in more detail in Chapter 4 Placement Functions. 3

Errors F3 3

Errors are differentiated by type and each error type is presented in a separate table. You can call

separate tables for track errors, conveyor errors, machine errors and general errors.

The last error to have occurred is always displayed at the top of the table. Identical errors are

cumulated in the error counter ("#E" column).

The procedure is described in more detail in Chapter 4 Placement Functions. 3

Feeders F4 3

Here you can use a variety of functions to display and fill empty tracks for linear feeders or to

display and modify inventory levels for trays and wafflepack changers.

The procedure is described in more detail in Chapter 4 Placement Functions. 3

NOTE

The following 6 menu options belong to the group of single functions.

The single functions are used to execute specific actions following fatal errors as well as to set up

and test the machine since they allow you to address the various functional modules in a defined

manner.

Execution of the single functions is described in Chapter 5 Single Functions. 3
