User Manual SIPLACE S-23 HM 5 Single Functions
Software Version SR.405.xx 05/99 Issue 5.2 Single functions, Gantry
149
5.2.4.1 Functions
In the "Nozzle offset" screen only the "Measure" button is available. This is used to start a evalu-
ation of the nozzle height for all nozzles.
Measure 5
When this function is activated, after a vacuum check the gantry moves the placement head to a
defined position above the board conveyor. The z-axis is lowered until the nozzle touches the con-
veyor, the procedure is then repeated for each nozzle. In this way, you can measure the height of
each nozzle.
The gantry then returns to its starting position. 5
È Click the Measure button.
This starts the procedure used to measure nozzle height.
The values determined are displayed in the column "Offset (1/100 mm)" for each of the noz-
zles. These values can, for example, be used to determine whether the nozzle on a particular
segment broken.
5 Single Functions User Manual SIPLACE S-23 HM
5.2 Single functions, Gantry Software Version SR.405.xx 05/99 Issue
150
5.2.5 "Nozzle configuration revolver head" screen
5
È In the current screen for the single functions for Gantry x, click the symbol .
The user interface is switched to the "Nozzle configuration revolver head" screen (see Fig. 5.2 - 6).
5

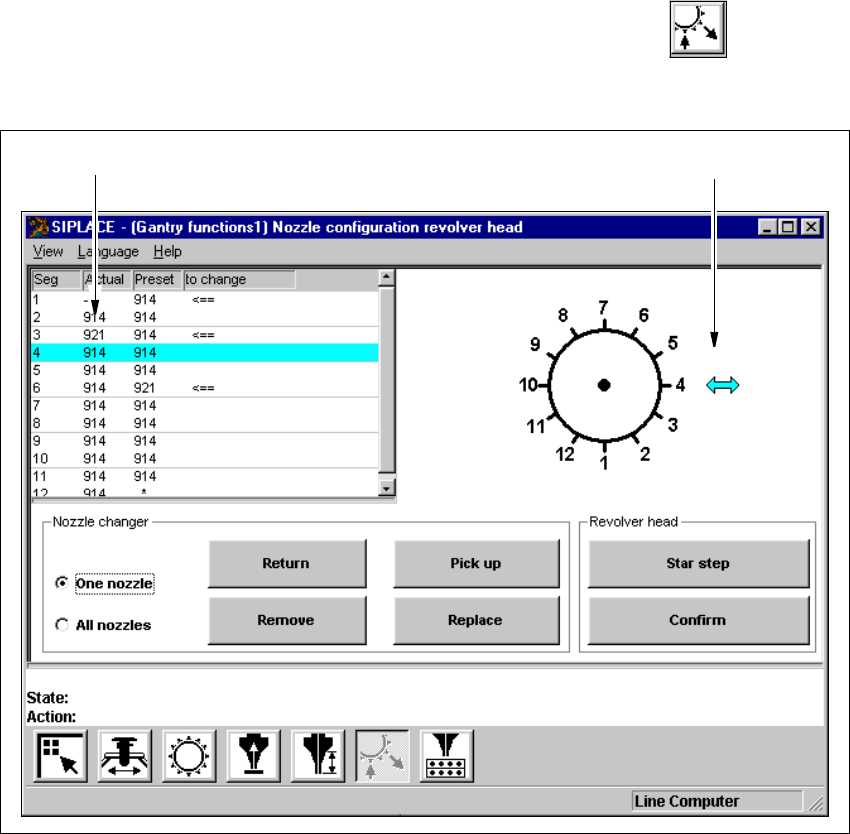

Fig. 5.2 - 5 "Nozzle configuration revolver head" screen
5
Key to Fig. 5.2 - 5
(1) The entry for the segment currently located in the changeover position is highlighted in light
blue.
(2) The arrow points to the number of the segment which is in the changeover position.
5
1 2
User Manual SIPLACE S-23 HM 5 Single Functions
Software Version SR.405.xx 05/99 Issue 5.2 Single functions, Gantry
151
5.2.5.1 Functions
The "Nozzle configuration revolver head" screen provides functions which allow you to change the
nozzle configuration and to then confirm that this change has been made. The required function
is carried out by clicking on the appropriate button. 5
NOTE
The functions "Return", "Pick up", "Remove" and "Replace" can only be carried out if a nozzle
changer is installed and configured in the machine options.
Settings: 5
5
One nozzle
If this radio button is activated, the functions "Return", "Pick up", "Remove", and "Replace" can
only be carried out for one selected nozzle. When you call one of these functions a dialog box ap-
pears. You can enter the number of the segment with the required nozzle.
By default the box already contains the number of the segment currently in the changeover posi-
tion (marked by an arrow, see Fig. 5.2 - 5). 5
È Activate the One nozzle radio button.
È Click the button for the required function.

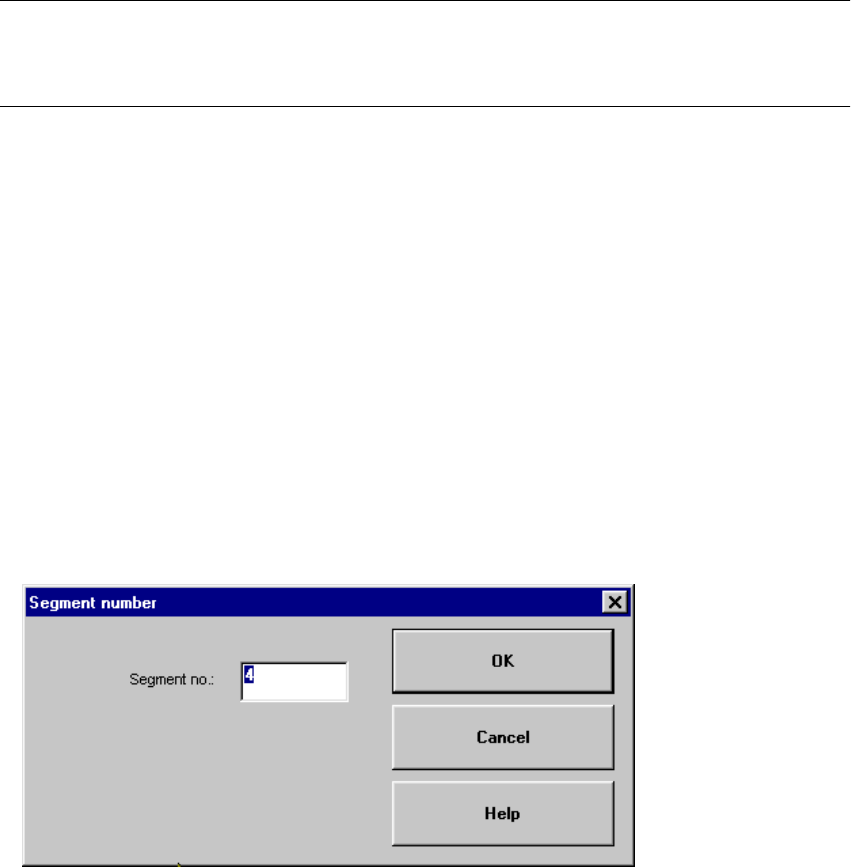

The dialog box shown below is then displayed.
5
È In the entry field, enter the number of the required segment, and confirm with OK. The function
is then carried out for the selected nozzle.
5
