User Manual S-23 HM 6 Vision functions Software Vers ion SR.405.xx 05/99 Iss ue 6.6 Test Component 245 6.6.4.3 T est Component Option NOTE 6 This option can only be activate d if you ha ve alrea dy loaded a package form …
6 Vision functions User Manual S-23 HM
6.6 Test Component Software Version SR.405.xx 05/99 Issue
244
6
Fig. 6.6 - 17 Test component menu, Display component video image
È Use Esc to end the function. The video image disappears and the Test component menu is
displayed once more.
GF No. = 5Display component
User Manual S-23 HM 6 Vision functions
Software Version SR.405.xx 05/99 Issue 6.6 Test Component
245
6.6.4.3 Test Component Option
NOTE 6
This option can only be activated if you have already loaded a package form number and a com-
ponent has been picked up. 6
With this option you can check the centering procedure. Every time a measuring step has been
carried out the procedure is stopped for you to check the function individually. The measurement
results are displayed on the screen but not saved. 6
6

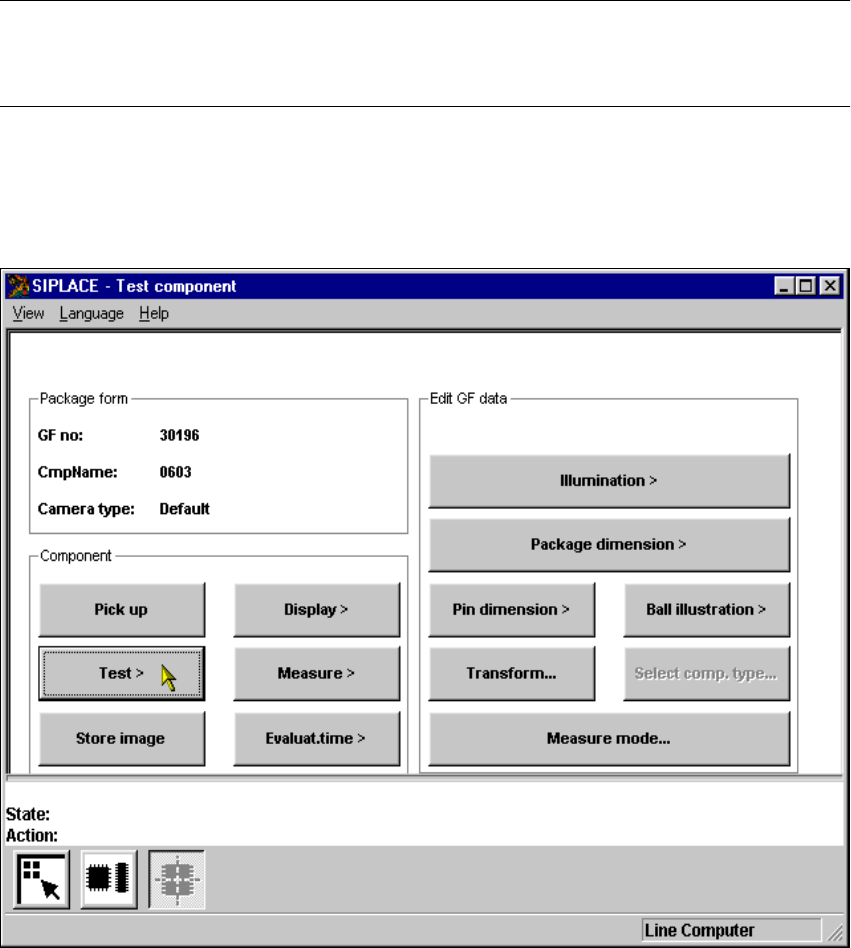

Fig. 6.6 - 18 Test component menu, Test component option
When this option is activated the following actions are started: 6
– The measurement procedure is activated.
– The video image appears on the screen.
– The header and footers are displayed.
6 Vision functions User Manual S-23 HM
6.6 Test Component Software Version SR.405.xx 05/99 Issue
246
6

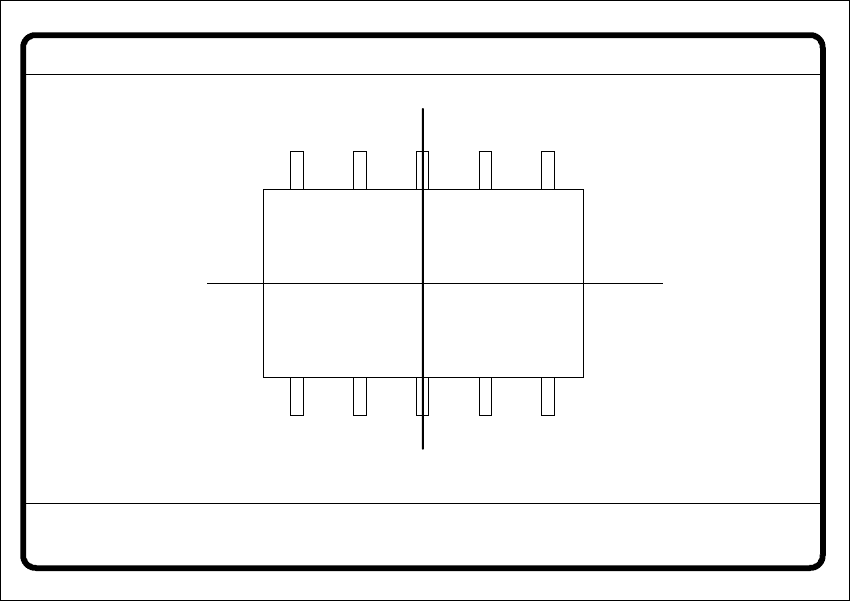

Fig. 6.6 - 19 Test component menu, Test component video image
È With the Return key you can call all defined individual steps in the measurement procedure
one after the other. Each time you press the Return key another measurement step is carried
out and the results shown on the screen.
È Use Esc to quit the option. The video image closes and the Test component menu reappears.
GF no. = 5Test component
RET: Test component
