9 Online Help System User Manual SIPL ACE S-23 HM 9.1 General S oftware Version SR.405.xx 05/99 Issue 350 9.1.2.3 Searching f or a help topic The station compu ter ’s help s ystem al lows you to search for spec ific he l…
User Manual SIPLACE S-23 HM 9 Online Help System
Software Version SR.405.xx 05/99 Issue 9.1 General
349
9.1.2 Functions in the main help system window
9.1.2.1 Copying a help file
To make it possible to call up the topics present in the help system independently of the station
computer, it is possible to copy the associated help file to floppy disk so that it can be installed on
an external computer if required.
È Open the main help system window (e.g. as described in section 9.1.1.3).
È Insert a floppy disk in the station computer’s 3
1
/
2
" floppy disk drive ("A:").
È In the File menu, select the Copy function.
An MS-DOS window is opened. This displays the help file copy process.
NOTE
The help file that is copied is always the one relating to the currently configured language
version of the SC user interface (e.g. "Bo_eng.hlp" for "English"). 9
When the copy operation has been completed, the MS-DOS window is closed automatically.9
È Remove the floppy disk from the drive.
È If necessary, copy the help file from the floppy disk to the required computer.
9
9.1.2.2 Printing a help topic
The topic currently displayed in the main help system window can be output on the installed printer9
È To do this, enter the File menu and select the function Print Topic ... or click the Print button
(below the menu bar).
The currently selected help topic is printed.
9
9 Online Help System User Manual SIPLACE S-23 HM
9.1 General Software Version SR.405.xx 05/99 Issue
350
9.1.2.3 Searching for a help topic
The station computer’s help system allows you to search for specific help topics. 9
È To do this, open the main help system window (e.g. as described in section 9.1.1.3).
È In this window, click the Help Topics button (below the menu bar).
The "Help Topics" window is opened with the tabs "Index" and "Find".
9

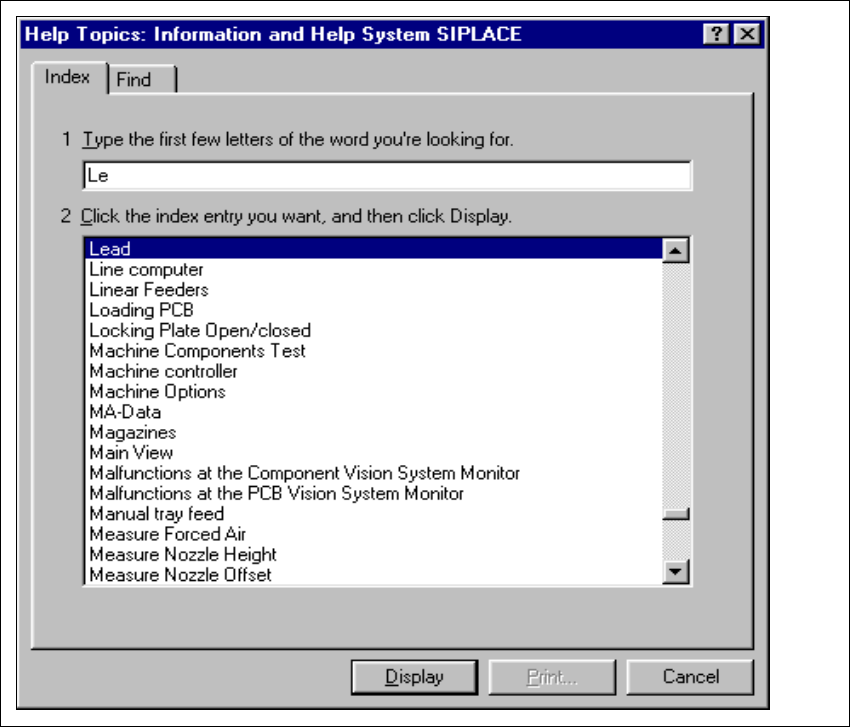

Fig. 9.1 - 7 "Help Topics" window (Index)
9
È Enter the first few letters of the required term in the edit field.
The first index entry that starts with the entered letters is selected in the list.
User Manual SIPLACE S-23 HM 9 Online Help System
Software Version SR.405.xx 05/99 Issue 9.1 General
351
È Click the Display button.
If there are no help topics associated with the selected index entry, the "Help Topics" window
closes and the corresponding topic is immediately displayed in the main help system window.

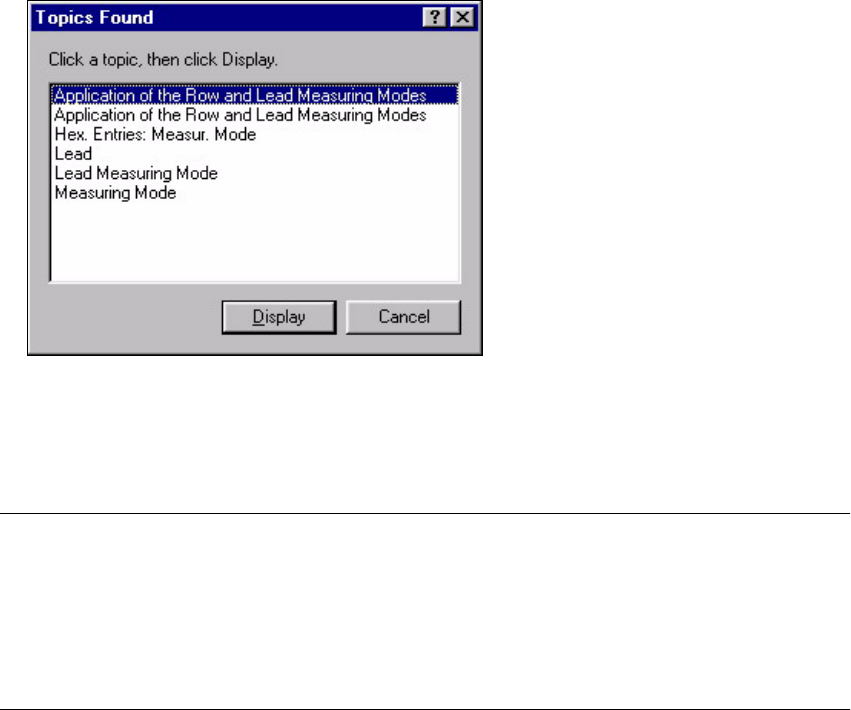

If further help topics are associated with the selected index entry, the following window is first
opened.
9
È Select the entry for the required topic and click the Display button. Both windows are closed
and the selected topic is displayed in the main help system window.
9
NOTE
If you click the "Find" tab in the "Help Topics" window, the extended search functions are displayed
(see section 9.1 - 8). You can use these functions to search for words or composite expressions
which are present in the help topics.
By clicking the "?" button (top right of window), you can call up a description of or help on the
different objects in this window 9
