10 Component handling User Manual S-23 H M 10.2 T echnical data for the feeder modules Software Version SR.405. xx 05/99 Issue 356 10.2.3 24/32 mm S module 10 Fig. 10.2 - 3 24/32 m m S module Item no. 00141093-xx Width 4…
User Manual S-23 HM 10 Component handling
Software Version SR.405.xx 05/99 Issue 10.2 Technical data for the feeder modules
355
10.2.2 12/16 mm S module
10

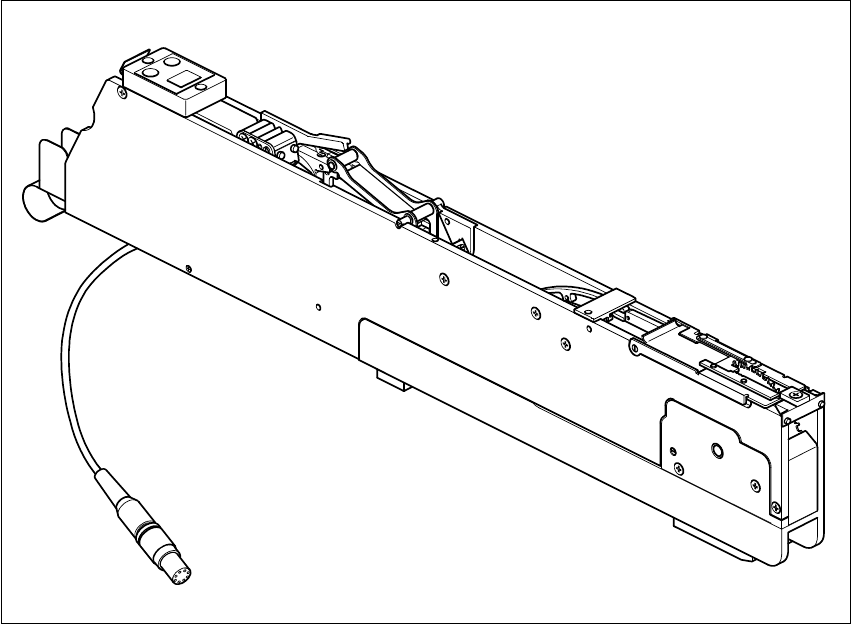

Fig. 10.2 - 2 12/16 mm S module
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC 10
10 Component handling User Manual S-23 HM
10.2 Technical data for the feeder modules Software Version SR.405.xx 05/99 Issue
356
10.2.3 24/32 mm S module
10
Fig. 10.2 - 3 24/32 mm S module
Item no. 00141093-xx
Width 45 mm
Tracks per module 1
Maximum number of modules 2 x 13
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC 10
User Manual S-23 HM 10 Component handling
Software Version SR.405.xx 05/99 Issue 10.2 Technical data for the feeder modules
357
10.2.4 Linear vibratory feeder, type 3
10
Fig. 10.2 - 4 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 30 mm
Tracks per module 1, 2, 3 or 6
Maximum number of modules 2 x 20
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC 10
