User Manual S-23 HM 10 C omponent handling Software V ersion SR.405.xx 05/99 Issue 10.2 T echnical data for the feeder modules 357 10.2.4 Linear vibratory feeder , type 3 10 Fig. 10.2 - 4 Linear vibratory feeder , type 3…
10 Component handling User Manual S-23 HM
10.2 Technical data for the feeder modules Software Version SR.405.xx 05/99 Issue
356
10.2.3 24/32 mm S module
10

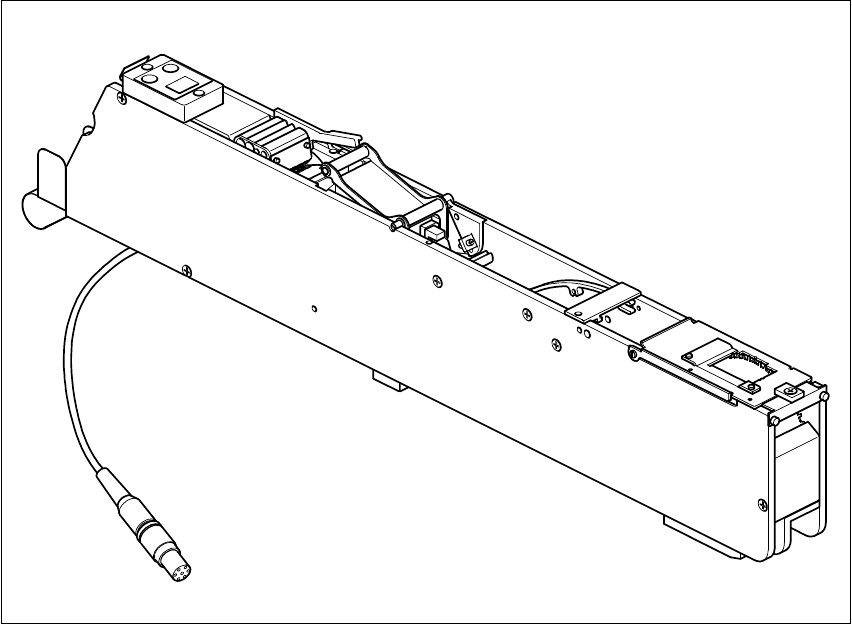

Fig. 10.2 - 3 24/32 mm S module
Item no. 00141093-xx
Width 45 mm
Tracks per module 1
Maximum number of modules 2 x 13
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC 10
User Manual S-23 HM 10 Component handling
Software Version SR.405.xx 05/99 Issue 10.2 Technical data for the feeder modules
357
10.2.4 Linear vibratory feeder, type 3
10
Fig. 10.2 - 4 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 30 mm
Tracks per module 1, 2, 3 or 6
Maximum number of modules 2 x 20
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC 10
10 Component handling User Manual S-23 HM
10.2 Technical data for the feeder modules Software Version SR.405.xx 05/99 Issue
358
10.2.5 Bulk case feeder
10

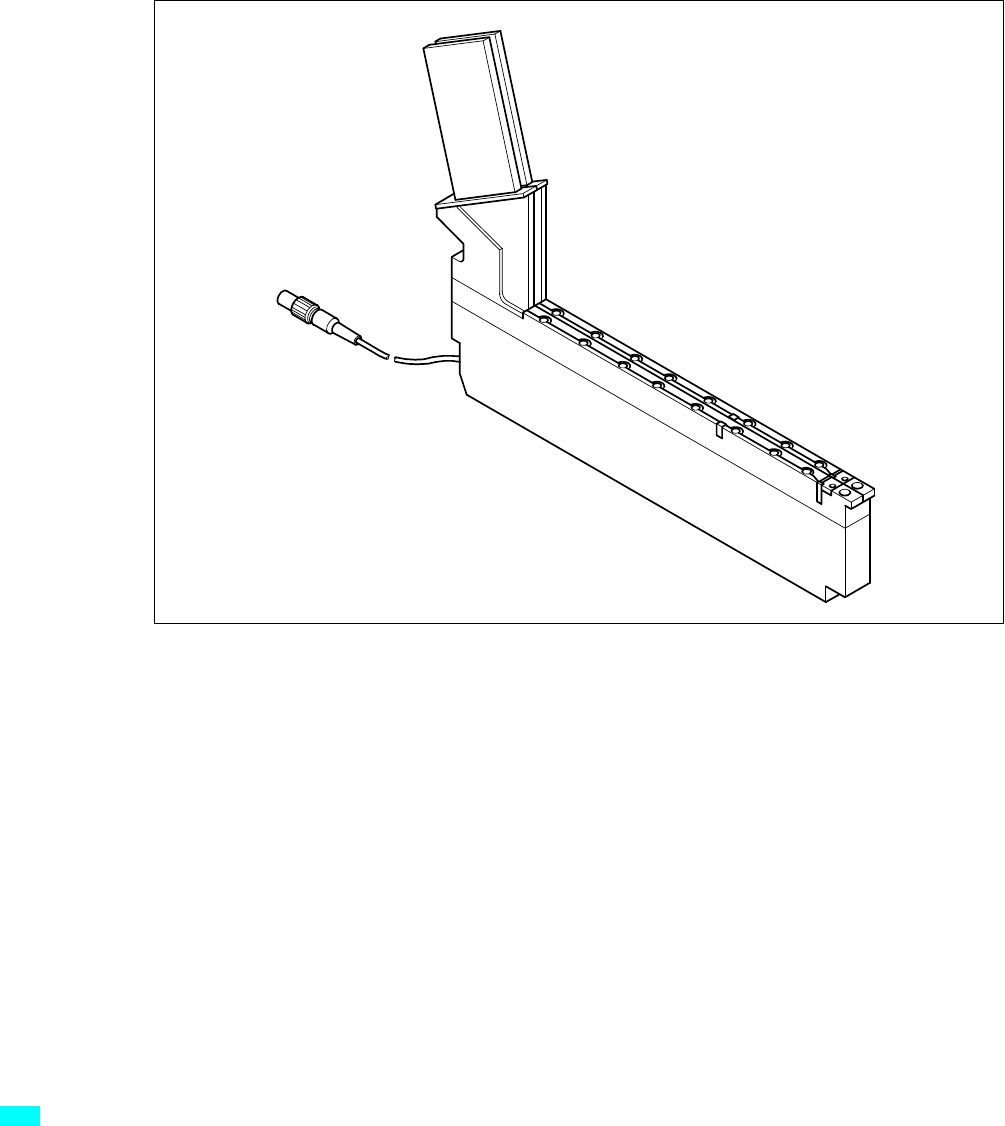

Fig. 10.2 - 5 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm high Item no. 00142321-xx
0603 / 0.80 mm high Item no. 00142322-xx
0805 / 0.45 mm high Item no. 00142323-xx
0805 / 0.60 mm high Item no. 00142324-xx
0805 / 0.85 mm high Item no. 00142325-xx
0805 / 1.25 mm high Item no. 00142326-xx
Minimelf Item no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC
Compressed air supply 2.0 bar + 0.3 bar 10
