User Manual S-23 HM 10 C omponent handling Software V ersion SR.405.xx 05/99 Issue 10.6 Component table, mobile 365 10.6 Component t able, mobile 10.6.1 Safety instructions for docking and undocki ng the mobile component…
10 Component handling User Manual S-23 HM
10.5 Used tape cutter Software Version SR.405.xx 05/99 Issue
364
PLEASE NOTE
On SIPLACE S-23 HM automatic placement systems, only use the tape feeder modules specified
for these machines. The used tape channel which removes the used tape is located upstream of
the feeder modules. 10
È Insert the tape into the feeder as described in the corresponding section.
È Guide the used tape into the used tape channel of the cutter as described in Fig. 10.5 - 2
The used tape guide channels are located upstream of the feeder modules. They are positioned
directly above the used tape cutters. 10
The tape is automatically guided through the used tape guide channel into the used tape cutter
below. There, the tape is shredded by the pneumatically-actuated cutting blade. The waste tape
then passes via the waste tape chute into the waste container. 10
10
Fig. 10.5 - 3 Used tape container in the component changeover table, withdrawable
(1) Component changeover table
(2) Used tape container, withdrawable
User Manual S-23 HM 10 Component handling
Software Version SR.405.xx 05/99 Issue 10.6 Component table, mobile
365
10.6 Component table, mobile
10.6.1 Safety instructions for docking and undocking the mobile component table
WARNING 10
È Never reach into the gap between the component tables and the placement system frame
while the machine is running (item 1).
È Always check that the component table is docked on the placement system before connecting
or disconnecting the component table power cable at the socket on the placement system
(item 2).
È NEVER connect the component table connecting cable to the socket on the placement system
and then operate the component table via the external compressed air control unit (item 3).
Fig. 10.6 - 1 Safety instructions for the mobile component table
10 Component handling User Manual S-23 HM
10.6 Component table, mobile Software Version SR.405.xx 05/99 Issue
366
10.6.2 Undocking the component table
10

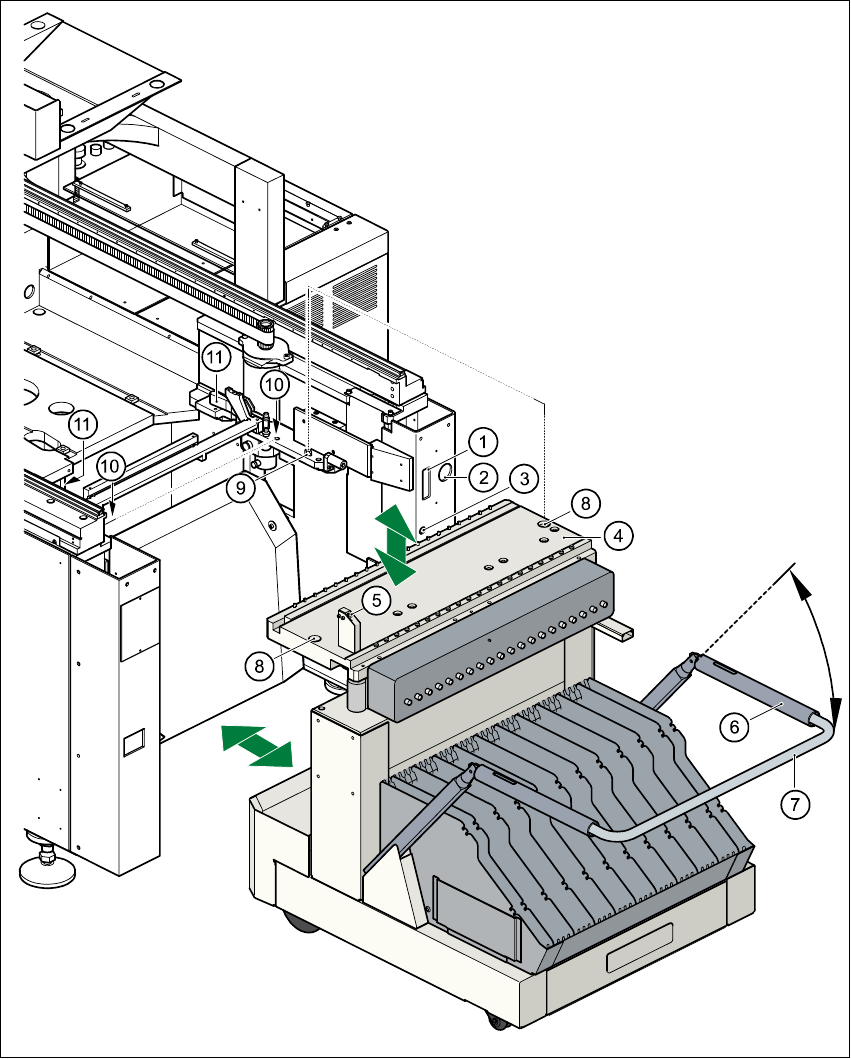

Fig. 10.6 - 2 Undocking the mobile component
