1 Introduction User Manual S-23 HM 1.12 Overview of the modules - gant ries Software Version SR.405.xx 05/99 I ssue 38 1.12 Overview of the modules - gantries 1.12.1 Position of the gantries 1 Fig. 1.12 - 1 Position of t…
User Manual S-23 HM 1 Introduction
Software Version SR.405.xx 05/99 Issue 1.11 Overview of the modules - controls
37
1.11.4 Technical data - PCB barcode reader
Connected to Station computer
Data entry Via barcode scanner or keyboard
Number of characters Up to 40
Not admissible Barcodes starting with a 1, 2, 3, or 4
of less than 5 characters long
Number of barcodes Up to 6 per component
Filter for masking out data Up to 1 per barcode
Preset code types Code 39 (standard or ASCII)
Code 2 of 5 interleaved and normal,
Code 128, UPC/EAN/JAN codes
(others available upon request)
1 Introduction User Manual S-23 HM
1.12 Overview of the modules - gantries Software Version SR.405.xx 05/99 Issue
38
1.12 Overview of the modules - gantries
1.12.1 Position of the gantries
1

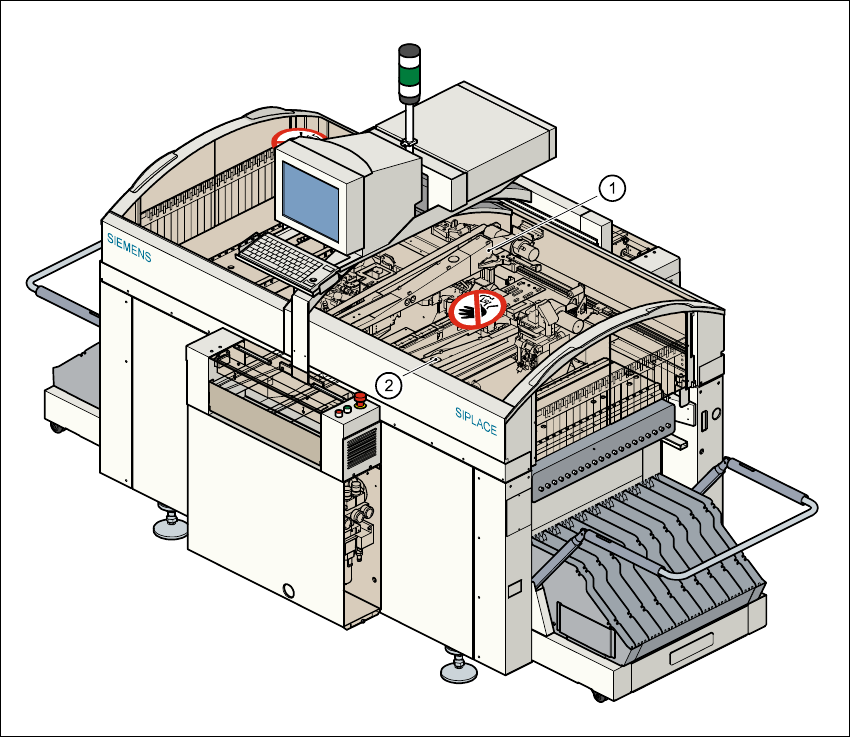

Fig. 1.12 - 1 Position of the gantries
(1) Gantry 1
(2) Gantry 2
1
The gantry system consists of two functional groups 1
–x axis
–y axis
1
User Manual S-23 HM 1 Introduction
Software Version SR.405.xx 05/99 Issue 1.12 Overview of the modules - gantries
39
1.12.2 Structure of the x axis
1

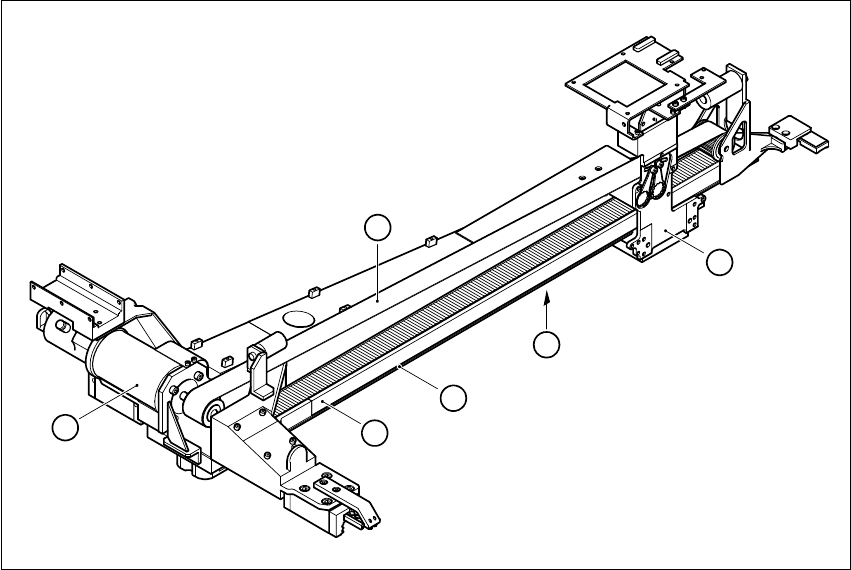

Fig. 1.12 - 2 Structure of the x axis
The x axis essentially consists of the following main modules: 1
– gantry arm (1)
– head mount (2)
– x-axis measuring system (3)
– x axis guide system (4)
– x axis three-phase AC servomotor (5)
– Toothed belt (6)
The head mount holds the following components 1
– sub-gantry camera (camera for the PCB vision system)
– head board
– measuring head for the x axis measuring system
– revolver placement head
3
4
1
5
6
2
