2 Operational Safety User Manual S-23 HM 2.2 Safety equipment Software Vers ion SR.405.xx 05/ 99 Issue 70 Protectiv e contactor combinati ons K1 a nd K2 monitor t he followi ng circui ts: K1: Emerge ncy sto p circuit , s…

User Manual S-23 HM 2 Operational Safety

Software Version SR.405.xx 05/99 Issue 2.2 Safety equipment

2.2.3.2 Status messages and the action required

The following displays may appear in placement mode. If they appear, carry out the action spec-

ified in the third column. 2

2.2.4 Safety circuits

The SIPLACE S-23 HM automatic placement system has two separate safety circuits which are

monitored by protective contactor combinations K1 and K2. Both protective contactor combina-

tions are incorporated into the power supply (see item 14 and 15 in Fig. 2.2 - 4). 2

DANGER

Automatic placement systems from the SIPLACE family are powered with 3x400VAC (3 x 208

VAC U.S.A. version) ± 10%, 50/60Hz mains voltage.

This means that parts of the system carry potentially fatal voltages - even when switched off at the

main switch. Death, serious injury or considerable damage may result if these automatic place-

ment systems are handled incorrectly.

Always follow the applicable accident prevention and DIN regulations (particularly EN 60204,

part 1) and the applicable regulations in your own country.

The guard over the power supply must ONLY be opened by appropriately qualified and trained

personnel. 2

Status Display on screen Action required

EMERGENCY STOP

mushroom-head push-

button pressed

Emergency stop pressed ...

Machine stopped. Release

button

Release the pressed emergency

stop button (item 3 or 4 in Fig. 2.2 -

Press start button Press the green start button (item 2

or 5 in Fig. 2.2 - 4)

Protective cover open Close the cover Close the protective cover (item 9,

10, 11 or 12 in Fig. 2.2 - 4)

Press start button Press the green start button (item 2

or 5 in Fig. 2.2 - 4)

Tab. 2.2 - 1 Screen display when the emergency stop mushroom-head push-button is pressed

or the protective cover is open

2 Operational Safety User Manual S-23 HM

2.2 Safety equipment Software Version SR.405.xx 05/99 Issue

Protective contactor combinations K1 and K2 monitor the following circuits:

K1: Emergency stop circuit, safety circuits for the component tables or wafflepack changer,

protective cover switch and the enable software signal

K2: Emergency stop circuit, K1 protective contactor combination, software enable signal and

key switch

K1 or K2 is triggered if any of these functions fail. The mains voltage to the heavy current trans-

former that supplies the gantry axis motors will be interrupted. The voltage to the star-type motor

for the revolver head is reduced from 70V to 10V. The dp and dR axes of the placement heads

continue to be supplied with 30V. The next diagram illustrates the various statuses of K1 and K2

and their effects on the axes and the PCB conveyor components.

User Manual S-23 HM 2 Operational Safety

Software Version SR.405.xx 05/99 Issue 2.2 Safety equipment

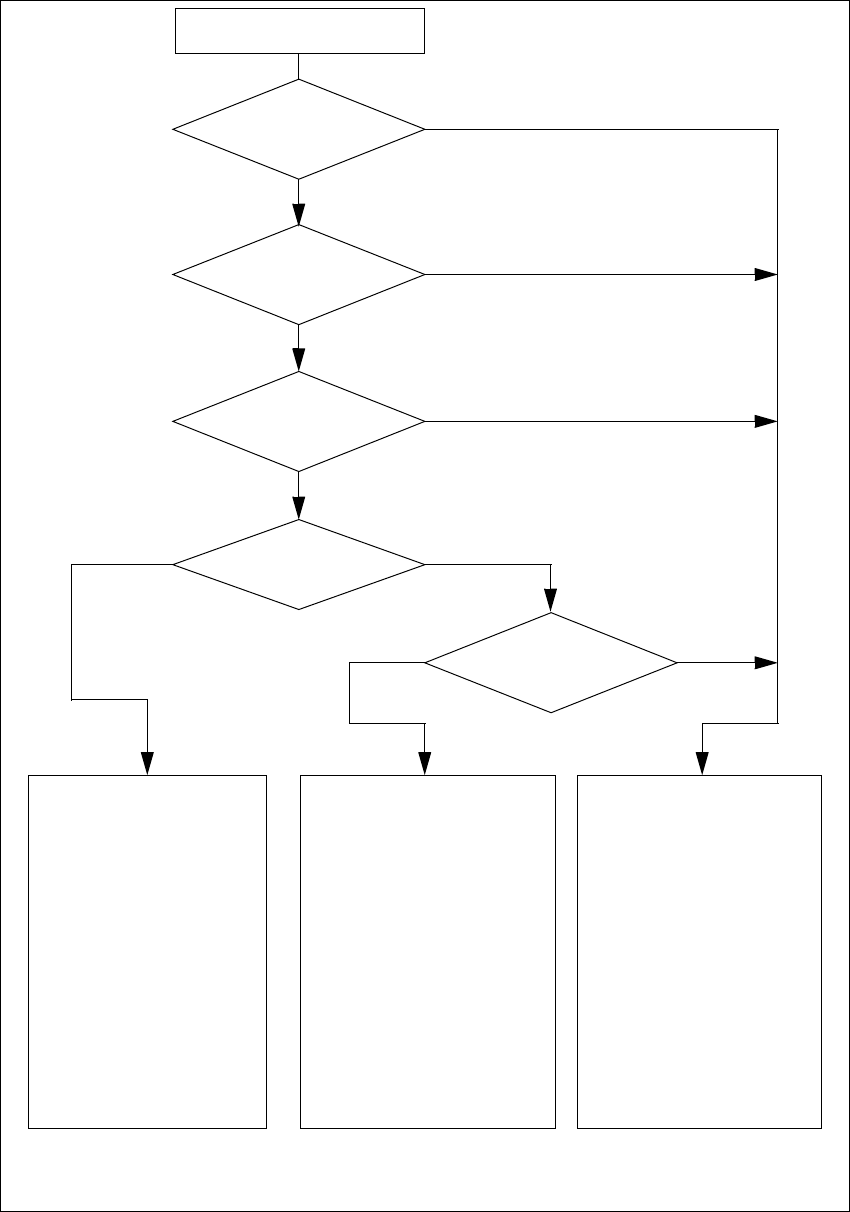

Fig. 2.2 - 5 SIPLACE S-23 HM safety circuits

Start button pressed

Emerg. stop

mushroom-head push-but-

ton pressed?

Protective cover open ?

Key switch

closed (positionI)?

Component table safety

circuit interrupted?

Yes

Active

K1 *) Yes

K2 *) Yes

Voltage

y axis 155 V

x axis 155 V

Star axis 70 V

dp axis 30 V

z axis 30 V

Active

PCB conveyor Yes

PCB clamping device Yes

Width adjustment Yes

PCB stopper Yes

Tape cutter Yes

Yes

Active

K1 *) No

K2 *) Yes

Voltage

y axis 0 V

x axis 0 V

Star axis **) 10 V

dp axis 30 V

z axis 30 V

Active

PCB conveyor Yes

PCB clamping device No

Width adjustment Yes

PCB stopper No

Tape cutter No

Active

K1 *) No

K2 *) No

Voltage

y axis 0 V

x axis 0 V

Star axis **) 10 V

dp axis 30 V

z axis 30 V

Active

PCB conveyor No

PCB clamping device No

Width adjustment No

PCB stopper No

Tape cutter No

*)K1, K2 protective contactor combination

**)The maximum current is limited by a 4.7 Ohm resistor.

Compressed air

min. 5.1 bar?

Yes
