Vision XP+ VAC / XP+ / XP / XS Page 19

2 Maintenance

2.4 Process Chamber

Service Instructions

Version 1.3

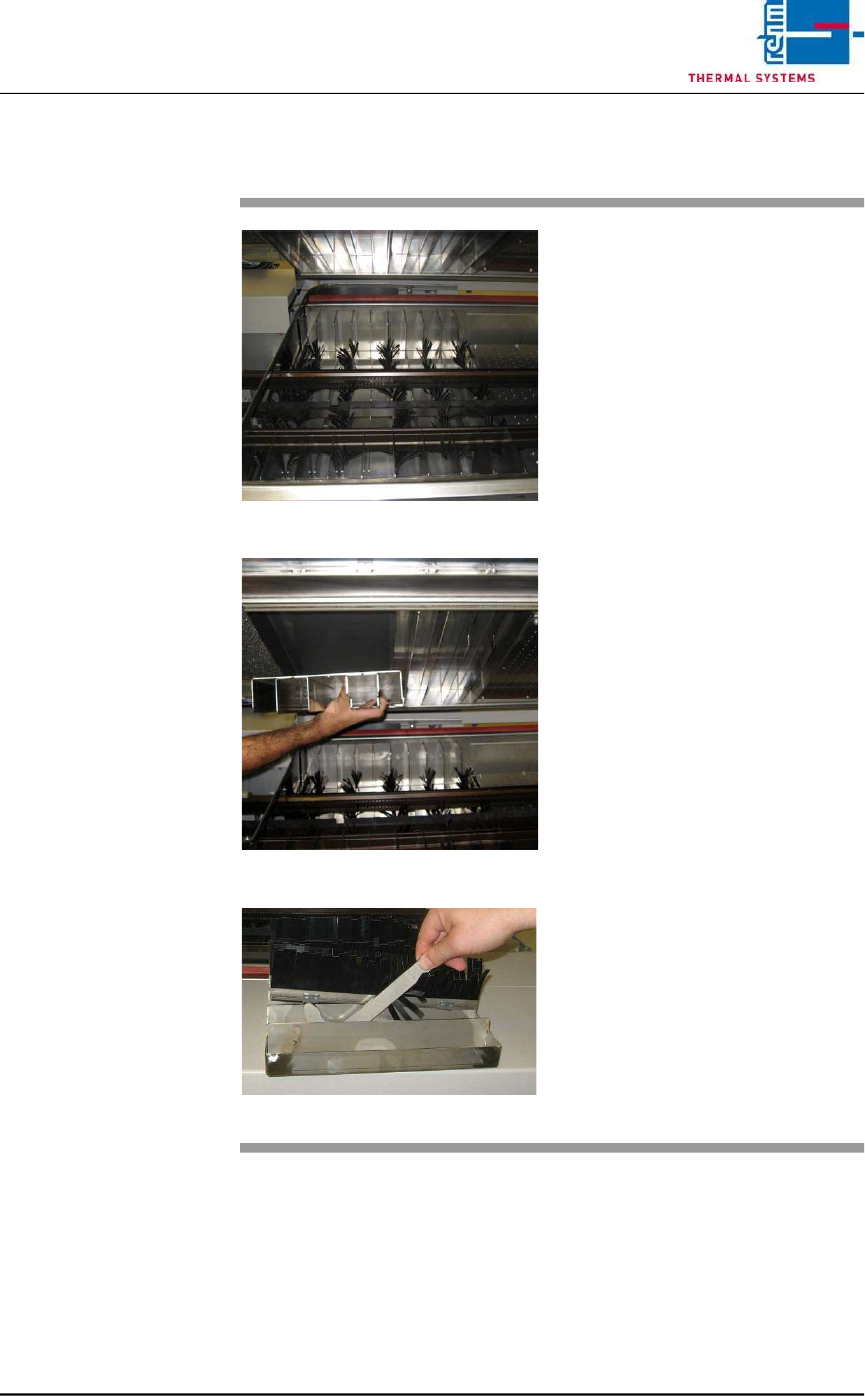

2.4.5 Cleaning the Curtains

Fig. 2-7 Bottom Curtains

Fig. 2-8 Top curtains (2-part)

Fig. 2-9 Push the clips up with prying tool

Consumable materials:

• Oven cleaner

• Rags

• Prying tool

Procedure:

1. Raise the process chamber.

2. Lift the curtains out of the

system along with the mounting

bracket.

3. Clean all curtains, the mounting

bracket and the interior of the

process chamber with oven

cleaner and a rag.

If the curtains are excessively dam-

aged they must be replaced.

Procedure:

1. Push up the clips at the left and

right-hand sides of the

mounting rail with the prying

tool.

2. Remove the old curtain.

3. Insert the new curtain.

4. Replace the clips.

Page 20 Vision XP+ VAC / XP+ / XP / XS

2 Maintenance

2.4 Process Chamber

Service Instructions

Version 1.3

2.4.6 Cleaning the Seal

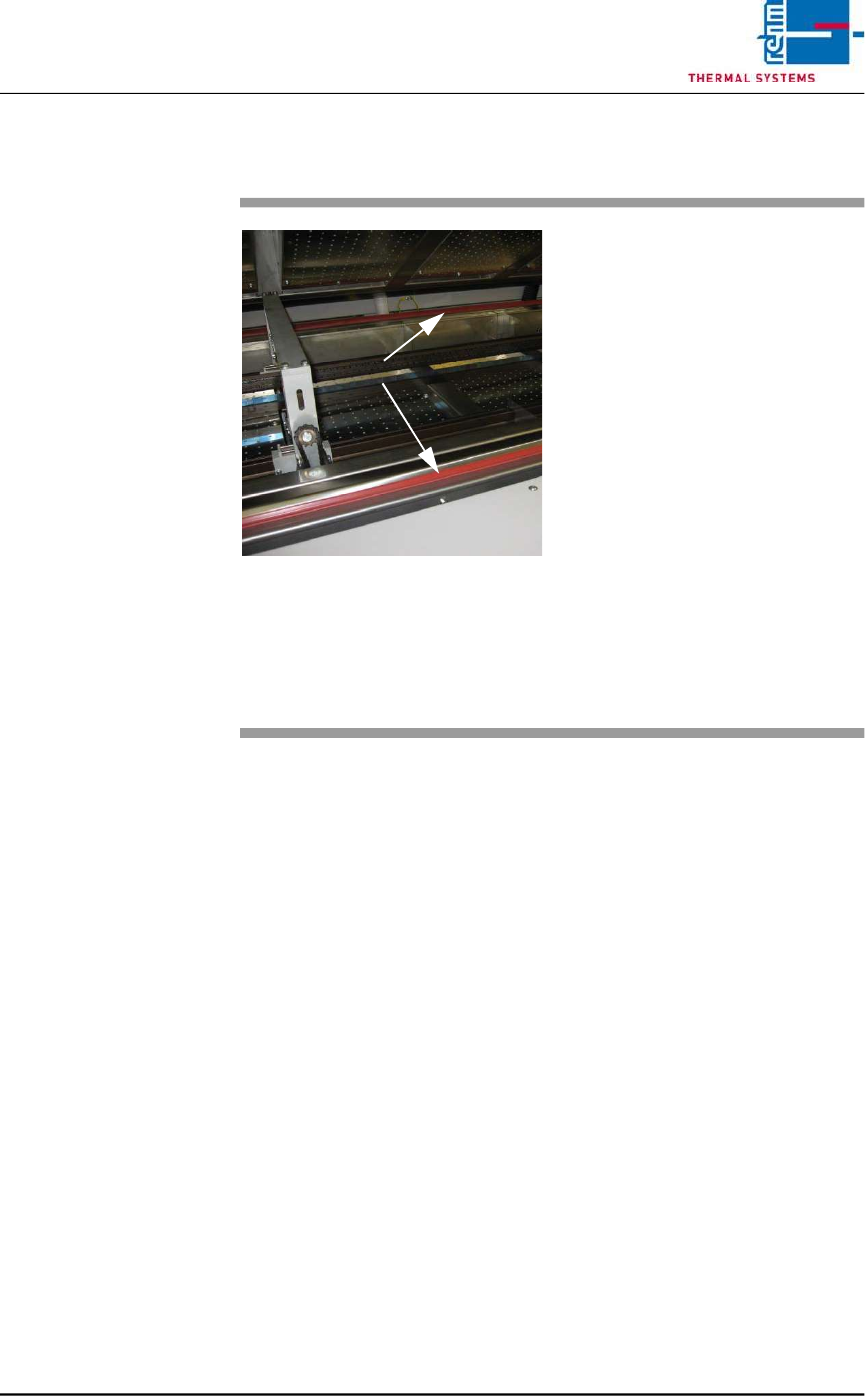

Fig. 2-10 Cleaning the Process Chamber

Seal

The seals must be clean and un-

damaged in order to assure reliable

production.

Consumable materials:

• Appropriate cleaning agent

• Rags

Procedure:

1. Raise the process chamber.

2. Clean the process chamber

seals with industrial alcohol and

a rag.

3. Clean all contamination from

the sheet metal panel at the

mating side of the seal.

4. The seals at the system’s inlet

and outlet must be cleaned

using the same procedure.

Seals

Vision XP+ VAC / XP+ / XP / XS Page 21

2 Maintenance

2.4 Process Chamber

Service Instructions

Version 1.3

2.4.7 Replacing the Seals

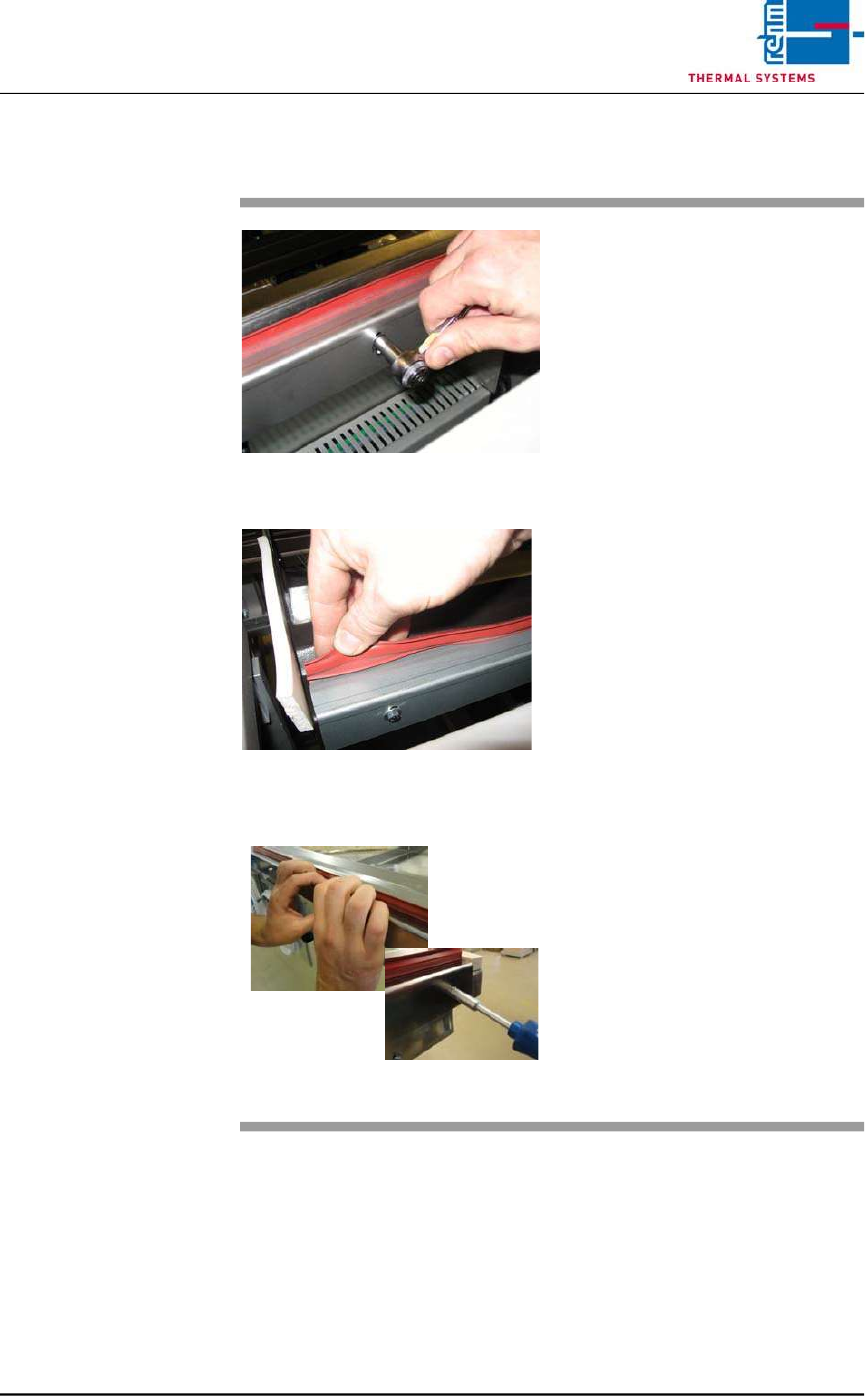

Fig. 2-11 Replacing the Process Chamber

Seals

Fig. 2-12 Replacing the Process Chamber

Seals

Fig. 2-13 Replacing the Process Chamber

Seals

Consumable materials:

detergent water

Procedure:

1. The seal can be pulled by hand

from the metal bracket.

2. Then clean the metal bracket

inside with detergent water.

3. Loosen the screws slightly

4. Now, the seal can be pressed

again into the metal bracket.

5. Press down the holder sheet

with the hand and tighten the

screws again.
