Vision XP+ VAC / XP+ / XP / XS Page 35
2 Maintenance
2.9 Condensate Trap
Service Instructions
Version 1.3
2.9.3 Cleaning the Catch Pans (B)
Fig. 2-46 Pulling Out the Catch Pan
The catch pans are located in the
bottom row of the condensate trap
(see item B in Fig. 2-46).
Consumable materials, tools:
• Oven cleaner
• Rags
• Rinsing bath
Procedure:
1. Open both locking levers and
pull out the cartridge.
2. Pull out the catch pan, empty it
an set it into the rinsing bath.
3. Clean the opening for the catch
pan and the door at the
condensate trap with oven
cleaner and rags.
4. Reinstall the cleaned catch pan
and slide the cartridge back into
place.
5. Hook the water connections
back up again.
Page 36 Vision XP+ VAC / XP+ / XP / XS
2 Maintenance
2.9 Condensate Trap
Service Instructions
Version 1.3

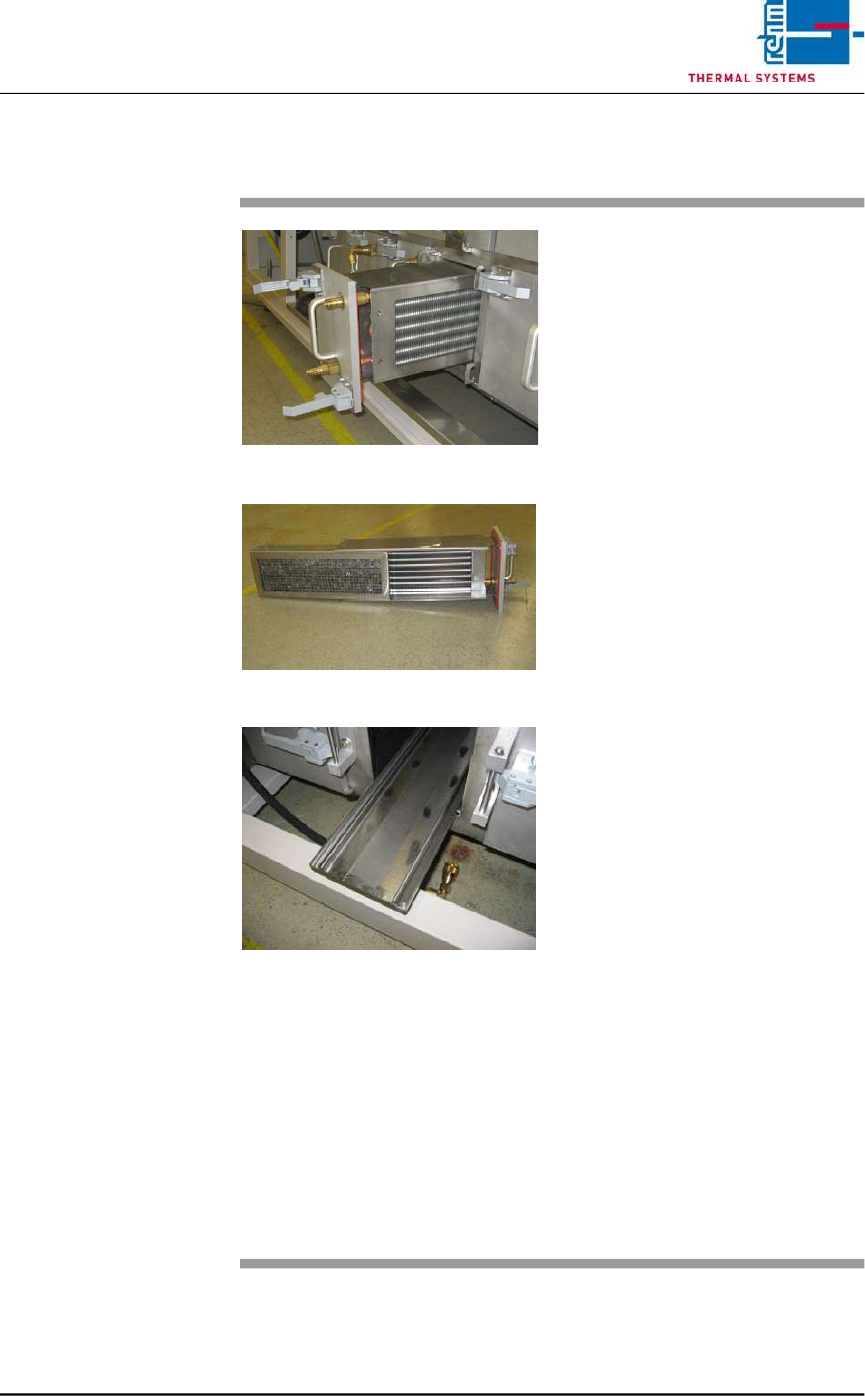

2.9.4 Cleaning Work at the Cooler Units (C)
Fig. 2-47 Pulling Out the Cooler Unit
Fig. 2-48 Pulling Out the Filter
Fig. 2-49 catch pan
The cooler units are located in the
bottom row of the condensate trap
(see item C in Fig. 2-47).
Consumable materials, tools:
• Oven cleaner
• Rags
• Rinsing bath
Procedure:
1. Open both locking levers and
pull out the cooler unit (see Fig.
2-48).
2. Pull the filter out of the cooler
unit and set it into the rinsing
bath.
3. Lift the cooler out of the cooler
unit and set it into the rinsing
bath as well.
4. Pull out the catch pan, empty it
an set it into the rinsing bath.
Caution!
The seals must protrude from
the bath. Otherwise they will be
damaged.
5. Clean the seals with industrial
alcohol and rags.
6. Clean the opening for the cooler
unit at the condensate trap with
oven cleaner and rags.
7. Reassemble cleaned parts and
insert them into the condensate
trap.
Note!
The quick couplings should be
lubricated occasionally, using
suitable lubricant, thereafter audibly
click the couplings back in.
Vision XP+ VAC / XP+ / XP / XS Page 37
2 Maintenance
2.9 Condensate Trap
Service Instructions
Version 1.3

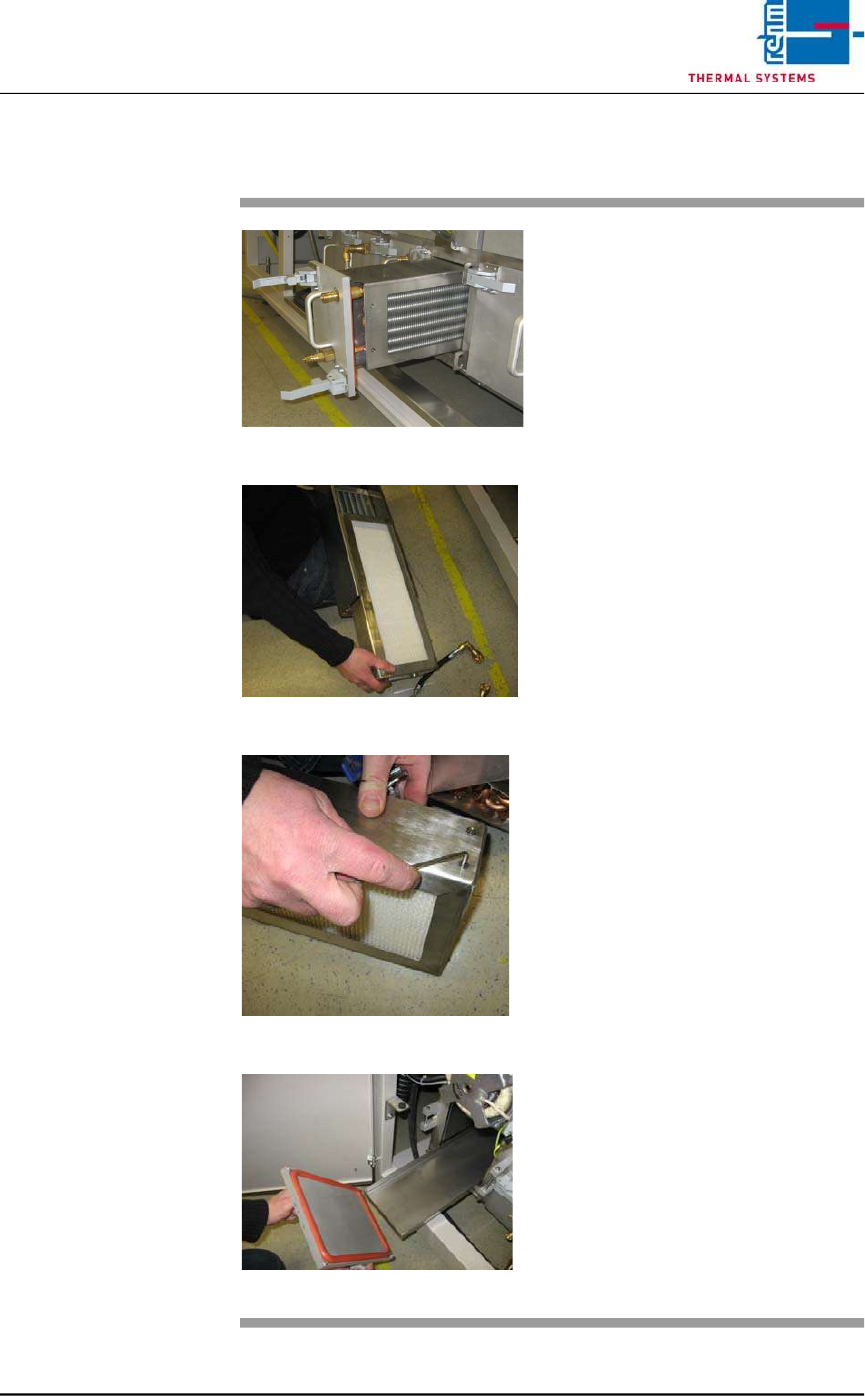

2.9.5 Cleaning Work at the Cooler Units (D)
Fig. 2-50 Pulling Out the Cooler Unit
Fig. 2-51 Pulling Out the Filter unit F9
Fig. 2-52 Metal Frame
Fig. 2-53 Drip pan
The cooler units are located in the
bottom row of the condensate trap.
Consumable materials, tools:
• Oven cleaner
• Rags
• Rinsing bath
• Allen wrench 2,5 mm
Procedure:
1. Open both locking levers and
pull out the cooler unit.
2. Pull the filter (F9) out of the
cooler unit.
3. Lift the cooler out of the cooler
unit and set it into the rinsing
bath as well
4. Open the metal frame of the
filter (F9) with a 2,5 mm allen
wrench and replace the paper
filter (one-way).
Caution!
The seals must protrude from
the bath. Otherwise they will be
damaged.
5. Clean the seals with industrial
alcohol and rags.
6. Pull out the catch pan, empty it
an set it into the rinsing bath.
7. Clean the opening for the cooler
unit at the condensate trap with
oven cleaner and rags.
8. Reassemble cleaned parts and
insert them into the condensate
trap.
9. All connections restore.
