Vision XP+ VAC / XP+ / XP / XS Page 39
2 Maintenance
2.9 Condensate Trap
Service Instructions
Version 1.3

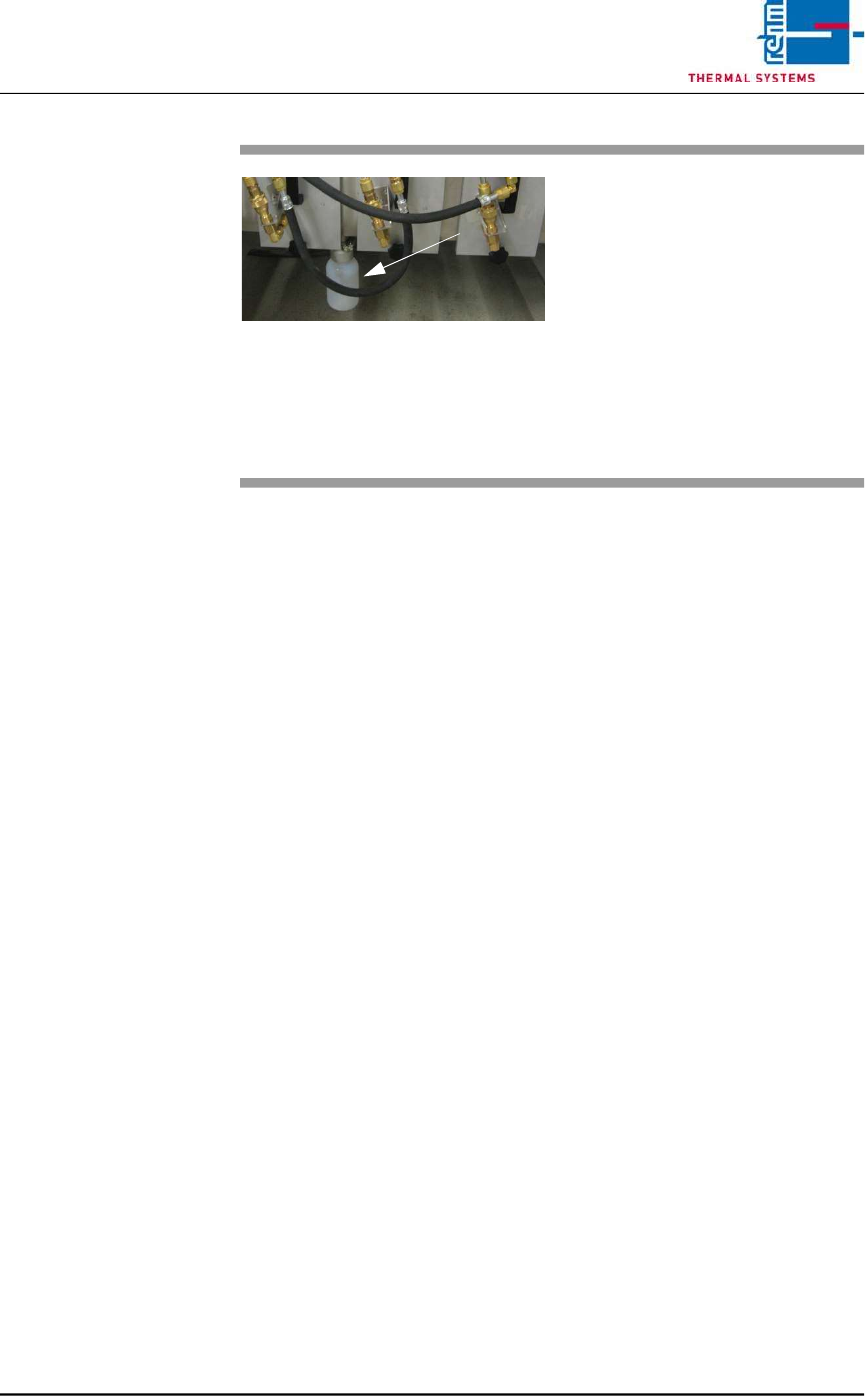

Fig. 2-58 Residue Bottle
– Unscrew the polyethylene
bottle.
– If possible, empty the con-
tents of the bottles into the
disposal container, and dis-
pose of the
residue properly.
– If the bottle cannot be emp-
tied, replace them with new
bottle.
– Screw the bottle back into
place.
Page 40 Vision XP+ VAC / XP+ / XP / XS
2 Maintenance
2.10 Modulare Residue System VXS (Option)
Service Instructions
Version 1.3
2.10 Modulare Residue System VXS (Option)
2.10.1 MRS - Refill the MRS-tank

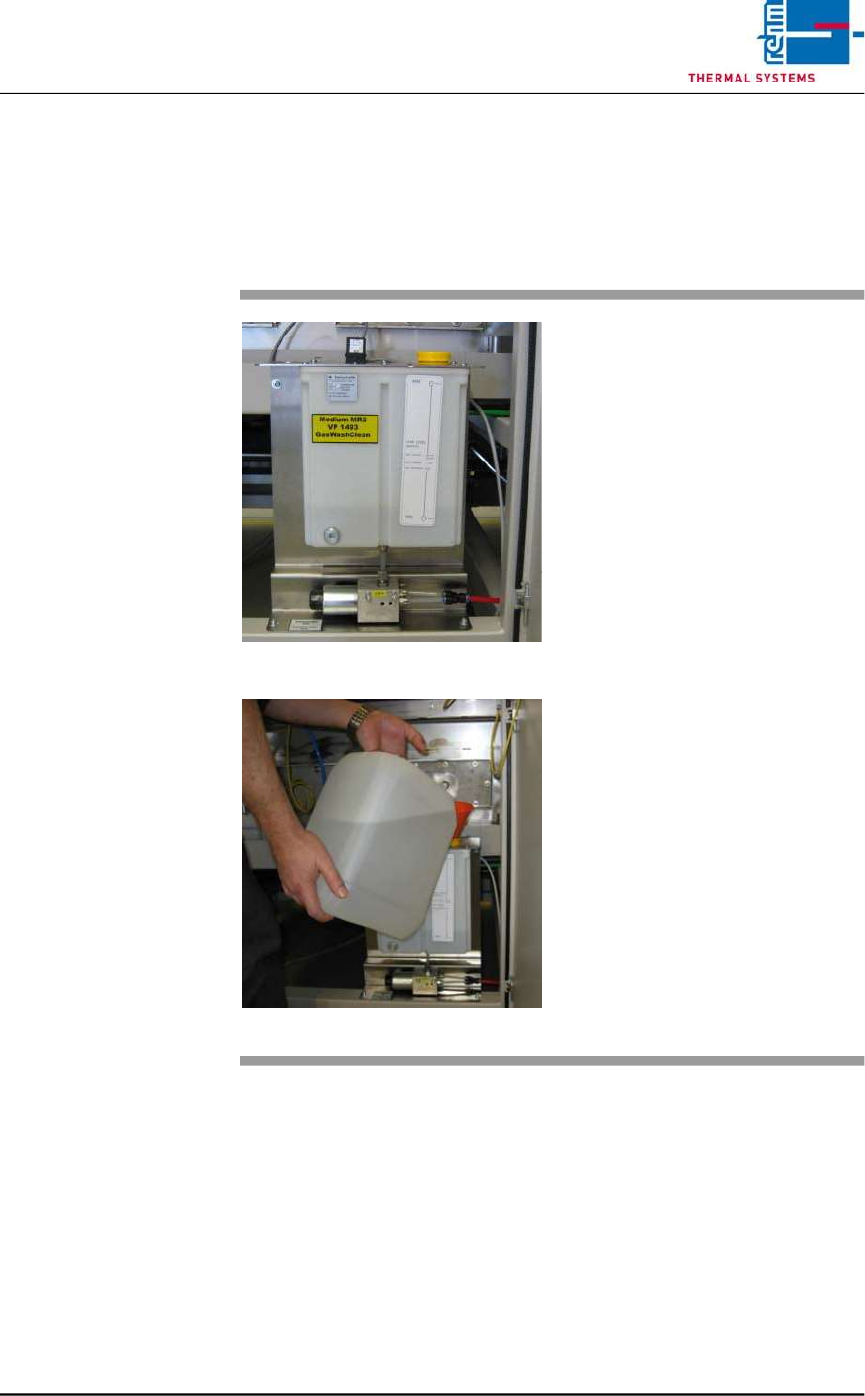

Fig. 2-59 MRS-tank
Fig. 2-60 Refill the MRS-tank
The MRS-tank is located at the front
side of the system, behind the first
door ( viewed from the outlet).
Consumable materials:
• Medium-MRS
• Funnel
Procedure:
1. If the filling level has reached
the mark Minimum, but at least
when the alarm "MRS-Tank
empty" appears, refill the tank
with the Medium liquid to the
mark Maximum.
2. For refilling open the turn-lock
fastener at the top of the tank,
insert the funnel and fill in the
medium.
Vision XP+ VAC / XP+ / XP / XS Page 41
2 Maintenance
2.10 Modulare Residue System VXS (Option)
Service Instructions
Version 1.3
2.10.2 Exchange filter

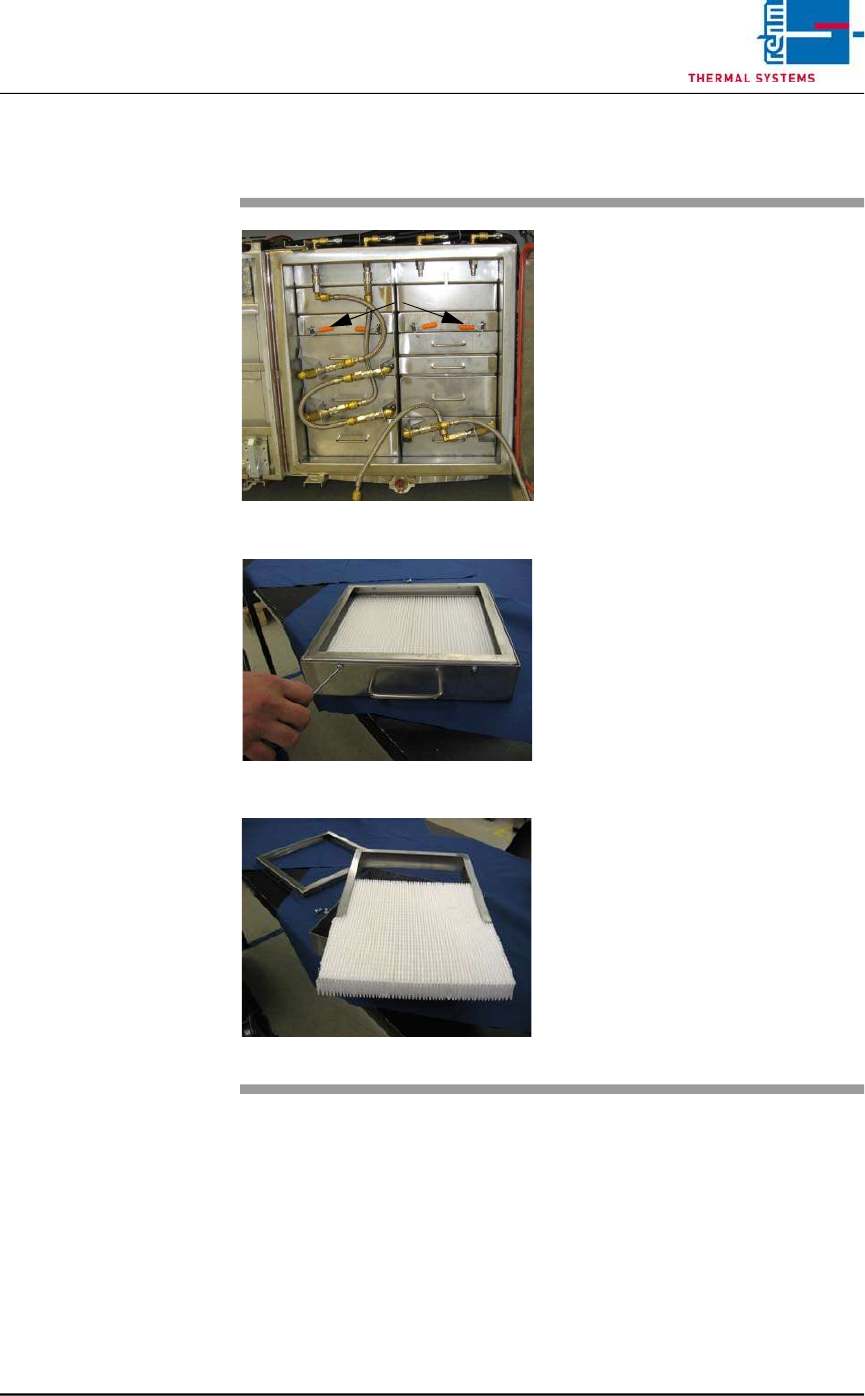

Fig. 2-61 Filter case in the MRS
Fig. 2-62 Filter case
Fig. 2-63 Exchange filter
The filter is located on the right side
of the MRS. Please check the filter
on a regular base and exchange it if
necessary.
Attention!
If the filter is located in the filter
case, do not clean it in the cleaning
bath.
Tools and Consumable materials:
• Allen key
• Filter
Procedure:
1. Pull off the upper cooling water
pipes.
2. Open the tenter frame (push
down the handle) and pull out
the frame.
3. Pull out the filter case.
4. Loosen the 4 screws at the filter
case and take away the upper
part of the frame.
5. Pull out the dirty filter.
6. Push in the new filter.
Attention!
Make sure that the coated side
of the filter is on the bottom.
7. Reassemble the filter case and
push it back into the MRS.
Filter
Agglomerator
Cooler
Tenter frame
Agglomerator
