後側供給部周辺 LAF-201 12- 01 後側供給部周辺 SHEET 2/2 ＜その他＞ CYLINDER for LOCA TING PIN OPERA TION SHUTTER OPEN CYLINDER CYLINDER for LOCA TING PIN OPERA TION SR-MOTOR SL-MOTOR CYLINDER for LOCA TING PIN OPERA TION SHUTTER OPEN CYLIND…

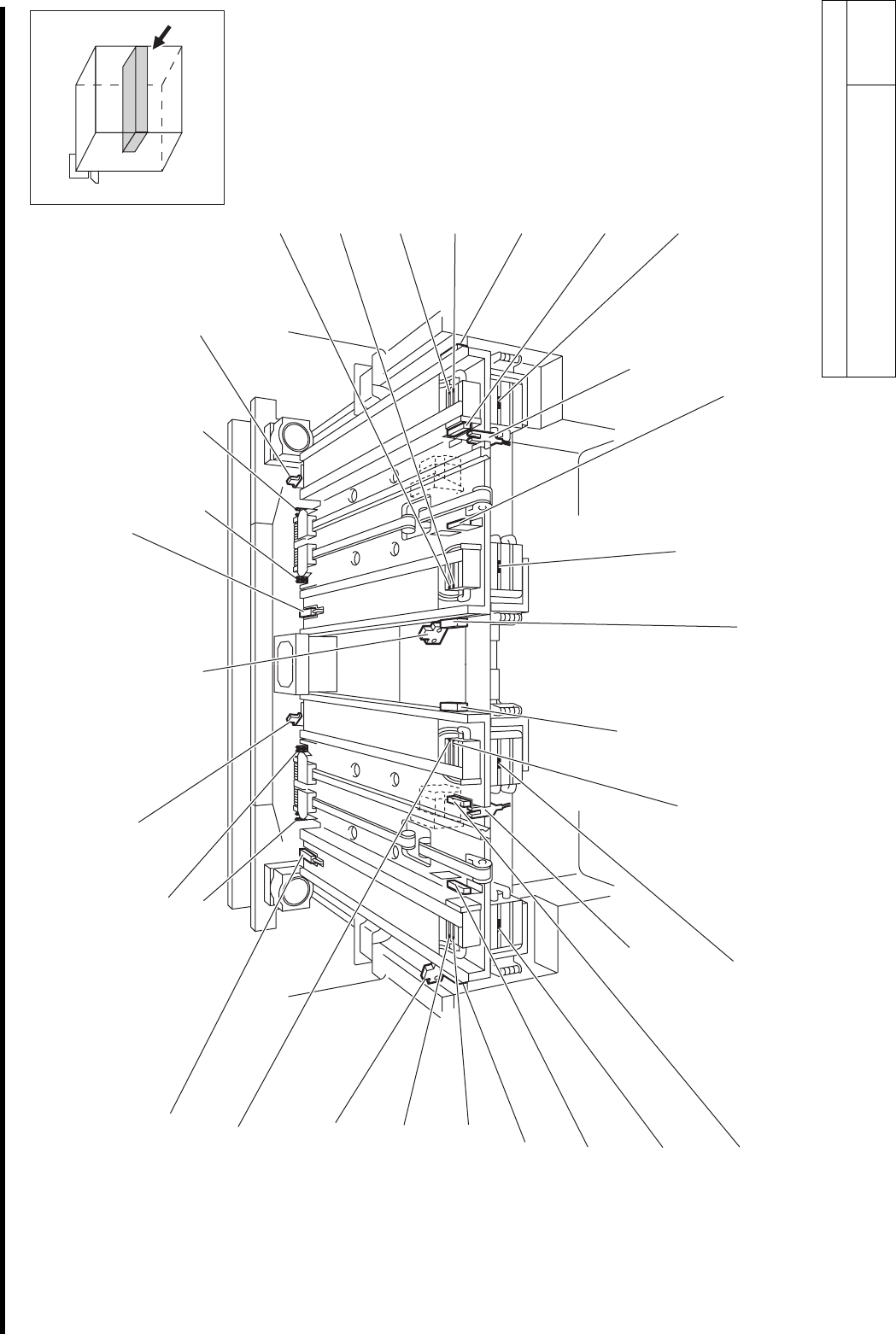

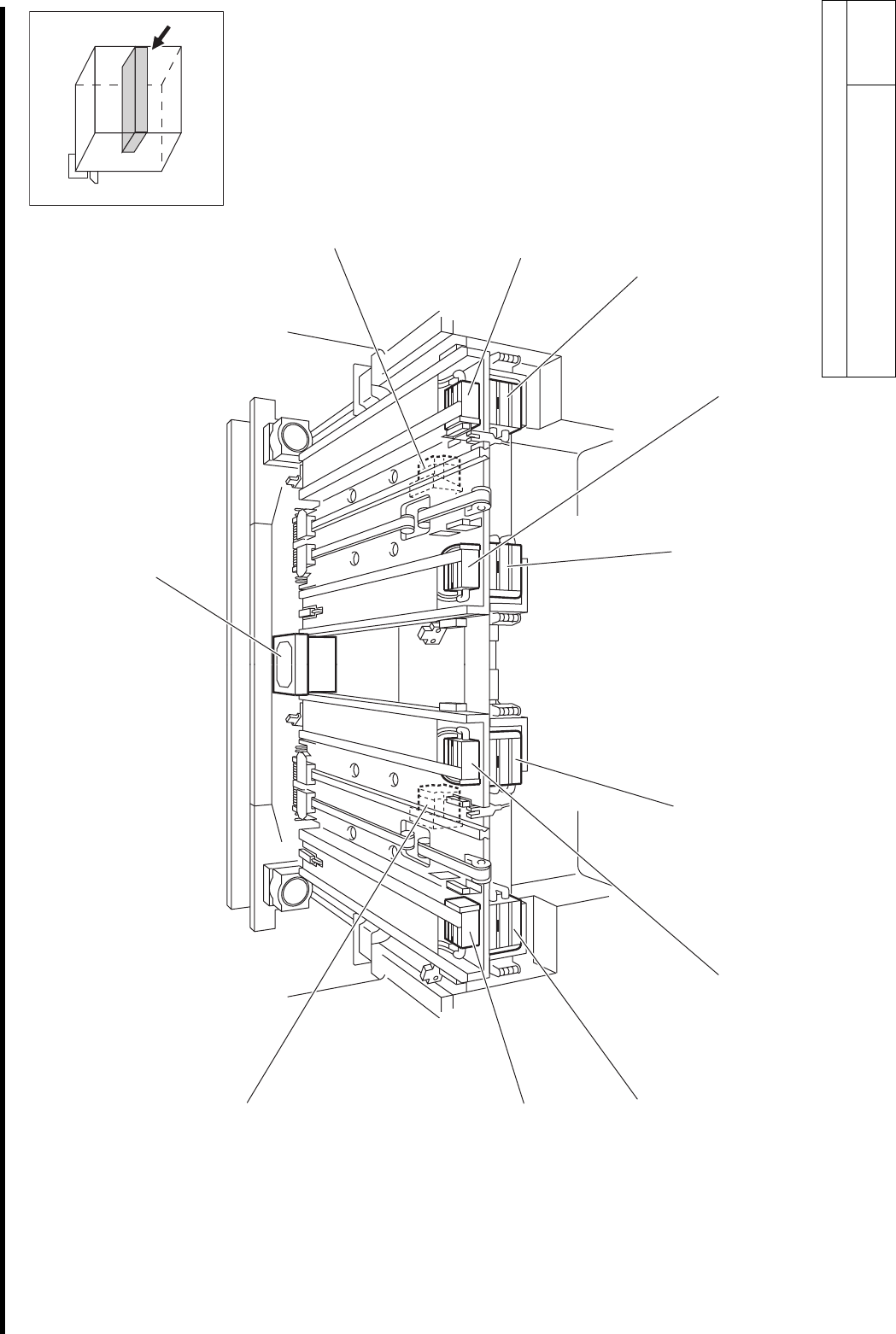

後側供給部周辺
LAF-20112-01
後側供給部周辺
SHEET
1/2
後側供給部周辺
＜センサ＞
PX280
SHUTTER CLOSE
END SENSOR
PX298
SHUTTER CLOSE
END SENSOR
LS299
SHUTTER CYLINDER
OPEN END SENSOR
PX292
PIN PULL-IN RETURN
CHECKING SENSOR
S
L-
C
W
LS301
SHUTTER CYLINDER
OPEN END SENSOR
PX300
SHUTTER CLOSE END
SENSOR
LS297
PULL-IN CYLINDER OUT
END SENSOR
LS296
PULL-IN CYLINDER IN
END SENSOR
PX295
PIN PULL-IN RETURN
CHECKING SENSOR
LS294
PULL-IN CYLINDER OUT
END SENSOR
LS293
PULL-IN CYLINDER IN
END SENSOR
LS277
PULL-IN CYLINDER
OUT END SENSOR
LS281
SHUTTER CYLINDER
OPEN END SENSOR
S
R-
C
W
PX275
PIN PULL-IN RETURN
CHECKING SENSOR
LS279
SHUTTER CYLINDER
OPEN END SENSOR
PX278
SHUTTER CLOSE
END SENSOR
LS274
PULL-IN CYLINDER
OUT END SENSOR
PX272
PIN PULL-IN RETURN
CHECKING SENSOR
LS273
PULL-IN CYLINDER
IN END SENSOR
BS270T
PALLET PASSING SENSOR
PH271
PALLET ARRIVAL
CHECKING SENSOR
S
R-
O
R
G
S
R-
CC
W
BS270R
PALLET PASSING
SENSOR
LS276
PULL-IN CYLINDER
IN END SENSOR
BS290T
PALLET PASSING
SENSOR
PH291
PALLET ARRIVAL
CHECKING SENSOR
S
L-
O
R
G
S
L-
C
C
W
BS290R
PALLET PASSING
SENSOR
後側供給部周辺
LAF-20112-01
後側供給部周辺
SHEET
2/2
＜その他＞
CYLINDER for LOCATING
PIN OPERATION
SHUTTER OPEN CYLINDER
CYLINDER for LOCATING
PIN OPERATION
SR-MOTOR
SL-MOTOR
CYLINDER for LOCATING
PIN OPERATION
SHUTTER OPEN CYLINDER
CYLINDER for LOCATING
PIN OPERATION
SHUTTER OPEN
CYLINDER
SHUTTER OPEN
CYLINDER
FIXED CAMER
A

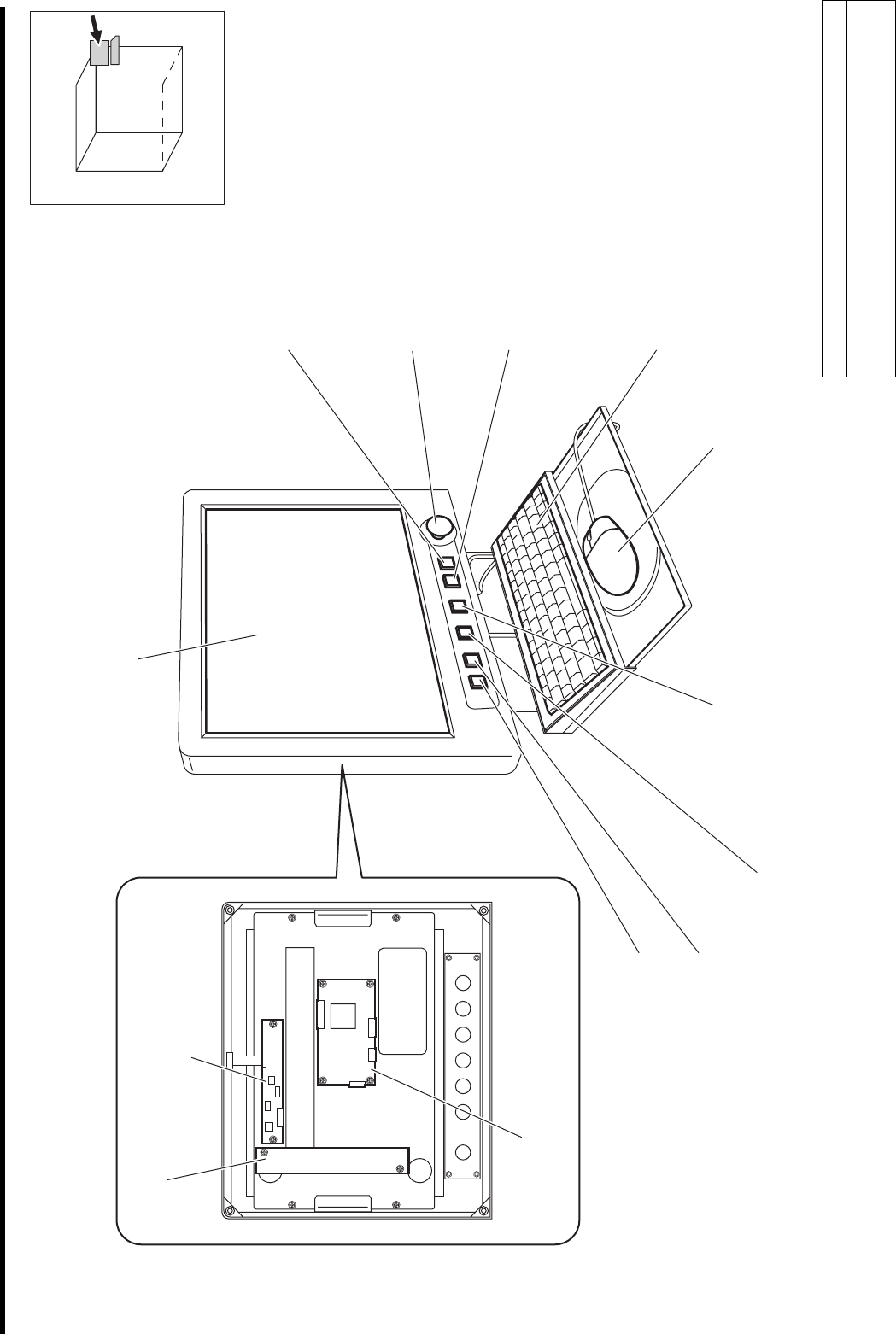

操作パネル周辺
LAF-20113-01
操作パネル周辺
SHEET
1/1
操作パネル周辺
PB77, D1117
ON LINE SW/LAMP
LCD TOUCH PANEL
PB73, D1113
FRONT ACTIVE SW/LAMP
PB72, D1112
FRONT RESET SW/LAMP
MOUSE
KEYBOARD
PB71, D1111
FRONT STOP SW/LAMP
PB70, D1110
FRONT START SW/LAMP
PB76, D1116
FRONT ORIGIN SW/LAMP
SW10
EMERGENCY SWITCH
TOUCH PANEL I/F BOARD
LCD I/F BOARD
BACK LIGHT INVERTER
