- - 8. C OV ER COMPONE N TS ( 2) 2 5 3 1 6 1 4 1 3 1 0 8 8 8 8 8 8 8 1 2 7 1 5 1 6 1 7 1 6 4 4 2 4 3 2 6 2 9 2 8 3 2 2 5 2 7 3 3 2 9 2 8 4 0 4 1 2 1 2 4 2 5 3 0 3 1 3 4 2 4 2 6 2 2 3 5 3 6 3 3 3 3 4 6 4 7 3 7 5 1 4 9 5…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69511 COVER FUL(ST)ASM 1
2 400-70463 TEMPERATURE ADJUSTMENT UNIT IN PARAMETER (3)
3 400-69178 COVER FUL (1)
4 400-01464 STOPPER SUPPORT (1)
5 400-49671 COVER CUSHIONR (1)
6 SL-6041092-TN SCREW (2)
7 HD-0026100-10 SENSOR (3)
8 HD-0017600-30 TEMP. HARD COVER (3)
9 400-56924 SAFETY COVER STOPPER (1)
10 SM-6042002-TN BOLT (1)
11 WP-0430801-SC WASHER 4.3X9X0.8 (1)
12 400-69197 TEMP CTL COVER (1)
13 NM-3040520-SF FLANGE NUT M4 (4)
14 SM-4030601-SC SCREW M3 X 6 (1)
15 400-69190 PULLEY COVER L (1)
16 SM-0040801-SC SCREW (2)
17 NM-6040001-SC NUT M4 (2)
18 PJ-2300061-00 UNION 06 (1)
19 400-68871 C TEMP CTL SW CBL ASM (1)
20 400-68872 R TEMP CTL SW CBL ASM (1)
21 400-68870 L TEMP CTL SW CBL ASM (1)
22 400-69512 COVER FUR(ST)ASM 1
23 400-50352 KEY BOARD BR ASM (1)
24 400-01440 KB CLAMP (1)
25 SL-4040891-SC SCREW M4 L=8 (2)
26 400-01441 KB STAND (1)
27 E1349-721-000 KEYBOARD HINGE (3)
28 SM-1030501-SC SCREW M3 L=5 (12)
29 E1346-721-000 KEYBOARD MAGNET (2)
30 400-03318 KEY BOARD SP ASM (1)
31 400-46604 KB SUPPORT (1)
32 400-46603 KB BRACKET (1)
33 HX-0015000-0D CABLE CLIP (1)
34 SL-6041092-TN SCREW (4)
35 400-69196 SWITCH PANEL (1)
36 400-01437 LCD BRACKET R (1)
37 SL-6041092-TN SCREW (15)
38 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 (2)
39 161-87007 WING BOLT (1)
40 WP-0641601-SC WASHER (1)
41 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (1)
42 400-01438 CABLE GUIDE(OPERATION PANEL) (1)
43 HX-0035400-0H SPACER (6)
44 400-01445 CABLE GUIDE RUBBER (1)
45 400-01464 STOPPER SUPPORT (1)
46 400-49671 COVER CUSHIONR (1)
47 400-01470 PWB COVER (1)
48 E1316-725-000 HANDLE PLATE (1)
49 NM-6040001-SC NUT M4 (2)
50 400-01436 LCD BRACKET F (1)
51 400-56924 SAFETY COVER STOPPER (1)
52 SM-6042002-TN BOLT (1)
53 WP-0430801-SC WASHER 4.3X9X0.8 (1)
54 400-01453 SAFETY SWITCH BRACKET (1)
55 HX-0009600-00 EDGE BUSHING (0.2)
56 NM-3040520-SF FLANGE NUT M4 (4)
57 SL-6041642-TN SCREW (2)
58 PJ-3010651-06 KNIFE UNION (1)
59 E2904-700-000 SOCKET (1)
60 400-01953 OPERATION PCB ASM. (1)
61 400-02205 F-EMG SWITCH CABLE ASM (1)
62 400-02254 COVER OPEN SWITCH CABLE ASM (1)
63 HA-0053400-20 SWITCH ACTUATOR (6)
64 HA-0053400-60 LED YELLOW (2)
65 E1326-715-000 EMERGENCY SEAL (1)
66 HA-0053400-6B LED GREEN (2)
67 HA-0053400-4A BEZEL (2)
68 HA-0055200-30 BEZEL (4)
69 HA-0055200-1B LENSE GREEN (3)
70 HA-0055200-1A LENSE YELLOW (2)
71 HA-0055200-10 LENSE RED (1)
72 400-25669 LCD DSP (1)
73 400-69180 COVER FUR (1)
74 SM-4030601-SC SCREW M3 X 6 (1)
75 400-69191 PULLEY COVER R (1)
76 SM-0040801-SC SCREW (1)
77 SL-6041092-TN SCREW (2)
78 HA-0053800-00 SWITCH (1)
79 400-80173 OPTICAL SCROLL MOUSE (1)
80 400-46619 MOUSE HINGE (1)
81 400-46605 MOUSE PLATE (1)
82 SL-6040892-TN BOLT (4)
83 400-46637 MOUSE POCKET (1)
84 E2506-716-000 MOP MAGNET (1)
85 HX-0036700-0A BUSH (0.5)
86 SL-3061232-TN SCREW 4
87 E9649-729-000 HOD ASM. 1
88 SL-6061292-TN SCREW 4
- -

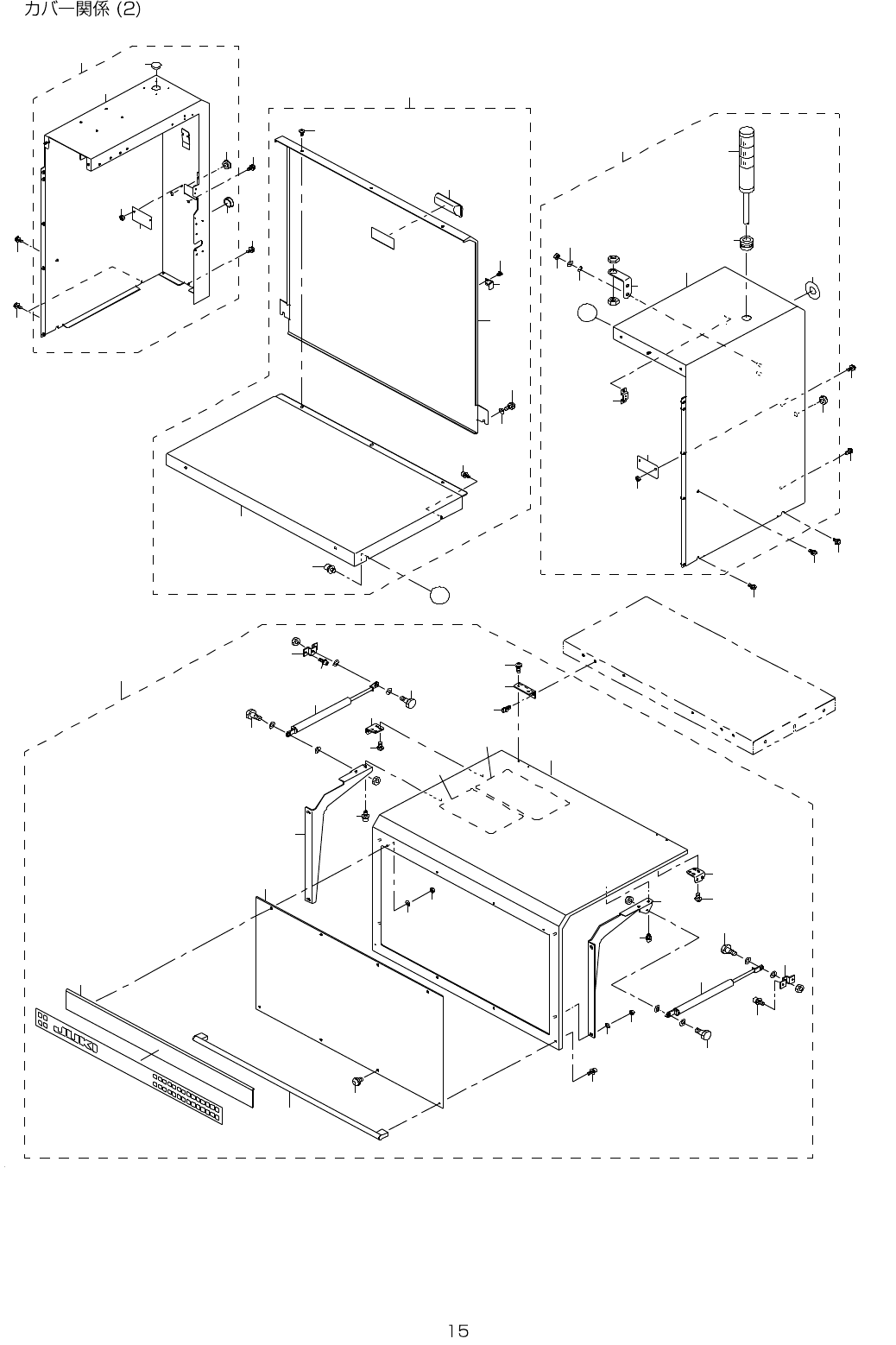

8. COVER COMPONENTS (2)
2
5
3
1
6
1 4
1 3
1 0
8
8
8
8
8
8
8
1 2
7
1 5
1 6
1 7
1 6
4
4 2
4 3
2 6
2 9
2 8
3 2
2 5
2 7
3 3
2 9
2 8
4 0
4 1
2 1
2 4
2 5
3 0
3 1
3 4
2 4
2 6
2 2
3 5
3 6
3 3
3 3
4 6
4 7
3 7
5 1
4 9
5 3
5 0
4 5
5 4
8
3 8
3 8
3 9
3 9
2 3
A
A
4 4
9
4 1
3 3
4 8
8
1 8
1 1
1 9
5 2
2 0
- -

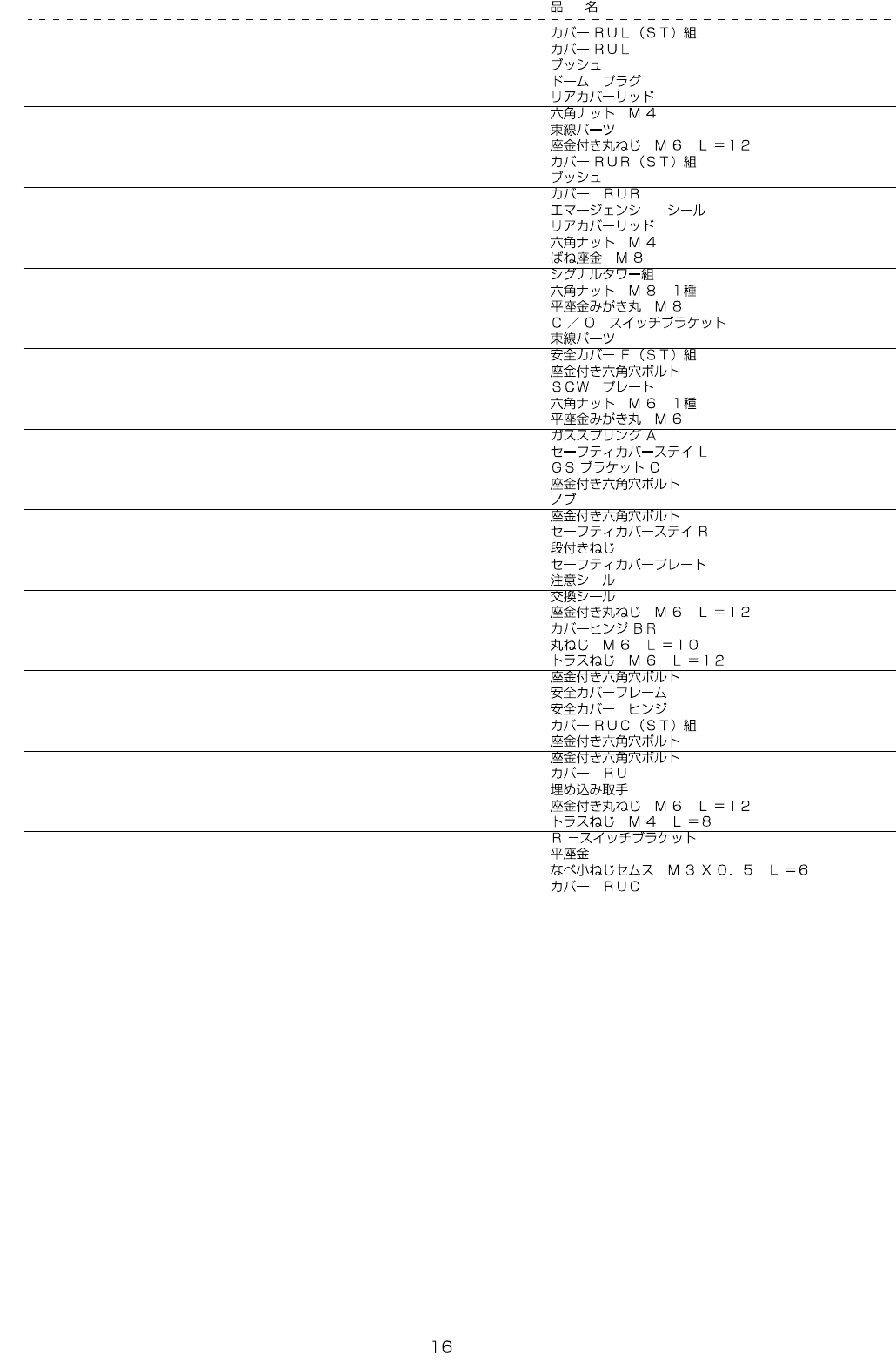

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69513 COVER RUL(ST)ASM 1
2 400-46565 COVER RUL (1)
3 HX-0032600-0B BUSH (1)
4 HX-0032600-0M DOME PLUG (1)
5 400-01460 REAR COVER LID (1)
6 NM-6040001-SC NUT M4 (2)
7 HX-0032600-0H CABLE PARTS (1)
8 SL-3061232-TN SCREW 10
9 400-69514 COVER RUR(ST)ASM 1
10 HX-0005500-0N RUBBER BUSHING (1)
11 400-69181 COVER RUR (1)
12 E1326-715-000 EMERGENCY SEAL (1)
13 400-01460 REAR COVER LID (1)
14 NM-6040001-SC NUT M4 (2)
15 WS-0820002-KN SPRING WASHER M8 (2)
16 400-03265 SIGNAL TOWER ASM (1)
17 NM-6080001-SC NUT M8X1.25 (2)
18 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
19 E1310-727-000 C/O SWITCH BR (1)
20 HX-0032600-0H CABLE PARTS (1)
21 400-69515 SAFETY COVER F(ST)ASM 1
22 SL-6061292-TN SCREW (4)
23 400-69194 SCW PLATE (1)
24 NM-6060001-SC NUT M6 (8)
25 WP-0641601-SC WASHER (8)
26 400-01471 GAS SPRING A (2)
27 400-46606 SAFETY COVER STAY L (1)
28 400-43523 GS BRACKET C (2)
29 SL-6061242-TN BOLT (4)
30 400-46608 KNOB (1)
31 SL-6051092-TN BOLT (2)
32 400-46607 SAFETY COVER STAY R (1)
33 400-38381 STEP SCREW (4)
34 400-46577 SAFETY COVER PLATE (1)
35 400-50445 CAUTION SEAL (1)
36 400-50446 SEAL (1)
37 SL-3061232-TN SCREW (2)
38 400-55287 COVER HINGE BR (2)
39 SM-3061052-TN SCREW M6 L=10 (4)
40 SM-0061201-SC SCREW (4)
41 SL-6061242-TN BOLT (4)
42 400-69192 SAFETY COVER FRAME (1)
43 E1318-715-000 SAFTY COVER HINGE (2)
44 400-69516 COVER RUC(ST)ASM 1
45 SL-6061292-TN SCREW (4)
46 SL-6041092-TN SCREW (2)
47 400-69187 COVER RU (1)
48 400-69189 EMBEDDED PULLS (1)
49 SL-3061232-TN SCREW (3)
50 SM-0040801-SC SCREW (2)
51 400-69200 R-SW BRACKET (1)
52 WP-0450816-SC WASHER (2)
53 SL-4030691-SC SCREW M3X6 (2)
54 400-69188 COVER RUC (1)
