KD-2077-Rev03PD - 第19页
- - REF.NO N O TE PART NO D E S C R I P T I O N Qty 1 400-69513 CO VER RUL(ST)ASM 1 2 400-46565 CO VER RUL (1) 3 HX-0032600-0 B BUSH (1) 4 HX-0032600-0 M D O ME PLUG (1) 5 400-01460 REAR CO VER LID ( 1) 6 NM-6040001-SC…
- -
8. COVER COMPONENTS (2)
2
5
3
1
6
1 4
1 3
1 0
8
8
8
8
8
8
8
1 2
7
1 5
1 6
1 7
1 6
4
4 2
4 3
2 6
2 9
2 8
3 2
2 5
2 7
3 3
2 9
2 8
4 0
4 1
2 1
2 4
2 5
3 0
3 1
3 4
2 4
2 6
2 2
3 5
3 6
3 3
3 3
4 6
4 7
3 7
5 1
4 9
5 3
5 0
4 5
5 4
8
3 8
3 8
3 9
3 9
2 3
A
A
4 4
9
4 1
3 3
4 8
8
1 8
1 1
1 9
5 2
2 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69513 COVER RUL(ST)ASM 1
2 400-46565 COVER RUL (1)
3 HX-0032600-0B BUSH (1)
4 HX-0032600-0M DOME PLUG (1)
5 400-01460 REAR COVER LID (1)
6 NM-6040001-SC NUT M4 (2)
7 HX-0032600-0H CABLE PARTS (1)
8 SL-3061232-TN SCREW 10
9 400-69514 COVER RUR(ST)ASM 1
10 HX-0005500-0N RUBBER BUSHING (1)
11 400-69181 COVER RUR (1)
12 E1326-715-000 EMERGENCY SEAL (1)
13 400-01460 REAR COVER LID (1)
14 NM-6040001-SC NUT M4 (2)
15 WS-0820002-KN SPRING WASHER M8 (2)
16 400-03265 SIGNAL TOWER ASM (1)
17 NM-6080001-SC NUT M8X1.25 (2)
18 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
19 E1310-727-000 C/O SWITCH BR (1)
20 HX-0032600-0H CABLE PARTS (1)
21 400-69515 SAFETY COVER F(ST)ASM 1
22 SL-6061292-TN SCREW (4)
23 400-69194 SCW PLATE (1)
24 NM-6060001-SC NUT M6 (8)
25 WP-0641601-SC WASHER (8)
26 400-01471 GAS SPRING A (2)
27 400-46606 SAFETY COVER STAY L (1)
28 400-43523 GS BRACKET C (2)
29 SL-6061242-TN BOLT (4)
30 400-46608 KNOB (1)
31 SL-6051092-TN BOLT (2)
32 400-46607 SAFETY COVER STAY R (1)
33 400-38381 STEP SCREW (4)
34 400-46577 SAFETY COVER PLATE (1)
35 400-50445 CAUTION SEAL (1)
36 400-50446 SEAL (1)
37 SL-3061232-TN SCREW (2)
38 400-55287 COVER HINGE BR (2)
39 SM-3061052-TN SCREW M6 L=10 (4)
40 SM-0061201-SC SCREW (4)
41 SL-6061242-TN BOLT (4)
42 400-69192 SAFETY COVER FRAME (1)
43 E1318-715-000 SAFTY COVER HINGE (2)
44 400-69516 COVER RUC(ST)ASM 1
45 SL-6061292-TN SCREW (4)
46 SL-6041092-TN SCREW (2)
47 400-69187 COVER RU (1)
48 400-69189 EMBEDDED PULLS (1)
49 SL-3061232-TN SCREW (3)
50 SM-0040801-SC SCREW (2)
51 400-69200 R-SW BRACKET (1)
52 WP-0450816-SC WASHER (2)
53 SL-4030691-SC SCREW M3X6 (2)
54 400-69188 COVER RUC (1)
- -

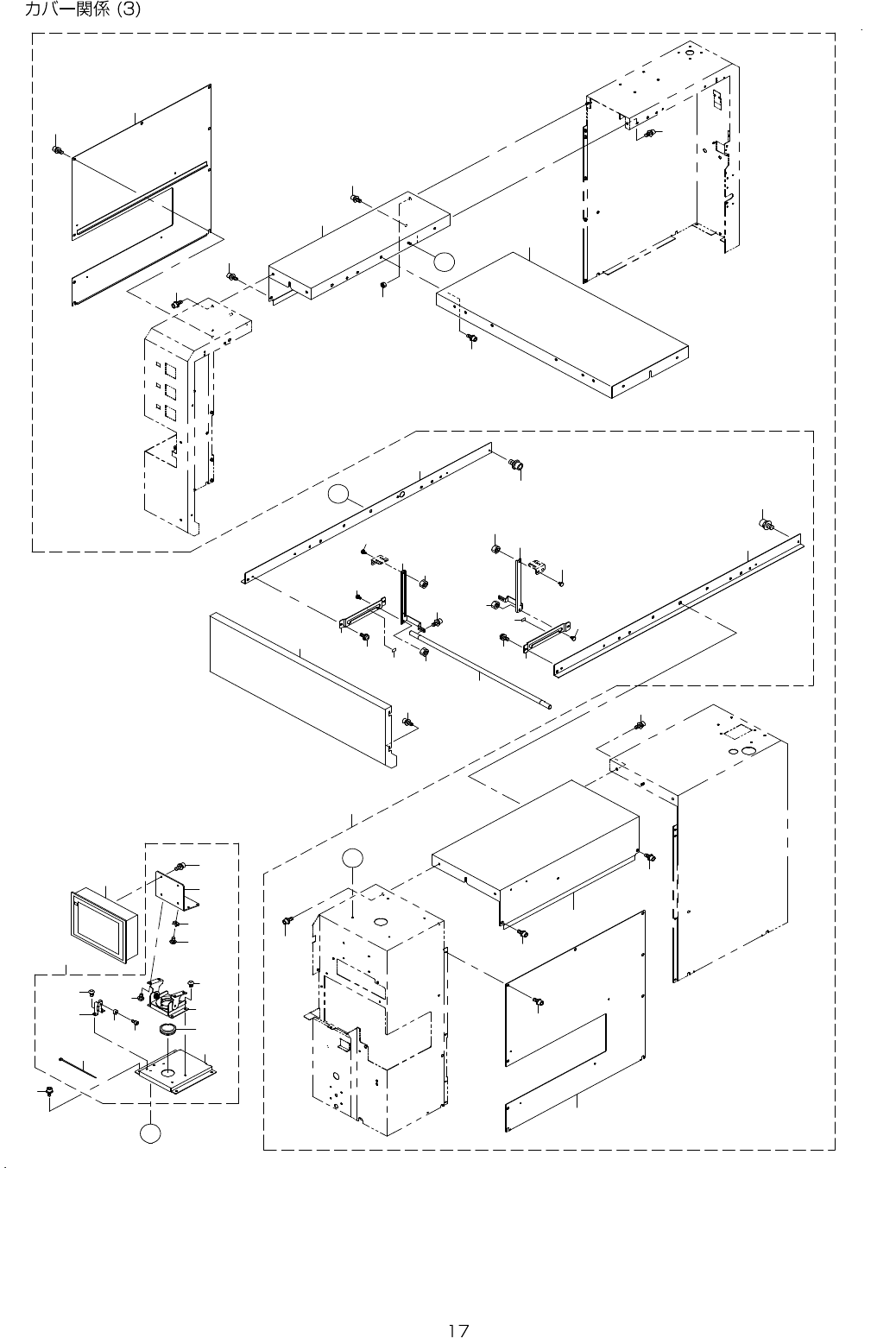

9. COVER COMPONENTS (3)
3
2
4
5
1 1
7
8
2
2
1 0
9
4
6
1 2
1 2
A
A
1 3
2 3
2 4
2 1
2 4
2 0
2 4
2 2
2 3
2 6
2 5
1 8
2 3
2 0
1 8
1 9
1 9
4 4
B
B
4 3
2
1
1 5
1 4
1 6
1 7
2 4
2 3
2 7
2 8
4 5
4 2
3 3
4 1
4 0
3 9
2 9
3 4
3 8
3 7
3 2
3 0
3 1
3 5
3 6
