- - 13.X - Y COMPONENTS (1) 6 4 3 2 1 6 8 7 4 5 1 0 1 3 1 5 1 4 1 6 1 8 1 9 1 7 2 2 2 3 2 0 2 1 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 3 2 3 3 3 5 3 4 3 6 3 6 3 7 3 7 3 8 4 0 4 1 3 9 4 3 4 4 4 2 9 7 4 6 4 5 5 A A 1 1 1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01560 AIR COMBINATION ASSY 1
2 SL-6061692-TN BOLT (2)
3 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
4 400-00545 AIR PROVIDER (1)
5 PF-0552150-A0 AIR COMBINATION (1)
6 PJ-3041253-01 ELBOW UNION (2)
7 PF-9010020-00 FILTER ELEMENT A (1)
8 PF-9010060-00 FILTER ELEMENT (1)
9 PJ-3090400-03 REDUCER 4-10 2
10 SL-6051092-TN BOLT 2
11 BT-1000651-EB POLYURETHANE TUBE 2
12 BT-0600400-EC TUBE HOSE, BLUE 2.5
13 BT-0800501-EA TUBE HOSE, BLUE 9
14 BT-0400251-EA TUBE HOSE, BLUE 0.05
15
#01
PJ-3091200-01 QUICK COUPLING, SOCKET 1
16 PJ-0252000-03 PLUG 1
17 PJ-3031000-02 STRAIGHT 2
18 BT-1200801-EF TUBE 2
19 PV-0152120-00 FINGER VALVE 1
20 SL-6032542-TN SCREW 2
21 400-00550 FV BRACKET 1
- -
13.X-Y COMPONENTS (1)
6
4
3
2
1
6
8
7
4
5
1 0
1 3
1 5
1 4
1 6
1 8
1 9
1 7
2 2
2 3
2 0
2 1
2 4
2 5
2 6
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 5
3 4
3 6
3 6
3 7
3 7
3 8
4 0
4 1
3 9
4 3 4 4
4 2
9
7
4 6
4 5
5
A
A
1 1
1 2
- -

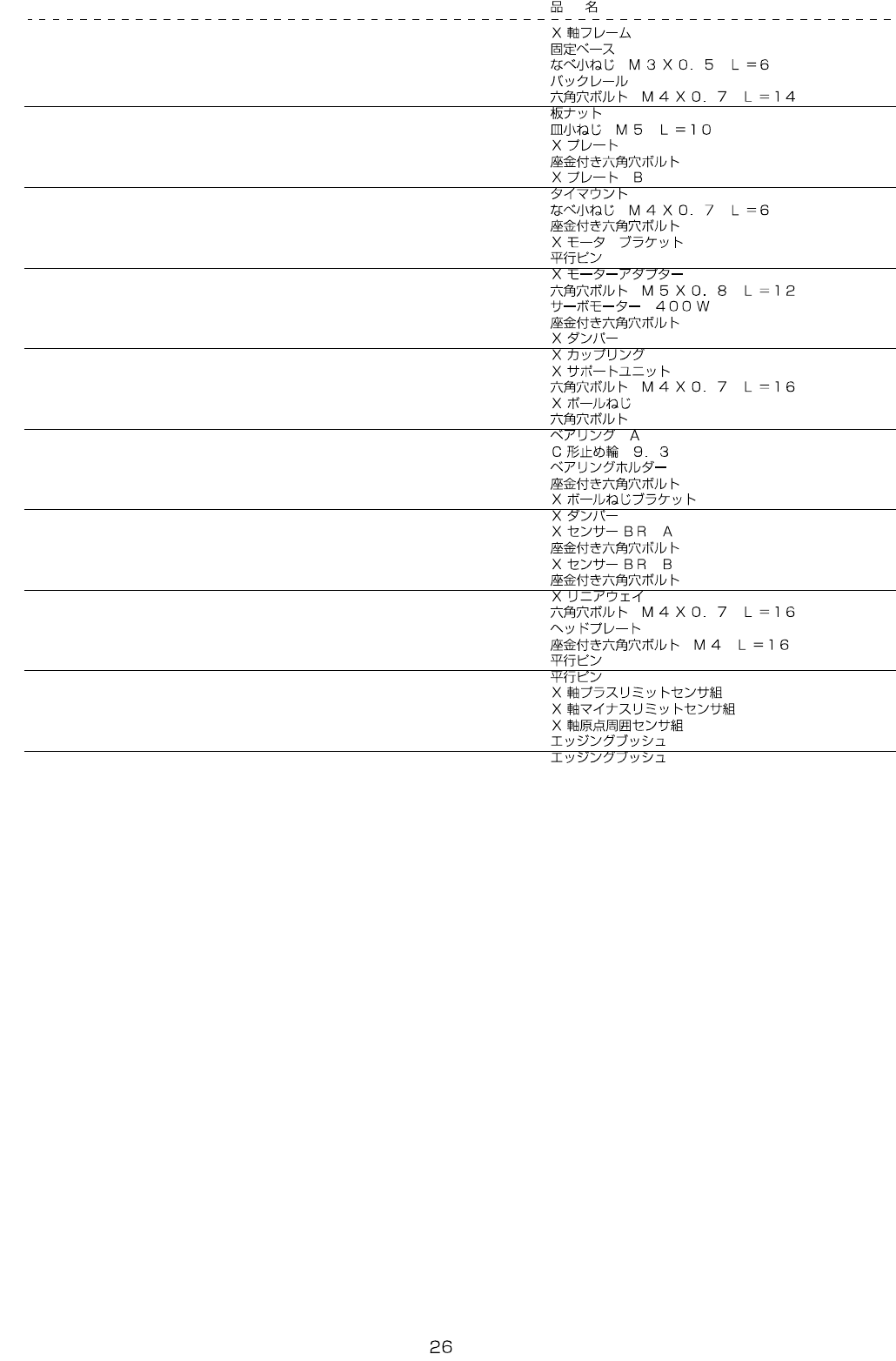

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69310 X AXIS FRAME 1
2 HX-0029400-00 FIXED BASE 10
3 SM-4030601-SC SCREW M3 X 6 10
4 400-00660 BACK RAIL 2
5 SM-6041402-TN SCREW M4X0.7 L=14 38
6 400-00661 PLATE NUT 4
7 SM-1051001-SC SCREW M5 L=10 8
8 400-69287 X PLATE 1
9 SL-6053592-TN BOLT 4
10 400-69309 X PLATE B 1
11 HX-0045400-00 TIE MOUNT 1
12 SM-4040601-SC SCREW M4X0.7 L=6 1
13 SL-6053592-TN BOLT 4
14 400-69166 X MOTOR BR 1
15 PH-0500122-C0 PIN 2
16 400-69288 X MOTOR ADAPTER 1
17 SM-6051202-TN SCREW M5X0.8 L=12 4
18 400-68913 SERVO MOTOR 400W 1
19 SL-6051642-TN BOLT 4
20 400-69293 X DAMPER 1
21 400-69295 X COUPLING 1
22 400-69296 X SUPPORT UNIT 1
23 SM-6041602-TN SCREW M4 X 16 4
24 400-69175 X BALL SCREW 1
25 SM-6042002-TN BOLT 4
26 SB-1100001-00 BEARING 1
27 RC-0100001-KP SNAP RING M10 1
28 400-69289 BEARING HOLDER 1
29 SL-6052092-TN SCREW 4
30 400-69167 X BALL SCREW BR 1
31 400-69293 X DAMPER 1
32 400-69290 X SENSOR BR A 1
33 SL-6030692-TN BOLT 2
34 400-69291 X SENSOR BR B 1
35 SL-6030692-TN BOLT 2
36 400-69174 X LINEAR WAY 2
37 SM-6041602-TN SCREW M4 X 16 34
38 400-69160 HEAD PLATE 1
39 SL-6041692-TN SCREW M4 L=16 16
40 PH-0500122-C0 PIN 2
41 PH-0600164-C0 PIN 2
42 400-02227 X PLUS LMT SENSOR ASM 1
43 400-02228 X MINUS LMT SENSOR ASM 1
44 400-02229 X ORG RANGE SENSOR ASM 1
45 HX-0009600-00 EDGE BUSHING 0.1
46 HX-0009600-0A BUSH 0.5
