KD-2077-Rev03PD - 第37页
- - REF.NO N O TE PAR T NO D E S C R I P T I O N Q ty 1 4 00-69 4 68 H EAD BO D Y 2077 ASM 1 2 4 00-69 2 24 C OLLAR (6) 3 R E-0800000- K0 E-SHAPED SNAP RING (8MM) (6 ) 4 4 00-69 2 25 LINK SH (1 ) 5 4 00-70 4 93 Z CAM L…
- -

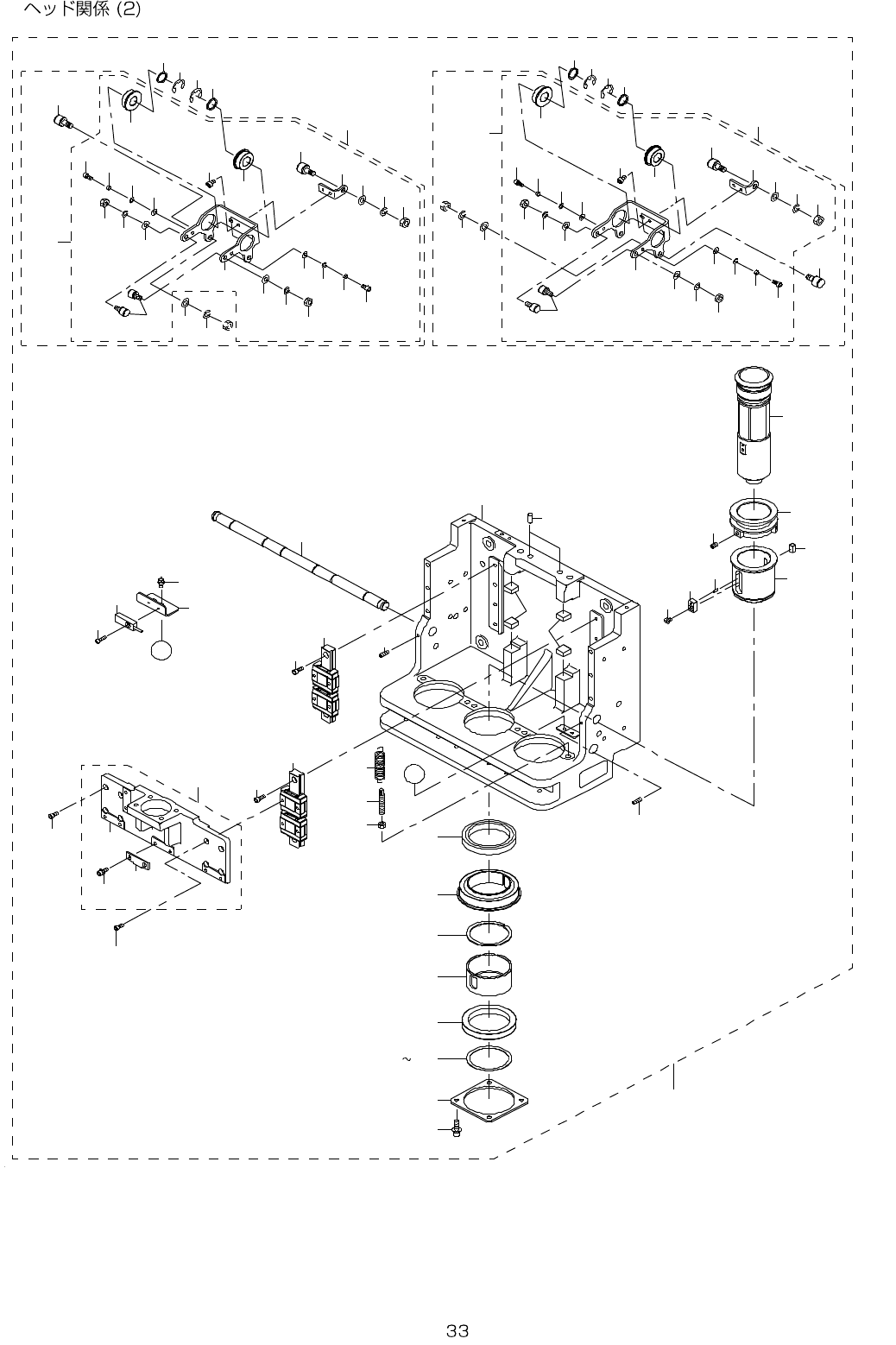

17.HEAD COMPONENTS (2)
5 6
5 8
5 7
5 6
5 8
5 7
6 6
6 7
6 9
6 8
6 9
6 8
6 6
6 7
2 8
2 8
5 1
5 0
4 9
4 7
4 7
2 7
2 7
2 9
3 3
3 4
4 0
3 9
3 0
3 8
4 2 4 4
4 1
4 5
4 6
3 2
6 5
6 4
5 4
5 2
4
3
2
7 3
3 1
3 5
3 6
3 7
2 6
5 5
3
2
5 9
5 9
4 8
9
1 0
8
8
1 0
9
1 9
1 8
2 1
2 0
2 1
2 0
1 8
1 9
3
2
1 7
2 2
5
1 6
7
3
2
1 1
1 1
1 4
1 5
1 3
1 2
6
2 4
2 5
2 3
6 1
6 3
6 2
6 0
7 0
7 1
7 2
5 3
7 6
7 5
7 7
7 4
7 8
8 2
8 1
7 9
8 0
7 4
A
A
2 9
1
- -

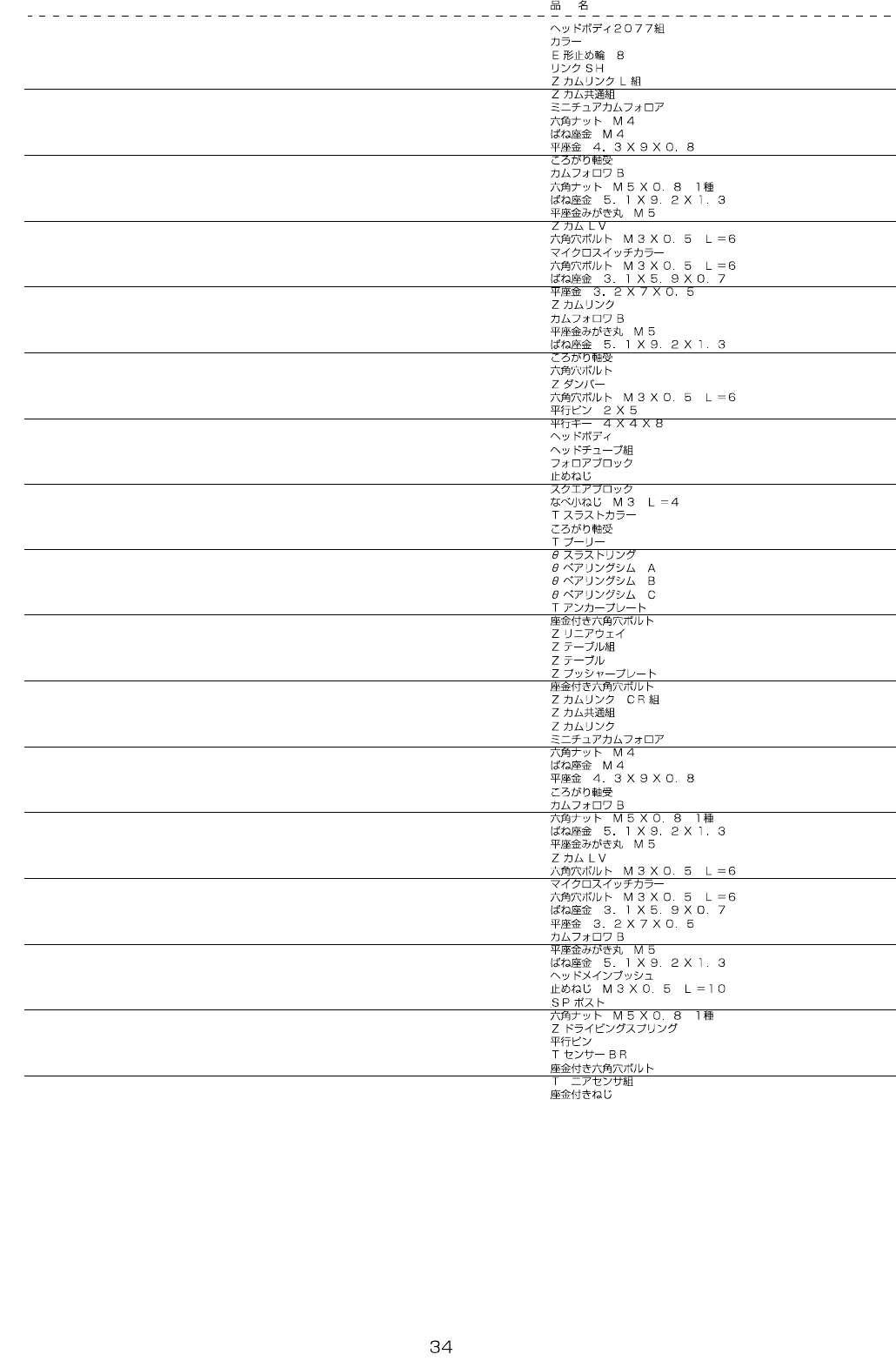

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69468 HEAD BODY 2077 ASM 1
2 400-69224 COLLAR (6)
3 RE-0800000-K0 E-SHAPED SNAP RING (8MM) (6)
4 400-69225 LINK SH (1)
5 400-70493 Z CAM LINK L ASM (1)
6 400-70492 Z CAM COMMON ASM (1)
7 E3051-802-000 MINIATURE CAM FOLLOW (2)
8 NM-6040001-SC NUT M4 (2)
9 WS-0410002-KN SPRING WASHER (2)
10 WP-0430801-SC WASHER 4.3X9X0.8 (2)
11 SB-1100005-00 BEARING (2)
12 400-69223 CAM FOLLOWER B (1)
13 NM-6050001-SC NUT M5 (1)
14 WS-0510002-KN SPRING WASHER (1)
15 WP-0531001-SC WASHER (1)
16 400-69222 Z CAM LV (1)
17 SM-6030602-TN HEX SCREW M3 X 6 (2)
18 GPK-18022000 MICRO SWITCH COLLAR (2)
19 SM-6030602-TN HEX SCREW M3 X 6 (2)
20 WS-0310002-KN SPRING WASHER M3 (2)
21 WP-0320501-SC WASHER M3 (2)
22 400-69221 Z CAM LINK (1)
23 400-69223 CAM FOLLOWER B (1)
24 WP-0531001-SC WASHER (1)
25 WS-0510002-KN SPRING WASHER (1)
26 SB-1400001-00 BEARING (6)
27 SM-6030802-TN BOLT (8)
28 400-69211 Z DAMPER (4)
29 SM-6030602-TN HEX SCREW M3 X 6 (8)
30 PH-0200054-C0 PARALLEL PIN (3)
31 E4270-172-000 PARALLEL KEY (3)
32 400-69161 HEAD BODY (1)
33 400-69218 HEAD TUBE (ASSY) (3)
34 E3022-802-000 FOLLOW BLOCK (3)
35 SM-8040602-TP SCREW M4X0.7 L=6 (6)
36 400-69219 SQUARE BLOCK (3)
37 SM-4030455-SN SCREW (3)
38 400-69212 T THRUST COLLAR (3)
39 SB-1400001-00 BEARING (3)
40 400-69220 T PULLEY (3)
41 E3029-802-000 BEARING SHIM A (3)
42 E3026-802-000 BEARING SHIM B (6)
43 E3027-802-000 BEARING SHIM C (6)
44 E3028-802-000 ANCHOR PLATE (6)
45 400-69213 T ANCHOR PLATE (3)
46 SL-6041492-TN SCREW (12)
47 400-69172 Z LINEAR WAY (2)
48 400-69560 Z TABLE ASM (1)
49 400-69163 Z TABLE (1)
50 400-69215 Z PUSHER PLATE (3)
51 SL-6030892-TN SCREW (6)
52 400-70494 Z CAM LINK CR ASM (2)
53 400-70492 Z CAM COMMON ASM (1)
54 400-69221 Z CAM LINK (1)
55 E3051-802-000 MINIATURE CAM FOLLOW (2)
56 NM-6040001-SC NUT M4 (2)
57 WS-0410002-KN SPRING WASHER (2)
58 WP-0430801-SC WASHER 4.3X9X0.8 (2)
59 SB-1100005-00 BEARING (2)
60 400-69223 CAM FOLLOWER B (1)
61 NM-6050001-SC NUT M5 (1)
62 WS-0510002-KN SPRING WASHER (1)
63 WP-0531001-SC WASHER (1)
64 400-69222 Z CAM LV (1)
65 SM-6030602-TN HEX SCREW M3 X 6 (2)
66 GPK-18022000 MICRO SWITCH COLLAR (2)
67 SM-6030602-TN HEX SCREW M3 X 6 (2)
68 WS-0310002-KN SPRING WASHER M3 (2)
69 WP-0320501-SC WASHER M3 (2)
70 400-69223 CAM FOLLOWER B (1)
71 WP-0531001-SC WASHER (1)
72 WS-0510002-KN SPRING WASHER (1)
73 400-69214 HEAD MAIN BUSH (3)
74 SM-8031002-TP SCREW (2)
75 400-69216 SP POST (6)
76 NM-6050001-SC NUT M5 (6)
77 400-69226 Z DRIVE SPRING (6)
78 PH-0500122-C0 PIN (2)
79 400-69217 T SENSOR BR (1)
80 SL-6030692-TN BOLT (2)
81 400-68887 T NEAR SENSOR ASM (1)
82 SL-4851091-SC SCREW (1)
- -
18.HEAD RELATED COMPONENTS (1)
3
4
5
6
1
7
8
1 2
1 1
1 5
1 6
1 5
1 6
2 0
1 9
1 8
2 1
2 3
2 2
2 5
2 6
2 7
2 8
2 9
4 5
4 6
4 7
4 8
4 8
3 4
3 5
3 6
3 7
3 8
3 2
3 9
4 0
4 1
3 2
4 4
4 3
4 2
5 6
4 9
5 0
5 0
4 9
5 1
5 2
3 1
5 8
5 7
5 9
6 1
6 0
6 3
6 2
6 4
3 0
7 4
6 9
6 6
6 7
6 8
7 3
7 2
1 4
1 3
1 0
1 7
1 7
1 2
7 0
7 0
2 4
6 5
A
B
B
A
3 3
9
7 1
4
3
2
7 5 7 6
5 6
5 6
5 5
5 3
5 4
1 6
1 5
3 3
3 9
