KD-2077-Rev03PD - 第39页
- - REF. N O N O TE PART NO D E S C R I P T I O N Qty 1 4 00-695 47 HEA D UNDER PLAT E AS M 1 2 4 00-718 50 HEA D UNDER PLAT E C ( 1) 3 H X-00 2940 0 -00 F IXE D BA SE (1 0) 4 SM-4 03 0601 -SC S CREW M3 X 6 (1 0) 5 H X…
- -

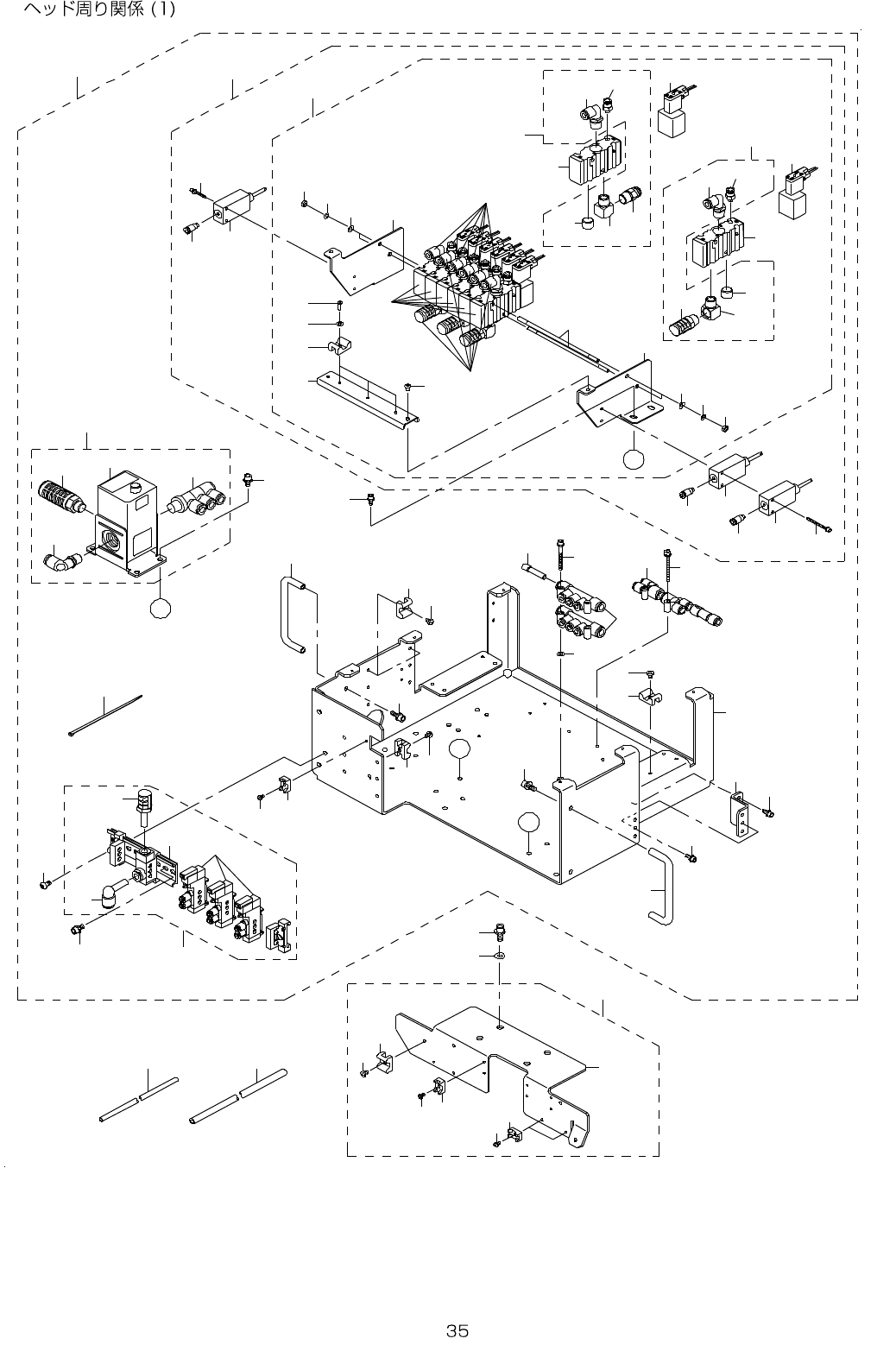

18.HEAD RELATED COMPONENTS (1)
3
4
5
6
1
7
8
1 2
1 1
1 5
1 6
1 5
1 6
2 0
1 9
1 8
2 1
2 3
2 2
2 5
2 6
2 7
2 8
2 9
4 5
4 6
4 7
4 8
4 8
3 4
3 5
3 6
3 7
3 8
3 2
3 9
4 0
4 1
3 2
4 4
4 3
4 2
5 6
4 9
5 0
5 0
4 9
5 1
5 2
3 1
5 8
5 7
5 9
6 1
6 0
6 3
6 2
6 4
3 0
7 4
6 9
6 6
6 7
6 8
7 3
7 2
1 4
1 3
1 0
1 7
1 7
1 2
7 0
7 0
2 4
6 5
A
B
B
A
3 3
9
7 1
4
3
2
7 5 7 6
5 6
5 6
5 5
5 3
5 4
1 6
1 5
3 3
3 9
- -

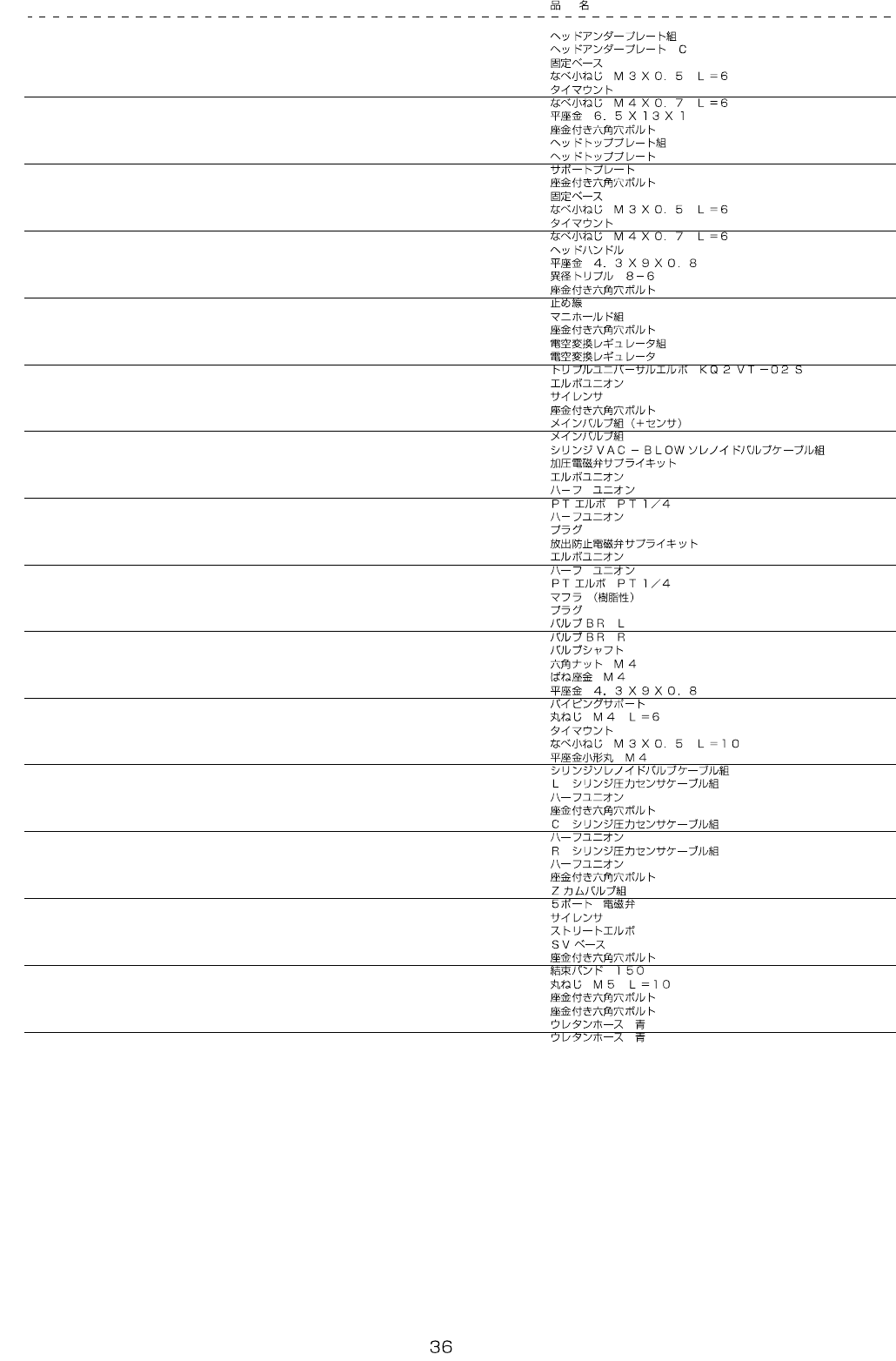

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69547 HEAD UNDER PLATE ASM 1
2 400-71850 HEAD UNDER PLATE C (1)
3 HX-0029400-00 FIXED BASE (10)
4 SM-4030601-SC SCREW M3 X 6 (10)
5 HX-0045400-00 TIE MOUNT (2)
6 SM-4040601-SC SCREW M4X0.7 L=6 (2)
7 WP-0651046-SC WASHER 6.5X13X1 4
8 SL-6061692-TN BOLT 4
9 400-69548 HEAD TOP PLATE ASM 1
10 400-69255 HEA D TOP PLATE (1)
11 400-69256 SUPPORT PLATE (1)
12 SL-6041092-TN SCREW (6)
13 HX-0029400-00 FIXED BASE (11)
14 SM-4030601-SC SCREW M3 X 6 (11)
15 HX-0045400-00 TIE MOUNT (18)
16 SM-4040601-SC SCREW M4X0.7 L=6 (18)
17 400-01247 HEA D HANDLE (2)
18 WP-0430801-SC WASHER 4.3X9X0.8 (2)
19 PJ-3090800-05 DIFFERENT DIAMETER TRIPLE 8-6 (2)
20 SL-6044092-TN SCREW (2)
21 PX-9500010-00 P LUG (1)
22 400-69566 MANIFOLD ASM (1)
23 SL-6042592-TN SCREW (2)
24 400-69567 ELECTROPNEUMATIC REGULATOR ASM (1)
25 PF-0252110-00 E LECTROPNEUMATIC REGULATOR (1)
26 400-69268 TRIPLE UNIVERSAL ELBOW KQ2VT-02S (1)
27 PJ-3040852-01 ELBOW UNION 8XPT1/4 (1)
28 PX-0552020-00 S ILENCER (1)
29 SL-6051092-TN BOLT (4)
30 400-69568 MAIN VALVE ASM (+ SENSOR) (1)
31 400-69570 MAIN VALVE ASM (1)
32 400-68896 SYRINGE VAC-BLOW SV CBL ASM (1)
33 400-69571 PRESSUR SV SUPPLY KIT (3)
34 PJ-3040652-01 ELBOW UNION 6XPT1/4 (1)
35 PJ-3010605-03 HALF UNION (1)
36 PJ-0425200-03 PT ELBOW PT1/4 (1)
37 PJ-3010852-01 HALF UNION (1)
38 PJ-0252000-02 PLUG (1)
39 400-69572 EMISSION PREVENT SV SUPPLY KIT (3)
40 PJ-3040652-01 ELBOW UNION 6XPT1/4 (1)
41 PJ-3010605-03 HALF UNION (1)
42 PJ-0425200-03 PT ELBOW PT1/4 (1)
43 PX-0552010-00 M UFFLER (PLASTIC) (1)
44 PJ-0252000-02 PLUG (1)
45 400-69262 VALV E BR L (1)
46 400-69264 VALV E BR R (1)
47 400-69263 VALV E SHAFT (2)
48 NM-6040001-SC NUT M4 (4)
49 WS-0410002-KN S PRING WASHER (4)
50 WP-0430801-SC WASHER 4.3X9X0.8 (4)
51 400-69265 PIPING SUPPORT (1)
52 SM-3040652-TN SCREW M4 L=6 (2)
53 HX-0045400-00 TIE MOUNT (3)
54 SM-4031001-SC SCREW M3X0.5 L=10 (3)
55 WP-0430800-SC WASHER M4 (3)
56 400-73432 SYRINGE SV CBL ASM (6)
57 400-68880 L SYRINGE PRE SNS CBL ASM (1)
58 PJ-2100042-00 HALF UNION (1)
59 SL-6032092-TN BOLT (2)
60 400-68881 C SYRINGE PRE SNS CBL ASM (1)
61 PJ-2100042-00 HALF UNION (1)
62 400-68882 R SYRINGE PRE SNS CBL ASM (1)
63 PJ-2100042-00 HALF UNION (1)
64 SL-6033592-TN BOLT (2)
65 400-69569 Z CAM VALVE ASM (1)
66 PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (3)
67 PX-0500030-00 S ILENCER (1)
68 400-69281 STREET ELBOW (1)
69 400-69280 SV BASE (1)
70 SL-6051492-TN BOLT (4)
71 EA-9500B02-00 CABLE BAND 150 (4)
72 SM-3051052-TN SCREW M5 L=10 (1)
73 SL-6051092-TN BOLT (1)
74 SL-6041092-TN SCREW (4)
75 BT-0600400-EC TUBE HOSE, BLUE 2.5
76 BT-0800501-EA TUBE HOSE, BLUE 9.5
- -
19.HEAD RELATED COMPONENTS (2)
3 1
3
6
7
7
6
6
7
9
9
1 0
1 0
1 3
1 4
1 3
1 4
1 3
1 4
1 5
1 6
1 6
1 5
1 5
1 6
5
1 7
2 0
2 0
2 4
2 7
2 8
2 5
2 9
2 9
2 5
2 3
A
A
1 2
1 1
1 8
3 0
2
1
B
B
2 6
2 6
C
C
4
8
1 9
2 1
2 2
