KD-2077-Rev03PD - 第48页

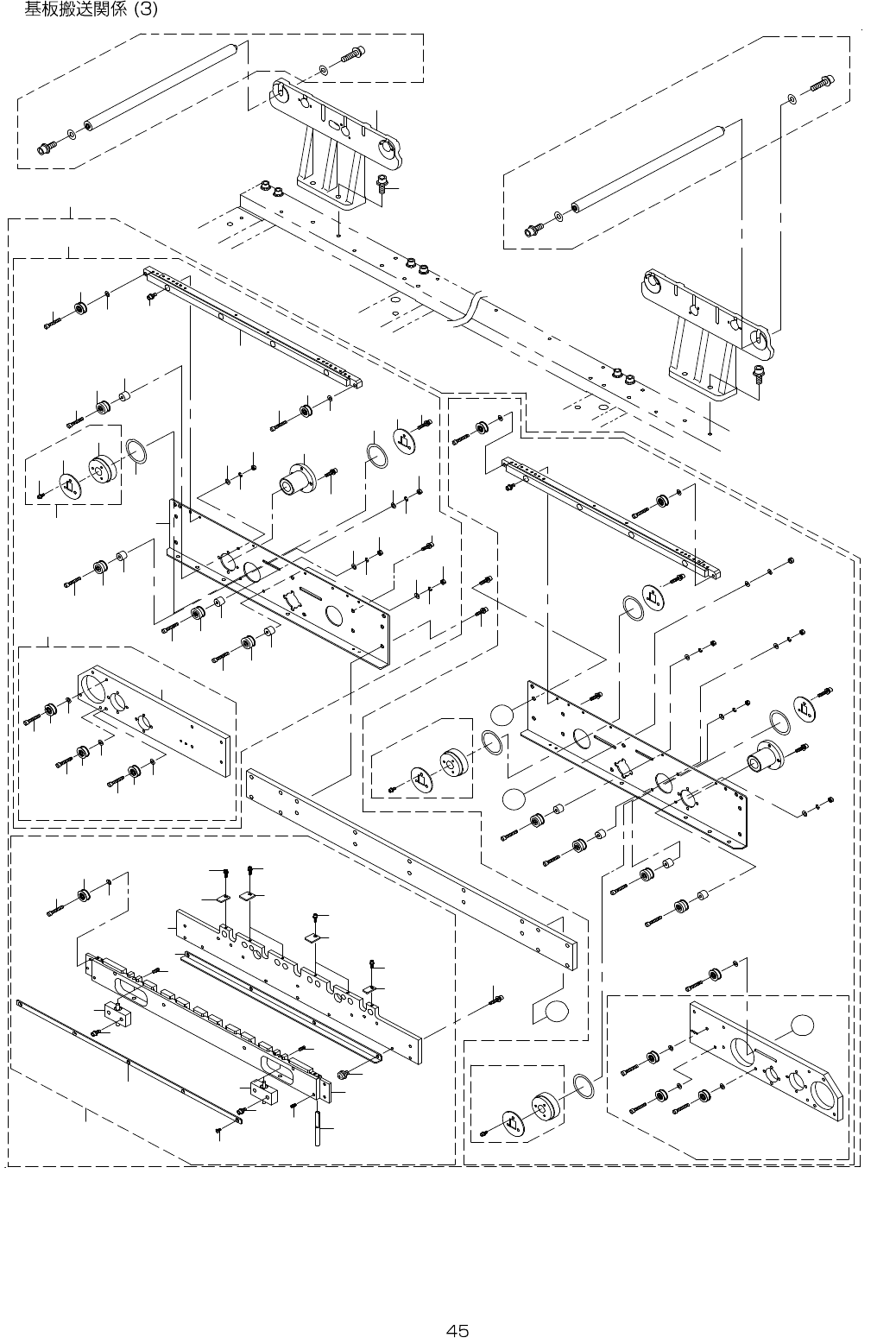

- - 23. PWB CONVE YOR COMPONENT S (3) 4 7 3 5 3 2 3 3 3 4 3 5 3 2 3 3 3 7 3 6 3 9 3 8 4 9 4 0 4 2 4 1 4 2 4 4 4 3 4 5 1 9 2 0 2 1 4 1 4 2 4 0 4 2 2 5 2 6 2 7 9 8 1 0 1 0 1 3 1 1 1 2 1 4 1 5 1 6 1 7 1 8 1 3 1 2 1 1 1 1 …
- -

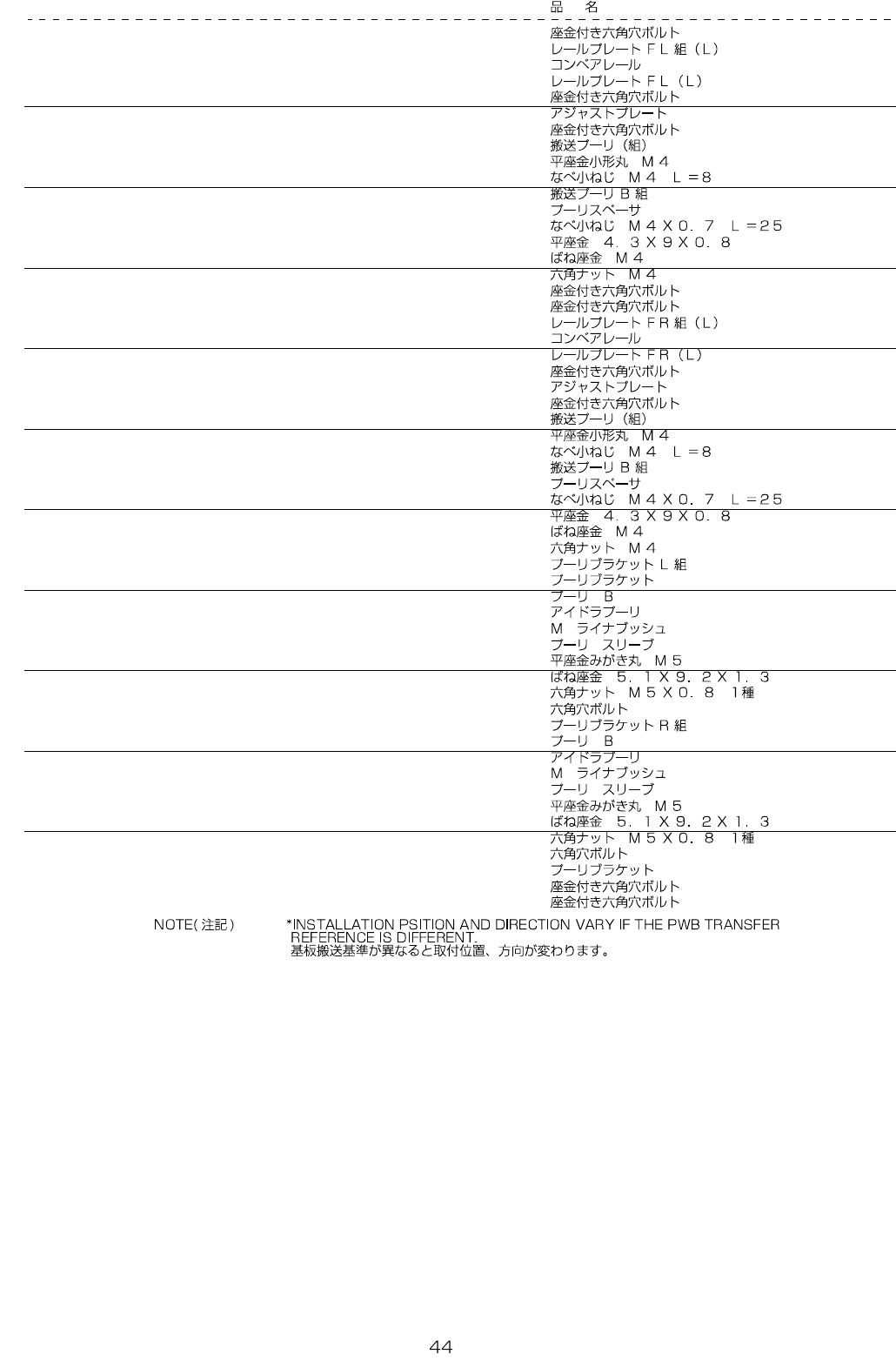

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 SL-6041492-TN SCREW 2
2 400-01047 RAIL PLATE FL ASM(L) 2
3 400-00828 CONVEYOR RAIL 1
4 400-01048 RAIL PLATE FL(L) (1)
5 SL-6031492-TN SCREW (4)
6 E2012-721-000 ADJUST PLATE (1)
7 SL-6030692-TN BOLT (2)
8 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
9 WP-0430800-SC WASHER M4 (2)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (4)
12 E2055-721-000 PULLEY SPACER (4)
13 SM-4042501-SC SCREW M4X0.7 L=25 (4)
14 WP-0430801-SC WASHER 4.3X9X0.8 (4)
15 WS-0410002-KN SPRING WASHER (4)
16 NM-6040001-SC NUT M4 (4)
17 SL-6051092-TN BOLT 4
18 SL-6041092-TN SCREW 4
19 400-01050 RAIL PLATE FR ASM(L) 2
20 400-00828 CONVEYOR RAIL (1)
21 400-01051 RAIL PLATE FR(L) (1)
22 SL-6031492-TN SCREW (4)
23 E2012-721-000 ADJUST PLATE (1)
24 SL-6030692-TN BOLT (2)
25 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
26 WP-0430800-SC WASHER M4 (2)
27 SM-4040855-SC SCREW (2)
28 E2089-721-0A0 CONVEYOR PULLEY B ASM. (6)
29 E2055-721-000 PULLEY SPACER (6)
30 SM-4042501-SC SCREW M4X0.7 L=25 (6)
31 WP-0430801-SC WASHER 4.3X9X0.8 (6)
32 WS-0410002-KN SPRING WASHER (6)
33 NM-6040001-SC NUT M4 (6)
34 400-00831 PULLEY BRAKET L ASM 1
35 400-00976 PULLEY BRAKET (1)
36 E2157-721-000 PULLEY B (1)
37 E2016-715-000 IDLER PULLEY (1)
38 E2017-715-000 M LINER BUSH (4)
39 E2018-715-000 PULLEY SLEEVE (2)
40 WP-0531001-SC WASHER (6)
41 WS-0510002-KN SPRING WASHER (2)
42 NM-6050001-SC NUT M5 (2)
43 SM-6052502-TN HEXAGONAL-HOLE BOLT (2)
44 400-00832 PULLEY BRAKET R ASM 1
45 E2157-721-000 PULLEY B (1)
46 E2016-715-000 IDLER PULLEY (1)
47 E2017-715-000 M LINER BUSH (4)
48 E2018-715-000 PULLEY SLEEVE (2)
49 WP-0531001-SC WASHER (6)
50 WS-0510002-KN SPRING WASHER (2)
51 NM-6050001-SC NUT M5 (2)
52 SM-6052502-TN HEXAGONAL-HOLE BOLT (2)
53 400-00976 PULLEY BRAKET (1)
54 SL-6051092-TN BOLT 4
55 SL-6041492-TN SCREW 2
- -
23.PWB CONVEYOR COMPONENTS (3)
4 7
3 5
3 2
3 3
3 4
3 5
3 2
3 3
3 7
3 6
3 9
3 8
4 9
4 0
4 2
4 1
4 2
4 4
4 3
4 5
1 9
2 0
2 1
4 1
4 2
4 0
4 2
2 5
2 6
2 7
9
8
1 0
1 01 3
1 1
1 2
1 4
1 5
1 6
1 7
1 8
1 3
1 2
1 1
1 1
1 2
1 3
1 3
1 2
1 1
1 6
1 5
1 4
1 6
1 5
1 4
1 6
1 5
1 4
2 2
2 3
2 1
2 8
3 0
A
B
B
4 8
4 6
2 4
2 9
9
8
3
2
3 1
4 1
4 3
1
6
7
5
6
7
5
5
7
6
4
A
- -

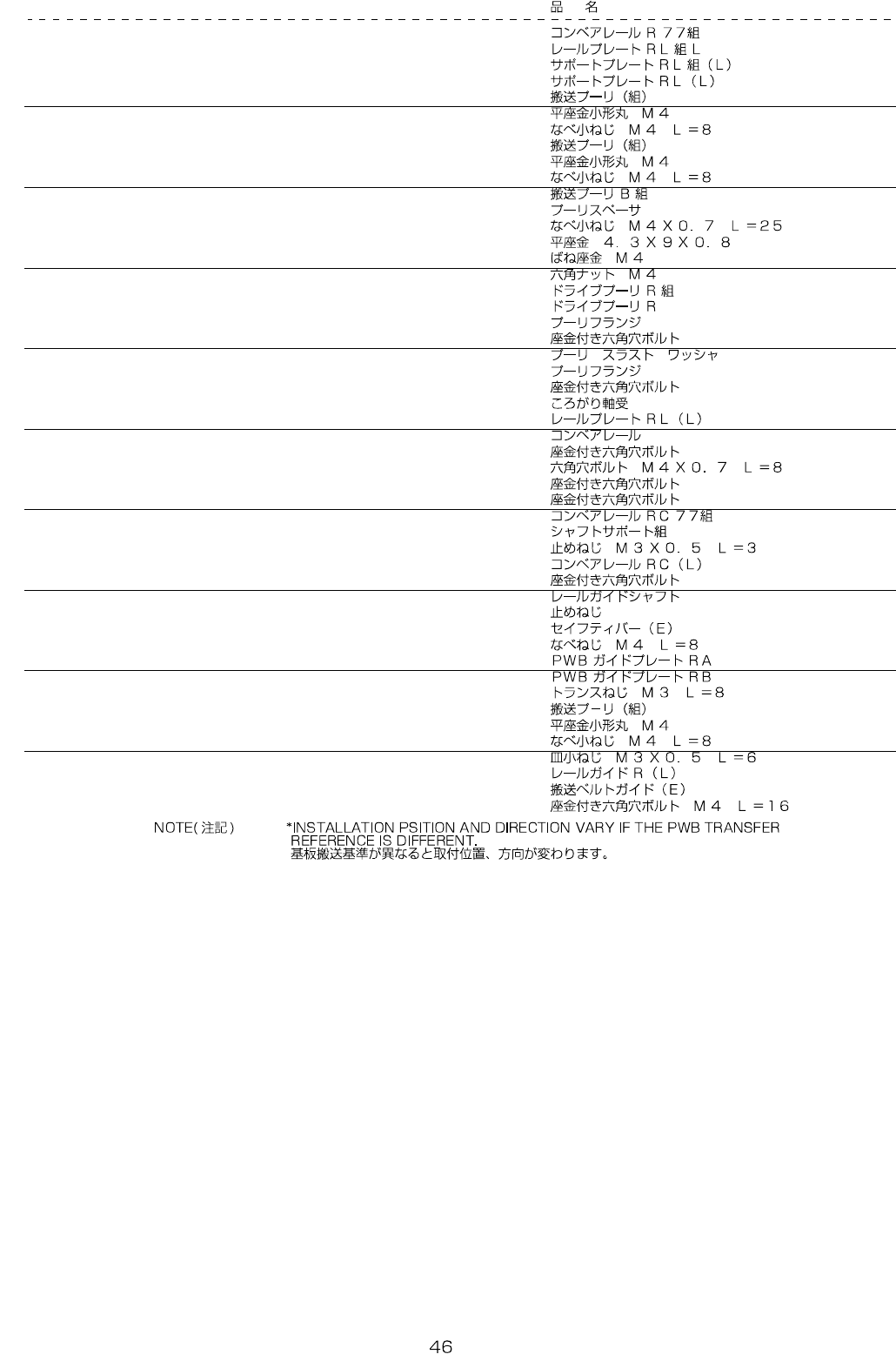

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-69752 CONVEYOR RAIL R 77 ASM 1
2 400-01058 RAIL PLATE RL ASM(L) (1)
3 400-01059 SUPPORT PLATE RL ASM(L) (1)
4 400-01064 SUPPORT PLATE RL(L) (1)
5 E2111-715-0A0 CONVEYOR PULLEY ASM. (3)
6 WP-0430800-SC WASHER M4 (3)
7 SM-4040855-SC SCREW (3)
8 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
9 WP-0430800-SC WASHER M4 (2)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (4)
12 E2055-721-000 PULLEY SPACER (4)
13 SM-4042501-SC SCREW M4X0.7 L=25 (4)
14 WP-0430801-SC WASHER 4.3X9X0.8 (4)
15 WS-0410002-KN SPRING WASHER (4)
16 NM-6040001-SC NUT M4 (4)
17 400-00839 DRIVE PULLEY R ASM. (1)
18 400-00840 DRIVE PULLEY R (1)
19 E2160-721-000 PULLEY FLANGE (1)
20 SL-6030892-TN SCREW (3)
21 E3931-750-000 PULLEY WASHER (2)
22 E2160-721-000 PULLEY FLANGE (1)
23 SL-6030892-TN SCREW (3)
24 SB-8160001-00 BEARING (2)
25 400-01063 RAIL PLATE RL(L) (1)
26 400-00828 CONVEYOR RAIL (1)
27 SL-6031492-TN SCREW (4)
28 SM-6040802-TN SCREW (8)
29 SL-6041092-TN SCREW (2)
30 SL-6042092-TN SCREW M4 L=20 (3)
31 400-69751 CONVEYOR RAIL RC 77 ASM (1)
32 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
33 SM-8030302-TP SCREW M3X0.5 L=3 (2)
34 400-80236 CONVEYOR RAIL RC(L) (1)
35 SL-6041092-TN SCREW (4)
36 400-00812 RAIL GUIDE SHAFT (2)
37 SM-8040602-TP SCREW M4X0.7 L=6 (2)
38 E4075-725-000 SAFETY BAR(E) (1)
39 SL-4040841-SE SCREW M4 L=8 (4)
40 E2124-721-000 PWB GUIDE PLATE RA (10)
41 E2125-721-000 PWB GUIDE PLATE RB (1)
42 SM-0030801-SC SCREW M3 X 8 (11)
43 E2111-715-0A0 CONVEYOR PULLEY ASM. (4)
44 WP-0430800-SC WASHER M4 (4)
45 SM-4040855-SC SCREW (4)
46 SM-1030601-SC SCREW M3 L=6 (5)
47 400-01056 RAIL GUIDE R(L) (1)
48 E4365-729-000 CONVEYOR BELT GUIDE (E) (1)
49 SL-6041692-TN SCREW (10)
