- - 31.B LANK RUN UN I T & NEED LE C O M P ONEN T S 6 2 3 5 7 8 9 1 0 1 1 6 1 3 1 4 1 2 1 5 1 6 1 7 1 8 4 4 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 3 0 3 2 3 3 3 1 3 4 3 5 3 6 3 6 3 7 3 7 3 8 3 9 4 0 4 1 4 5 4 2 4 …
- -

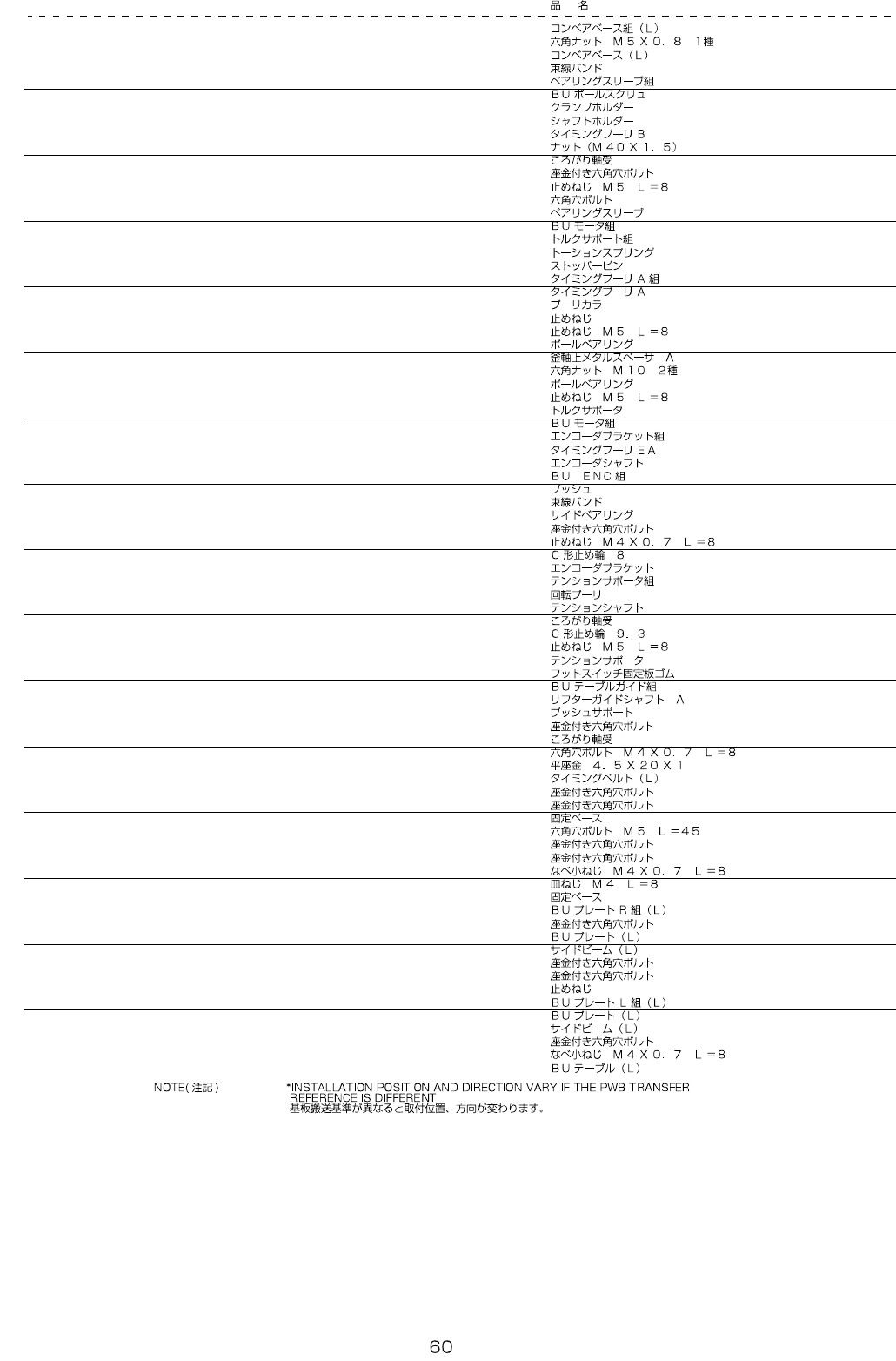

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01016 CONVEYOR BASE ASM(L) 1
2 NM-6050001-SC NUT M5 (4)
3 400-01024 CONVEYOR BASE(L) (1)
4 EA-9500B01-00 CABLE BAND (4)
5 400-00921 BEARING SLEEVE ASM. (4)
6 400-00923 BU BALL SCREW (1)
7 400-00924 CLAMP HOLDER (1)
8 400-00925 SHAFT HOLDER (1)
9 400-00926 TIMING PULLEY B (1)
10 E4155-729-000 NUT (M40X1.5) (1)
11 SB-1450004-00 BEARING (1)
12 SL-6041042-TN BOLT (1)
13 SM-8050852-TP SCREW M5 L=8 (2)
14 SM-6051602-TN BOLT (4)
15 400-00922 BEARING SLEEVE (1)
16 400-00927 BU MOTOR ASM 1
17 400-00928 TORQUE SUPPORT ASM. (1)
18 E4141-729-000 TORSION SPRING (1)
19 E4142-729-000 STOPPER PIN (2)
20 400-00930 TIMING PULLEY A ASM. (1)
21 400-00931 TIMING PULLEY A (1)
22 400-00932 PULLEY COLLAR (1)
23 SM-8050842-TP SETSCREW (1)
24 SM-8050852-TP SCREW M5 L=8 (1)
25 SB-1100004-00 BALL BEARING (1)
26 226-14002 THRUST WASHER, A (2)
27 NM-6100002-SE NUT M10 (1)
28 SB-1100004-00 BALL BEARING (1)
29 SM-8050852-TP SCREW (2)
30 400-00929 TORQUE SUPPORT (1)
31 E9432-729-0A0 BU MOTOR ASM. (1)
32 400-00934 ENCODER BRACKET ASM. (1)
33 E4131-729-000 TIMING PULLEY EA (1)
34 400-00936 ENCODER SHAFT (1)
35 E9433-729-0A0 BU ENC ASM. (1)
36 HX-0036700-0A BUSH (0.05)
37 EA-9500B01-00 CABLE BAND (2)
38 SB-1080002-00 SIDE BEARING (2)
39 SL-6030692-TN BOLT (2)
40 SM-8040802-TP SCREW M4X8 (2)
41 RC-0740811-KP C-RING (1)
42 400-00935 ENCODER BRACKET (1)
43 400-00937 TENSION SUPPORT ASM. (1)
44 GAW-02121000 PULLEY (1)
45 400-00939 TENSHION SHAFT (1)
46 SB-1100005-00 BEARING (2)
47 RC-0100001-KP SNAP RING M10 (1)
48 SM-8050852-TP SCREW M5 L=8 (2)
49 400-00938 TENSION SUPPORT (1)
50 M1008-511-000 FOOT SWITCH FIXING PLATE (4)
51 400-00945 BU TABLE GUIDE ASM 2
52 E2759-721-000 LIFTER GUIDE SHAFT A (1)
53 E2761-721-000 BUSH SUPPORT (2)
54 SL-6062542-TN SCREW (1)
55 SB-8160001-00 BEARING (2)
56 SM-6040802-TN SCREW (4)
57 WP-0451016-SP WASHER 4.5X20X1 (12)
58 400-01023 TIMING BELT(L) (1)
59 SL-6051492-TN BOLT (2)
60 SL-6051492-TN BOLT (2)
61 HX-0029400-00 FIXED BASE (4)
62 SM-6054502-TN SCREW M5 L=45 (4)
63 SL-6051442-TN BOLT (4)
64 SL-6040892-TN BOLT (12)
65 SM-4040801-SC SCREW M4X0.7 L=8 (4)
66 SM-1040801-SN SCREW M4X0.7 L=8 12
67 HX-0029400-00 FIXED BASE 3
68 400-11569 BU PLATE R ASM(L) 1
69 SL-6051492-TN BOLT (4)
70 400-01020 BU PLATE(L) (1)
71 400-01021 SIDE BEAM(L) (1)
72 SL-6041242-TN BOLT 12
73 SL-6082592-TN BOLT 4
74 SM-8040412-TP SET SCREW M4 L=4 2
75 400-11570 BU PLATE L ASM(L) 1
76 400-01020 BU PLATE(L) (1)
77 400-01021 SIDE BEAM(L) (1)
78 SL-6051492-TN BOLT (4)
79 SM-4040801-SC SCREW M4X0.7 L=8 3
80 400-01018 BU TABLE(L) 1
- -
31.BLANK RUN UNIT & NEEDLE COMPONENTS
6 2
3
5
7
8
9
1 0
1 1
6
1 3
1 4
1 2
1 5
1 6
1 7
1 8
4
4
1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
3 0
3 2
3 3
3 1
3 4
3 5
3 6
3 6
3 7
3 7
3 8
3 9
4 0
4 1 4 5
4 2
4 2
4 3
4 4
A
A
4 8
4 7
4 9
4 6
5 1
5 2
5 0
1 2
2 9
5 7
5 65 55 45 3
5 8 5 9 6 0
6 1
3 9
- -

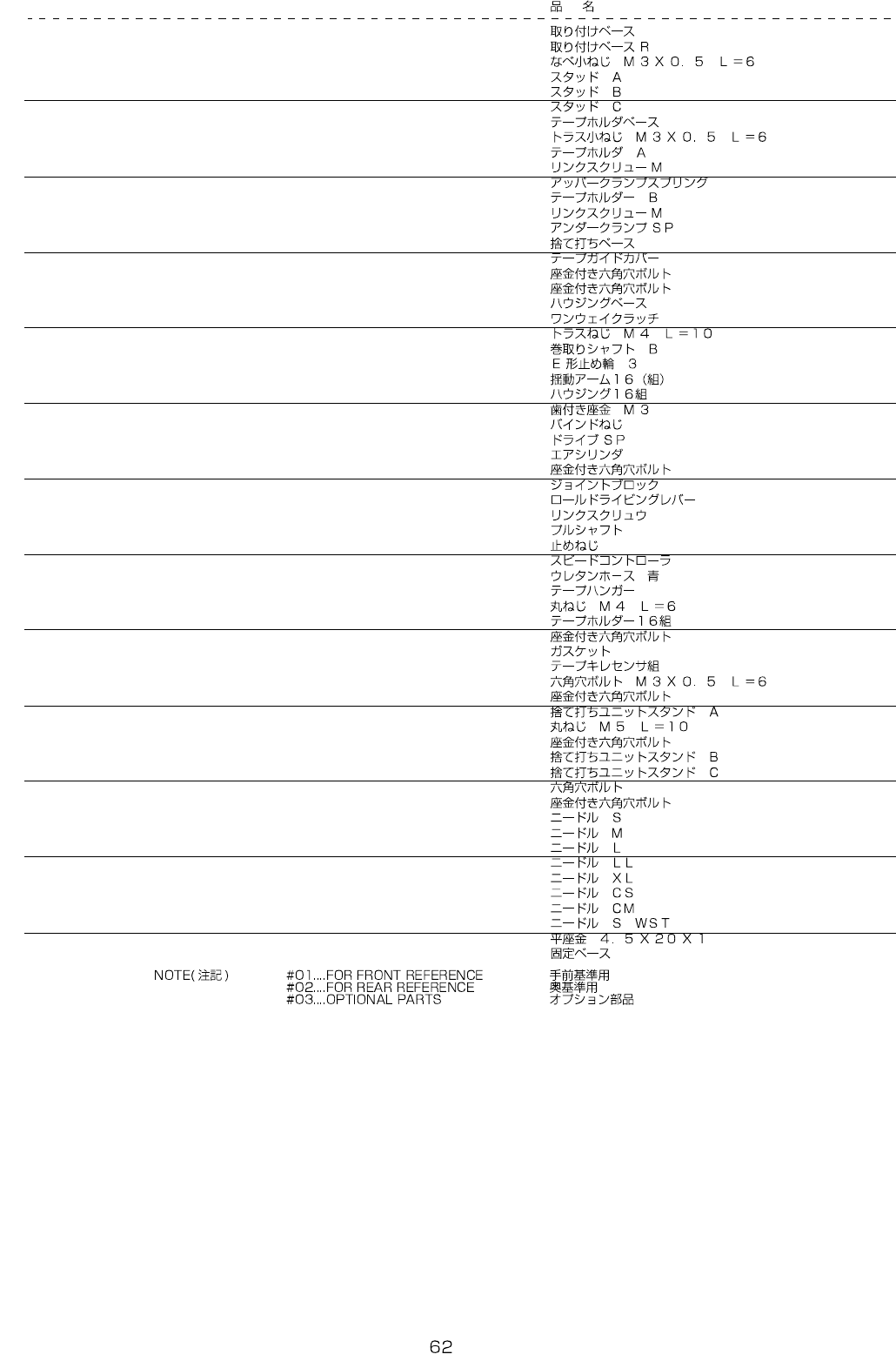

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-69322 FITTING BASE PLATE 1
2
#02
400-82769 FITTING BASE PLATE R 1
3 SM-4030601-SC SCREW M3 X 6 1
4 400-69323 STUD A 2
5 400-69324 STUD B 1
6 400-69325 STUD C 1
7 400-69326 TAPE HOLDER BASE 1
8 SM-0030601-SC SCREW M3X0.5 L=6 2
9 400-69327 TAPE HOLDER A 1
10 400-52091 LINK SCREW M 2
11 400-83239 UPPER CLAMP SP 1
12 400-69329 TAPE HOLDER B 1
13 400-52091 LINK SCREW M 2
14 400-69350 UNDER CLUMP SP 1
15 400-69330 BLANK RUN BASE 1
16 400-69331 TAPE GUIDE COVER 1
17 SL-6044092-TN SCREW 3
18 SL-6040892-TN BOLT 2
19 400-69332 HOUSING BASE 1
20 E3292-760-000 ONE WAY CLUTCH 1
21 SM-0041001-SC SCREW M4 L=10 3
22 E6404-705-000 REEL SHAFT B 1
23 RE-0300000-K0 E-RING 3 1
24 E4303-706-0A0 ARM 16 ASM 1
25 E4304-706-0A0-A HOUSING 16 ASM 1
26 WT-0320002-KZ WASHER 1
27 SM-5030555-SC SCREW 1
28 400-69333 DRIVE SP 1
29 PA-1002008-A0 AIR CYLINDER 1
30 SL-6031402-TN BOLT 2
31 400-69334 JOINT BLOCK 1
32 400-69335 ROLL DRIVING LEVER 1
33 E6372-705-000-M LINKSCREW 1
34 400-69336 PULL SHAFT 1
35 SM-8040302-TP SETSCREW 1
36 PC-0105080-00 SPEED CONTROLLER 2
37 BT-0400251-EA TUBE HOSE, BLUE 6
38 400-83238 TAPE HANGER 1
39 SM-3040652-TN SCREW M4 L=6 3
40 E4310-706-0A0-A TAPE HOLDER 16 ASM 1
41
#01
SL-6051492-TN BOLT 3
42 400-69351 GASKET 0.05
43 400-57589 TAPE DETECT SENSOR ASM 1
44 SM-6030602-TN HEX SCREW M3 X 6 2
45
#02
SL-6051492-TN BOLT 4
46
#02
400-69338 BRANK RUN UNIT STAND A 1
47
#02
SM-3051052-TN SCREW M5 L=10 1
48
#02
SL-6051492-TN BOLT 4
49
#02
400-69348 BRANK RUN UNIT STAND B 1
50
#02
400-69349 BRANK RUN UNIT STAND C 1
51
#02
SM-6051002-TN BOLT 2
52
#02
SL-6052092-TN SCREW 4
53 E3401-802-000 NEEDLE S 1
54 E3406-802-000 NEEDLE M 1
55 E3411-802-000 NEEDLE L 1
56 E3416-802-000 NEEDLE LL 1
57 E3421-802-000 NEEDLE XL 1
58
#03
E3402-802-000 NEEDLE CS 1
59
#03
E3407-802-000 NEEDLE CM 1
60
#03
400-28869 NEEDLE S WST 1
61 WP-0451016-SP WASHER 4.5X20X1 1
62 HX-0029400-00 FIXED BASE 1
