- - 32.A CC ES S ORY COM P ONEN T S 8 2 0 1 3 1 7 1 6 1 8 1 5 1 4 1 9 7 9 2 6 2 7 2 8 2 9 2 5 4 1 0 3 2 1 1 2 2 2 3 2 4 1 1 1 2 3 3 3 1 3 2 3 5 3 4 5 6 3 0 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-69322 FITTING BASE PLATE 1
2
#02
400-82769 FITTING BASE PLATE R 1
3 SM-4030601-SC SCREW M3 X 6 1
4 400-69323 STUD A 2
5 400-69324 STUD B 1
6 400-69325 STUD C 1
7 400-69326 TAPE HOLDER BASE 1
8 SM-0030601-SC SCREW M3X0.5 L=6 2
9 400-69327 TAPE HOLDER A 1
10 400-52091 LINK SCREW M 2
11 400-83239 UPPER CLAMP SP 1
12 400-69329 TAPE HOLDER B 1
13 400-52091 LINK SCREW M 2
14 400-69350 UNDER CLUMP SP 1
15 400-69330 BLANK RUN BASE 1
16 400-69331 TAPE GUIDE COVER 1
17 SL-6044092-TN SCREW 3
18 SL-6040892-TN BOLT 2
19 400-69332 HOUSING BASE 1
20 E3292-760-000 ONE WAY CLUTCH 1
21 SM-0041001-SC SCREW M4 L=10 3
22 E6404-705-000 REEL SHAFT B 1
23 RE-0300000-K0 E-RING 3 1
24 E4303-706-0A0 ARM 16 ASM 1
25 E4304-706-0A0-A HOUSING 16 ASM 1
26 WT-0320002-KZ WASHER 1
27 SM-5030555-SC SCREW 1
28 400-69333 DRIVE SP 1
29 PA-1002008-A0 AIR CYLINDER 1
30 SL-6031402-TN BOLT 2
31 400-69334 JOINT BLOCK 1
32 400-69335 ROLL DRIVING LEVER 1
33 E6372-705-000-M LINKSCREW 1
34 400-69336 PULL SHAFT 1
35 SM-8040302-TP SETSCREW 1
36 PC-0105080-00 SPEED CONTROLLER 2
37 BT-0400251-EA TUBE HOSE, BLUE 6
38 400-83238 TAPE HANGER 1
39 SM-3040652-TN SCREW M4 L=6 3
40 E4310-706-0A0-A TAPE HOLDER 16 ASM 1
41
#01
SL-6051492-TN BOLT 3
42 400-69351 GASKET 0.05
43 400-57589 TAPE DETECT SENSOR ASM 1
44 SM-6030602-TN HEX SCREW M3 X 6 2
45
#02
SL-6051492-TN BOLT 4
46
#02
400-69338 BRANK RUN UNIT STAND A 1
47
#02
SM-3051052-TN SCREW M5 L=10 1
48
#02
SL-6051492-TN BOLT 4
49
#02
400-69348 BRANK RUN UNIT STAND B 1
50
#02
400-69349 BRANK RUN UNIT STAND C 1
51
#02
SM-6051002-TN BOLT 2
52
#02
SL-6052092-TN SCREW 4
53 E3401-802-000 NEEDLE S 1
54 E3406-802-000 NEEDLE M 1
55 E3411-802-000 NEEDLE L 1
56 E3416-802-000 NEEDLE LL 1
57 E3421-802-000 NEEDLE XL 1
58
#03
E3402-802-000 NEEDLE CS 1
59
#03
E3407-802-000 NEEDLE CM 1
60
#03
400-28869 NEEDLE S WST 1
61 WP-0451016-SP WASHER 4.5X20X1 1
62 HX-0029400-00 FIXED BASE 1
- -

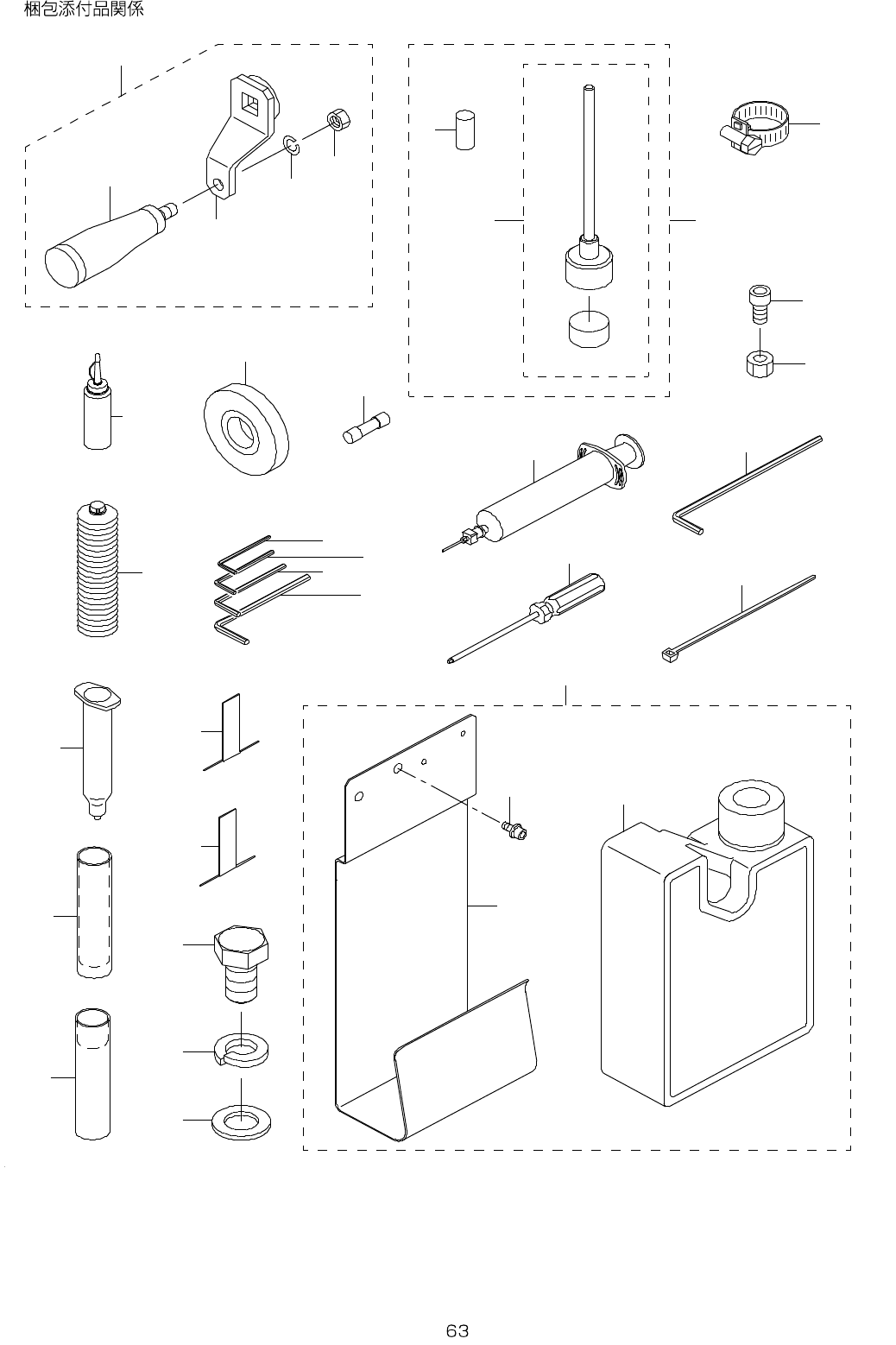

32.ACCESSORY COMPONENTS
8
2 0
1 3
1 7
1 6
1 8
1 5
1 4
1 9
7
9
2 6
2 7
2 8
2 9
2 5
4
1 0
3
2 1
1
2 2
2 3
2 4
1 1
1 2
3 3
3 1
3 2
3 5
3 4
5
6
3 0
2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3431-802-000 NEEDLE CLEANER S 5
2 400-69277 BACK UP PIN 2077 ASM 16
3 400-69278 SUPPORT PIN CAP (1)
4 400-34506 BACK UP PIN ASSEMBLY (1)
5 288-46509 WASHER 4
6 288-46400 BOLT 4
7 161-21907 HOSE BAND 1
8 SM-6083002-TN SCREW M8 L=30 12
9 NM-6080002-SC NUT M8 12
10 400-46643 CG2 GREASE 1
11 B9121-220-0A0 OILER (CONTAINING NO.2 OIL) 1
12 E3939-802-000 BLANK RUN TAPE 1
13 400-32449 6459 GREASE N 1
14 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
15 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 1
16 J1066-000-00D HEXAGONAL WRENCH KEY 1
17 J1066-000-00E HEXAGONAL BOWL WRENCH 1
18 J1066-000-A0G HEXAGONAL LONG SPANNER 1
19 J1080-000-000 BOLL SCREWDRIVER 1
20 EA-9500B02-00 CABLE BAND 150 10
21 E3432-802-000 NEEDLE CLEANER M 5
22 E6113-715-000 BARREL (30) 3
23 E2508-802-000 REMAINING AMOUNT DETECTION JIG 1
24 E2509-802-000 REMAINING AMOUNT DETECTION JIG 1
25 HF-0110025-S0 SLO-BLO FUSE 3
26 400-01639 AUTO DRAIN SET ASM. 1
27 400-16814 DRAIN TANK STAY (1)
28 400-16815 DRAIN TANK (1)
29 SL-6040892-TN BOLT (2)
30 288-46608 SPRING WASHER 4
31 400-72349 HAND KNOB ASM 1
32 400-72363 HAND KNOB (1)
33 400-72364 HAND KNOB ARM (1)
34 NM-6050001-SC NUT M5 (1)
35 WS-0510002-KN SPRING WASHER (1)
