- - O PTIO N 33.A W C & AIR B LOW UNIT COMPON E NTS 1 6 1 4 6 1 7 1 8 1 5 1 0 7 1 1 1 2 2 0 2 1 8 1 3 5 9 1 9 2 2 2 4 2 3 2 5 2 6 2 3 4 1 2 8 4 4 3 0 3 1 3 4 3 3 3 2 3 7 3 8 2 9 4 4 4 4 4 2 4 3 4 4 2 7 4 1 4 5 3 9 …
- -

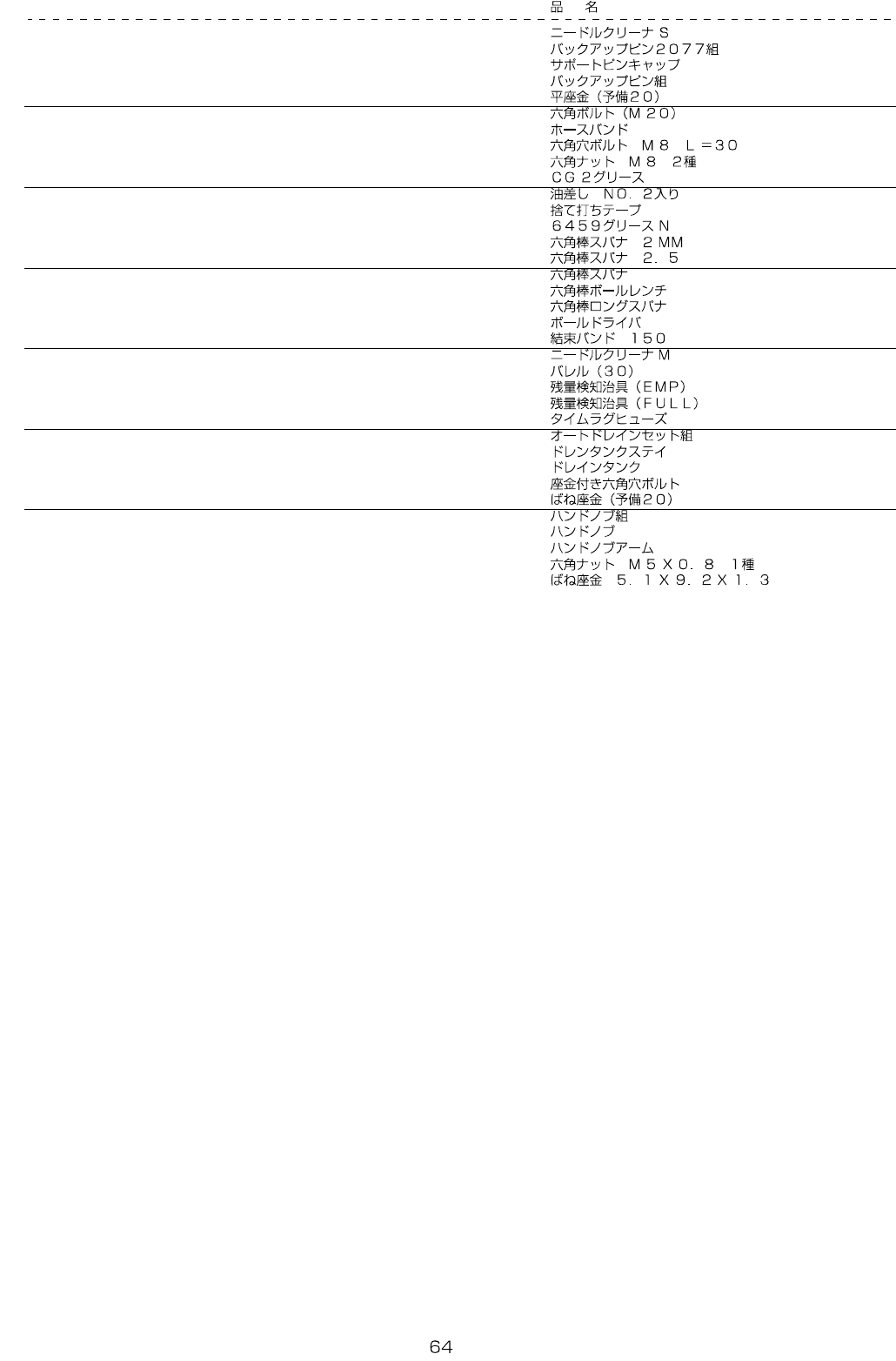

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3431-802-000 NEEDLE CLEANER S 5
2 400-69277 BACK UP PIN 2077 ASM 16
3 400-69278 SUPPORT PIN CAP (1)
4 400-34506 BACK UP PIN ASSEMBLY (1)
5 288-46509 WASHER 4
6 288-46400 BOLT 4
7 161-21907 HOSE BAND 1
8 SM-6083002-TN SCREW M8 L=30 12
9 NM-6080002-SC NUT M8 12
10 400-46643 CG2 GREASE 1
11 B9121-220-0A0 OILER (CONTAINING NO.2 OIL) 1
12 E3939-802-000 BLANK RUN TAPE 1
13 400-32449 6459 GREASE N 1
14 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
15 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 1
16 J1066-000-00D HEXAGONAL WRENCH KEY 1
17 J1066-000-00E HEXAGONAL BOWL WRENCH 1
18 J1066-000-A0G HEXAGONAL LONG SPANNER 1
19 J1080-000-000 BOLL SCREWDRIVER 1
20 EA-9500B02-00 CABLE BAND 150 10
21 E3432-802-000 NEEDLE CLEANER M 5
22 E6113-715-000 BARREL (30) 3
23 E2508-802-000 REMAINING AMOUNT DETECTION JIG 1
24 E2509-802-000 REMAINING AMOUNT DETECTION JIG 1
25 HF-0110025-S0 SLO-BLO FUSE 3
26 400-01639 AUTO DRAIN SET ASM. 1
27 400-16814 DRAIN TANK STAY (1)
28 400-16815 DRAIN TANK (1)
29 SL-6040892-TN BOLT (2)
30 288-46608 SPRING WASHER 4
31 400-72349 HAND KNOB ASM 1
32 400-72363 HAND KNOB (1)
33 400-72364 HAND KNOB ARM (1)
34 NM-6050001-SC NUT M5 (1)
35 WS-0510002-KN SPRING WASHER (1)
- -
OPTION

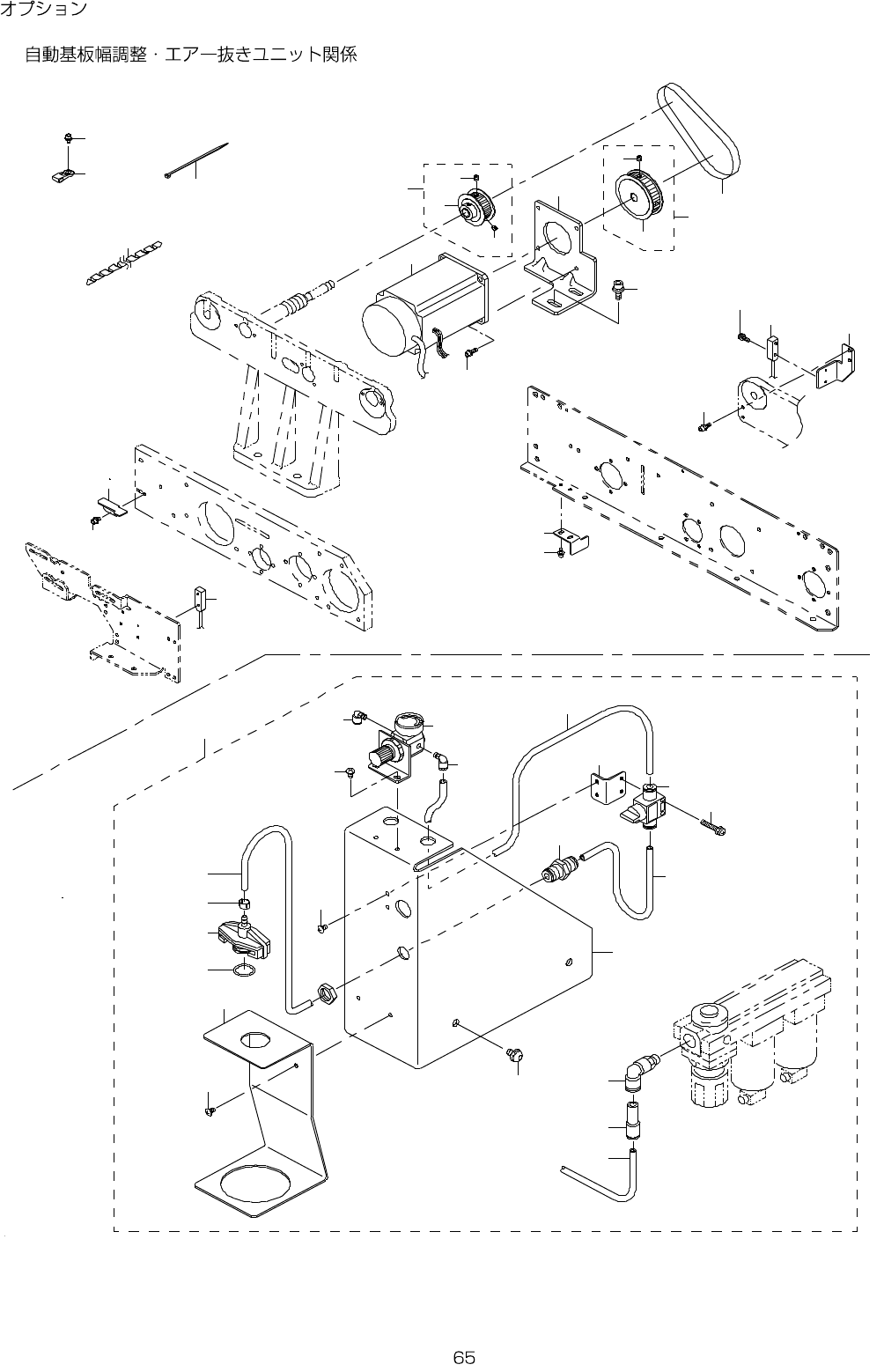

33.AWC & AIR BLOW UNIT COMPONENTS
1 6
1 4
6
1 7
1 8
1 5
1 0
7
1 1
1 2
2 0
2 1
8
1 3
5
9
1 9
2 2
2 4
2 3
2 5
2 6
2 3
4
1
2 8
4 4
3 0
3 1
3 4
3 3
3 2
3 7
3 8
2 9
4 4
4 4
4 2
4 3
4 4
2 7
4 1
4 5
3 9
4 0
3 5
3 6
3 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-68876 CONVEYOR DETECT SNS CBL ASM 1
2
#01
400-69345 AWC SENSOR DOG 77 F LR (L) 1
3
#02
400-69346 AWC SENSOR DOG 77 F RL (L) 1
4 SL-6030692-TN BOLT 2
5 400-00768 AWC PULLEY A ASM. 1
6 E2153-725-000 AWC PULLEY A (1)
7 SM-8040602-TP SCREW M4X0.7 L=6 (2)
8 SL-6051492-TN BOLT 2
9 400-00769 AWC PULLEY B ASM. 1
10 E2154-725-000 AWC PULLEY B (1)
11 SM-8040402-TP SCREW M4X0.7 L=4 (2)
12 SM-8040602-TP SCREW M4X0.7 L=6 (2)
13 E2155-725-000 AWC BELT (M/L) 1
14 E2156-725-000 AWC OP DOG (M/L) 1
15 SL-6030692-TN BOLT 2
16 E4801-729-000 AWC SENSOR BRACKET B (M/L) 1
17 SL-6031092-TN SCREW 2
18 400-02120 AWC ORG SENS ASM 1
19 E2152-725-000 AWC BRACKET R 1
20 E9434-729-0A0 WIDTH ADJUST MOTOR ASM. 1
21 SL-6031092-TN SCREW 4
22 SL-4031091-SC SCREW M3 X 10 2
23 HX-0034400-00 HARNESS PARTS 1
24 SL-6030692-TN BOLT 1
25 EA-9500B01-00 CABLE BAND 2
26 HX-0052200-00 SPIRAL TUBE 0.32
27 400-69533 AIR BLOW UNIT ASM 1
28 E4001-802-000 REGULATER BRACKET (1)
29 E4002-802-000 SYRINGE HOOK (1)
30 SM-0040601-SC SCREW M4X0.7 L=6 (2)
31 400-69275 VALVE BRACKET (1)
32 PV-0100060-00 HAND VALVE (1)
33 SL-4042591-SC SCREW M4 L=25 (2)
34 SM-0040601-SC SCREW M4X0.7 L=6 (2)
35 PF-0205010-B0 REGUIATER (1)
36 PJ-3040605-02 ELBOW UNION 6XM5 (2)
37 SM-0040601-SC SCREW M4X0.7 L=6 (2)
38 PJ-2300061-00 UNION 06 (1)
39 E4003-802-000-A ADAPTER HEAD (1)
40 E4004-802-000 AIR CLAMP (1)
41 RO-1582401-00 O-RING (1)
42 PJ-3041053-01 ELBOW UNION (1)
43 PJ-3010600-03 REDUCER (1)
44 BT-0600400-EC TUBE HOSE, BLUE (3)
45 SL-3061232-TN SCREW (2)
