- - 36.C ONNECT PLATE & AUXI LI A RY MEMORY COMPONENTS 3 4 6 4 5 9 1 0 1 2 1 0 1 1 1 1 6 1 8 1 7 1 8 1 9 1 5 1 3 1 4 2 3 2 5 2 4 2 5 2 6 2 2 2 0 2 1 2 7 2 8 2 9 3 0 2 8 7 3 1
- -

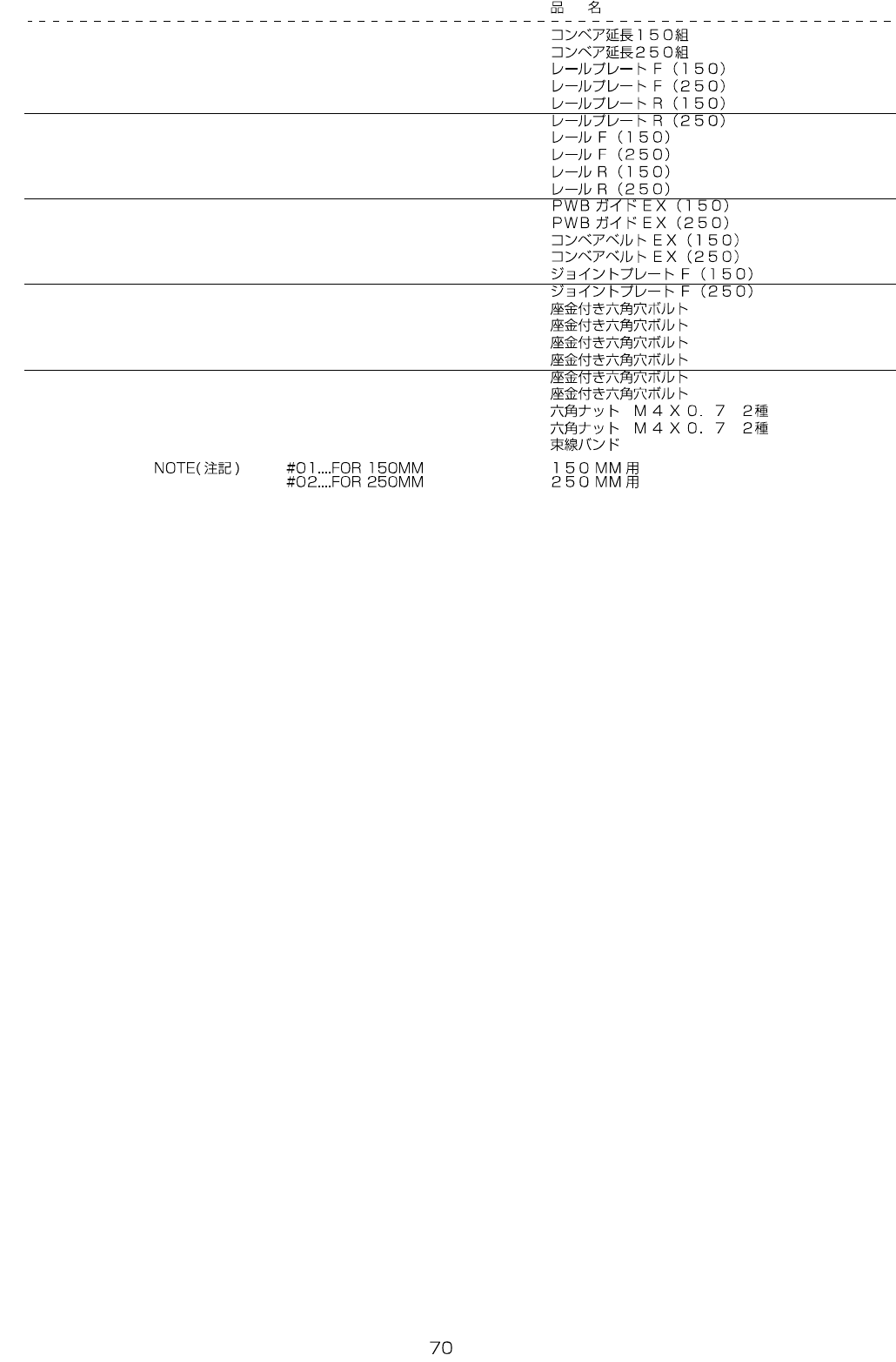

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-11052 CONVEYOR EXTENTION 150 ASM 1
2
#02
400-11059 CONVEYOR EXTENTION 250 ASM 1
3
#01
400-11053 RAIL PLATE F(150) (1)
4
#02
400-11060 RAIL PLATE F(250) (1)
5
#01
400-11054 RAIL PLATE R(150) (1)
6
#02
400-11061 RAIL PLATE R(250) (1)
7
#01
400-11055 RAIL F(150) (1)
8
#02
400-11062 RAIL F(250) (1)
9
#01
400-11056 RAIL R(150) (1)
10
#02
400-11063 RAIL R(250) (1)
11
#01
400-11057 PWB GUIDE EX(150) (2)
12
#02
400-11064 PWB GUIDE EX(250) (2)
13
#01
400-11058 CONVEYOR BELT EX(150) (2)
14
#02
400-11065 CONVEYOR BELT EX(250) (2)
15
#01
400-11072 JOINT PLATE F(150) (2)
16
#02
400-11066 JOINT PLATE F(250) (2)
17
#01
SL-6031092-TN SCREW (6)
18
#02
SL-6031092-TN SCREW (8)
19 SL-6031492-TN SCREW (4)
20 SL-6041292-TN SCREW (6)
21
#01
SL-6041092-TN SCREW (8)
22
#02
SL-6041092-TN SCREW (12)
23
#01
NM-6040002-SN NUT M4 (8)
24
#02
NM-6040002-SN NUT M4 (12)
25 HX-0044000-00 CABLE BAND (5)
- -
36.CONNECT PLATE & AUXILIARY MEMORY COMPONENTS
3
4
6
4
5
9
1 0
1 2
1 0
1 1
1
1 6
1 8
1 7
1 8
1 9
1 5
1 3 1 4
2 3
2 5
2 4
2 5
2 6
2 2
2 0 2 1
2 7
2 8
2 9
3 0
2
8
7
3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-19121 CONNECT PLATE L ASSY(KE2060L) 1
2 400-16011 CONNECT PLATE L(KE2060L) (1)
3 SL-6051442-TN BOLT (1)
4 WP-0501046-SC WASHER 5 X 14 X 1 (1)
5 NM-6050001-SC NUT M5 (1)
6 WS-0510002-KN SPRING WASHER (1)
7 #02 400-19122 CONNECT PLATE R ASSY(KE2060L) 1
8 400-16012 CONNECT PLATE R(KE2060L) (1)
9 SL-6051442-TN BOLT (1)
10 WP-0501046-SC WASHER 5 X 14 X 1 (1)
11 NM-6050001-SC NUT M5 (1)
12 WS-0510002-KN S PRING WASHER (1)
13
#03
400-19137 CONNECT PLATE C150 L ASSY(KE2060) 1
14 #04 400-19602 CONNECT PLATE C150 R ASSY(KE2060) 1
15 400-19136 CONNECT PALATE C150(KE2060) (1)
16 SL-6051442-TN BOLT (1)
17 WS-0510002-KN S PRING WASHER (1)
18 WP-0501046-SC WASHER 5 X 14 X 1 (1)
19 NM-6050001-SC NUT M5 (1)
20
#05
400-19603 CONNECT PLATE C250 L ASSY(KE2060) 1
21
#06
400-19604 CONNECT PLATE C250 R ASSY(KE2060) 1
22 E1610-998-000 CONNECT PLATE C250 (KE2000) (1)
23 SL-6051442-TN BOLT (1)
24 WS-0510002-KN S PRING WASHER (1)
25 WP-0501046-SC WASHER 5 X 14 X 1 (1)
26 NM-6050001-SC NUT M5 (1)
27 400-44523 USB FD DRIVE 1
28 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
29 400-52558 USB MEMORY 1
30 400-46633 OPTION HOLDER 1
31 SL-4041091-SC SCREW M4 L=10 2
