- - REF. N O N O TE PART NO D E S C R I P T I O N Qty 1 #01 40 0 -19 12 1 CO N N EC T PLAT E L ASS Y (KE2060L) 1 2 4 00-160 11 CO NNE C T PLAT E L(KE20 60L) ( 1) 3 SL -6 05 1 44 2 -T N B OLT ( 1) 4 W P-05010 4 6 -SC WA…
- -

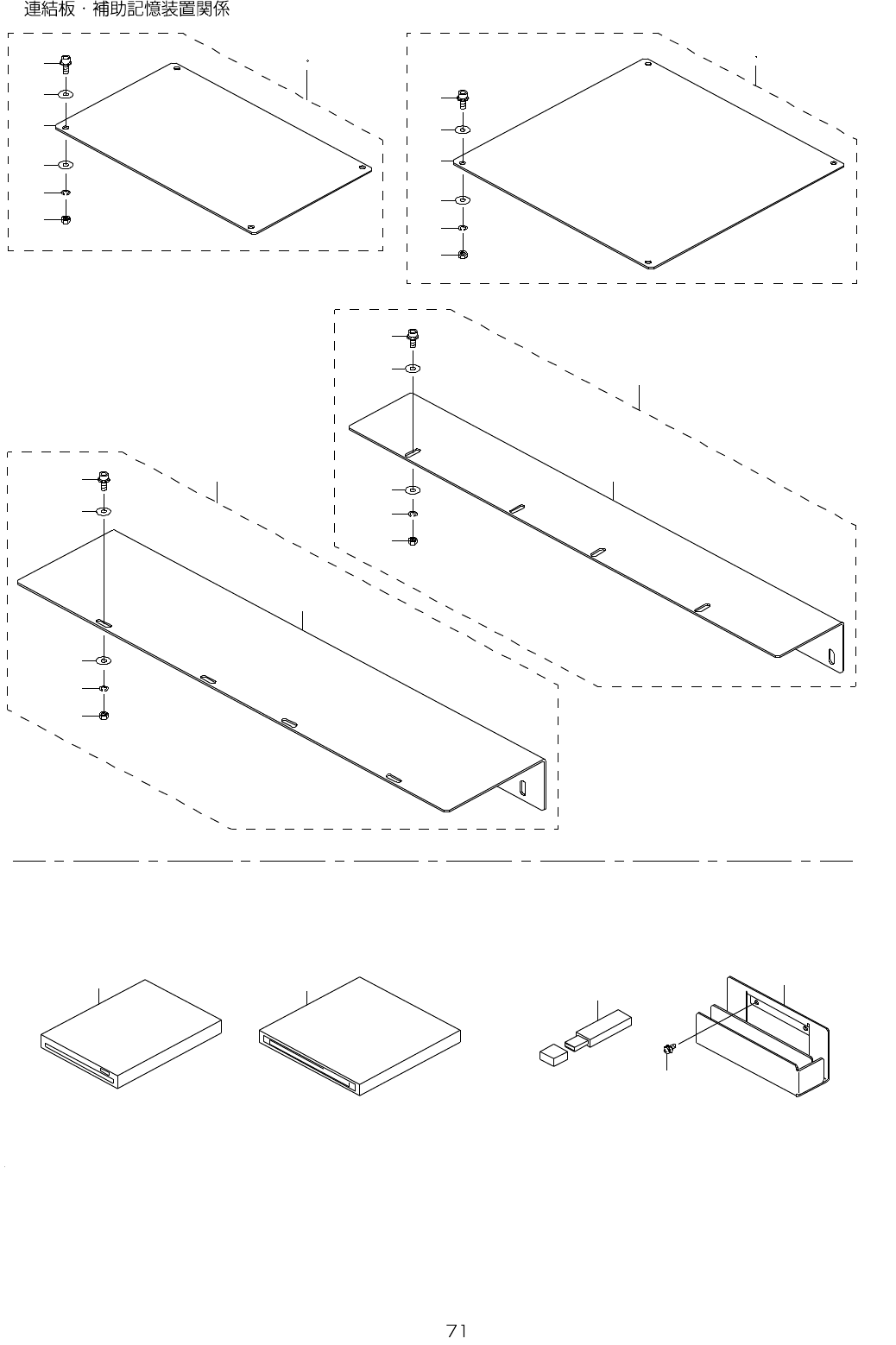

36.CONNECT PLATE & AUXILIARY MEMORY COMPONENTS
3
4
6
4
5
9
1 0
1 2
1 0
1 1
1
1 6
1 8
1 7
1 8
1 9
1 5
1 3 1 4
2 3
2 5
2 4
2 5
2 6
2 2
2 0 2 1
2 7
2 8
2 9
3 0
2
8
7
3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-19121 CONNECT PLATE L ASSY(KE2060L) 1
2 400-16011 CONNECT PLATE L(KE2060L) (1)
3 SL-6051442-TN BOLT (1)
4 WP-0501046-SC WASHER 5 X 14 X 1 (1)
5 NM-6050001-SC NUT M5 (1)
6 WS-0510002-KN SPRING WASHER (1)
7 #02 400-19122 CONNECT PLATE R ASSY(KE2060L) 1
8 400-16012 CONNECT PLATE R(KE2060L) (1)
9 SL-6051442-TN BOLT (1)
10 WP-0501046-SC WASHER 5 X 14 X 1 (1)
11 NM-6050001-SC NUT M5 (1)
12 WS-0510002-KN S PRING WASHER (1)
13
#03
400-19137 CONNECT PLATE C150 L ASSY(KE2060) 1
14 #04 400-19602 CONNECT PLATE C150 R ASSY(KE2060) 1
15 400-19136 CONNECT PALATE C150(KE2060) (1)
16 SL-6051442-TN BOLT (1)
17 WS-0510002-KN S PRING WASHER (1)
18 WP-0501046-SC WASHER 5 X 14 X 1 (1)
19 NM-6050001-SC NUT M5 (1)
20
#05
400-19603 CONNECT PLATE C250 L ASSY(KE2060) 1
21
#06
400-19604 CONNECT PLATE C250 R ASSY(KE2060) 1
22 E1610-998-000 CONNECT PLATE C250 (KE2000) (1)
23 SL-6051442-TN BOLT (1)
24 WS-0510002-KN S PRING WASHER (1)
25 WP-0501046-SC WASHER 5 X 14 X 1 (1)
26 NM-6050001-SC NUT M5 (1)
27 400-44523 USB FD DRIVE 1
28 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
29 400-52558 USB MEMORY 1
30 400-46633 OPTION HOLDER 1
31 SL-4041091-SC SCREW M4 L=10 2
- -
37.CENTERING PIN COMPONENTS
2 3
2 1
2 1
2 4
9
1 0
1 1
4
5
6
7
8
8
6
1 8
2 0
2 2
1 2
1 3
1 4
1 1 5
1 6
1 7
1 9
1 7
1 2
2 2
1 4
1 3
2 5 4 2
2
3
