- - 37.C EN TERING P I N C O MPO N EN T S 2 3 2 1 2 1 2 4 9 1 0 1 1 4 5 6 7 8 8 6 1 8 2 0 2 2 1 2 1 3 1 4 1 1 5 1 6 1 7 1 9 1 7 1 2 2 2 1 4 1 3 2 5 4 2 2 3
- -

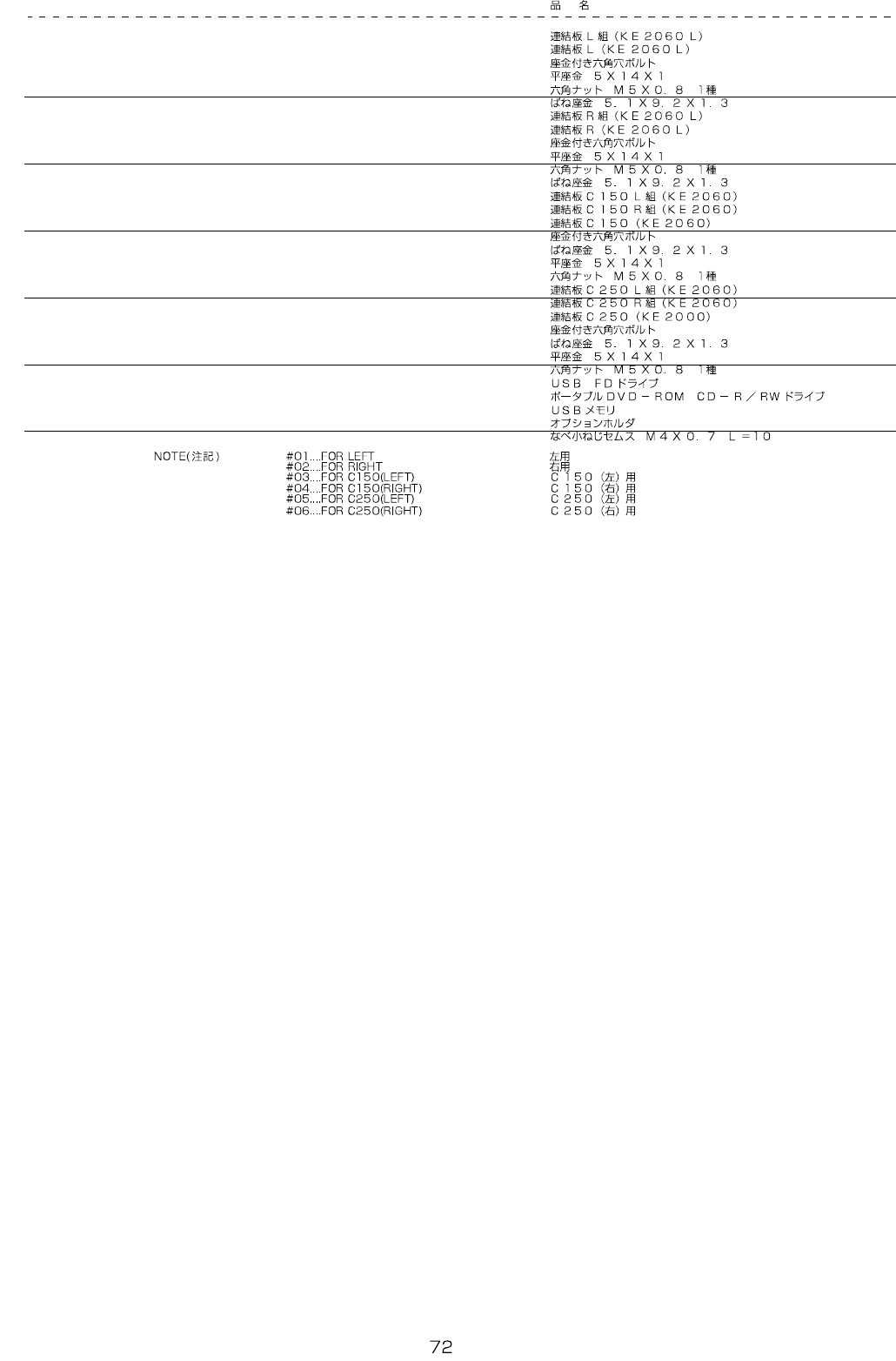

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-19121 CONNECT PLATE L ASSY(KE2060L) 1
2 400-16011 CONNECT PLATE L(KE2060L) (1)
3 SL-6051442-TN BOLT (1)
4 WP-0501046-SC WASHER 5 X 14 X 1 (1)
5 NM-6050001-SC NUT M5 (1)
6 WS-0510002-KN SPRING WASHER (1)
7 #02 400-19122 CONNECT PLATE R ASSY(KE2060L) 1
8 400-16012 CONNECT PLATE R(KE2060L) (1)
9 SL-6051442-TN BOLT (1)
10 WP-0501046-SC WASHER 5 X 14 X 1 (1)
11 NM-6050001-SC NUT M5 (1)
12 WS-0510002-KN S PRING WASHER (1)
13
#03
400-19137 CONNECT PLATE C150 L ASSY(KE2060) 1
14 #04 400-19602 CONNECT PLATE C150 R ASSY(KE2060) 1
15 400-19136 CONNECT PALATE C150(KE2060) (1)
16 SL-6051442-TN BOLT (1)
17 WS-0510002-KN S PRING WASHER (1)
18 WP-0501046-SC WASHER 5 X 14 X 1 (1)
19 NM-6050001-SC NUT M5 (1)
20
#05
400-19603 CONNECT PLATE C250 L ASSY(KE2060) 1
21
#06
400-19604 CONNECT PLATE C250 R ASSY(KE2060) 1
22 E1610-998-000 CONNECT PLATE C250 (KE2000) (1)
23 SL-6051442-TN BOLT (1)
24 WS-0510002-KN S PRING WASHER (1)
25 WP-0501046-SC WASHER 5 X 14 X 1 (1)
26 NM-6050001-SC NUT M5 (1)
27 400-44523 USB FD DRIVE 1
28 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
29 400-52558 USB MEMORY 1
30 400-46633 OPTION HOLDER 1
31 SL-4041091-SC SCREW M4 L=10 2
- -

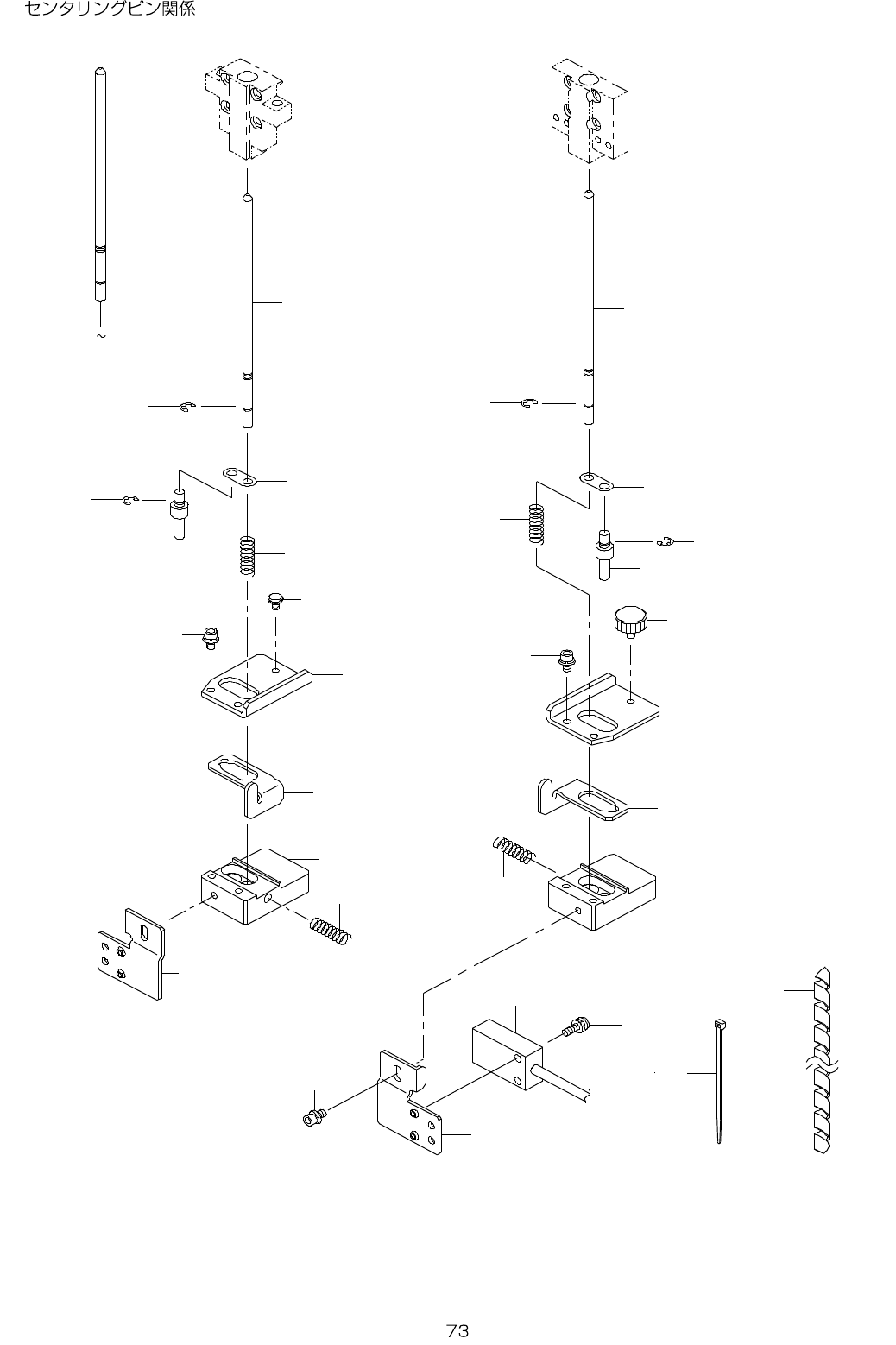

37.CENTERING PIN COMPONENTS
2 3
2 1
2 1
2 4
9
1 0
1 1
4
5
6
7
8
8
6
1 8
2 0
2 2
1 2
1 3
1 4
1 1 5
1 6
1 7
1 9
1 7
1 2
2 2
1 4
1 3
2 5 4 2
2
3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 EA-9500B01-00 CABLE BAND 8
2 E2076-721-000 BU HAND KNOB 1
3 E2141-725-000 BU HAND KNOB S 1
4 400-15791 DAMPER PLATE L 1
5 400-15792 DAMPER PLATE R 1
6 400-15793 LOCK SPRING 2
7 400-00895 DAMPER BLOCK R 1
8 SL-6030892-TN SCREW 4
9 400-00891 STOPER SLIDE LEVER L 1
10 400-00897 STOPER SLIDE LEVER R 1
11 400-00892 DAMPER BLOCK L 1
12 400-00978 DAMPER LOCK LINK 2
13 400-00950 DAMPER SPRING 2
14 RE-0300000-K0 E-RING 3 6
15 EA-9500B00-00 CLIP CV-70S 1
16 HX-0031400-00 SPIRAL TABE 0.3
17 400-01081 CENTERING PIN 4.0 2
18 400-02122 T.PIN SENS ASM 1
19 SL-6030692-TN BOLT 1
20 SL-4031091-SC SCREW M3 X 10 2
21 RE-0300000-K0 E-RING 3 2
22 400-00896 DAMPER LOCK PIN 2
23
#01
E2148-721-000 SENSOR BRACKET R 1
24
#02
E2147-721-000 SENSOR BRACKET L 1
25 400-01087 CENTERING PIN 3.4 1
26 400-01088 CENTERING PIN 3.3 1
27 400-01089 CENTERING PIN 3.2 1
28 400-01090 CENTERING PIN 3.1 1
29 400-01091 CENTERING PIN 3.0 1
30 400-01092 CENTERING PIN 2.9 1
31 400-01093 CENTERING PIN 2.8 1
32 400-01094 CENTERING PIN 2.7 1
33 400-01095 CENTERING PIN 2.6 1
34 400-01096 CENTERING PIN 2.5 1
35 400-01097 CENTERING PIN 2.0 1
36 400-01098 CENTERING PIN 1.9 1
37 400-01099 CENTERING PIN 1.8 1
38 400-01082 CENTERING PIN 3.9 1
39 400-01083 CENTERING PIN 3.8 1
40 400-01084 CENTERING PIN 3.7 1
41 400-01085 CENTERING PIN 3.6 1
42 400-01086 CENTERING PIN 3.5 1
