- - 3. B AS E FRAME ELECT RIC A PPAR AT U S COM P ONEN T S ( 2) 6 0 5 8 5 9 6 1 5 6 5 7 5 4 5 5 5 2 5 3 5 0 5 1 4 8 6 4 6 5 4 9 6 6 6 2 6 3 1 3 3 6 1 5 1 7 1 9 2 9 8 8 5 3 1 2 6 7 1 0 9 2 2 4 1 1 1 P S 7 P S 6 P S 5 P …
- -

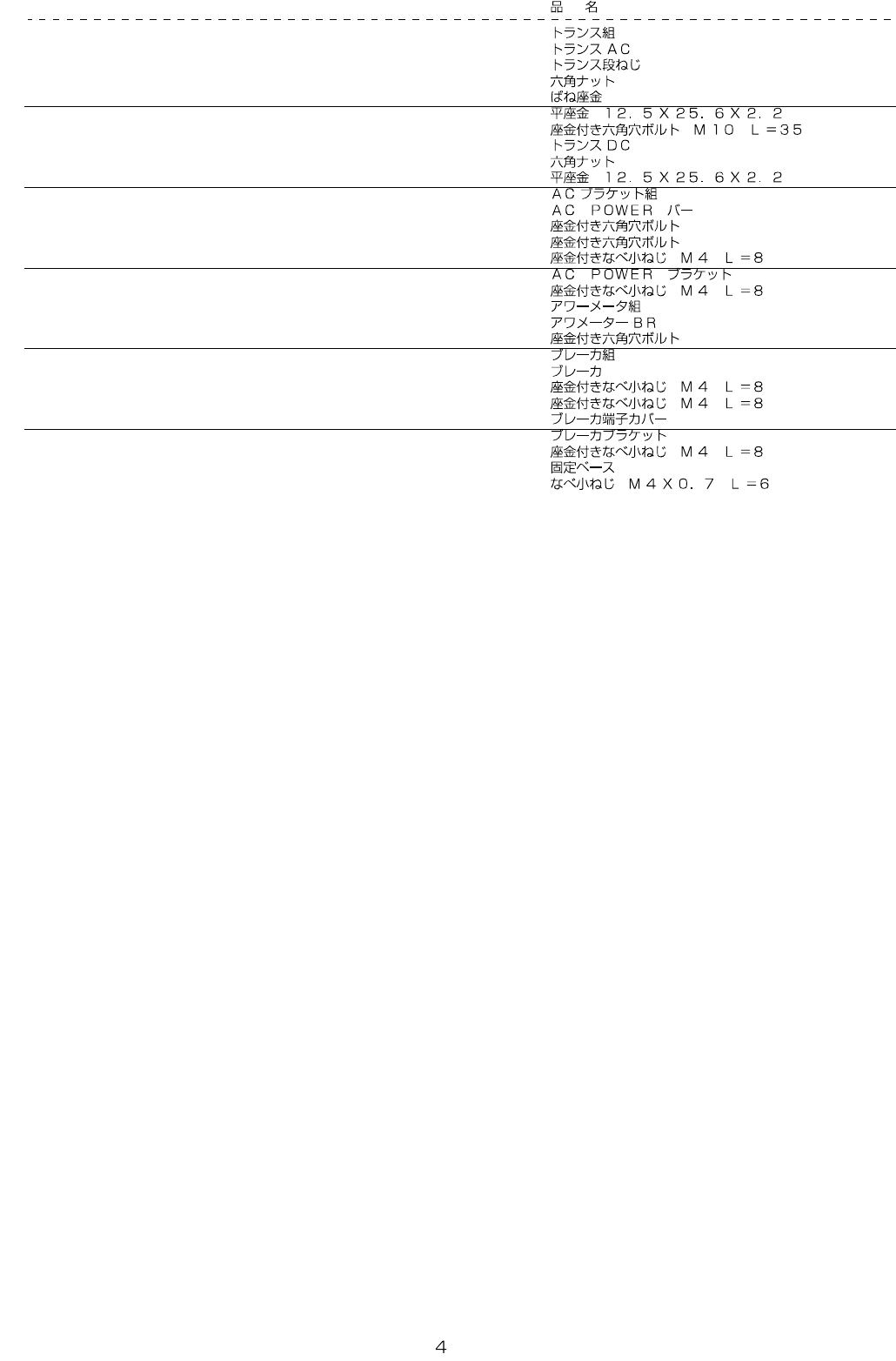

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01561 TRANSFORMAR ASSY 1
2 400-40379 TRANSFORMER(SERVO) (1)
3 400-00450 TRANS SCREW (4)
4 NM-6120001-SC NUT M12 (4)
5 WS-1220002-KN SPRING WASHER (4)
6 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
7 SL-6103542-TN SCREW M10 L=35 (4)
8 400-40378 TRANSFORMER(PSU) (1)
9 NM-6120001-SC NUT M12 (4)
10 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
11 400-01562 AC BR ASSY 1
12 400-00487 AC POWER BAR (2)
13 SL-6051292-TN BOLT (2)
14 SL-6061292-TN SCREW (2)
15 SL-4040891-SC SCREW M4 L=8 (2)
16 400-00483 AC POWER BRACKET (1)
17 SL-4040891-SC SCREW M4 L=8 (2)
18 400-02115 HOURMETER ASM 1
19 400-69205 HOURMETER BR 1
20 SL-6061292-TN SCREW 2
21 400-01554 BREAKER ASSY 1
22 HA-0053200-00 CIRCUIT PROTECTOR (1)
23 SL-4040891-SC SCREW M4 L=8 (2)
24 SL-4040891-SC SCREW M4 L=8 (4)
25 HX-0053200-10 CIRCUIT PROTECTOR COVER (1)
26 400-00489 BRAKER BRACKET (1)
27 SL-4040891-SC SCREW M4 L=8 (3)
28 HX-0029400-00 FIXED BASE (1)
29 SM-4040601-SC SCREW M4X0.7 L=6 (1)
- -
3. BASE FRAME ELECTRIC APPARATUS COMPONENTS (2)
6 0
5 8
5 9
6 1
5 6 5 75 4 5 55 2 5 35 0 5 1
4 8
6 4 6 5
4 9 6 6
6 2 6 3
1 3
3 6
1 5
1 7
1 9
2 9
88
5
3
1 2
6 7
1 0
9
2
2
4
1 1
1
P S 7
P S 6
P S 5
P S 4
P S8
P S2
P S1
3 A
AC1 0 0 V
C N 0 9 7
C P 13
RL 5
RL 1
T B 2
T B 1
RL 2
RL 3
7
1 6 1 92 6 2 1 3 6
1 4
4 3
1 8
4 1
3 4 3 5
4 6
4 5
2 8
3 1
4 5
3 04 43 94 02 91 71 53 3 4 7
2 2
2 5 3 8
654321
2 0
2 4
3 7
3 2
1 4
4 2
1 6
2 32 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00481 AC INPUT UNIT 1
2 HK-0699501-10 BLOCK TERMINAL (2)
3 HK-0699900-20 BLOCK TERMINAL (3)
4 HK-0699900-30 BLOCK TERMINAL (4)
5 400-29567 AC TRANCE (1)
6 HB-0010200-0A RELAY (1)
7 HB-0011000-10 RELAY COVER (1)
8 HA-0053300-00 MAGNETIC CONTACTOR (2)
9 HN-0023700-00 NOISE FILTER (1)
10 HC-0566030-P0 CAPACITOR (1)
11 HN-0023600-00 VARISTOR (1)
12 400-69958 FUSE RESISTOR (1)
13 400-69579 POWER UNIT 2077 1
14 400-46562 PSU BRACKET (1)
15 HX-0054300-0A POWER SUPPLY 24V (1)
16 HX-0057700-00 POWER SUPPLY (1)
17 HX-0049400-0A POWER SOURCE 3.3V (1)
18 400-12183 PSU BRACKET S (1)
19 HX-0054200-00 POWER SOURCE 12V (1)
20 400-45316 ACFAN CABLE ASM (1)
21 400-12184 PSU BRACKET B (1)
22 400-12185 PSU BASE (1)
23 HA-0053900-00 CIRCUIT PROTECTOR (1)
24 HB-0011000-0B RELAY (1)
25 HB-0012800-0C RELAY (2)
26 400-00472 PCB BRACKET A (1)
27 HA-0052900-00 SWITCH (1)
28 400-69204 PSU BRACKET A (1)
29 HX-0049400-0B POWER SUPPLY 12V (1)
30 HA-0054200-0C CIRCUIT PROTECTOR (1)
31 HA-0054200-0D CIRCUIT PROTECTOR (2)
32 400-00531 CARRIER RAIL 150 (1)
33
#01
400-95745 UPS (1)
34
#01
400-00479 UPS BRACKET (1)
35
#01
SL-4040891-SC SCREW M4 L=8 (1)
36 400-01945 POWER PCB ASM. (1)
37 HB-0011000-00 RELAY (1)
38 HB-0005800-10 RELAY (2)
39 HA-0052400-0C CIRCUIT PROTECTOR 10A (1)
40 HA-0052400-0D CIRCUIT PROTECTOR 15A (1)
41 HA-0052500-00 CIRCUIT PROTECTOR 30A (1)
42 400-00530 CARRIER RAIL 75 (1)
43 400-00477 PSU SLIDE BAR (2)
44 HA-0052700-00 CIRCUIT PROTECTOR 30A (1)
45 HA-0054200-0A CIRCUIT PROTECTOR (2)
46 HA-0054200-0B CIRCUIT PROTECTOR (1)
47
#01
400-11120 UPS BATTERY (1)
48 400-01563 DUCT ASSY 1
49 400-00522 DUCT BFR (1)
50 400-00523 DUCT BRL (1)
51 SL-4040891-SC SCREW M4 L=8 (2)
52 400-00524 DUCT BRR (1)
53 SL-4040891-SC SCREW M4 L=8 (2)
54 400-00525 DUCT BRC (1)
55 SL-4040891-SC SCREW M4 L=8 (2)
56 400-00526 DUCT BRC2 (1)
57 SL-4040891-SC SCREW M4 L=8 (2)
58 400-00527 DUCT UL (2)
59 SL-4040891-SC SCREW M4 L=8 (4)
60 400-00528 DUCT UR (2)
61 ST-4040651-SN SCREW M4 X 6 (4)
62 400-00520 DUCT BF (1)
63 SL-4040891-SC SCREW M4 L=8 (2)
64 400-00521 DUCT BFL (1)
65 SL-4040891-SC SCREW M4 L=8 (2)
66 SL-4040891-SC SCREW M4 L=8 (2)
