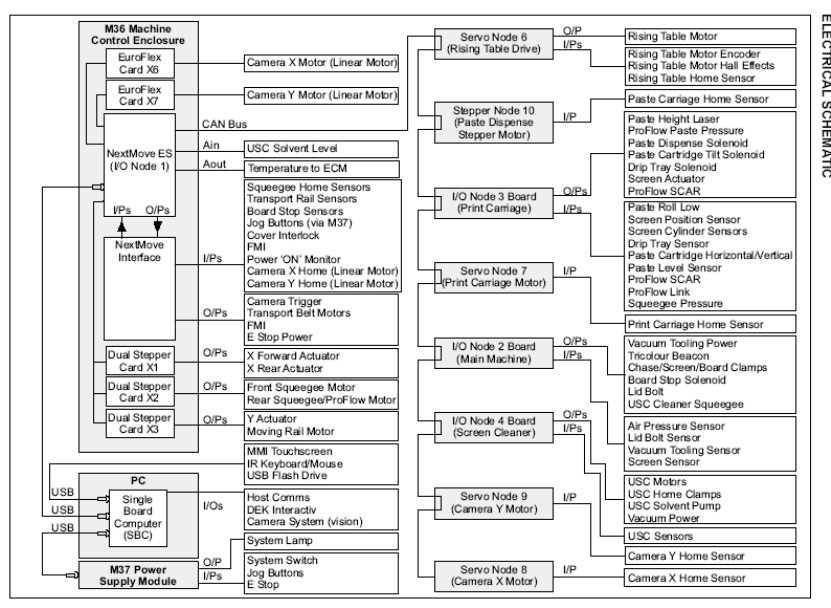

CAN cable connection is very important. CAN Bus 非常重要的
If the CAN bus broke. The Machine cannot successful power up. 如果 CAN BUS
断了机器会开动不了！

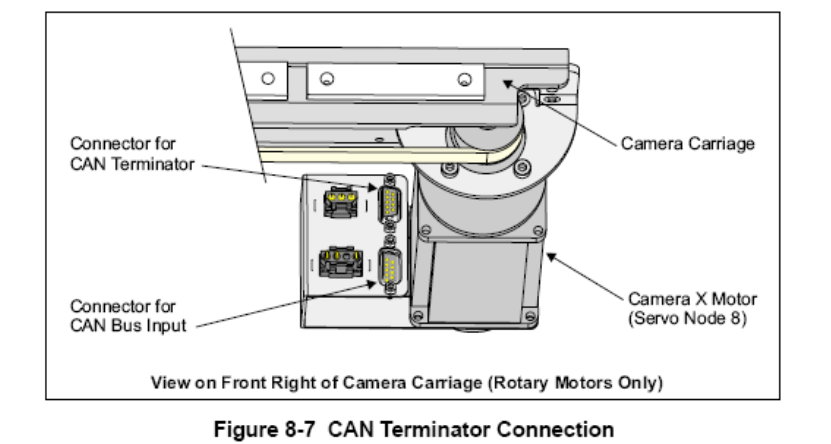

Check the CAN Bus as follow 要验查 CAN Bus 如下 :
Power off Machine 关总电
Disconnect the RJ-45 connector of Next/Move ES card .把 Next/Move ES RJ-45
接口取出来
At the Rising Table(Node 6) CAN bus measure the Resistance. 在上下枱 Node6
的接口用万用表量他的电阻
The resistance must be 120 OHM.正常是 120 欧娒
If not 120 OHM. It means CAN bus have problem.如果不是 120 欧娒就表示
CAN Bus 有问题
Dek Printer Training 52/70 25 June 2006
Dek Printer Training 53/70 25 June 2006

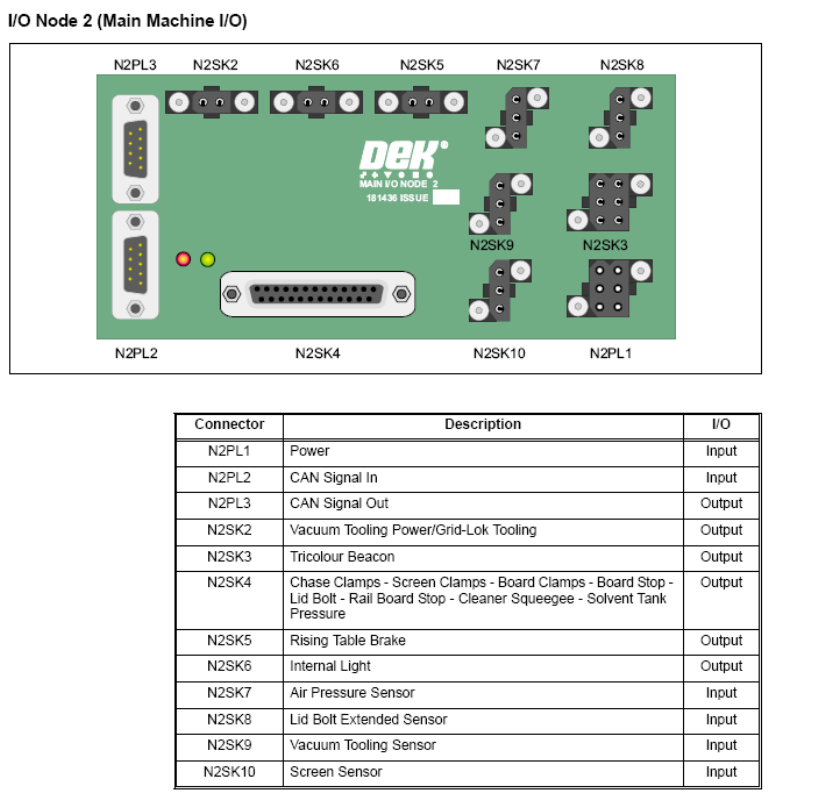

CAN I/O Node 2
Dek Printer Training 54/70 25 June 2006
