CAN I/O Node 4 D e k P r i n t e r T r a i n i n g 5 6 / 7 0 2 5 J u n e 2 0 0 6

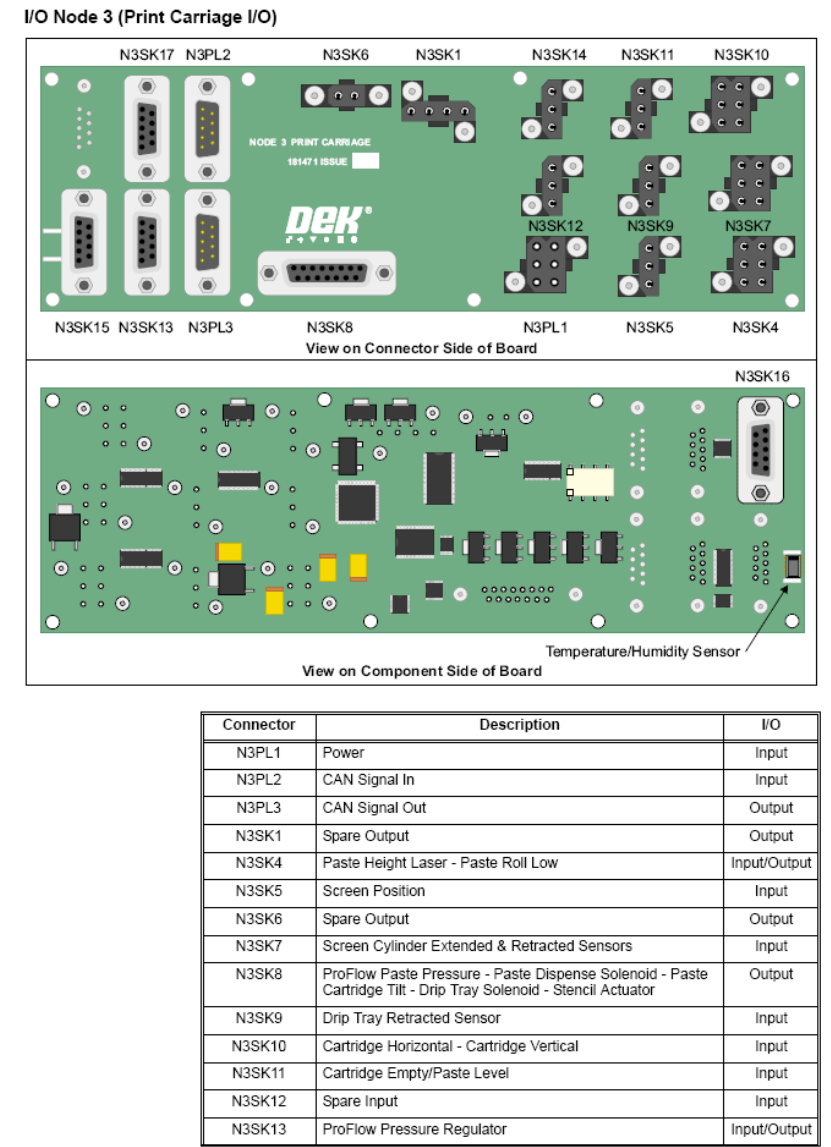

CAN I/O Node 3
Dek Printer Training 55/70 25 June 2006

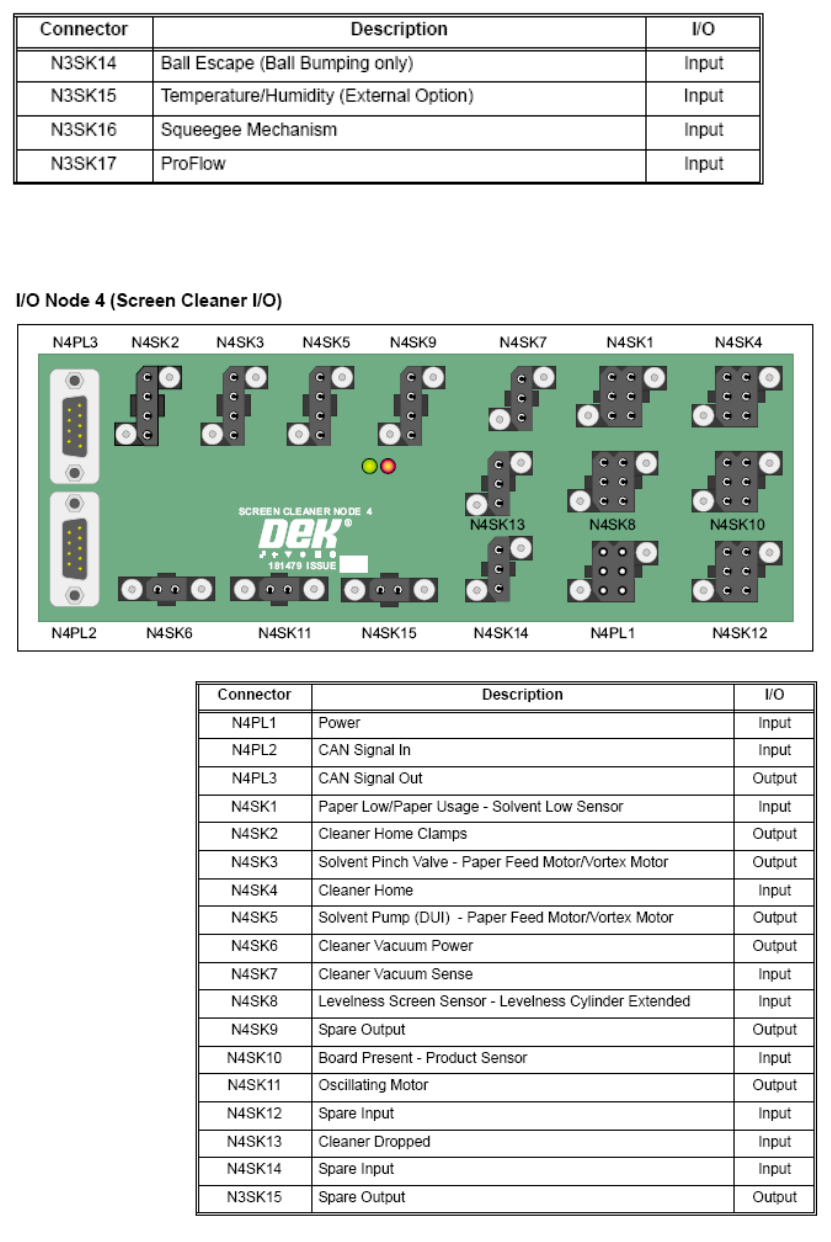

CAN I/O Node 4
Dek Printer Training 56/70 25 June 2006
30. Route Maintenance Description 定期维护
Every one month 每月一次
Camera Linear Bearing Guide rails( 2 Y axis and 1 X axis)
Camera Linear Bearing Blocks(Total : 5)
Print Carriage Linear Bearing Guide Rails(Total : 2)
Print Carriage Linear Bearing Blocks(Total : 3 )
Rising Table Linear Bearing Guide Rails(Total : 2)
Rising Table Linear Bearing Blocks(Total : 4)
Transport Rails Linear Bearing Guide Rails(Total : 6)
Transport Rails Linear Bearing Blocks(Total : 6)
Underscreen cleaner Linear Bearing Guide Rails
Using the 2 camera Y rails
Underscreen cleaner Linear Bearing Blocks(Total : 2)
Rising Table & Transport Rail Ballscrews
Squeegee spindle shaft(total :2)
Camera up and down camera lens
Board at stop Opto-sensor,Entry Opto-Sensor & Exit Opto-Sensor
Cleaning Tooling
Check Camera X & Y Belt.
Check Squeegees Motor Belt
Add Grease on Screen Actuator(Total :3)
Dek Printer Training 57/70 25 June 2006
