PART NAME REMARKS Q'TY 16 付属部品部 ACCESSORY P ARTS SECT . ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086201160 ACCESSORY PA RTS UNIT ﾌｿﾞｸﾌﾞﾋﾝﾕﾆｯﾄ 1 161 1080731340 JIG ｼﾞｸﾞ 1 162 1086231138 PLATE ﾌﾟﾚ-ﾄ 500W …

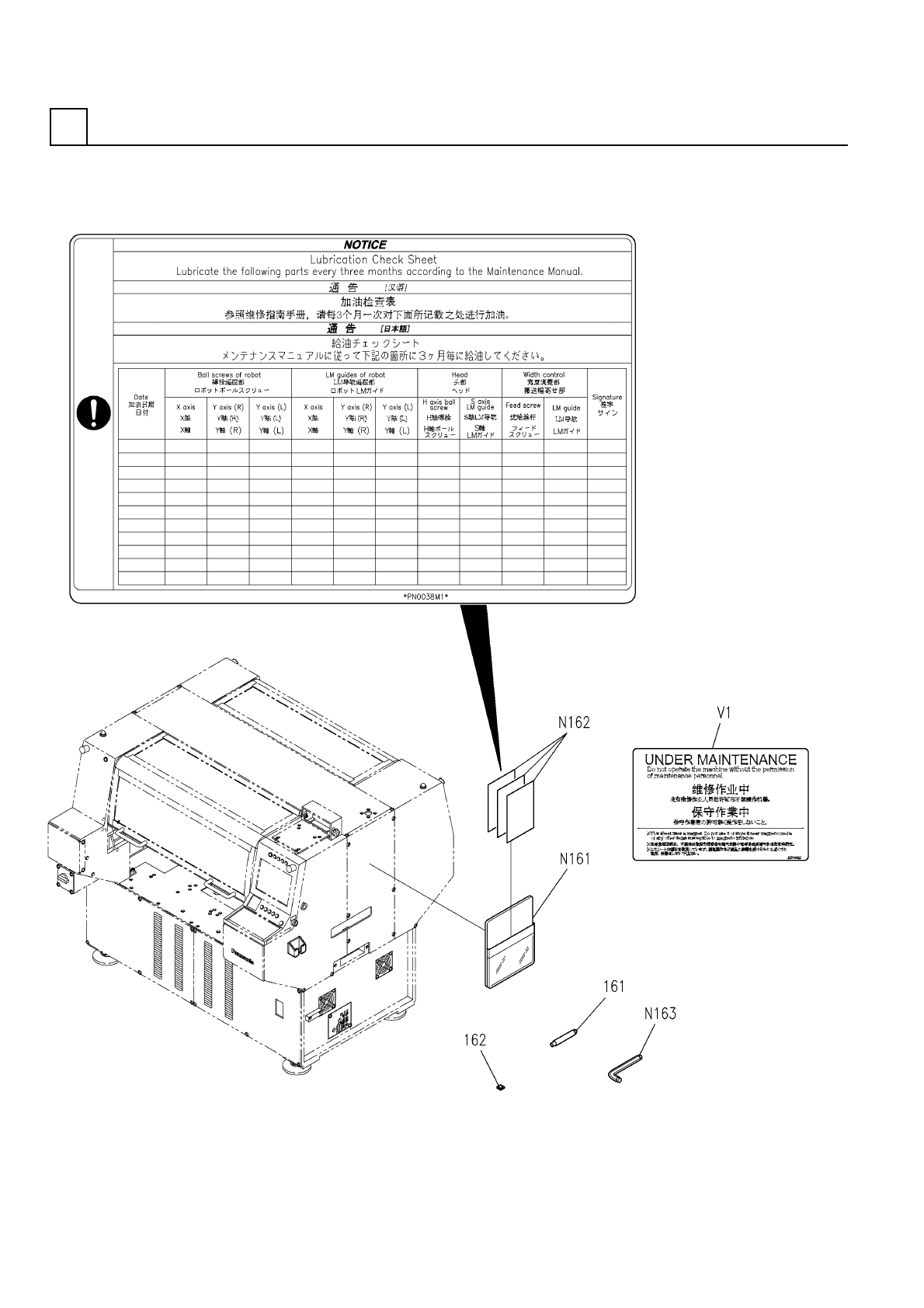

付属部品部
ACCESSORY PARTS SECT.
16
F10862-01-160_01
M89
PART NAME
REMARKS
Q'TY
16
付属部品部
ACCESSORY PARTS SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086201160
ACCESSORY PARTS UNIT ﾌｿﾞｸﾌﾞﾋﾝﾕﾆｯﾄ
1
161 1080731340
JIG ｼﾞｸﾞ
1
162 1086231138
PLATE ﾌﾟﾚ-ﾄ
500W
1
N161
N986YYYY-B55
POCKET ﾎﾟｹｯﾄ
PN0038M1
3
N162
N986PN0038M1
SHEET ｼｰﾄ
LT10
1
N163
N510000061AA
WRENCH ﾚﾝﾁ
FN0024M1
2
V 1 N510008559AA
LABEL ﾗﾍﾞﾙ
M90
F10862-01-160_01

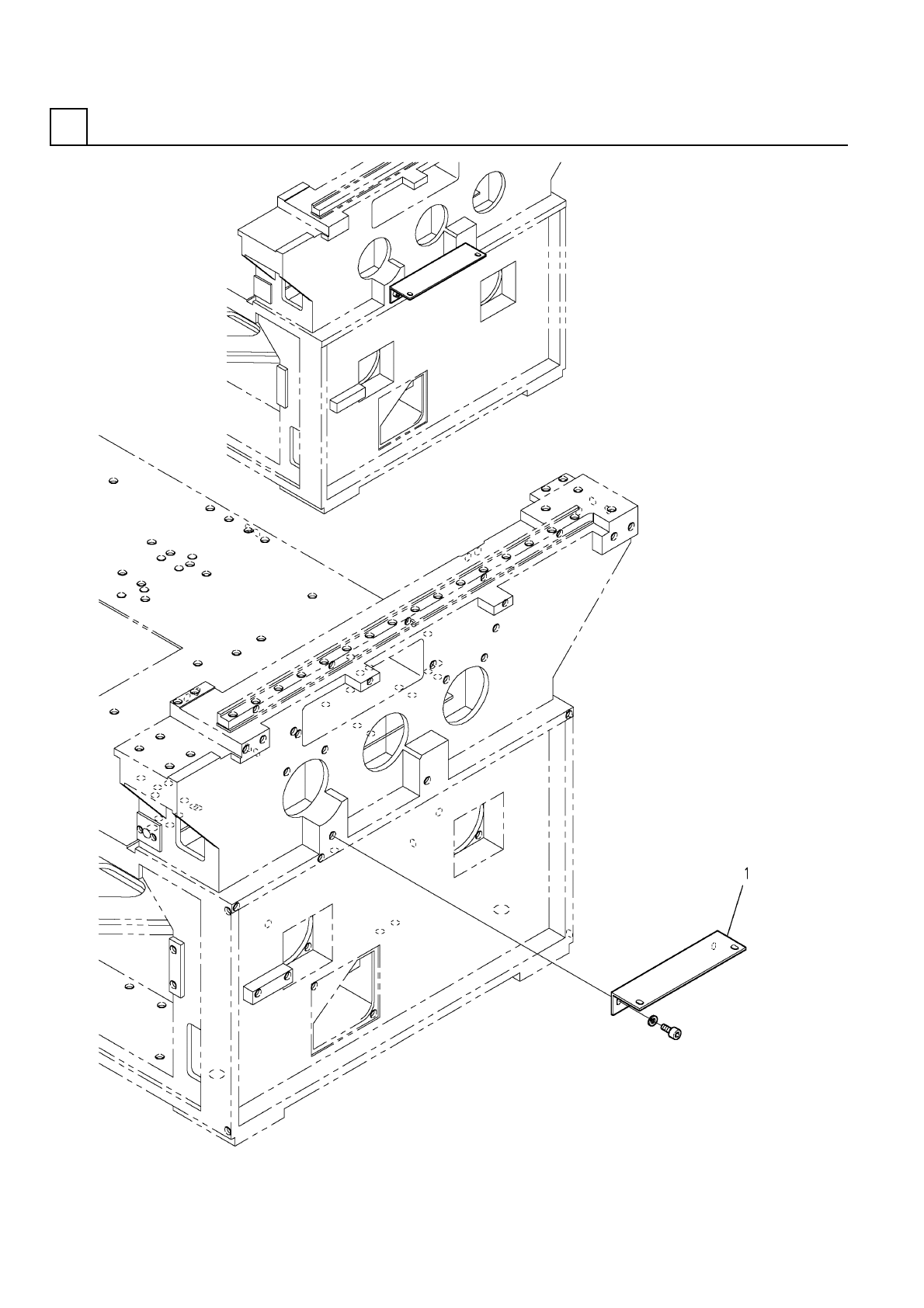

連結部(本体右側)
