BM123 Mechanical 20160307 - 第299页

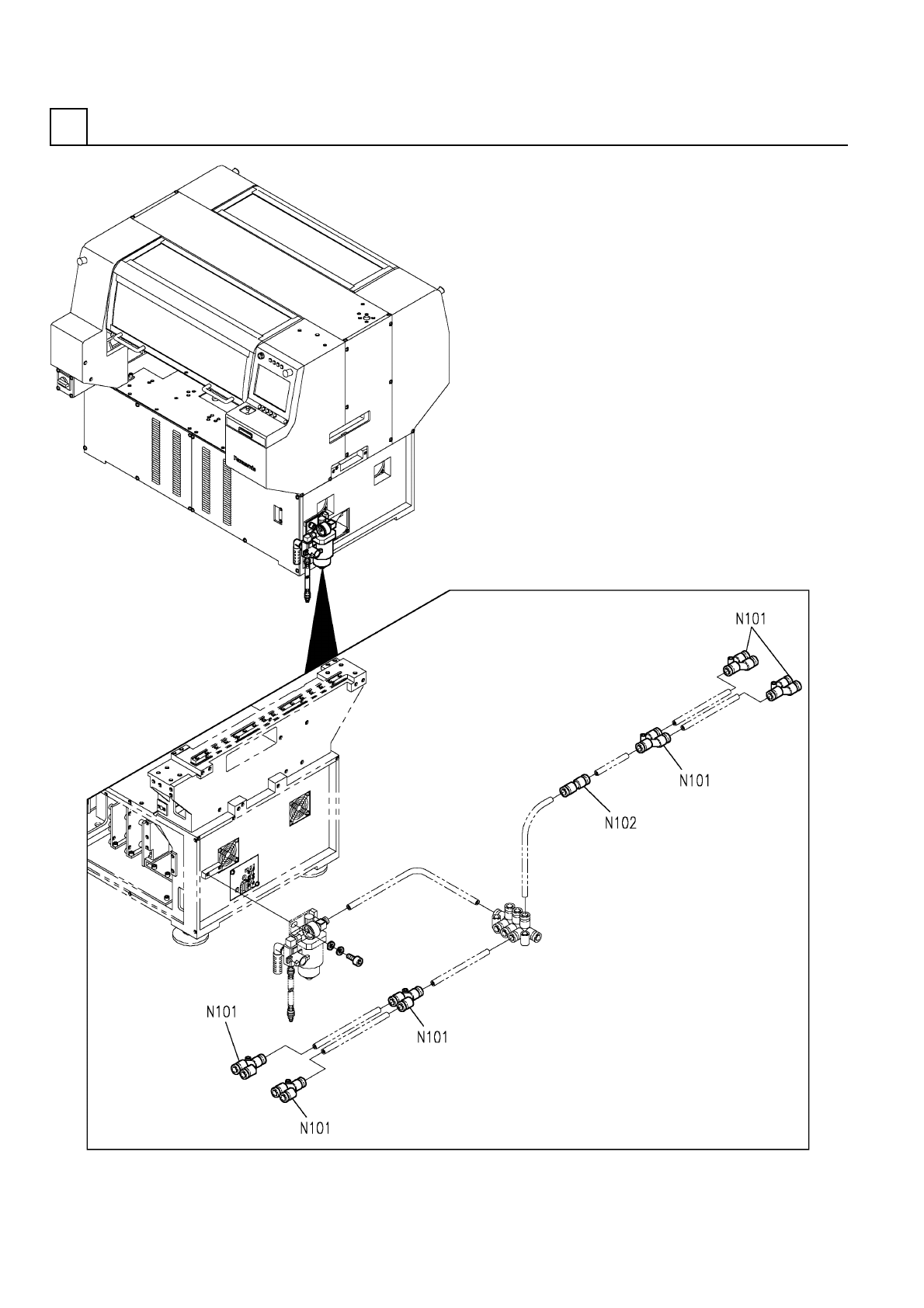

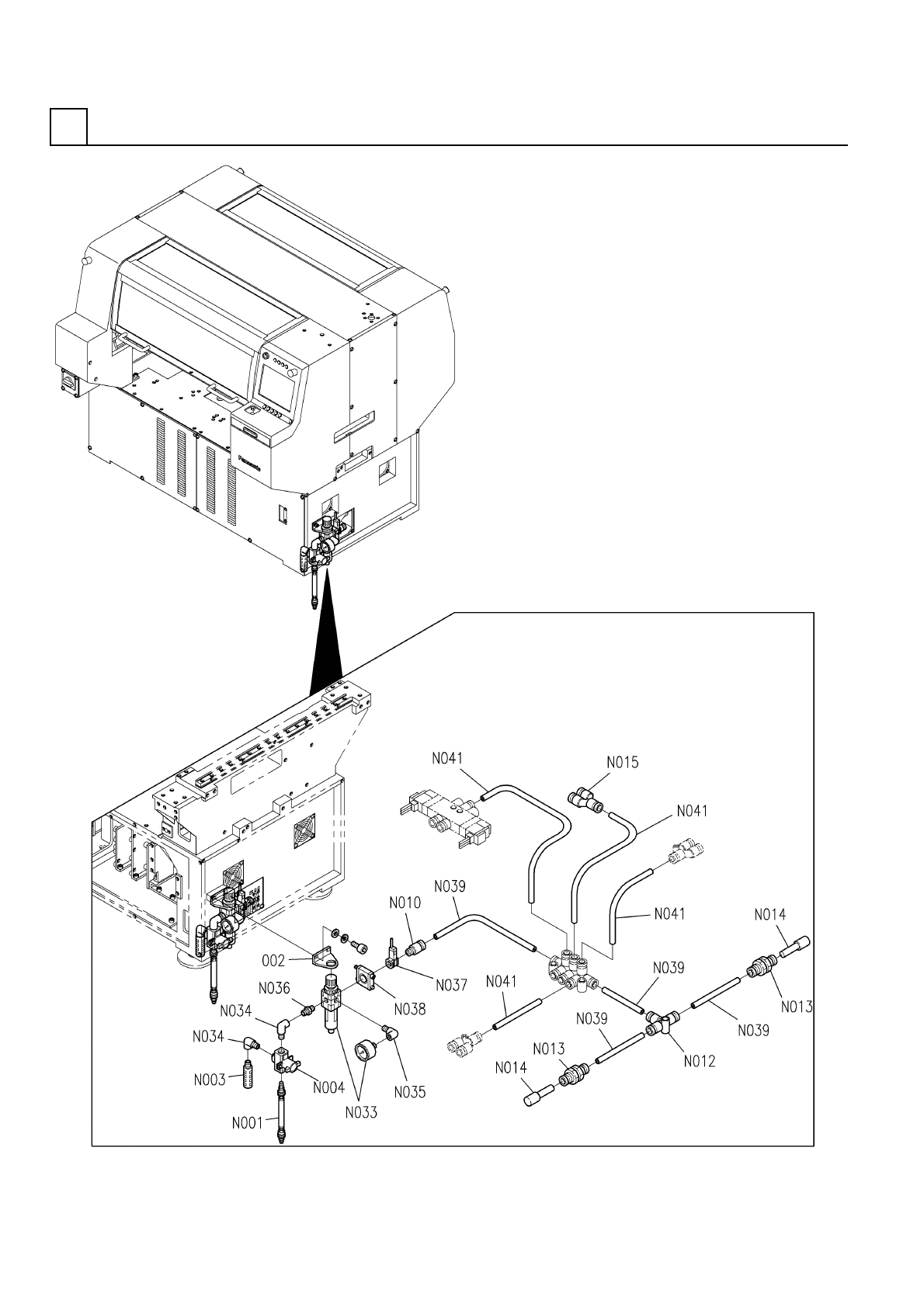

PART NAME REMARKS Q'TY 1 空圧制御部( 共通部3) PNEUMATIC S YSTEM SEC T.(COMMON SECT.-3) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 002 N210043341AB BRACKET ﾌﾞﾗｹｯﾄ OUA8X12-5M-03B 1 N001 N510002541AA TUBE WITH FI TTI…
空圧制御部(共通部3)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-3)
1
F10862-03-000-AJ_02-3
P5
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部3)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1002 N210043341AB
BRACKET ﾌﾞﾗｹｯﾄ
OUA8X12-5M-03B
1
N001
N510002541AA
TUBE WITH FITTING ﾁｭｰﾌﾞﾕﾆｯﾄ
AN303-03
1
N003
N418AN30303
SILENCER ｻｲﾚﾝｻ
VHS40-03
1
N004
N413VHS4003
VALVE ﾊﾞﾙﾌﾞ
KQ2H10-03S
1
N010
N431KQ2H-217
FITTING ﾂｷﾞﾃ
KQ2T10-00
1
N012
N431KQ2T1000
FITTING ﾂｷﾞﾃ
KQ2E10-00
2
N013
N431KQ2E1000
FITTING ﾂｷﾞﾃ
KQ2P-10
2
N014
N433KQ2P10
PLUG ﾌﾟﾗｸﾞ
KQ2U06-00
1
N015
N431KQ2U0600
FITTING ﾂｷﾞﾃ
AWM40-03DGH
1
N033
N510004967AA
REGULATOR ﾚｷﾞｭﾚｰﾀ
(SL)3/8
2
N034
N510013495AA
JOINT ｼﾞｮｲﾝﾄ
(SL)1/4
1
N035
N510013494AA
JOINT ｼﾞｮｲﾝﾄ
(Ni)3/8
1
N036
N510013499AA
FITTING ﾆｯﾌﾟﾙ
IS1000E-4003
1
N037
N510013492AA
SWITCH ｽｲｯﾁ
Y400
1
N038
N510013493AA
SPACER ｽﾍﾟｰｻ
TU1065B
1
N039
N434TU1065B
TUBE ﾁｭｰﾌﾞ
TU0604B
1
N041
N434TU0604B
TUBE ﾁｭｰﾌﾞ
