BM123 Mechanical 20160307 - 第271页
PART NAME REMARKS Q'TY 32 回収ｺﾝﾍﾞｱ部(4<32mm>) RECOVERY CO NVEYER SE CT.(4<32m m>) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 405 1089680270 LABEL ﾗﾍﾞﾙ 1 420 1089680269 LABEL ﾗﾍﾞﾙ 1 422 1089680022…
回収ｺﾝﾍﾞｱ部(4<32mm>)
RECOVERY CONVEYER SECT.(4<32mm>)
32
F10896-80-400-AD_A-4
M245
PART NAME
REMARKS
Q'TY
32
回収ｺﾝﾍﾞｱ部(4<32mm>)
RECOVERY CONVEYER SECT.(4<32mm>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1405 1089680270
LABEL ﾗﾍﾞﾙ
1
420 1089680269
LABEL ﾗﾍﾞﾙ
1
422 1089680022
COVER ｶﾊﾞｰ
2430 108968003001
PLATE ﾌﾟﾚｰﾄ
1431 108968003101
GRIP ｸﾞﾘｯﾌﾟ
5
441 1089680041
PIN ﾋﾟﾝ
1
442 108968004201
COVER ｶﾊﾞｰ
1443 108968004301
BRACKET ﾌﾞﾗｹｯﾄ
1450 1089680450
BRACKET ﾌﾞﾗｹｯﾄ
1
451 1089680552
LABEL ﾗﾍﾞﾙ
M3X6-4.8 A2J (Trivalen
14
N410
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
8X30,H8B,STEEL
1
N415
XPJ8E30FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M4X8-4.8 A2J (Trivalen
4
N417
N510018180AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X6-4.8 A2J (Trivalen
6
N423
N510018056AA
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
FS-V21
2
N424
N310FSV21
AMPLIFIER FOR SENSOR ｱﾝﾌﾟﾕﾆｯﾄ
M246
F10896-80-400-AD_A-4

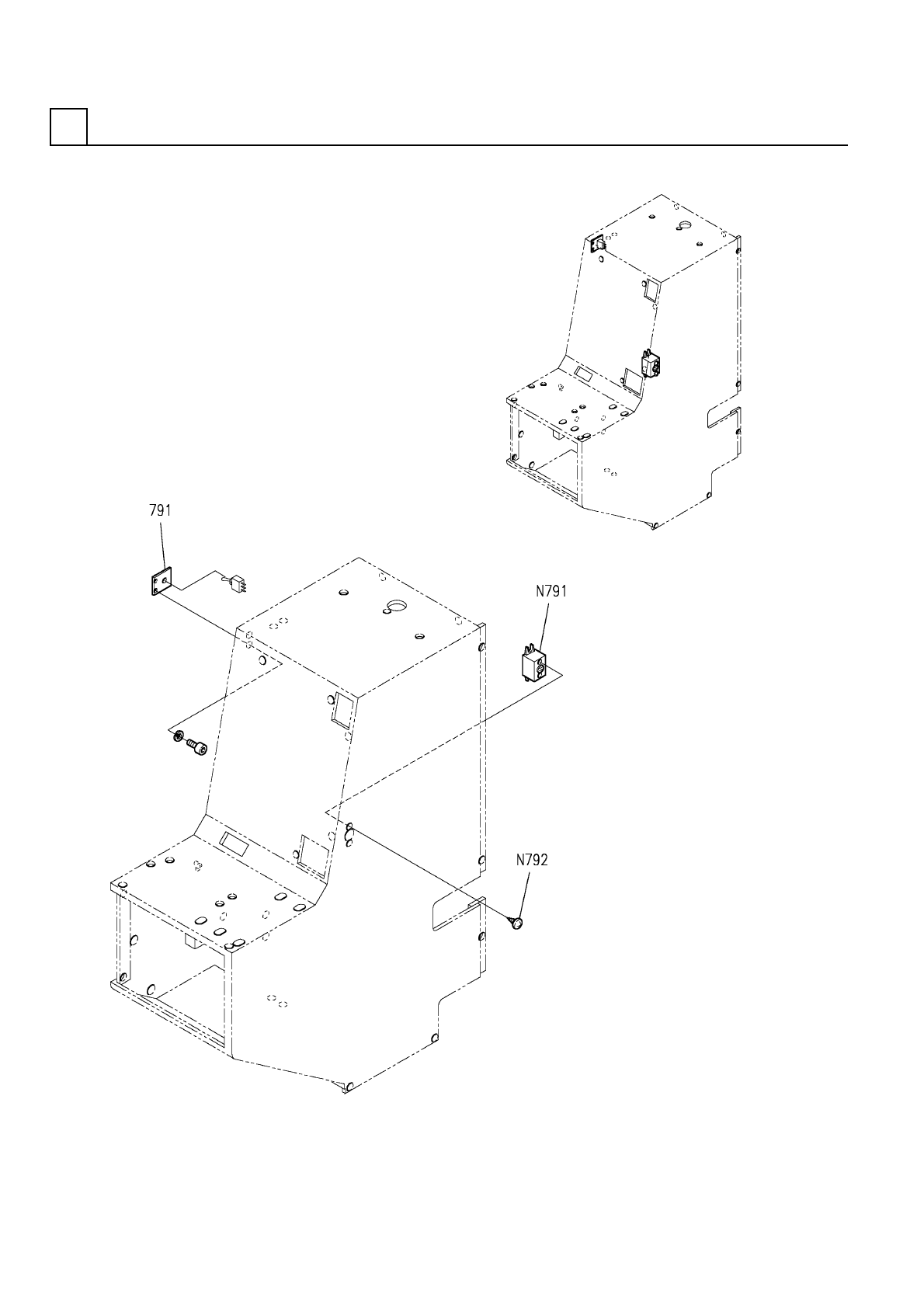

ﾌﾞｻﾞｰ部(ﾌﾘｯｶｰﾌﾞｻﾞｰ部)
BUZZER SECT.(FLICKER BUZZER SECT.)
33
F10862-02-790_A
M247
