PART NAME REMARKS Q'TY 1 本体部(3) MAIN BODY S ECT.(3) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 316 N210053020AA BRACKET(RIGH T) ﾌﾞﾗｹｯﾄ(RIGHT) 1 317 N210053021AA BRACKET(LEFT ) ﾌﾞﾗｹｯﾄ(LEFT) 1 329 N210053004…

100%1 / 306
本体部(3)
MAIN BODY SECT.(3)
1
F10862-01-300-AL_04-3
M5
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
1
本体部(3)
MAIN BODY SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品　 番 個数 備 考
R
1
R
2
1316 N210053020AA
BRACKET(RIGHT) ﾌﾞﾗｹｯﾄ(RIGHT)
1
317 N210053021AA
BRACKET(LEFT) ﾌﾞﾗｹｯﾄ(LEFT)
1
329 N210053004AA
PLATE ﾌﾟﾚｰﾄ
1330 N210053027AA
BRACKET ﾌﾞﾗｹｯﾄ
1333 N210053028AA
BRACKET ﾌﾞﾗｹｯﾄ
1
335 108620103501
BRACKET ﾌﾞﾗｹｯﾄ
1
338 108620152101
RAIL ﾚｰﾙ
1345 N210053019AA
BRACKET ﾌﾞﾗｹｯﾄ
1355 108620105502
BRACKET ﾌﾞﾗｹｯﾄ
1
356 1086201056
BRACKET ﾌﾞﾗｹｯﾄ
1361 108620136102
BRACKET ﾌﾞﾗｹｯﾄ
1373 N210059026AA
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B20-P00
1
N304
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
PG-47-02(8130)
2
N305
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X50-4.8 A2J (Trivale
2
N306
N510018274AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4X5-4.8 A2J (Trivalen
4
N310
N510018277AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
CE-032
1
N322
KXF0DUCAA00
TRIM ﾄﾘﾑ
M6
F10862-01-300-AL_04-3

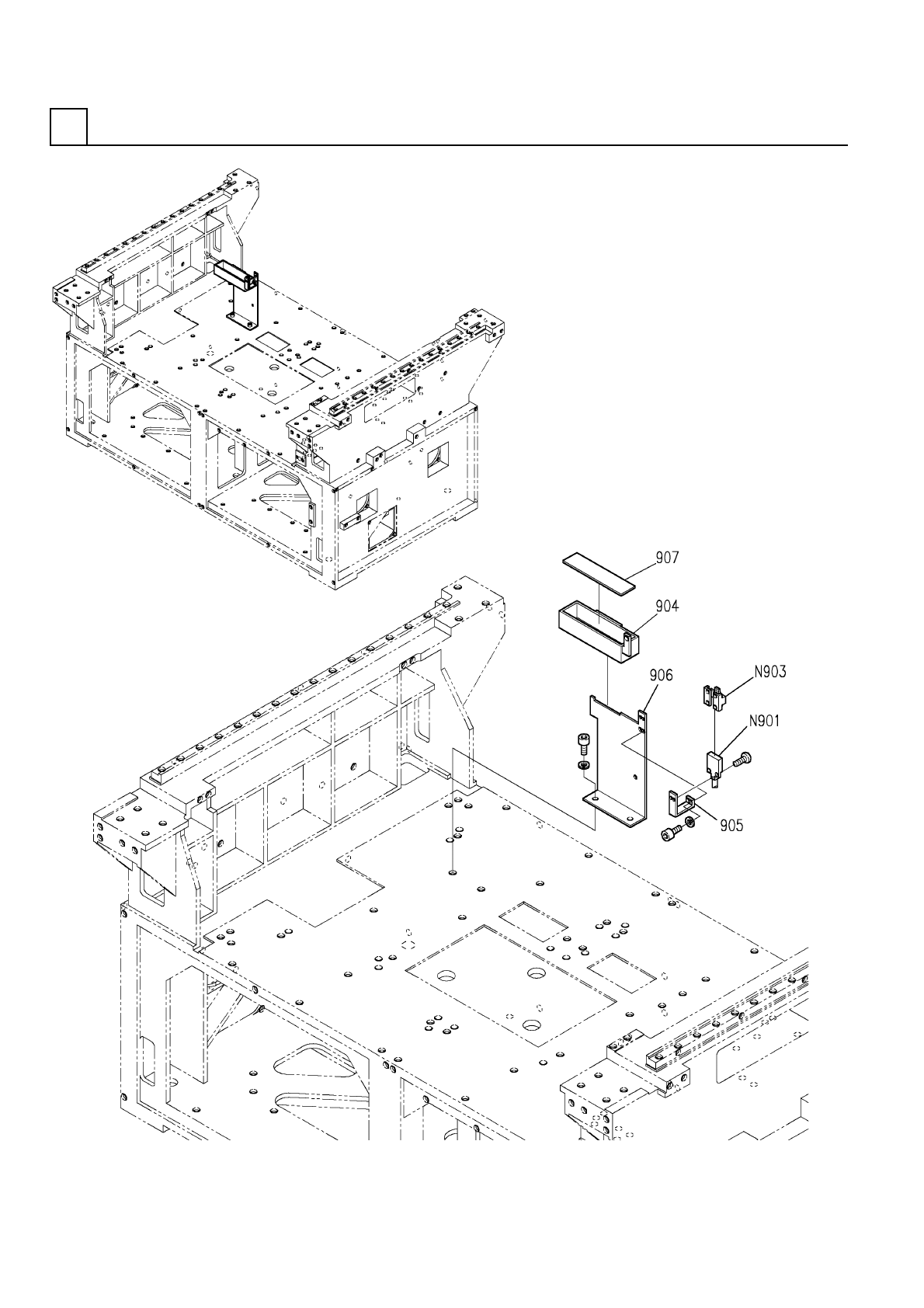

本体部(ﾊﾟｰﾂｾｰﾋﾞﾝｸﾞﾎﾞｯｸｽ部)
MAIN BODY SECT.(PARTS SAVING BOX SECT.)
1
F10862-19-900-AH
M7
