PART NAME REMARKS Q'TY 5 ﾌﾟﾘﾝﾄ基板搬送部(可動側 ) P. C. B. TR ANSFER SE CT.(MOVAB LE SIDE) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 305 108620520505 MAIN RAIL(RE AR) ﾒｲﾝﾚｰﾙ(REAR) 1 308 108620510702 RAIL(UPPER) ﾚ…

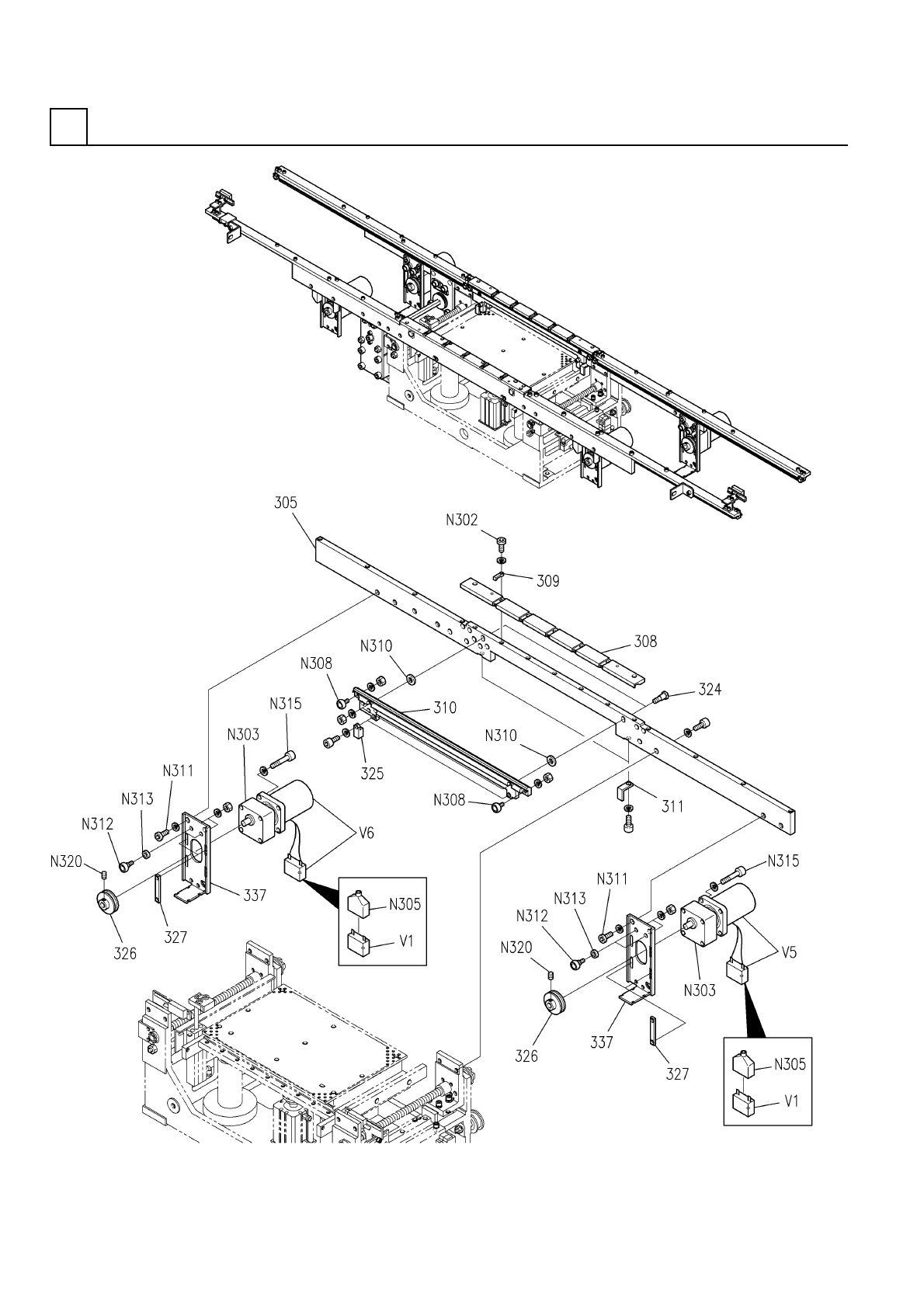

ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P. C. B. TRANSFER SECT.(MOVABLE SIDE)
5
F10862-05-300-AG_02-3
M43
PART NAME
REMARKS
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P. C. B. TRANSFER SECT.(MOVABLE SIDE)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1305 108620520505
MAIN RAIL(REAR) ﾒｲﾝﾚｰﾙ(REAR)
1
308 108620510702
RAIL(UPPER) ﾚｰﾙ(ｱｯﾊﾟｰ)
5
309 108620500901
SPRING ﾊﾞﾈ
1310 108620510902
RAIL(REAR) ﾚｰﾙ(REAR)
2311 1086205211
STOPPER ｽﾄｯﾊﾟ
2
324 1086205017
PIN ﾋﾟﾝ
2
325 108620511801
BLOCK ﾌﾞﾛｯｸ
2326 109970570201
PULLEY ﾌﾟｰﾘｰ
4327 1086205227
NUT ﾅｯﾄ
2
337 1086205237
BRACKET ﾌﾞﾗｹｯﾄ
M4X12
7
N302
N986YYYY-K10
SCREW ﾈｼﾞ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MX6G12.5BA
2
N303
MX6G12.5BA
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
MOPC3917
2
N305
M0PC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
MB022000
5
N308
N648MB022000
PULLEY ﾌﾟｰﾘｰ
WASM15-4-1
2
N310
N986WASM1541
WASHER ｻﾞｶﾞﾈ
M6X12
6
N311
N986YYYY-R80
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MB026000
4
N312
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
WSSB8-4-5
4
N313
N560WSSB845
WASHER ｻﾞｶﾞﾈ
M4X40-10.9 A2J (Trival
8
N315
N510017365AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6,STEEL
2
N320
XXE4D6FW
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MZAX040
2
V 1 MZAX040
CAPACITOR ｺﾝﾃﾞﾝｻ
M6RX4G4L S
1
V 5 308620603301
MOTOR ﾓｰﾀ
M6RX4G4L S
1V 6 308620603501
MOTOR ﾓｰﾀ
M44
F10862-05-300-AG_02-3

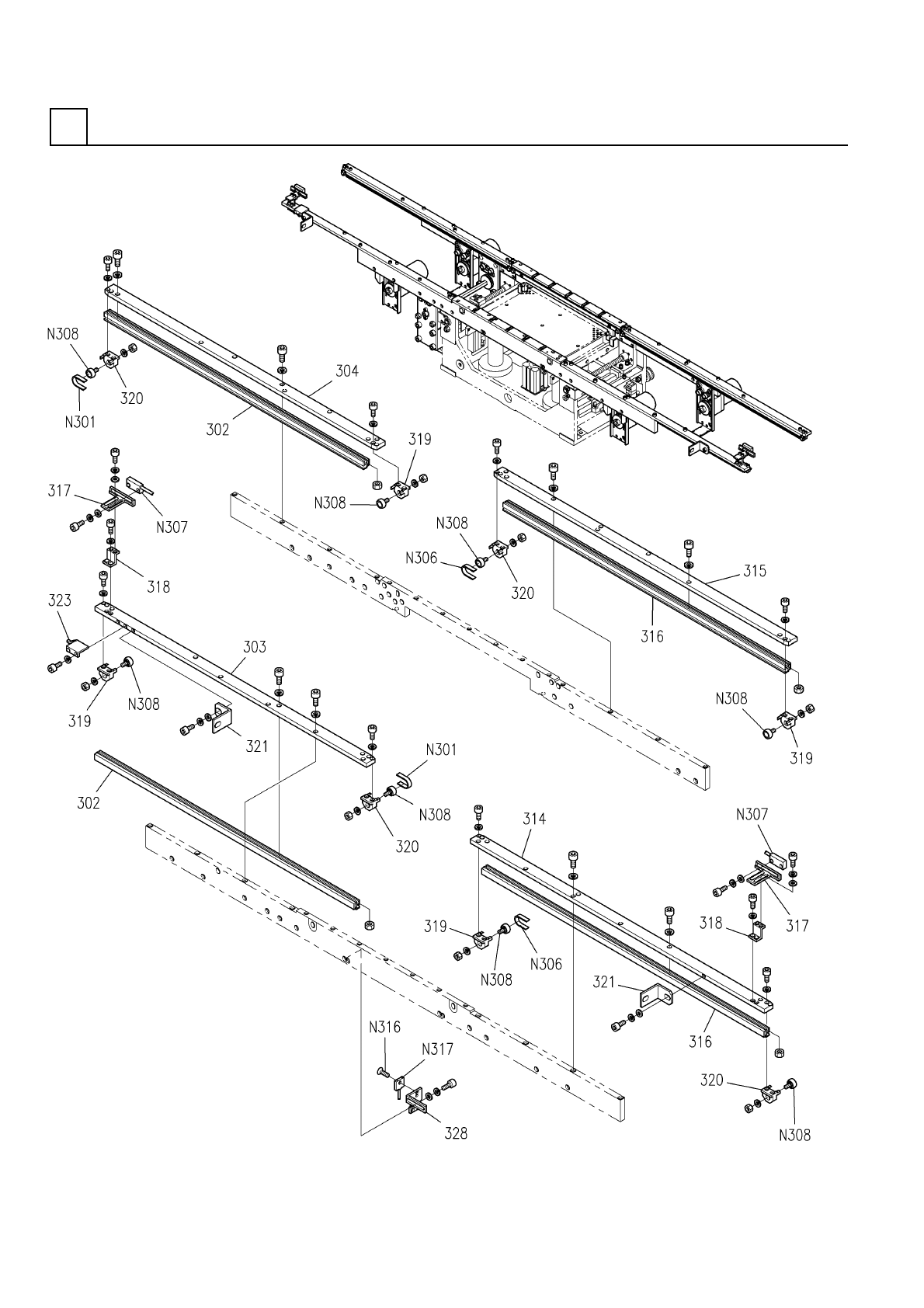

ﾌﾟﾘﾝﾄ基板搬送部(ﾚｰﾙ部)
P. C. B. TRANSFER SECT.(RAIL SECT.)
5
F10862-05-300-AG_02-4
M45
