MODEL MG-G1 15 1012-004 95 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE GA-1 Selection of Either 2 Magazines 1 6301292298 PLA TE 1 806GA-1 10-001 21 1D9803 2 6301292304 PLA TE 1 806GA-1 10-002 21 1D9804 3 63…
MODEL MG-G115
0405-001
94
マガジン
MG-G115 Magazine MG-G115

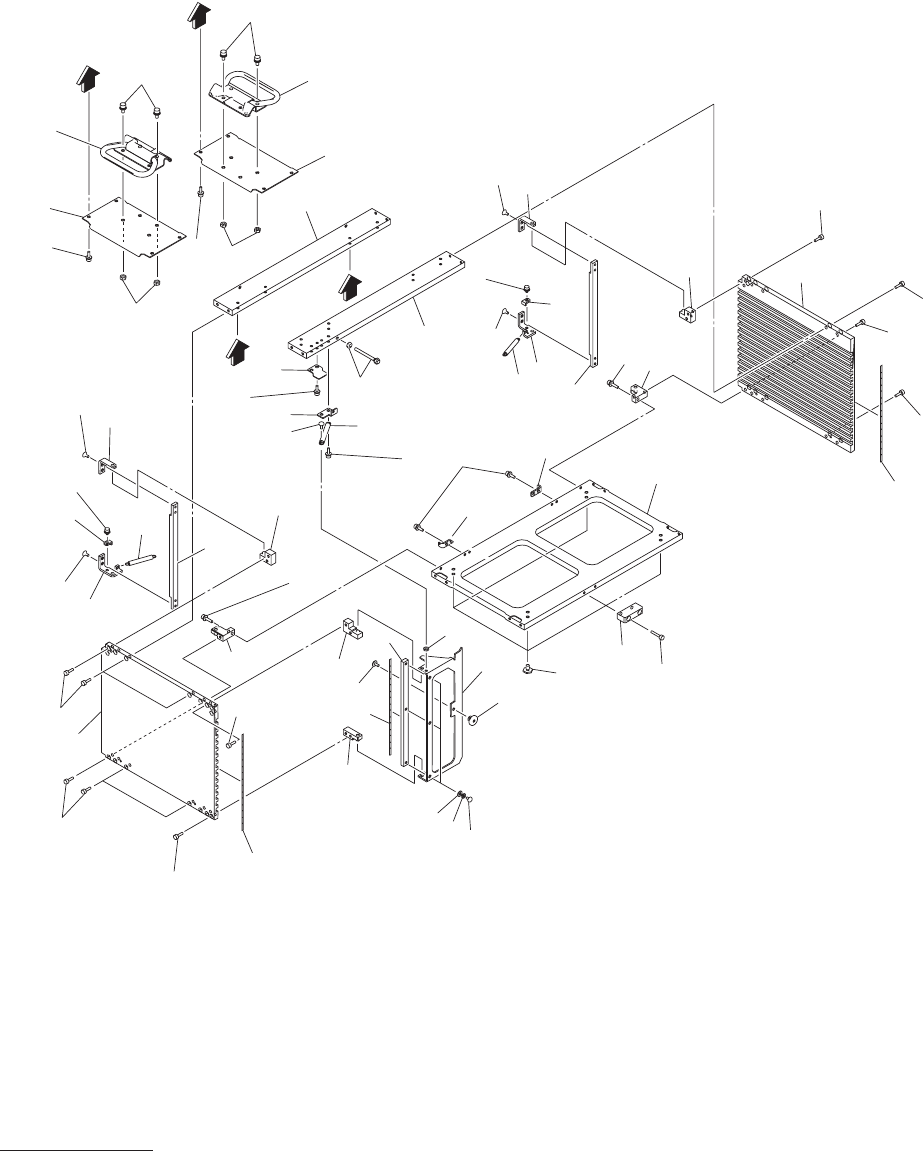

Fig. GA-1
58
57
.
52
.
58
57
.
52
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
53
.
60
59
.
55
.
60
59
.
54
.
60
59
.
55
.
60
59
.
54
.
31
31
A
B
61
4
3
33
61
7
7
23
A
B
35
22
64
1
1
13
63
34
24
63
14
53
2
53
53
53
36
8
36
62
9
18
60
59
56
32
16
65
20
21
15
34
17
63
24
13
63
11
10
5
19
51
25
53
36
53
53
1
53
17
12
MODEL MG-G115
1012-004
95
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
GA-1
Selection of Either 2 Magazines
1 6301292298 PLATE 1 806GA-110-001 211D9803
2 6301292304 PLATE 1 806GA-110-002 21
1D9804
3 6301292441 STAY 1 806GA-110-003 21
1J1227
4 6301292458 STAY 1 806GA-110-004 21
1J1228
5 6301311050 STAY 1 806GA-110-005 21
1J1245
7 6301292335 PLATE 2 806GA-110-007 21
1D9807
8 6301292397 BLOCK 1 806GA-110-008 21
1G3655
9 6301283678 BLOCK 1 806GA-110-009 21
1G3590
10 6301294872 BLOCK 1 806GA-110-110
211G3671
11 6301283692 BLOCK 2 806GA-110-011
211G3592
12 6301292410 BLOCK 1 806GA-110-012 21
1G3657
13 6301283609 LEVER 2 806GA-110-013 216S2682
14 6301283616 LEVER 1 806GA-110-014 216S2683
15 6301283623 LEVER 1 806GA-110-015 216S2684
16 6301292540 LEVER 1 806GA-110-016 216S2699
17 6301292496 ROD 2 806GA-110-017 216C0750
18 6301292502 ROD 1 806GA-110-018 216C0751
19 6301292427 BLOCK 1 806GA-110-019 21
1G3658
20 6301283722 BRACKET 1 806GA-110-020 21
1F8530
21 6301283739 BRACKET 1 806GA-110-021 21
1F8531
22 6301283746 BRACKET 1 806GA-110-022 21
1F8532
23 6301284477 BRACKET 1 806GA-110-023 21
1F8553
24 6301285665 BLOCK 2 806GA-110-024 21
1G3599
25 6301292564 BOLT 4 806GA-110-025 221E0308
31 6301283760 GRIP 2 806GA-110-031 226D0109
32 6301285313 GRIP 1 806GA-110-032 226D01
11
33 6301285306 BOLT 1 806GA-110-033 221E0306
34 6300018516 SPRING,TENSION 2 806GA-110-034 222N0127
35 6300028850 SPRING,TENSION 1 806GA-110-035 222N0618
36 6301293172 NAME PLATE,INDEX 3 806GA-110-036 6P460139
51 6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
52
6300007749 BOLT,HEX-SCT 8 M5X10 221A0029
53
6300007633 BOLT,HEX-SCT 34 M4X12 221A0018
54
6300007657 BOLT,HEX-SCT 2 M4X16 221A0020
55
6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
56
4111131400 SCR PAN 4X6 3 M4X6 PAN 221E0509
57 4111416705 WASHER SPR 5 8 SW5 221H0287
58
4111414107 WASHER V 5X10X1 8 FW5 221H0318
59
4111412905 WASHER SPR 4 21 SW4 221H0284
60
4111414008 WASHER V 4X9X0.8 21 FW4 221H0315
61
4111410505 NUT HEX 5 8 M5 221F0085
62
4110435004 SCR PAN 4X8 1 M4X8 PAN 221E0510
63 4110352707 SCR FLT 4X8 8 M4X8 FLT
221D0225
64 4110512804 SCR TRS 4X8 1 M4X8 TRS 221E0533
65 4111410406 NUT HEX 4 1 M4 221F0104
