MODEL FP-G100 R 1012-005 41 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE TR-3 201 6301282657 SHAFT 2 806TR-1 10-005 213A1070 202 6301292069 LEVER 1 806TR-1 10-016 216S2694 203 6301292076 LEVER 1 806TR-1 10-0…
MODEL FP-G100R
0702-003
40
トラバース部
TRAVERSE SECTION

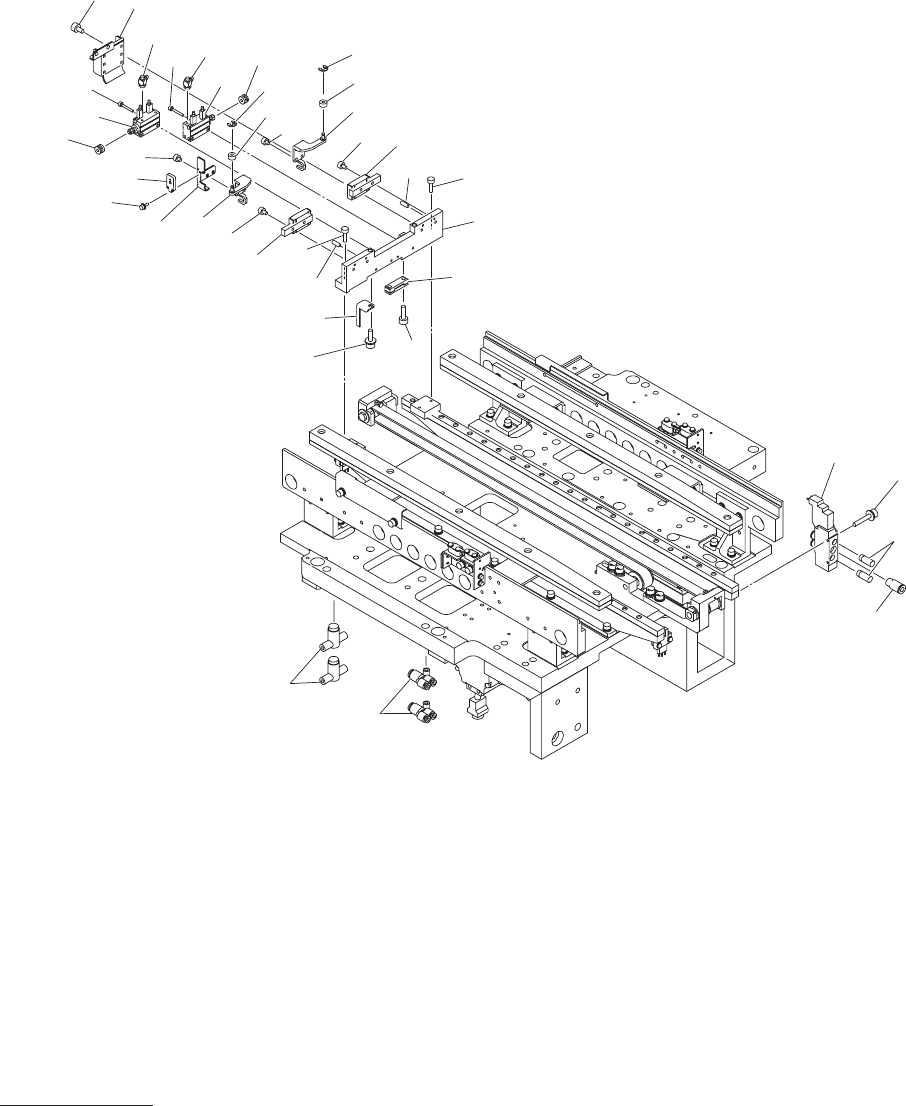

Fig. TR-3
パレットチャック部
Pallet Chuck Section
262
261
.
251
.
264
263
.
257
.
264
263
.
258
.
256
211
210
255
210
215
201
255
215
201
253
209
208
216
253
208
216
202
253
231
206
212
203
253
231
206
254
254
204
214
257
217
218
219
205
241
242
MODEL FP-G100R
1012-005
41
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
TR-3
201 6301282657 SHAFT 2 806TR-110-005 213A1070
202 6301292069 LEVER 1 806TR-110-016 216S2694
203 6301292076 LEVER 1 806TR-110-017 216S2695
204 6301291857 FRAME 1 806TR-110-024 210B3723
205 6301284378 PLATE 1 806TR-110-037 21
1D9737
206 6301292212 PIN,LOCATE 4 806TR-110-306 216E1506
208 4110009304 RING E 2 2 806TR-110-308 221K0095
209 6301621869 SENSOR,PELEC 1 -B0511 806TR-1
10-309 23G00309
210 6300465556 PIPE FITTINGS 4 806TR-110-310 225F0253
211 6301547206 BRACKET 1 806TR-110-11
1 211FC052
212 6301622019 BRACKET 1 806TR-110-112
211FD153
214 6301281070 PLATE 1 806TR-110-214 21
1D9699
215 6301283432 CYLINDER 2 -B0413,-B0414,-B0415,
-B0416 806TR-110-215
224C0550
216 6300069518 BEARING,RADIAL 2 806TR-110-216 222D0136
217 6301292151 SOLENOID VALVE 1 -Y0530 806TR-110-217
4L810336
218 6300969221 AIR LINE EQPT 2 806TR-110-218 225B0374
219 6301219288 PIPE FITTINGS 1 806TR-110-219 225F0550
231 6301282947 GUIDE,LINEAR 2 806TR-110-231 222L0715
241 6301292168 AIR LINE EQPT 2 806TR-110-241 225B0516
242 6300955026 AIR LINE EQPT 2 806TR-110-242 225B0367
251 6300007466 BOLT,HEX-SCT 2 M2X10 221A0245
253
6300007497 BOLT,HEX-SCT 12 M3X4 221A0004
254
6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
255
6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
256 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
257
6300007633 BOLT,HEX-SCT 3 M4X12 221A0018
258
6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
261
4111412608 WASHER SPR 2 2 SW2 221H0277
262
4111416903 WASHER V 2X5X0.3 2 FW2 221H0308
263
4111412905 WASHER SPR 4 3 SW4 221H0284
264
4111414008 WASHER V 4X9X0.8 3 FW4 221H0315
