MEMO
MODEL FP-G100L
1012-003
75
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
EL-8
702 6301280639 UNIT,DRIVER 3 -A01,-A02,-A03
806EL-110-202 4U240445
711 6301281308 RESISTOR,SPECIA 2 806EL-110-211
4R500009
721 6301287157 BRACKET 1 806EL-110-121 21
1F8592
722 6301287164 BRACKET 1 806EL-110-122 21
1F8593
723 6301311074 BRACKET 1 806EL-110-123 21
1F8923
724 6301294483 BRACKET 1 806EL-110-124 21
1F8695
730 6301311630 COVER 1 806EL-110-130 21
1A9166
751 6300007619 BOLT,HEX-SCT 6 M4X8 221A0016
752
6300007732 BOLT,HEX-SCT 10 M5X8 221A0028
753
6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
755
4110436803 SCR PAN 5X12 6 M5X12 PAN 221E051
1
756 4111412905 WASHER SPR 4 6 SW4 221H0284
757
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
758
4111416705 WASHER SPR 5 14 SW5 221H0287
759
4111414107 WASHER V 5X10X1 14 FW5 221H0318
MEMO
MODEL FP-G100L
0410-002
77

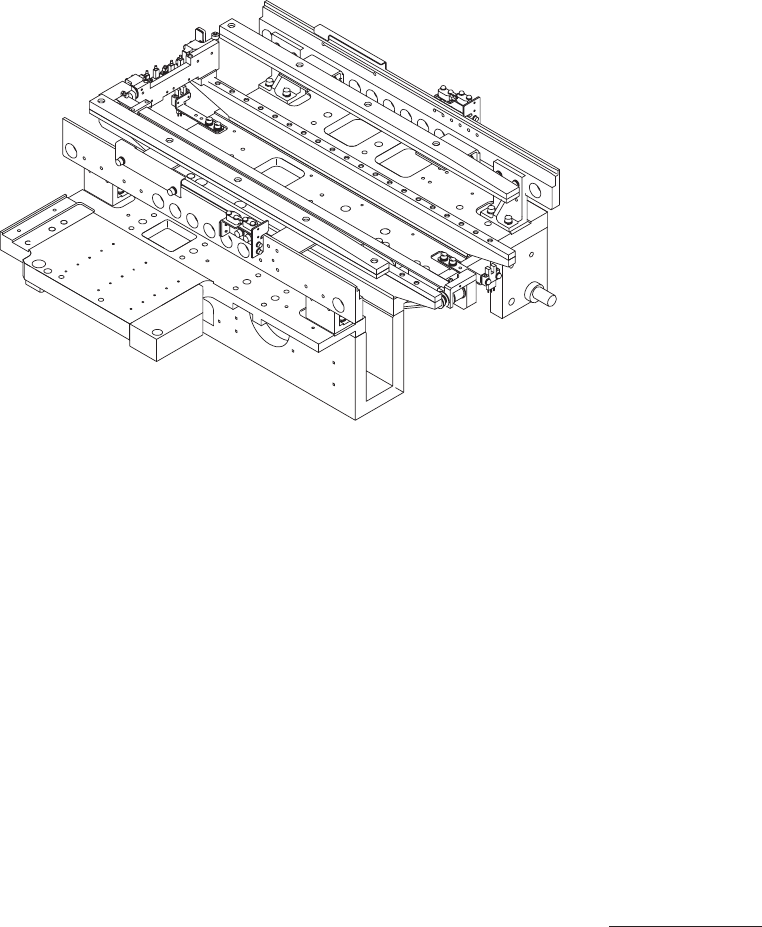

Fig. TL
トラバース部
TRAVERSE SECTION
