MODEL FP-G100L 0702-003 82 トラバース部 TRA VERSE SECTION Fig. TL-3 パレットチャック部 Pallet Chuck Section 218 219 241 242 264 263 . 258 . 217 206 262 261 . 251 . 256 21 1 210 210 215 201 255 215 201 253 209 208 216 253 208 216 202 25…
MODEL FP-G100L
1012-004
81
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
TL-2
101 6301281315 MOTOR,AC-SERVO 1 -M01 806TL-110-201 4M150213
105 6301286617 BRACKET 2 806TL-110-105 21
1F8580
106 6301286624 BRACKET 2 806TL-110-106 21
1F8581
108 6301300856 BRACKET 1 806TL-110-108 21
1F8804
109 6301300863 BRACKET 1 806TL-110-109 21
1F8805
111 6301281322 COUPLING 1 806TL-110-211
223C0205
112 6301281339 COUPLING 1 806TL-110-212 223C0206
113 6301280912 PULLEY,TIMING 1 806TL-110-213 223Q0577
116 6301299273 SHAFT 2 806TL-110-011
213A1099
117 6301299266 COLLAR 2 806TL-110-012 216A1
179
118 6301233222 SHAFT 1 806TL-110-020 213A1015
119 6301233079 COLLAR 1 806TL-110-021 216A1
115
120 6301233086 COLLAR 1 806TL-110-022 216A1
116
121 6300892079 SENSOR,PELEC 2 -B0417,-B0418
806TL-110-221 23G00182
122 6300892086 SENSOR,PELEC(SLIT) 2 806TL-110-222 23G00183
123 6300969009 BEARING,RADIAL 2 806TL-110-223 222D0343
124 6301281094 PULLEY,TIMING 2 806TL-110-224 223Q0578
125 6300011715 BEARING,RADIAL 4 806TL-110-225 222D0050
126 6300050851 BEARING,PARTS(LOCK NUT) 2 806TL-110-226 222G0014
130
6301292601 GUIDE,LINEAR 2 806TL-110-230 222L0718
135 6301284286 BRACKET 1 806TL-110-035 21
1F8546
136 6301303666 BRACKET 1 806TL-110-036 21
1F8831
137 6301299259 COLLAR 2 806TL-110-043 216A1
178
143 6300000245 SENSOR,PHOTO 2 -B0101,-B0102
806TL-110-243 23G10001
144 6300000269 SENSOR,PHOTO(CONNECTOR) 2 806TL-110-244 23G10003
145
6301292175 BELT,TIMING 1 806TL-110-245 223L0276
151 6300007497 BOLT,HEX-SCT 48 M3X4 221A0004
152
6300007503 BOLT,HEX-SCT 8 M3X6 221A0005
153
6300007664 BOLT,HEX-SCT 6 M4X20 221A0021
154
6300007732 BOLT,HEX-SCT 4 M5X8 221A0028
155
6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
156
6300008029 BOLT,HEX-SCT 4 M8X25 221A0057
161
4110406202 SCR PAN 3X10 4 M3X10 PAN 221E0488
162 4110407803 SCR PAN 3X12 8 M3X12 PAN 221E0489
163 6300008883 SET SCREW 2 M3X4 SET 221C0001
166 4111412806 WASHER SPR 3 8 SW3 221H0281
167
4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
168
4111416705 WASHER SPR 5 4 SW5 221H0287
169
4111414107 WASHER V 5X10X1 4 FW5 221H0318
170
4111413001 WASHER SPR 6 4 SW6 221H0289
171
4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
172
4111413100 WASHER SPR 8 4 SW8 221H0291
173
4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
174
4110864408 WASHER SPR 3 8 SW3 F 221H0280
175
4111191909 WASHER V 3X7X0.5 8 FW3 F 221H0311
MODEL FP-G100L
0702-003
82

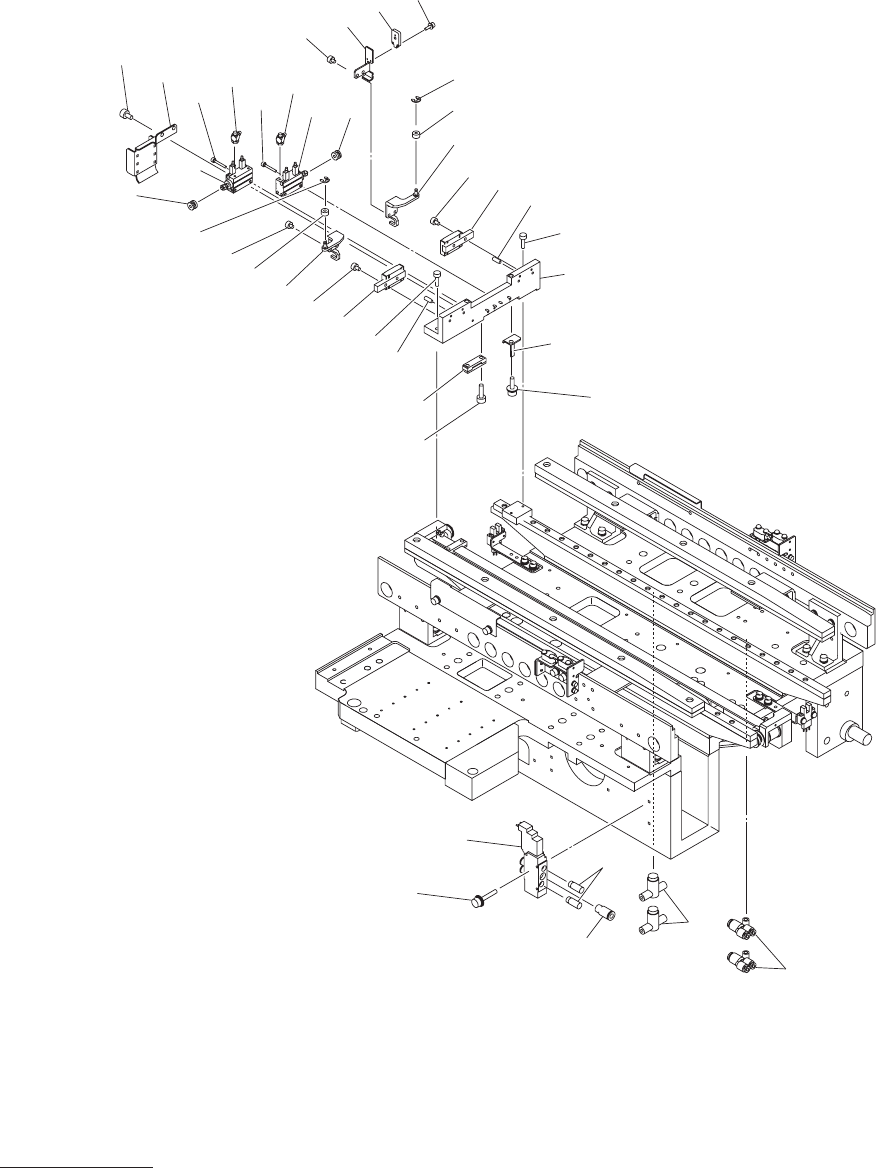

トラバース部
TRAVERSE SECTION
Fig. TL-3
パレットチャック部
Pallet Chuck Section
218
219
241
242
264
263
.
258
.
217
206
262
261
.
251
.
256
211
210
210
215
201
255
215
201
253
209
208
216
253
208
216
202
253
231
212
203
231
206
254
254
204
214
257
264
263
.
257
.
205
255
253
MODEL FP-G100L
1012-005
83
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
TL-3
201 6301282657 SHAFT 2 806TL-110-005 213A1070
202 6301292069 LEVER 1 806TL-110-016 216S2694
203 6301292076 LEVER 1 806TL-110-017 216S2695
204 6301293851 FRAME 1 806TL-110-024 210B3728
205 6301293844 PLATE 1 806TL-110-037 21
1D9822
206 6301292212 PIN,LOCATE 4 806TL-110-306 216E1506
208 4110009304 RING E 2 2 806TL-110-308 221K0095
209 6301621869 SENSOR,PELEC 1 -B0511 806TL-1
10-309 23G00309
210 6300465556 PIPE FITTINGS 4 806TL-110-310 225F0253
211 6301547190 BRACKET 1 806TL-110-11
1 211FC051
212 6301622026 BRACKET 1 806TL-110-112
211FD514
214 6301281070 PLATE 1 806TL-110-214 21
1D9699
215 6301283432 CYLINDER 2 -B0413,-B0414,-B0415,
-B0416 806TL-110-215
224C0550
216 6300069518 BEARING,RADIAL 2 806TL-110-216 222D0136
217 6301292151 SOLENOID VALVE 1 -Y0530 806TL-110-217
4L810336
218 6300969221 AIR LINE EQPT 2 806TL-110-218 225B0374
219 6301219288 PIPE FITTINGS 1 806TL-110-219 225F0550
231 6301282947 GUIDE,LINEAR 2 806TL-110-231 222L0715
241 6301292168 AIR LINE EQPT 2 806TL-110-241 225B0516
242 6300955026 AIR LINE EQPT 2 806TL-110-242 225B0367
251 6300007466 BOLT,HEX-SCT 2 M2X10 221A0245
253
6300007497 BOLT,HEX-SCT 12 M3X4 221A0004
254
6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
255
6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
256 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
257
6300007633 BOLT,HEX-SCT 3 M4X12 221A0018
258
6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
261
4111412608 WASHER SPR 2 2 SW2 221H0277
262
4111416903 WASHER V 2X5X0.3 2 FW2 221H0308
263
4111412905 WASHER SPR 4 3 SW4 221H0284
264
4111414008 WASHER V 4X9X0.8 3 FW4 221H0315
