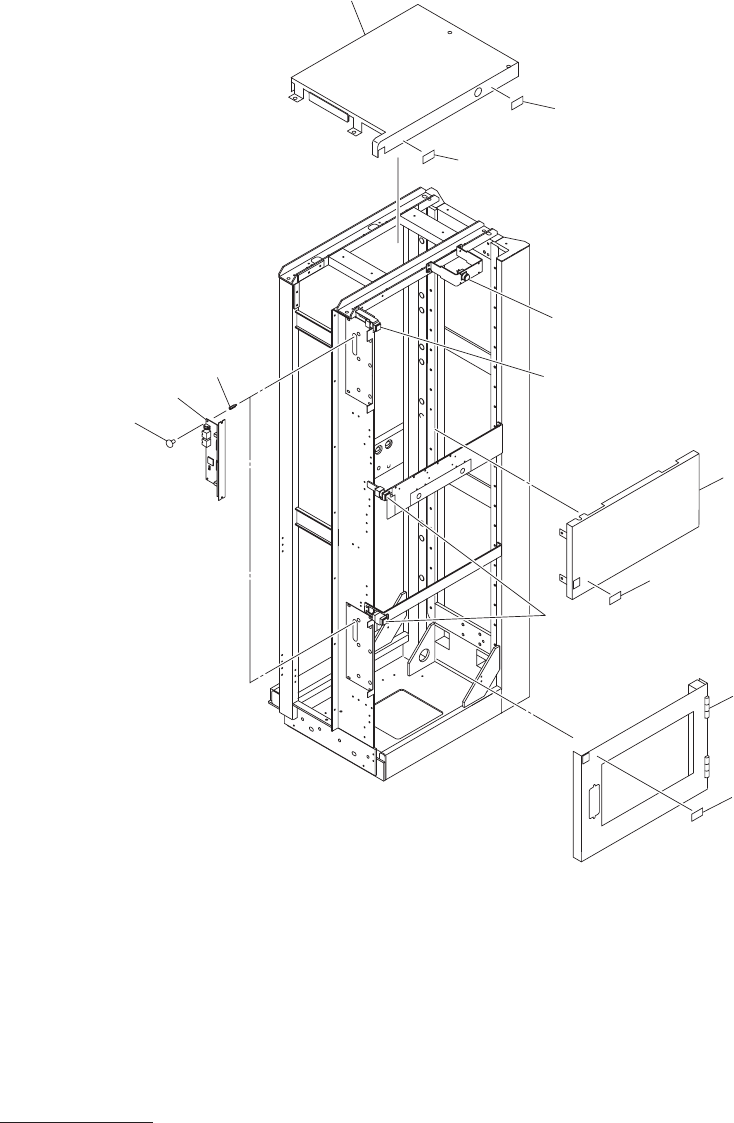

MODEL FP-G100L 0405-001 88 電装部 ELECTRICAL SECTION Fig. TF-2 エレベータ操作部 Elevator Operating Section 179 179 178 187 187 187 See Fig.EL-3 Key No.208 187 See Fig.EL-3 Key No.215 154 180 191 See Fig.EL-3 Key No.203
MODEL FP-G100L
1012-005
87
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
TF-1
51 6301291079 BASE 1 806TF-110-051 210A2225
52 6301309934 COVER 1 806TF-110-052 21
1A9120
53 6301284316 BRACKET 1 806TF-110-053 21
1F8547
54 6301300665 BRACKET 1 806TF-110-054 21
1F8800
55 6301284453 SHAFT 1 806TF-110-055 213A1074
56 6301230115 P.C.B,MOUNT 1 -U90 806TF-110-151
4B111437
57 6301235707 P.C.B,MOUNT 1 -U04 806TF-110-152
4B111448
58 6301376103 P.C.B,MOUNT 1 -U05 806TF-110-153
4B111516
63 6301083520 CIRCUIT PROTECTOR 1 -Q101 806TF-110-163
4S250252
64 6301288925 EM-CONTACTOR 4 -K201,-K202,-K301,-K302
806TF-110-164 4S2101
16
65 6301192260 CIRCUIT PROTECTOR 1 -Q201 806TF-110-165
4S250275
66 6300941418 EM-CONTACTOR 2 -K101,-K102 806TF-110-166
4S210086
67 6300854152 RELAY 3 806TF-110-167 4S2001
12
68 6300635423 RELAY 1 806TF-110-168 4S200086
69 6300635430 SOCKET 1 806TF-110-169 4J120099
70 6301158440 RELAY 2 -K001,-K002 806TF-110-170
4S200142
81 6300911749 BRACKET,WIRING 6 806TF-110-181 23N10027
82 6301268729 ACCESSORY,WIRING 1 806TF-110-182 23N30609
83 6301268736 ACCESSORY,WIRING 6 806TF-110-183 23N30610
84 6301268705 TERMINAL 12 806TF-110-184 4J320185
85 6300969917 ACCESSORY,WIRING 1 806TF-110-185 23N30524
86 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
87
4111412905 WASHER SPR 4 4 SW4 221H0284
88
6300010213 WASHER 4 BW4 221H0004
89
4111131400 SCR PAN 4X6 6 M4X6 PAN 221E0509
90 4110081706 WASHER SPR 4 6 SW4 F 221H0283
91
4111192104 WASHER V 4X9X0.8 6 FW4 F 221H0314
92
4111130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
93 4110511708 SCR TRS 4X6 5 M4X6 TRS 221E0532
MODEL FP-G100L
0405-001
88
電装部
ELECTRICAL SECTION
Fig. TF-2
エレベータ操作部
Elevator Operating Section
179
179
178
187
187
187
See Fig.EL-3
Key No.208
187
See Fig.EL-3
Key No.215
154
180
191
See Fig.EL-3
Key No.203
MODEL FP-G100L
1012-004
89
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
TF-2
154 6301288949 P.C.B,MOUNT 2 -U06 806TF-110-154 4B111494
178 6300703009 LAMP 1 -H0001 806TF-110-178
4T300027
179 6300728095 SWITCH,BUTTON 3 -S0520(-H0541),
-S0521(-H0542),
-S0522(-H0543)
806TF-110-179 4S1B01
18
180 6301027166 ACCESSORY,P.C.B 10 806TF-110-180 23L10074
187 6301306278 NAME PLATE,PARTS 1 806TF-110-187 6P441654
191 4110418908 SCR PAN 3X6 10 M3X6 PAN 221E0497
