Service Work
4.4.25 Replacing the Vacuum Hoses on the C&P Head C&P6/12 Head
Service Manual SIPLACE D1/D1i/D2/D2i 159
Removal/installation
► Mark the connection points and the route of the individual hoses, so that these can be rerun correctly
later on.
► Disconnect the hoses from the vacuum generator and the vacuum measuring board.

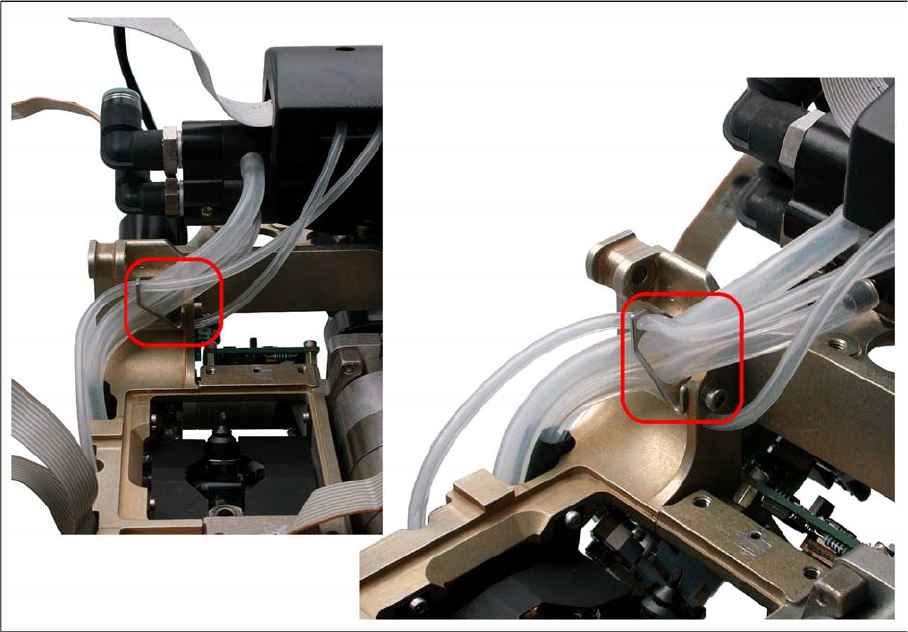

► Fit the additional hose guide (M3 screw) on the top measuring hose duct.
► Fit the new hose as shown in the diagrams.
Service Work
Pick&Place Head 4.5.1 Replacing the Pick&Place Head [03033628-xx]
160 Service Manual SIPLACE D1/D1i/D2/D2i
4.5
4.5 Pick&Place Head
Pick&Place Head
4.5.1
4.5.1 Replacing the Pick&Place Head [03033628-xx]
Replacing the Pick&Place Head [03033628-xx]
Overview
► Move the component trolley out of the machine.
► Switch off the machine.
► Move the P&P head to a suitable working position.
► Detach the compressed air connection from the P&P head to the vacuum distributor (1).
► Unplug the flat ribbon cable from the main board (2) on the P&P head.
The P&P head is fixed with 4 screws to the head mount (3) and is positioned with two pins.
Service Work
4.5.1 Replacing the Pick&Place Head [03033628-xx] Pick&Place Head
Service Manual SIPLACE D1/D1i/D2/D2i 161
Removal/Installation
Replacing the P&P head
► Disconnect the gantry from the electrical (2) and com-
pressed air (3) systems.
► Loosen the 4 fastening screws (1) with an Allen
wrench which is at least 150 mm long. (not a ball-
head Allen wrench!)
► Pull the head off of the locating pins.
► Make a note of the force values for the new head.
These force values can be found on a label at the side
of the head.
► Fit the new head.
► Reconnect the system to the electrical and com-
pressed air systems.
Legend
If you need to replace the placement head, refit the fol-
lowing parts from the old P&P head:
1. Silencer for the vacuum generator
2. Panel for IC camera
