6.3.2 Checking the Track Signals Track Signals and Zero Pulse
Service Manual SIPLACE D1/D1i/D2/D2i 217
6.3.2.2
6.3.2.2 Digital Track Signals
Digital Track Signals
See also
6.3.1.2 Measuring the Digital Zero Pulse Signal [ ➙ 213]
6.3.2.1 Analog Track Signals [ ➙ 215]
Digital track signals 90° phase shift
Legend
1. Track A
2. Track B
The digital track signals can only be measured at the Axis
Test Box.
Set both channels to 1 V / 20 ms. Note the 90 degrees
phase displacement.
The measurement structure for the axis test box is de-
scribed in section.
Settings
Axis Control 6.4.1 Axis Control Assemblies
218 Service Manual SIPLACE D1/D1i/D2/D2i
6.4
6.4 Axis Control
Axis Control
6.4.1
6.4.1 Axis Control Assemblies
Axis Control Assemblies
6.4.2
6.4.2 Checking the X Axis Dynamics
Checking the X Axis Dynamics
The inspection of dynamics occurs with the following signals:
▪ Deviation of position
▪ Uncommutated target current value
▪ Vnom. – speed signal
▪ End signal (adapter board, axis in target position)
▪ Actual position = target position signal (upstream end position signal)
"Axis control" assemblies
The control loop for the X and Y axis consists of the fol-
lowing parts:
▪ Axis board A364
▪ Servo board (TDS)
▪ 3 phase AC linear motor
▪ Measurement system (incremental scale and encod-
er (read unit))
To protect the linear motors from overtemperature, all
these motors have an internal temperature sensor.

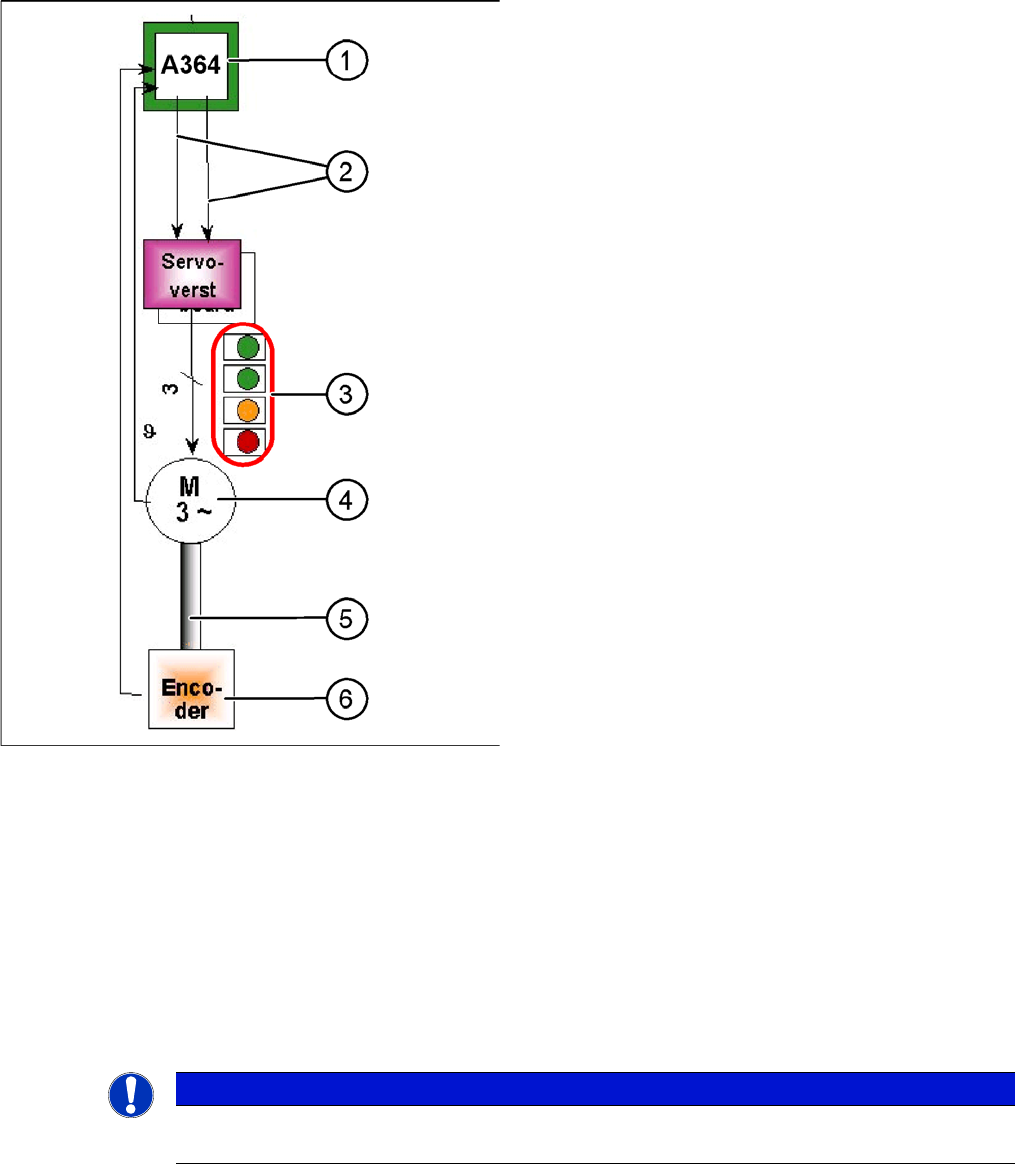

Legend
1. Axis board A364
2. Control signals I
nom "W"
and I
nom "U"
3. Servo amplifier
4. LEDs on servo amplifier:
GREEN: power supply ON
GREEN: Servo enable, if the enable signal has been
received from the axis board.
ORANGE: Display R.M.S. current limiter shorter than
2.5 s.
RED: Error: overvoltage, overcurrent, overtempera-
ture longer than 2.5 sec.
5. 3-phase AC linear motor for X and Y axes with inte-
grated temperature sensor.
6. Between the motor and incremental encoder there is
a fixed mechanical connection.
7. Incremental encoder: transmits the exact position of
the axis. The track signals are the only feedback sig-
nals for the axis control.
The servo board directly controls the linear motor, the in-
termediate circuit voltage is 250 V.
NOTICE
Before adjusting the axes, make sure that the machine has reached its operating temperature.
Switch the machine on at least 30 minutes before you begin work.
Settings
6.4.2 Checking the X Axis Dynamics Axis Control
Service Manual SIPLACE D1/D1i/D2/D2i 219
6.4.2.1
6.4.2.1 Switches and Switch Settings
Switches and Switch Settings
6.4.2.2
6.4.2.2 Measurement Setup with Adapter Board for A364
Measurement Setup with Adapter Board for A364

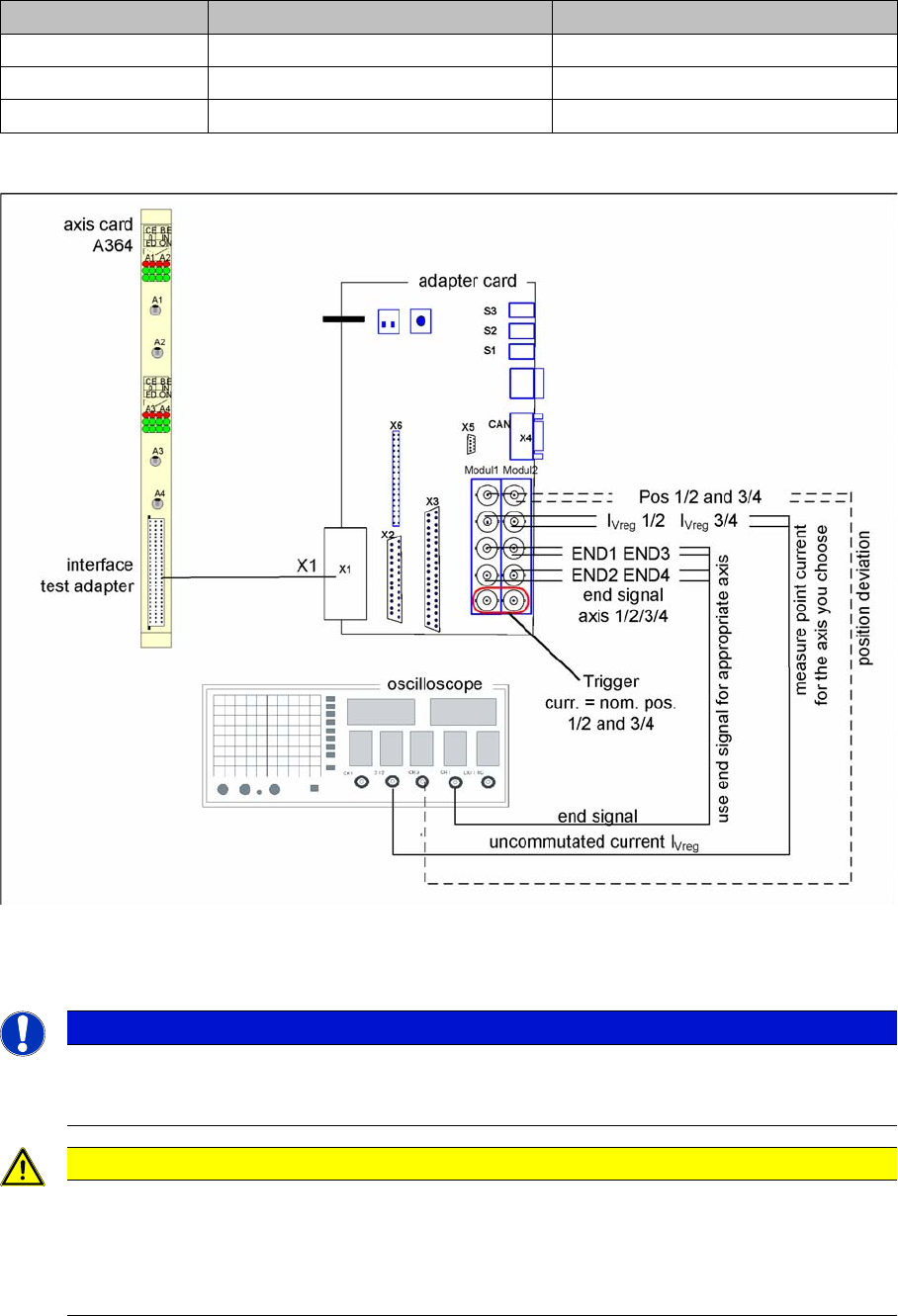

Measurement setup with axis test box
▪ Additional connection at channel 4 could be the actual position = target position signal from trigger
m1/2 of the adapter board or the position deviation.
Switches Top switch position Bottom switch position
S3 none none
S2 Signals from axis controller 3 (A3) Signals from axis controller 4 (A4)
S1 Signals from axis controller 1 (A1) Signals from axis controller 2 (A2)
NOTICE
Measure the signals directly on the adapter board!
The position deviation emitted there offers the advantage of showing the actual axis controller
function.
CAUTION
When checking the dynamics, it may be sufficient if you check the travel times and overshoot
behavior of the axis with the SIPLACE axis tester (SAT) display and the values in the settings
tables.
However, when checking for errors, you will need to use a suitable oscilloscope for the dynam-
ics analysis.
